| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_019T01_9000002718_18267cztM0_level2.evt | modeM0/AS1A05_019T01_9000002718_18267cztM0_level2_quad_clean.evt |
| Size (bytes) | 512,530,560 | 85,455,360 |
| Size | 488.8 MB | 81.5 MB |
| Events in quadrant A | 3,364,702 | 559,167 |
| Events in quadrant B | 3,380,639 | 567,924 |
| Events in quadrant C | 3,269,783 | 525,474 |
| Events in quadrant D | 5,088,888 | 504,674 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13643 | 2 |
| B | 0 | 13743 | 2 |
| C | 0 | 13411 | 2 |
| D | 0 | 19587 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6170 | 114 | 1.847650% |
| B | 6170 | 146 | 2.366288% |
| C | 6170 | 133 | 2.155592% |
| D | 6170 | 271 | 4.392220% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7525 | 6171 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7525 | 6171 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7525 | 6171 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7525 | 6171 | 142 | 142 | 1.89% | 2.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 23909 | 133.43 | 863 | 847 | 172.8 |
| A | 15 | 192 | 11978 | 64.4 | 863 | 847 | 172.8 |
| A | 11 | 29 | 9080 | 47.63 | 863 | 847 | 172.8 |
| B | 7 | 220 | 24512 | 145.81 | 858 | 838 | 162.4 |
| B | 12 | 111 | 18500 | 108.78 | 858 | 838 | 162.4 |
| B | 11 | 111 | 16007 | 93.43 | 858 | 838 | 162.4 |
| C | 14 | 238 | 127142 | 679.56 | 804 | 810 | 185.9 |
| C | 3 | 233 | 7279 | 34.8 | 804 | 810 | 185.9 |
| C | 13 | 61 | 5769 | 26.68 | 804 | 810 | 185.9 |
| D | 7 | 238 | 1189491 | 6100.09 | 808 | 786 | 194.9 |
| D | 1 | 52 | 669680 | 3432.57 | 808 | 786 | 194.9 |
| D | 13 | 168 | 121717 | 620.58 | 808 | 786 | 194.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

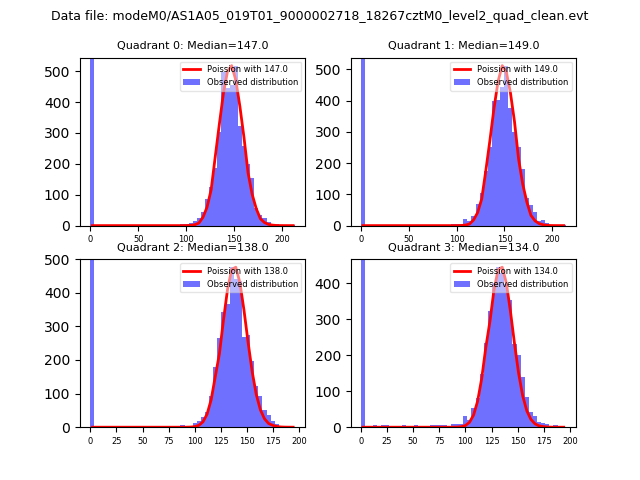

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

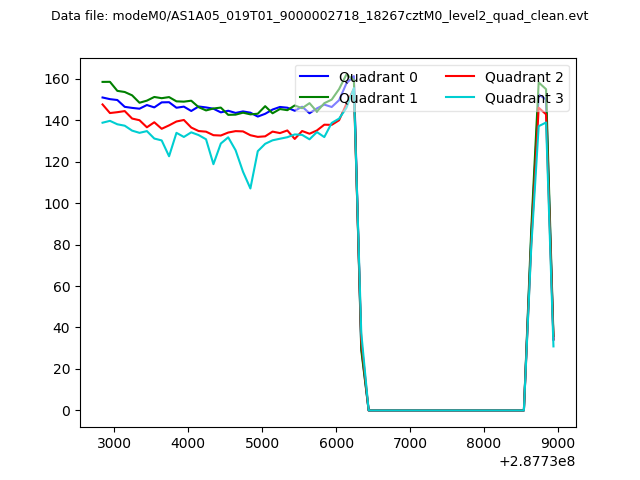

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

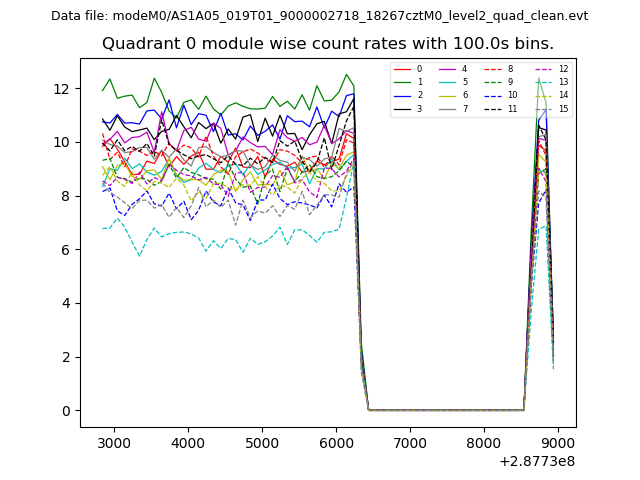

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

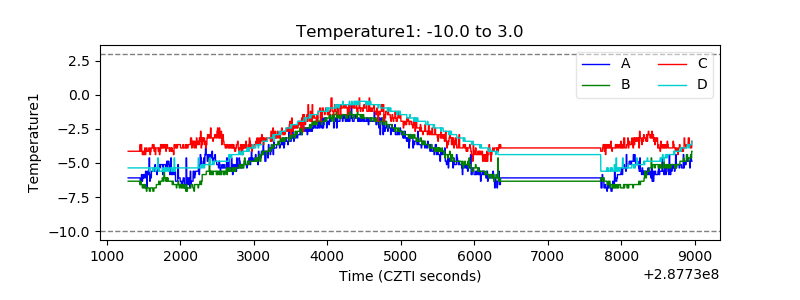

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

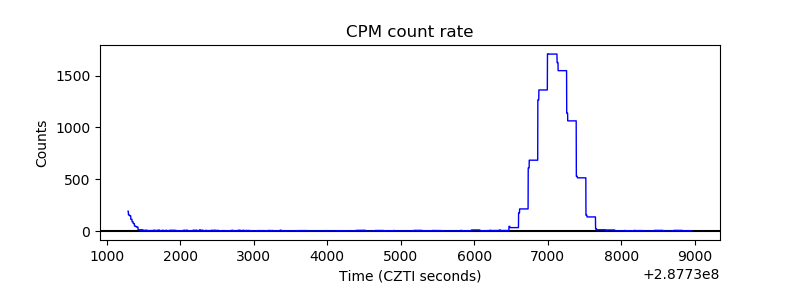

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
