| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_019T01_9000002718_18268cztM0_level2.evt | modeM0/AS1A05_019T01_9000002718_18268cztM0_level2_quad_clean.evt |
| Size (bytes) | 518,028,480 | 95,279,040 |
| Size | 494.0 MB | 90.9 MB |
| Events in quadrant A | 3,279,882 | 636,857 |
| Events in quadrant B | 3,329,964 | 642,441 |
| Events in quadrant C | 3,206,708 | 596,526 |
| Events in quadrant D | 5,446,754 | 571,957 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13378 | 2 |
| B | 0 | 13602 | 2 |
| C | 0 | 13266 | 2 |
| D | 0 | 20650 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6267 | 119 | 1.898835% |
| B | 6267 | 147 | 2.345620% |
| C | 6268 | 128 | 2.042119% |
| D | 6267 | 424 | 6.765598% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7492 | 6268 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7492 | 6268 | 6 | 6 | 0.08% | 0.10% |  |
| C | 7493 | 6269 | 0 | 0 | 0.00% | 0.00% |  |

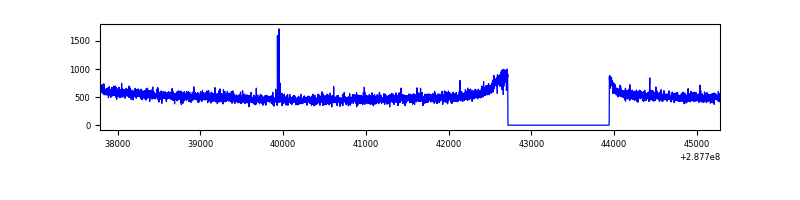

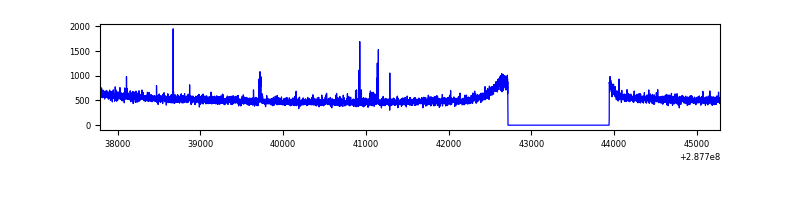

| D | 7492 | 6268 | 244 | 244 | 3.26% | 3.89% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 29900 | 171.13 | 844 | 827 | 169.9 |
| A | 0 | 226 | 7289 | 38.04 | 844 | 827 | 169.9 |
| A | 12 | 194 | 6128 | 31.2 | 844 | 827 | 169.9 |
| B | 7 | 220 | 23677 | 144.66 | 835 | 817 | 158.0 |
| B | 4 | 216 | 20063 | 121.79 | 835 | 817 | 158.0 |
| B | 12 | 111 | 18311 | 110.7 | 835 | 817 | 158.0 |
| C | 14 | 238 | 121674 | 662.67 | 787 | 792 | 182.4 |
| C | 3 | 233 | 9401 | 47.19 | 787 | 792 | 182.4 |
| C | 0 | 207 | 7670 | 37.71 | 787 | 792 | 182.4 |
| D | 1 | 52 | 1233056 | 6427.65 | 786 | 766 | 191.7 |
| D | 7 | 238 | 1044101 | 5442.05 | 786 | 766 | 191.7 |
| D | 13 | 168 | 93719 | 484.84 | 786 | 766 | 191.7 |

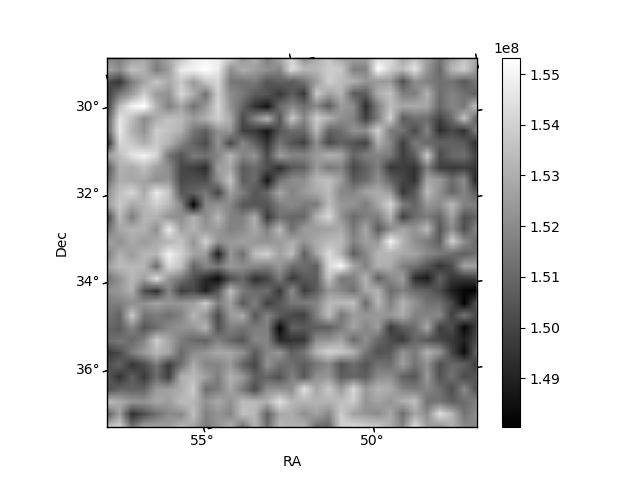

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

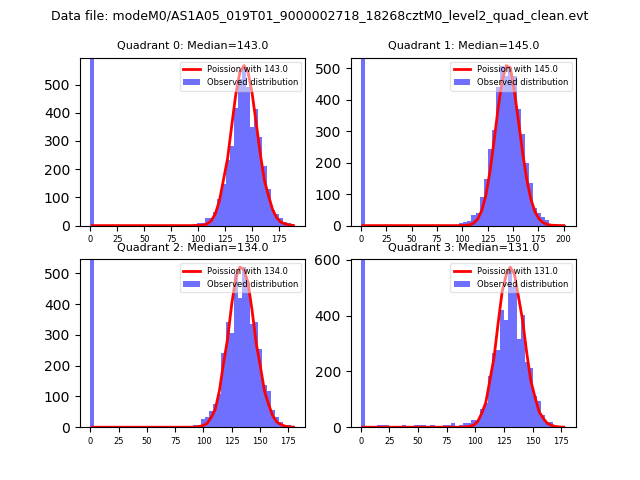

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

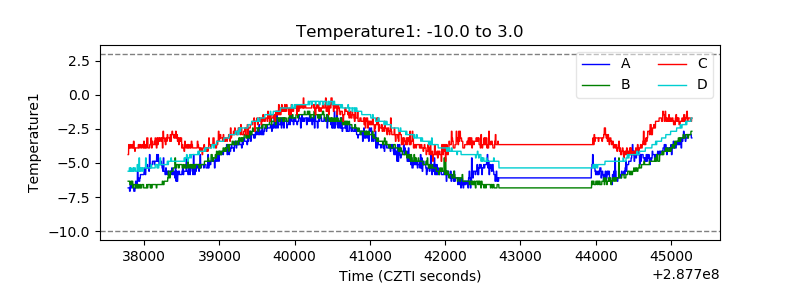

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

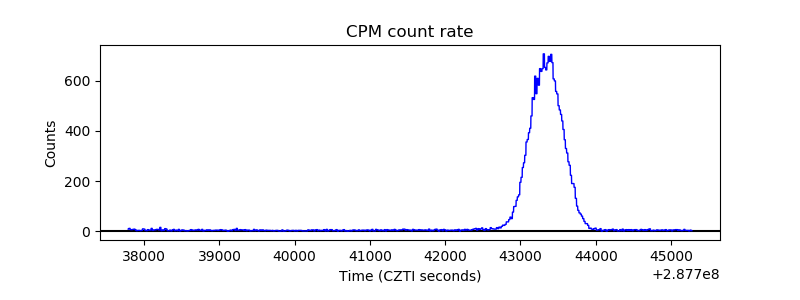

| _CPM_Rate |  |

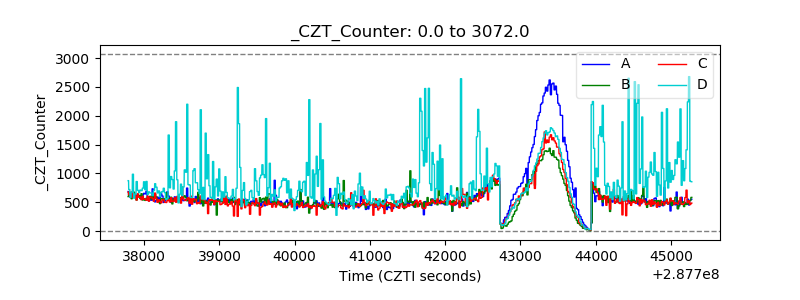

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

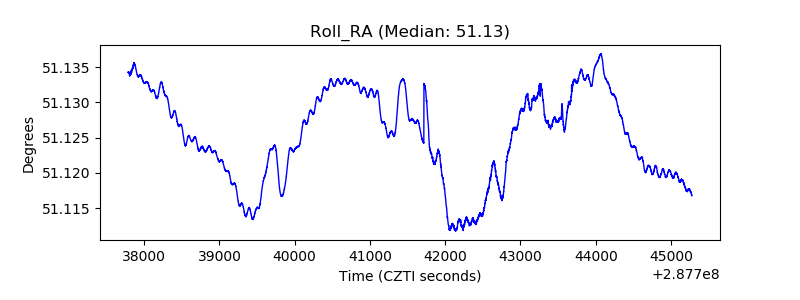

| _Roll_RA |  |
| Veto Counter |  |
