| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_006T01_9000002720_18278cztM0_level2.evt | modeM0/AS1A06_006T01_9000002720_18278cztM0_level2_quad_clean.evt |
| Size (bytes) | 495,990,720 | 76,573,440 |
| Size | 473.0 MB | 73.0 MB |
| Events in quadrant A | 3,244,084 | 472,641 |
| Events in quadrant B | 3,348,878 | 478,915 |
| Events in quadrant C | 3,250,828 | 460,530 |
| Events in quadrant D | 4,725,271 | 442,097 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13803 | 3 |
| B | 0 | 14111 | 2 |
| C | 0 | 13748 | 2 |
| D | 0 | 18499 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6659 | 21 | 0.315363% |
| B | 6659 | 40 | 0.600691% |
| C | 6659 | 61 | 0.916053% |
| D | 6659 | 153 | 2.297642% |

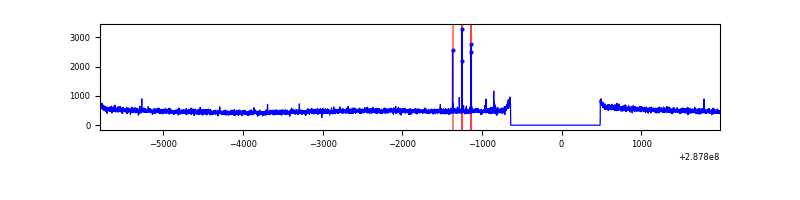

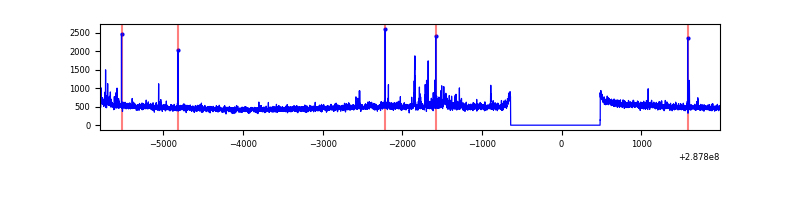

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

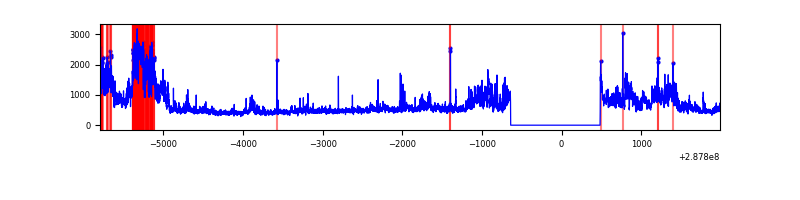

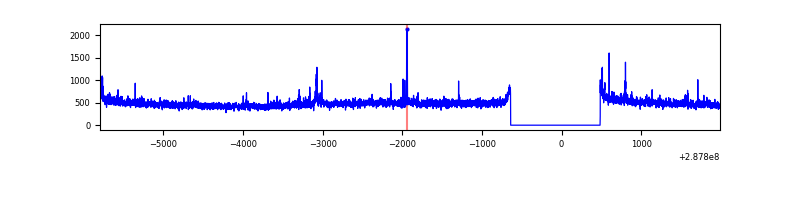

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7784 | 6660 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7784 | 6660 | 5 | 5 | 0.06% | 0.08% |  |
| C | 7784 | 6660 | 5 | 5 | 0.06% | 0.08% |  |
| D | 7784 | 6660 | 144 | 144 | 1.85% | 2.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 78544 | 471.16 | 819 | 804 | 165.0 |
| A | 4 | 2 | 9340 | 51.73 | 819 | 804 | 165.0 |
| A | 0 | 226 | 7040 | 37.79 | 819 | 804 | 165.0 |
| B | 7 | 220 | 49366 | 310.31 | 826 | 805 | 156.5 |
| B | 4 | 171 | 20806 | 127.81 | 826 | 805 | 156.5 |
| B | 12 | 111 | 17790 | 108.54 | 826 | 805 | 156.5 |
| C | 14 | 238 | 123643 | 666.02 | 791 | 800 | 184.4 |
| C | 0 | 207 | 31760 | 167.86 | 791 | 800 | 184.4 |
| C | 3 | 233 | 11300 | 56.93 | 791 | 800 | 184.4 |
| D | 7 | 238 | 1421062 | 7365.98 | 794 | 773 | 192.8 |
| D | 13 | 168 | 178554 | 922.02 | 794 | 773 | 192.8 |
| D | 1 | 52 | 40122 | 204.07 | 794 | 773 | 192.8 |

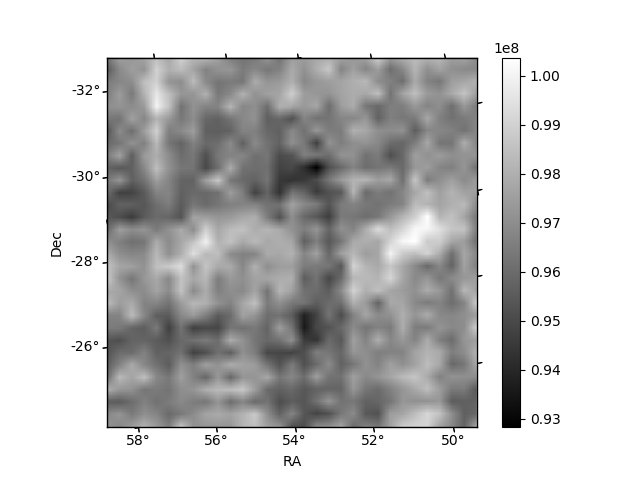

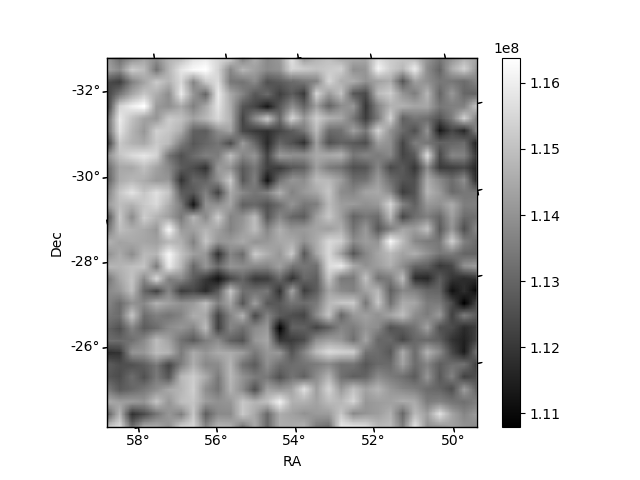

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

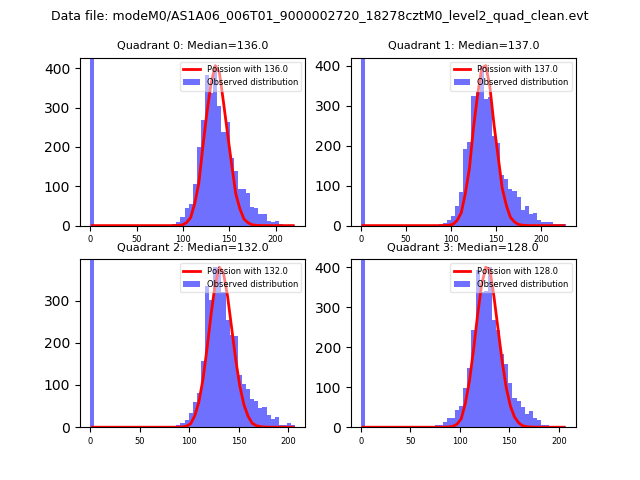

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

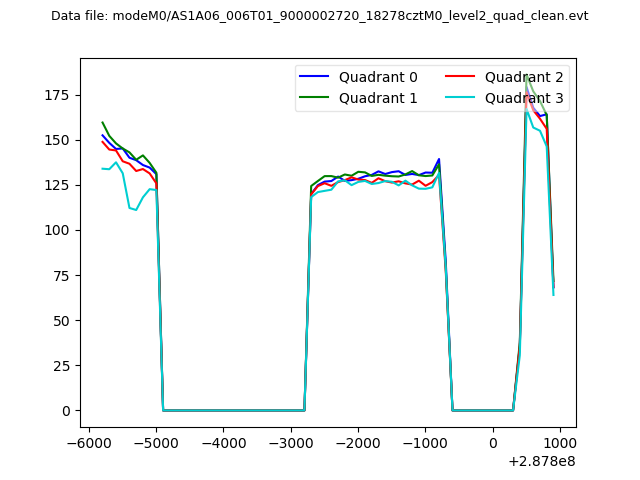

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

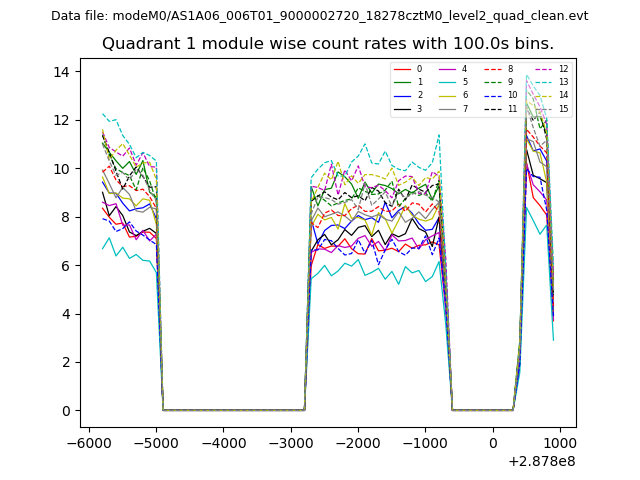

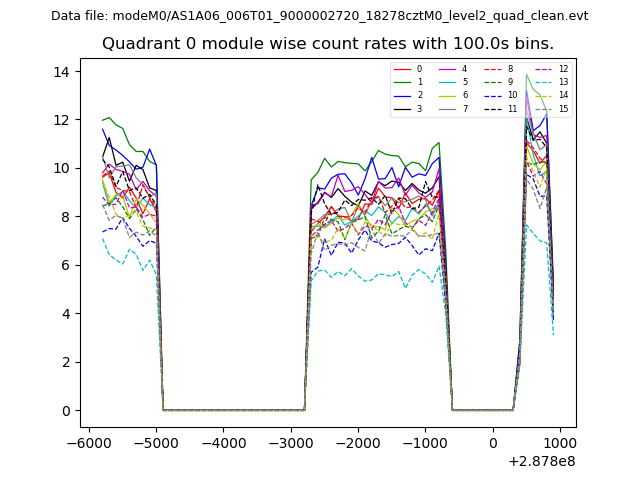

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

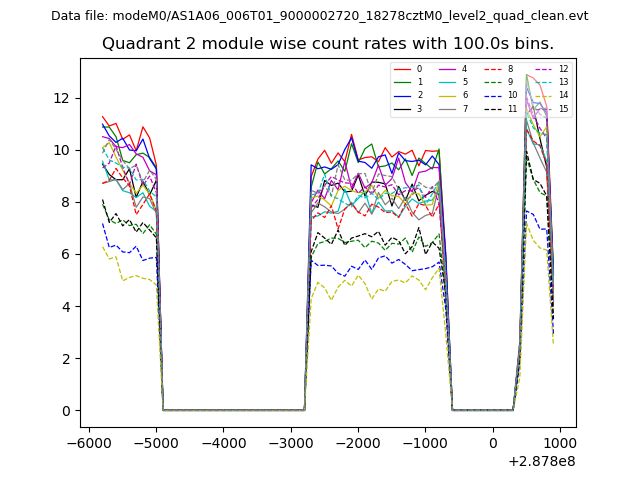

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

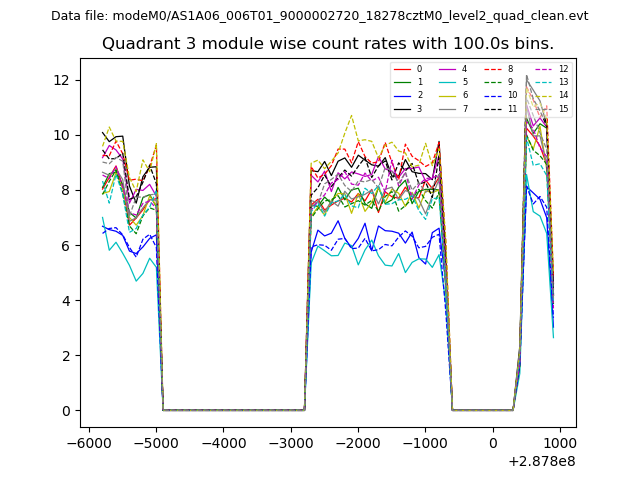

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

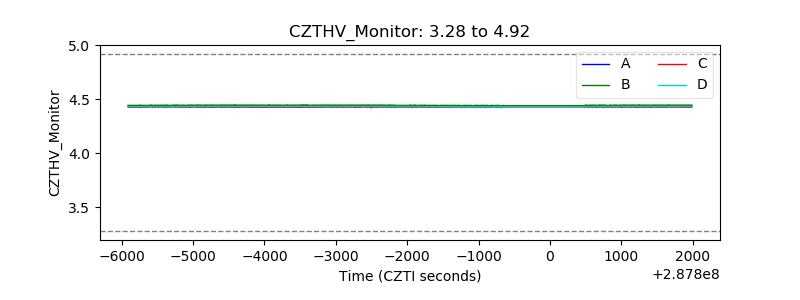

| CZT HV Monitor |  |

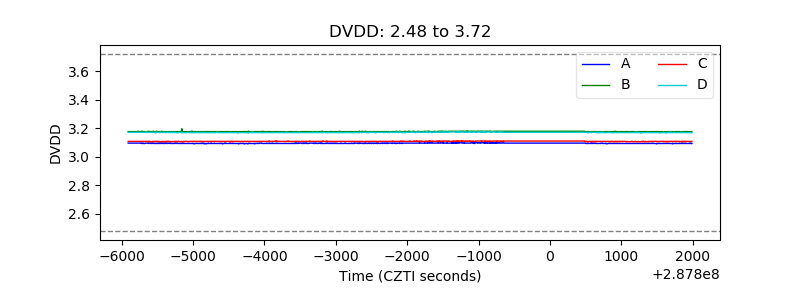

| D_VDD |  |

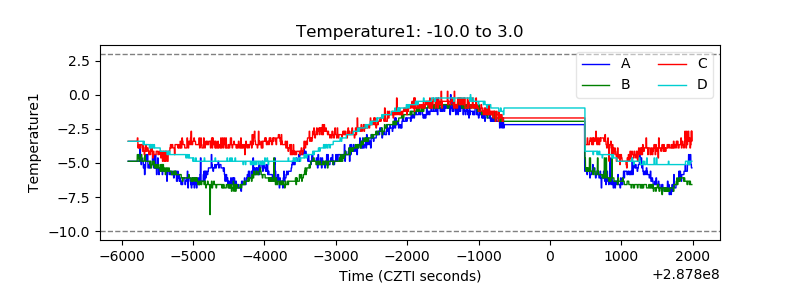

| Temperature 1 |  |

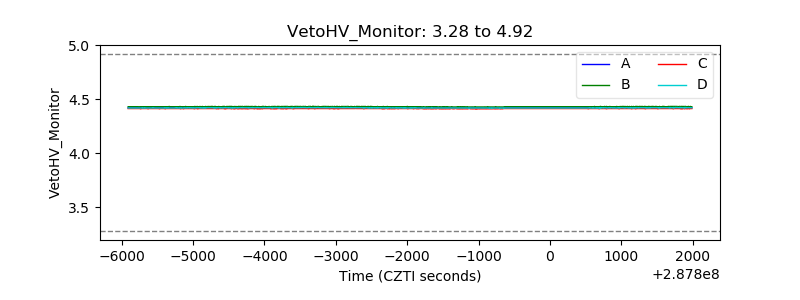

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

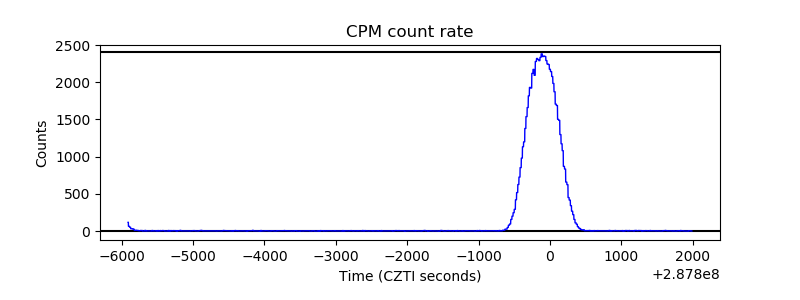

| _CPM_Rate |  |

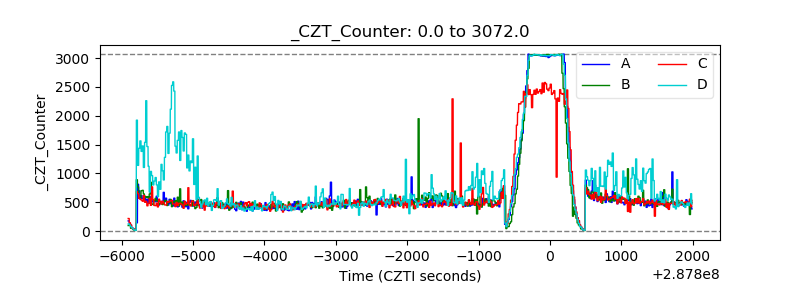

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

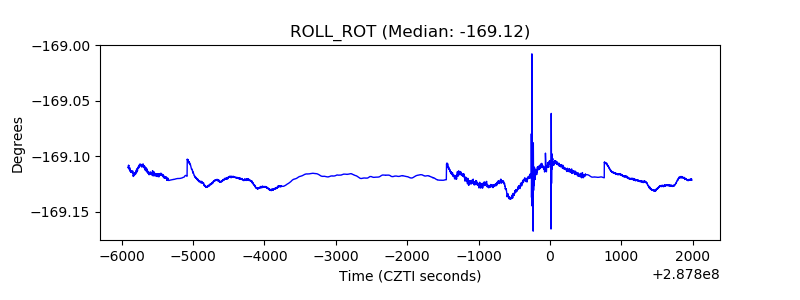

| _ROLL_ROT |  |

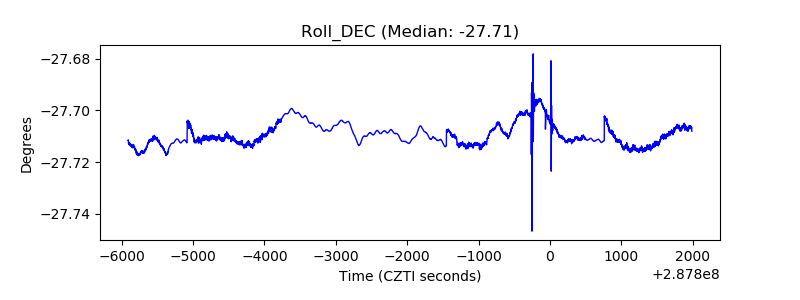

| _Roll_DEC |  |

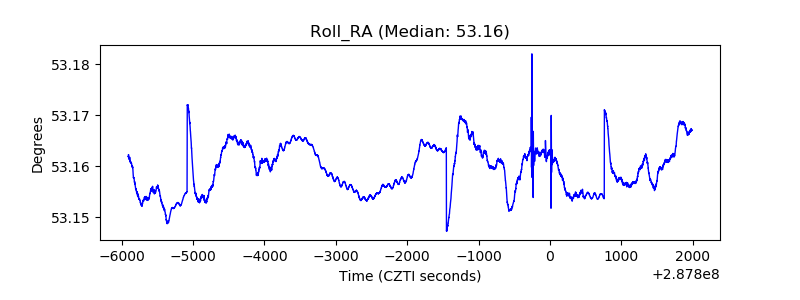

| _Roll_RA |  |

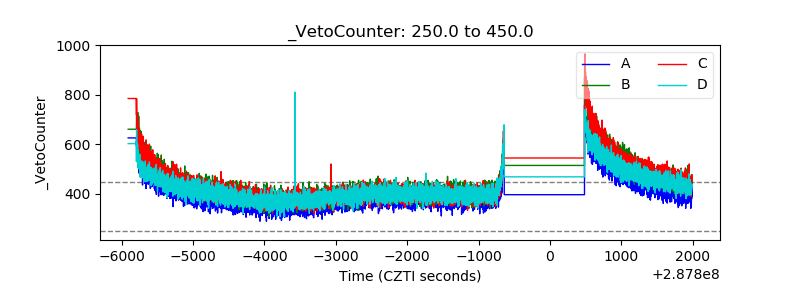

| Veto Counter |  |
