| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_006T01_9000002720_18279cztM0_level2.evt | modeM0/AS1A06_006T01_9000002720_18279cztM0_level2_quad_clean.evt |
| Size (bytes) | 511,274,880 | 67,124,160 |
| Size | 487.6 MB | 64.0 MB |
| Events in quadrant A | 3,491,982 | 401,222 |
| Events in quadrant B | 3,340,009 | 408,526 |
| Events in quadrant C | 3,275,749 | 395,029 |
| Events in quadrant D | 4,940,432 | 378,873 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14376 | 2 |
| B | 0 | 13778 | 2 |
| C | 0 | 13603 | 2 |
| D | 0 | 19122 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6425 | 82 | 1.276265% |
| B | 6425 | 44 | 0.684825% |
| C | 6425 | 61 | 0.949416% |
| D | 6425 | 93 | 1.447471% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

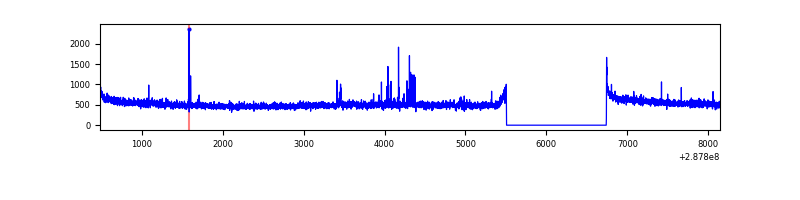

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7660 | 6426 | 49 | 49 | 0.64% | 0.76% |  |
| B | 7660 | 6426 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7660 | 6426 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7660 | 6426 | 70 | 70 | 0.91% | 1.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 287655 | 1730.36 | 830 | 816 | 165.8 |
| A | 13 | 210 | 8458 | 46.1 | 830 | 816 | 165.8 |
| A | 0 | 226 | 7187 | 38.43 | 830 | 816 | 165.8 |
| B | 7 | 220 | 31936 | 197.17 | 839 | 822 | 157.8 |
| B | 12 | 111 | 17817 | 107.7 | 839 | 822 | 157.8 |
| B | 11 | 111 | 15032 | 90.05 | 839 | 822 | 157.8 |
| C | 14 | 238 | 128655 | 688.67 | 805 | 813 | 185.6 |
| C | 3 | 233 | 6340 | 29.77 | 805 | 813 | 185.6 |
| C | 13 | 61 | 5809 | 26.91 | 805 | 813 | 185.6 |
| D | 7 | 238 | 1650599 | 8432.61 | 807 | 787 | 195.6 |
| D | 13 | 168 | 115770 | 587.71 | 807 | 787 | 195.6 |
| D | 7 | 96 | 37565 | 187.98 | 807 | 787 | 195.6 |

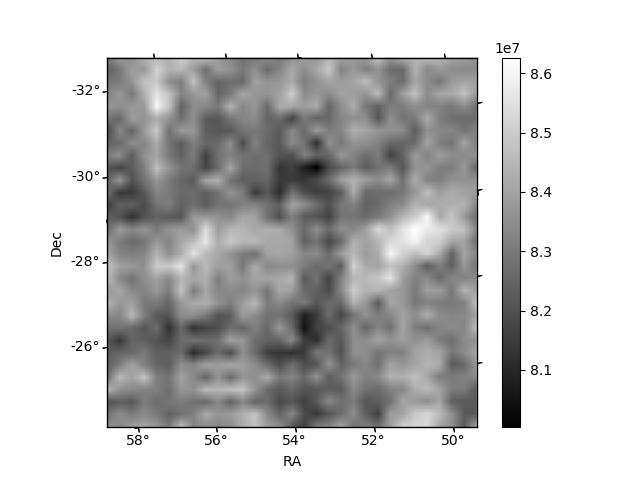

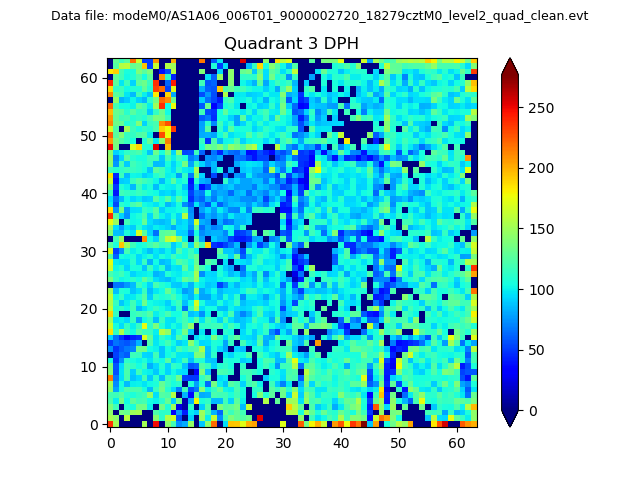

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

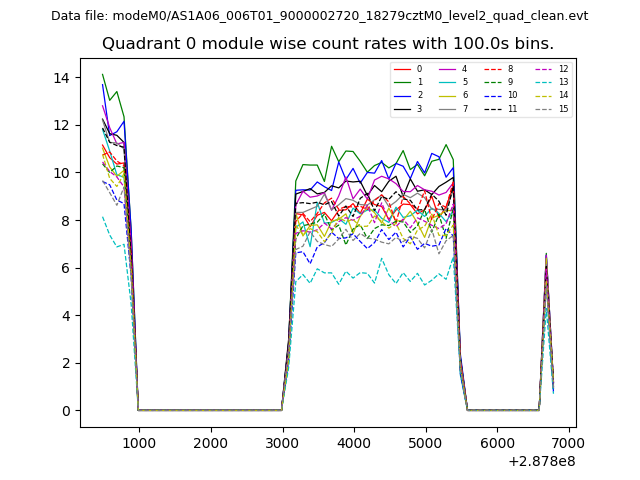

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

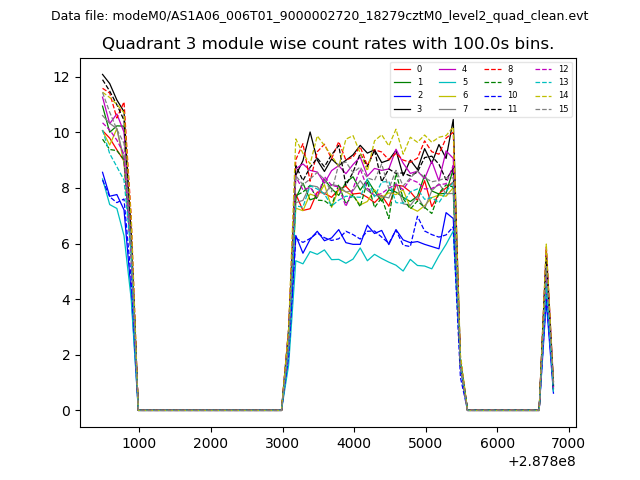

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

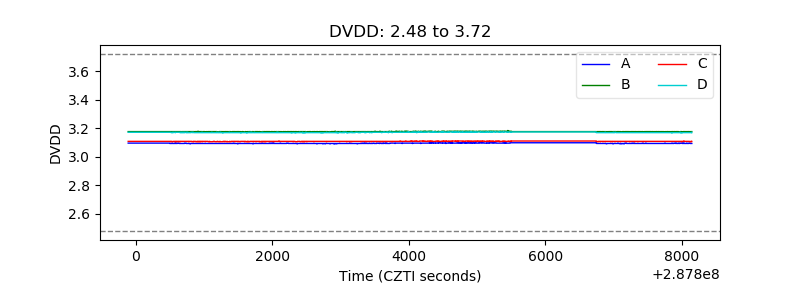

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

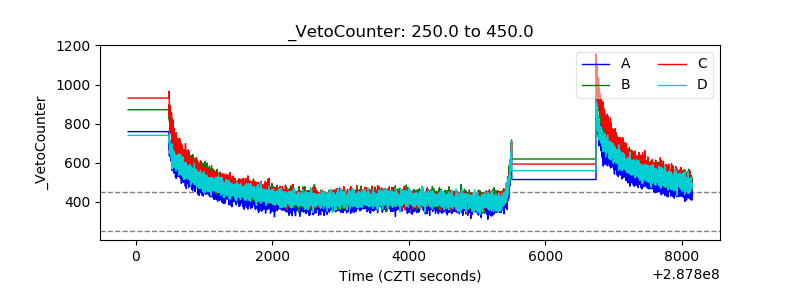

| Veto Counter |  |
