| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_006T01_9000002720_18282cztM0_level2.evt | modeM0/AS1A06_006T01_9000002720_18282cztM0_level2_quad_clean.evt |
| Size (bytes) | 589,878,720 | 82,676,160 |
| Size | 562.6 MB | 78.8 MB |
| Events in quadrant A | 3,314,163 | 534,353 |
| Events in quadrant B | 3,694,053 | 532,786 |
| Events in quadrant C | 3,408,265 | 520,443 |
| Events in quadrant D | 7,026,675 | 481,022 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13502 | 2 |
| B | 0 | 14738 | 2 |
| C | 0 | 13869 | 2 |
| D | 0 | 25341 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6234 | 92 | 1.475778% |
| B | 6233 | 143 | 2.294240% |
| C | 6233 | 154 | 2.470720% |
| D | 6233 | 576 | 9.241136% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

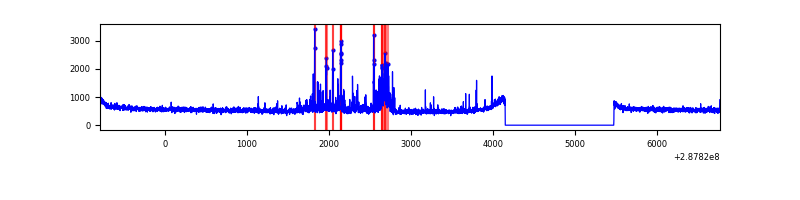

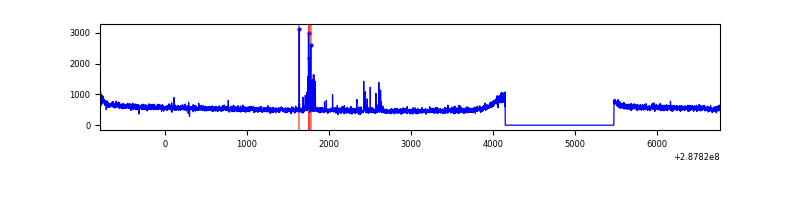

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7559 | 6235 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7558 | 6234 | 25 | 25 | 0.33% | 0.40% |  |
| C | 7558 | 6234 | 4 | 4 | 0.05% | 0.06% |  |
| D | 7558 | 6234 | 440 | 440 | 5.82% | 7.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7681 | 39.97 | 859 | 846 | 171.0 |
| A | 12 | 194 | 6173 | 31.15 | 859 | 846 | 171.0 |
| A | 3 | 137 | 5737 | 28.6 | 859 | 846 | 171.0 |
| B | 0 | 190 | 144592 | 895.3 | 853 | 834 | 160.6 |
| B | 7 | 220 | 116633 | 721.18 | 853 | 834 | 160.6 |
| B | 0 | 244 | 42887 | 261.9 | 853 | 834 | 160.6 |
| C | 14 | 238 | 126926 | 669.75 | 821 | 829 | 188.3 |
| C | 0 | 207 | 56836 | 297.48 | 821 | 829 | 188.3 |
| C | 3 | 233 | 17876 | 90.54 | 821 | 829 | 188.3 |
| D | 7 | 238 | 2780627 | 14067.93 | 817 | 794 | 197.6 |
| D | 1 | 52 | 617818 | 3122.58 | 817 | 794 | 197.6 |
| D | 13 | 168 | 480685 | 2428.59 | 817 | 794 | 197.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

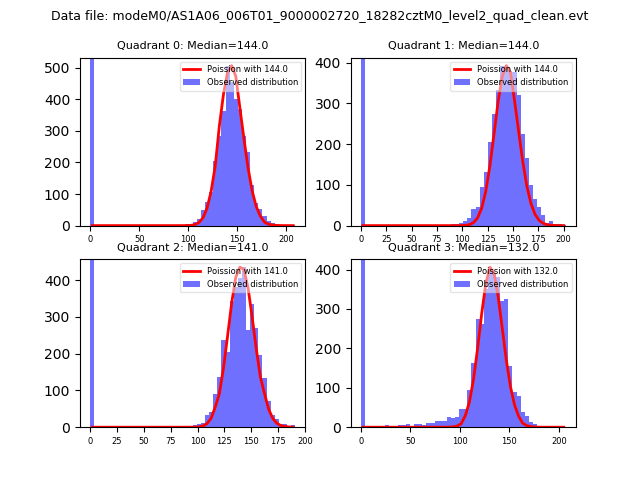

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

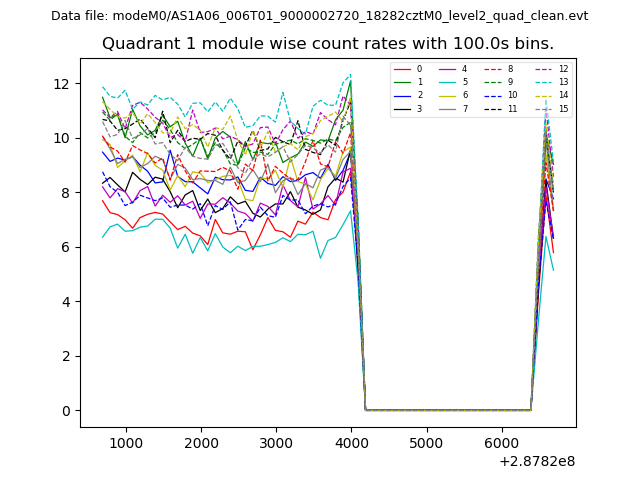

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

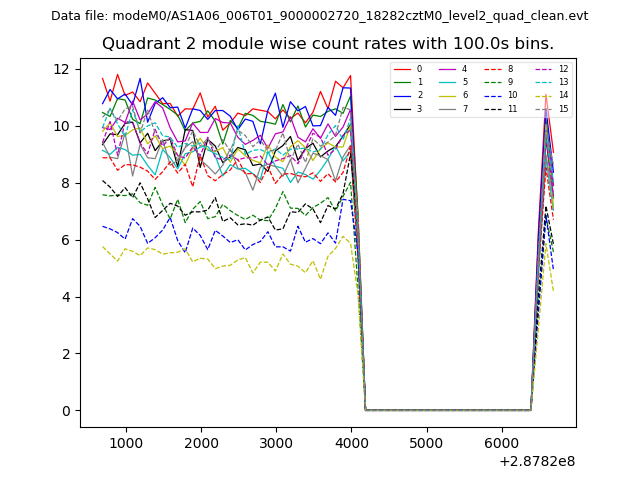

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

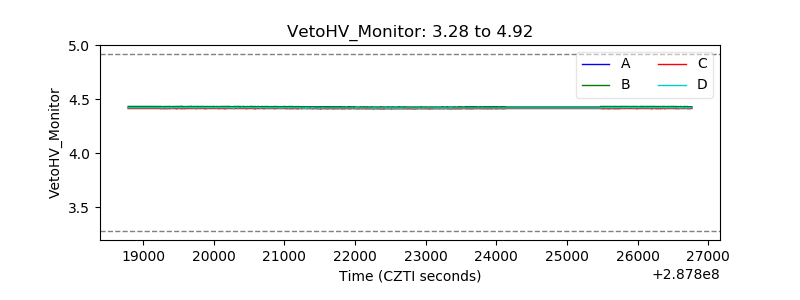

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

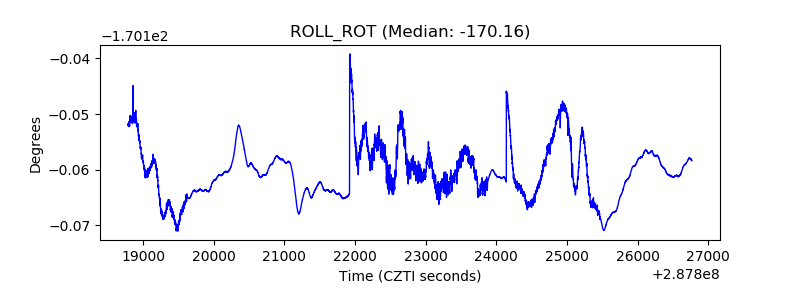

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

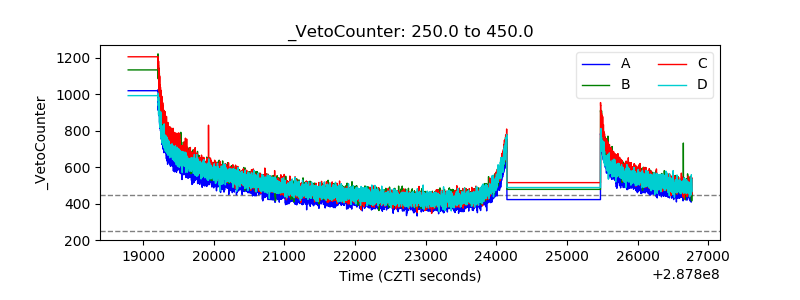

| Veto Counter |  |
