| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_006T01_9000002720_18298cztM0_level2.evt | modeM0/AS1A06_006T01_9000002720_18298cztM0_level2_quad_clean.evt |
| Size (bytes) | 596,315,520 | 91,857,600 |
| Size | 568.7 MB | 87.6 MB |
| Events in quadrant A | 3,482,662 | 597,499 |
| Events in quadrant B | 3,518,223 | 601,752 |
| Events in quadrant C | 3,364,743 | 586,608 |
| Events in quadrant D | 7,236,963 | 525,594 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14427 | 2 |
| B | 0 | 14456 | 2 |
| C | 0 | 14106 | 2 |
| D | 0 | 26116 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6738 | 146 | 2.166815% |
| B | 6738 | 128 | 1.899673% |
| C | 6737 | 175 | 2.597595% |
| D | 6737 | 1040 | 15.437138% |

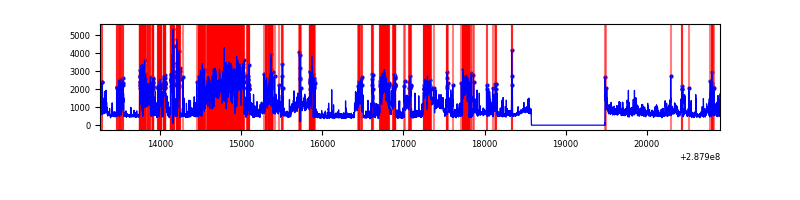

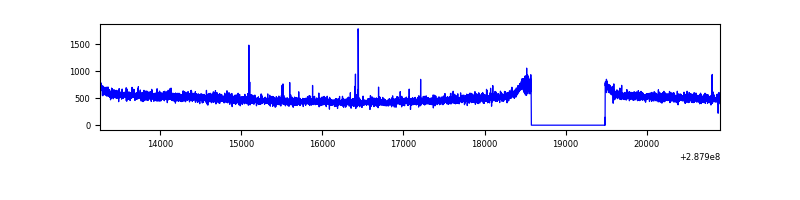

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7648 | 6738 | 8 | 8 | 0.10% | 0.12% |  |
| B | 7648 | 6738 | 5 | 5 | 0.07% | 0.07% |  |
| C | 7647 | 6738 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7647 | 6738 | 895 | 895 | 11.70% | 13.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 83227 | 468.83 | 864 | 847 | 175.7 |
| A | 15 | 174 | 41685 | 232.41 | 864 | 847 | 175.7 |
| A | 9 | 143 | 39083 | 217.6 | 864 | 847 | 175.7 |
| B | 0 | 190 | 83857 | 511.17 | 860 | 840 | 162.4 |
| B | 4 | 216 | 20090 | 118.53 | 860 | 840 | 162.4 |
| B | 0 | 197 | 19040 | 112.06 | 860 | 840 | 162.4 |
| C | 14 | 238 | 127866 | 662.91 | 824 | 831 | 191.6 |
| C | 3 | 233 | 7937 | 37.08 | 824 | 831 | 191.6 |
| C | 0 | 207 | 5883 | 26.36 | 824 | 831 | 191.6 |
| D | 7 | 238 | 1989466 | 10262.65 | 795 | 774 | 193.8 |
| D | 1 | 52 | 1859371 | 9591.29 | 795 | 774 | 193.8 |
| D | 13 | 168 | 245274 | 1261.74 | 795 | 774 | 193.8 |

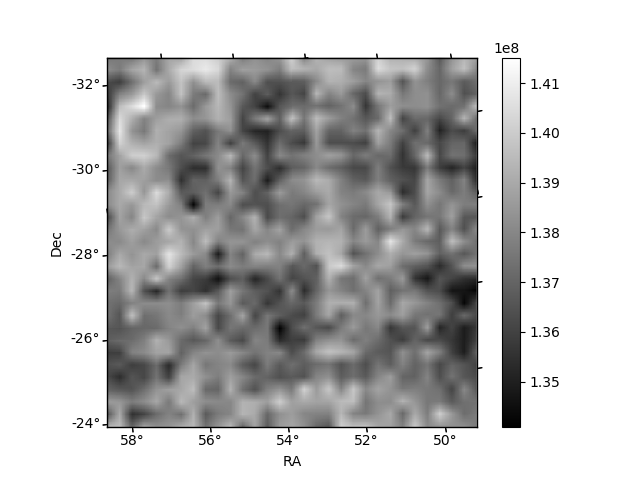

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

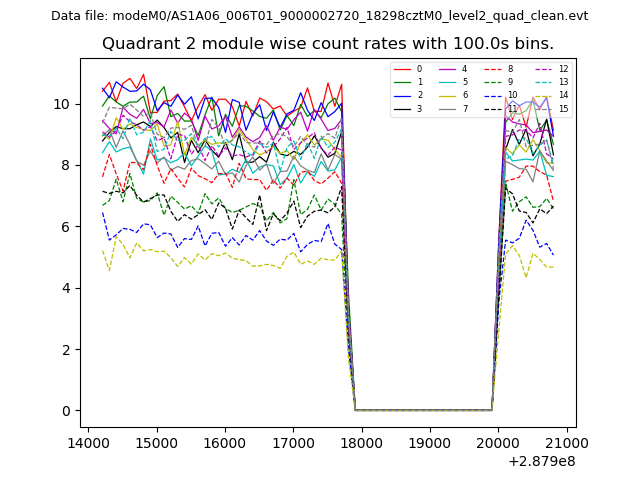

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

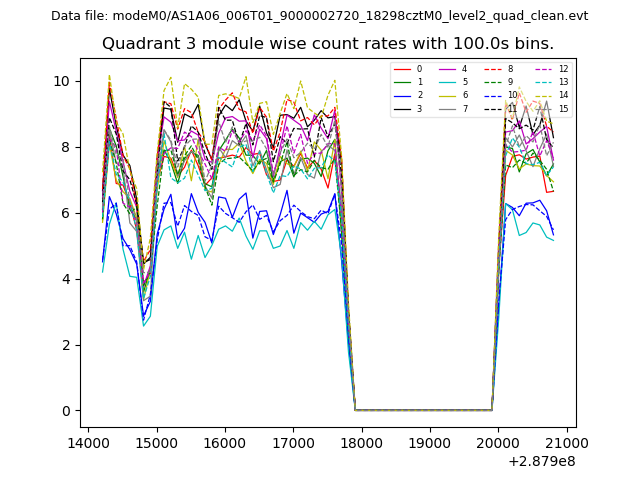

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

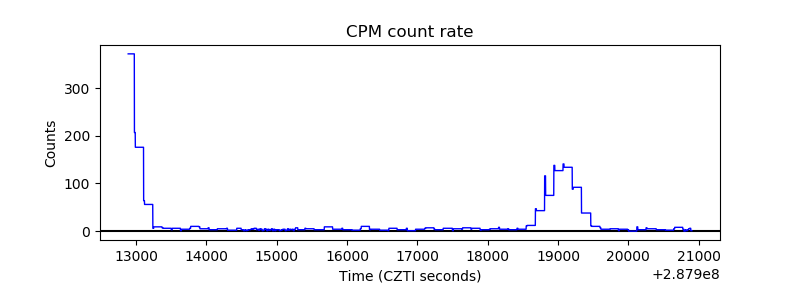

| _CPM_Rate |  |

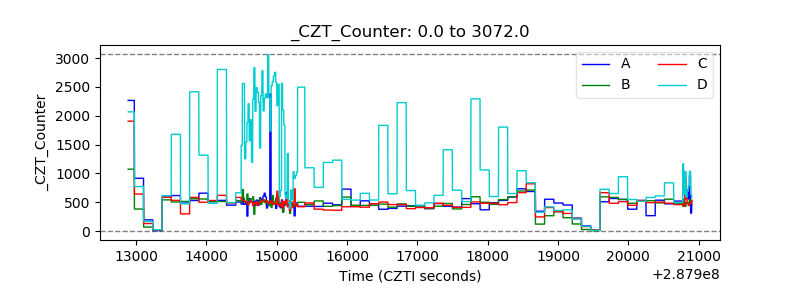

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

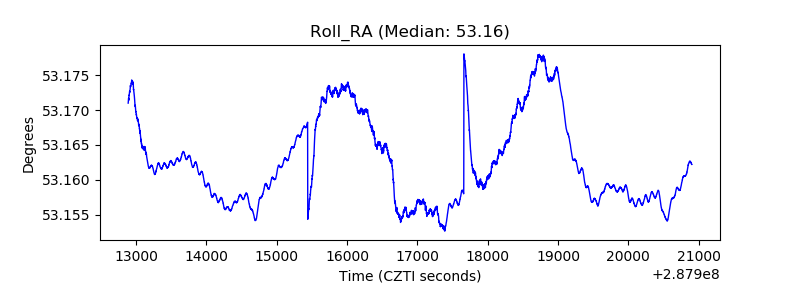

| _Roll_RA |  |
| Veto Counter |  |
