| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_006T01_9000002720_18304cztM0_level2.evt | modeM0/AS1A06_006T01_9000002720_18304cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,405,641,600 | 225,095,040 |
| Size | 1.3 GB | 214.7 MB |
| Events in quadrant A | 8,361,192 | 1,430,855 |
| Events in quadrant B | 8,737,510 | 1,433,245 |
| Events in quadrant C | 8,380,752 | 1,397,600 |
| Events in quadrant D | 15,873,305 | 1,312,734 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 368 | 0 |
| B | 0 | 368 | 0 |
| C | 0 | 368 | 0 |
| D | 0 | 368 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36966 | 3 |
| B | 0 | 37634 | 3 |
| C | 0 | 36864 | 3 |
| D | 0 | 59618 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18025 | 90 | 0.499307% |
| B | 18026 | 121 | 0.671253% |
| C | 18026 | 138 | 0.765561% |
| D | 18026 | 1579 | 8.759570% |

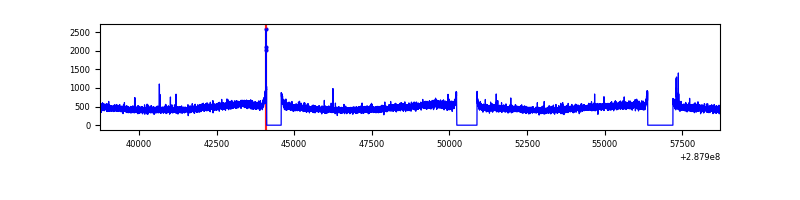

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19965 | 18027 | 0 | 0 | 0.00% | 0.00% |  |
| B | 19966 | 18028 | 16 | 16 | 0.08% | 0.09% |  |
| C | 19966 | 18028 | 3 | 3 | 0.02% | 0.02% |  |
| D | 19966 | 18028 | 1359 | 1359 | 6.81% | 7.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 59962 | 133.59 | 2145 | 2101 | 433.1 |
| A | 9 | 143 | 29254 | 62.69 | 2145 | 2101 | 433.1 |
| A | 0 | 226 | 18886 | 38.75 | 2145 | 2101 | 433.1 |
| B | 0 | 244 | 66174 | 155.14 | 2149 | 2096 | 413.0 |
| B | 7 | 220 | 64341 | 150.7 | 2149 | 2096 | 413.0 |
| B | 4 | 216 | 49231 | 114.12 | 2149 | 2096 | 413.0 |
| C | 14 | 238 | 311903 | 644.25 | 2054 | 2064 | 480.9 |
| C | 0 | 207 | 24688 | 47.04 | 2054 | 2064 | 480.9 |
| C | 3 | 233 | 21994 | 41.44 | 2054 | 2064 | 480.9 |
| D | 7 | 238 | 5466310 | 11020.46 | 2026 | 1963 | 495.8 |
| D | 1 | 52 | 1499447 | 3020.12 | 2026 | 1963 | 495.8 |
| D | 13 | 168 | 912916 | 1837.2 | 2026 | 1963 | 495.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

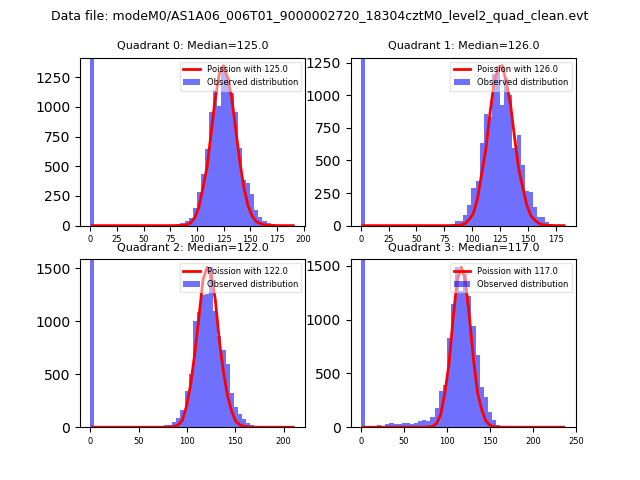

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

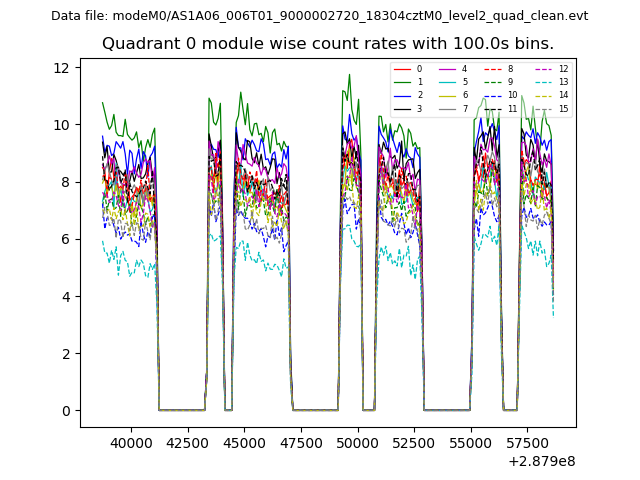

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

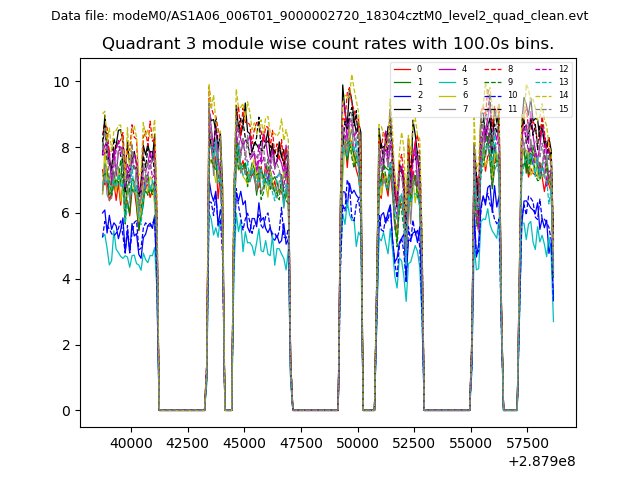

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

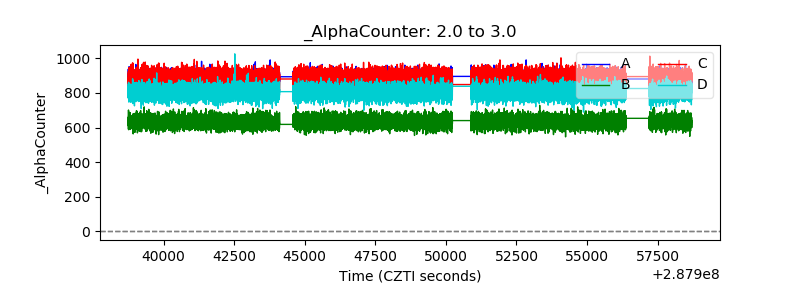

| Alpha Counter |  |

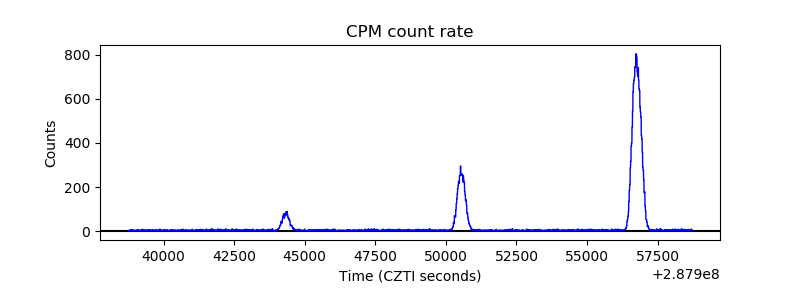

| _CPM_Rate |  |

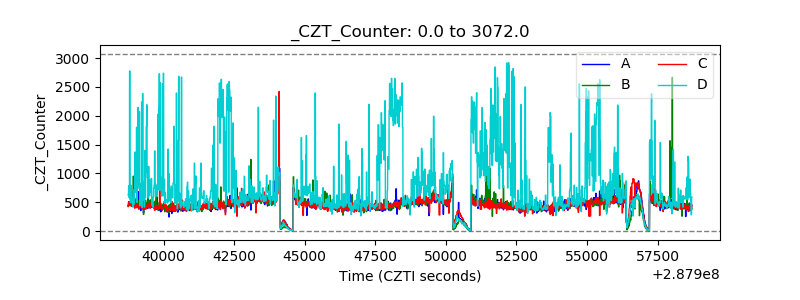

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

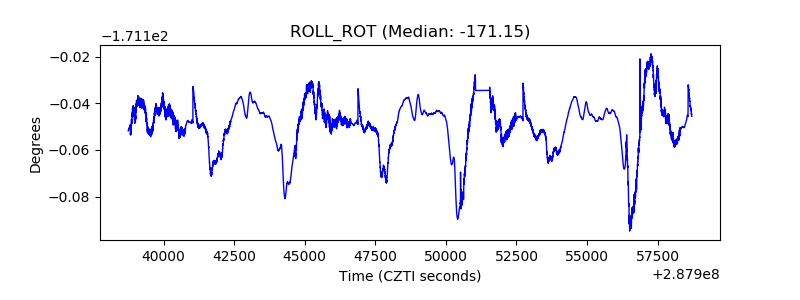

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
