| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_006T01_9000002720_18320cztM0_level2.evt | modeM0/AS1A06_006T01_9000002720_18320cztM0_level2_quad_clean.evt |
| Size (bytes) | 492,033,600 | 86,149,440 |
| Size | 469.2 MB | 82.2 MB |
| Events in quadrant A | 3,249,727 | 541,835 |
| Events in quadrant B | 3,478,167 | 548,288 |
| Events in quadrant C | 3,283,046 | 531,713 |
| Events in quadrant D | 4,425,701 | 509,945 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14093 | 2 |
| B | 0 | 14733 | 2 |
| C | 0 | 14002 | 2 |
| D | 0 | 17740 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6847 | 30 | 0.438148% |
| B | 6847 | 66 | 0.963926% |
| C | 6847 | 43 | 0.628012% |
| D | 6847 | 163 | 2.380605% |

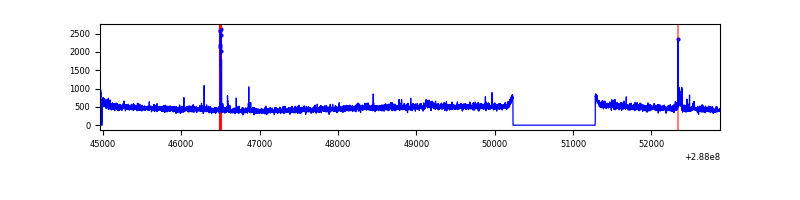

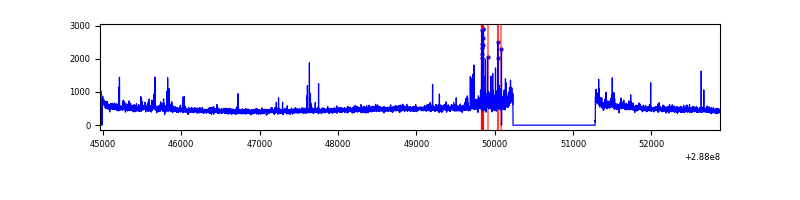

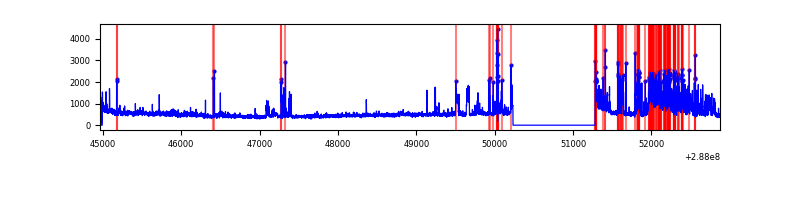

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7912 | 6849 | 8 | 8 | 0.10% | 0.12% |  |
| B | 7912 | 6848 | 13 | 13 | 0.16% | 0.19% |  |
| C | 7912 | 6849 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7912 | 6849 | 139 | 139 | 1.76% | 2.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 59450 | 346.84 | 829 | 810 | 169.1 |
| A | 0 | 226 | 7201 | 37.8 | 829 | 810 | 169.1 |
| A | 12 | 194 | 5972 | 30.53 | 829 | 810 | 169.1 |
| B | 7 | 220 | 158708 | 994.01 | 833 | 812 | 158.8 |
| B | 0 | 197 | 29350 | 179.66 | 833 | 812 | 158.8 |
| B | 12 | 111 | 18204 | 109.49 | 833 | 812 | 158.8 |
| C | 14 | 238 | 122923 | 653.39 | 798 | 803 | 186.9 |
| C | 3 | 233 | 21732 | 111.98 | 798 | 803 | 186.9 |
| C | 0 | 207 | 13520 | 68.04 | 798 | 803 | 186.9 |
| D | 7 | 238 | 734404 | 3752.06 | 798 | 774 | 195.5 |
| D | 1 | 52 | 262908 | 1340.65 | 798 | 774 | 195.5 |
| D | 2 | 69 | 134890 | 685.92 | 798 | 774 | 195.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

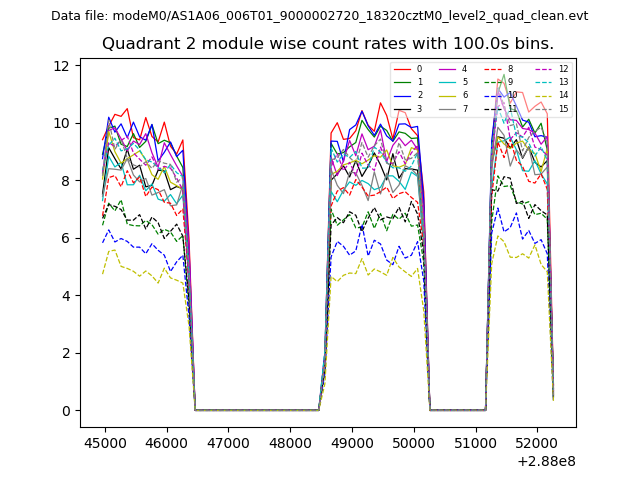

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

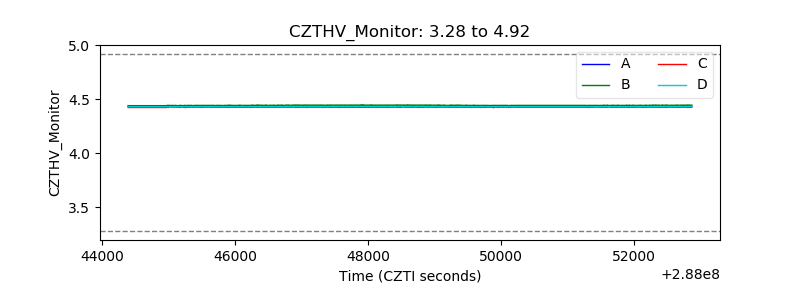

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

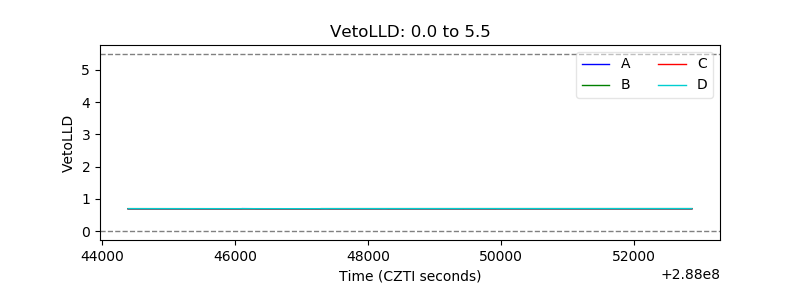

| Veto LLD |  |
| Alpha Counter |  |

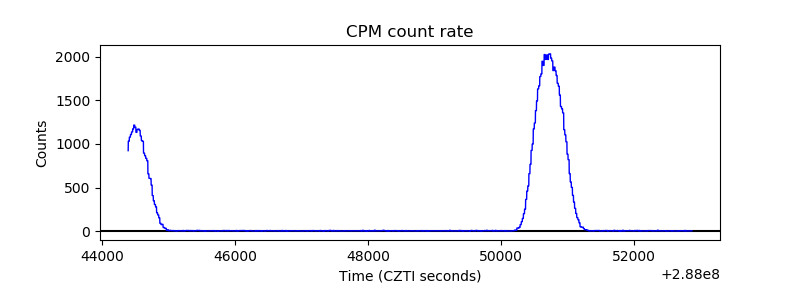

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

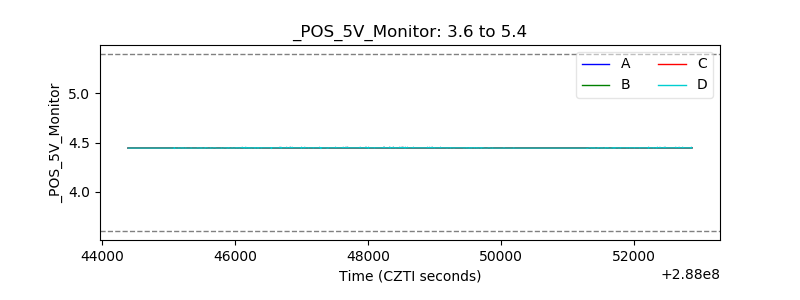

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
