| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_006T01_9000002720_18324cztM0_level2.evt | modeM0/AS1A06_006T01_9000002720_18324cztM0_level2_quad_clean.evt |
| Size (bytes) | 558,826,560 | 64,800,000 |
| Size | 532.9 MB | 61.8 MB |
| Events in quadrant A | 3,239,858 | 389,353 |
| Events in quadrant B | 3,437,104 | 394,617 |
| Events in quadrant C | 3,462,668 | 385,210 |
| Events in quadrant D | 6,366,674 | 362,225 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13131 | 1 |
| B | 0 | 13795 | 1 |
| C | 0 | 13999 | 1 |
| D | 0 | 22932 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6171 | 34 | 0.550964% |
| B | 6171 | 62 | 1.004699% |
| C | 6171 | 73 | 1.182953% |
| D | 6171 | 1145 | 18.554529% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7546 | 6173 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7546 | 6173 | 9 | 9 | 0.12% | 0.15% |  |
| C | 7546 | 6173 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7546 | 6173 | 1131 | 1131 | 14.99% | 18.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7270 | 38.49 | 840 | 825 | 167.4 |
| A | 8 | 32 | 7163 | 37.85 | 840 | 825 | 167.4 |
| A | 12 | 194 | 6038 | 31.13 | 840 | 825 | 167.4 |
| B | 7 | 220 | 57249 | 358.42 | 846 | 829 | 157.4 |
| B | 4 | 216 | 22568 | 138.1 | 846 | 829 | 157.4 |
| B | 0 | 189 | 21483 | 131.21 | 846 | 829 | 157.4 |
| C | 3 | 233 | 154262 | 825.32 | 814 | 821 | 185.9 |
| C | 14 | 238 | 128875 | 688.77 | 814 | 821 | 185.9 |
| C | 13 | 61 | 5834 | 26.96 | 814 | 821 | 185.9 |
| D | 7 | 238 | 2988950 | 16101.18 | 763 | 742 | 185.6 |
| D | 2 | 69 | 239593 | 1286.99 | 763 | 742 | 185.6 |
| D | 13 | 104 | 107815 | 576.93 | 763 | 742 | 185.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

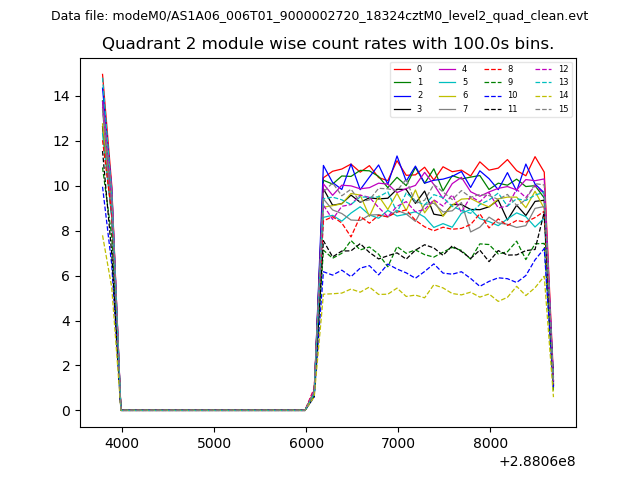

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

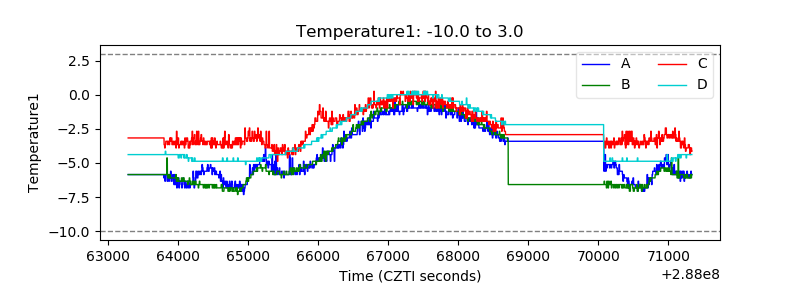

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

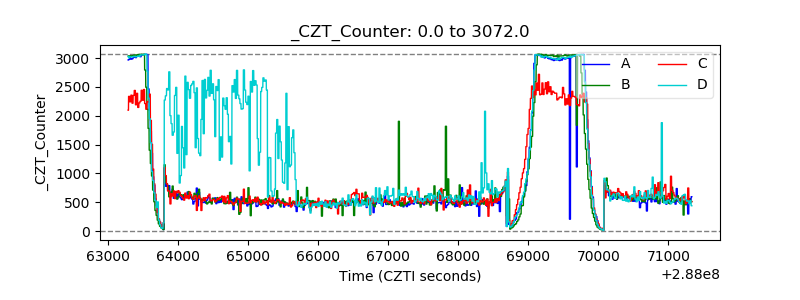

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

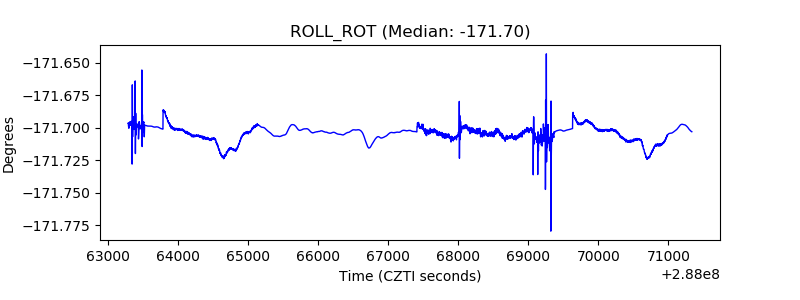

| _ROLL_ROT |  |
| _Roll_DEC |  |

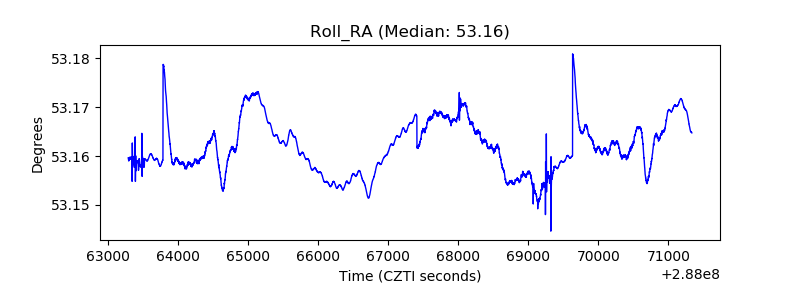

| _Roll_RA |  |
| Veto Counter |  |
