| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_006T01_9000002720_18328cztM0_level2.evt | modeM0/AS1A06_006T01_9000002720_18328cztM0_level2_quad_clean.evt |
| Size (bytes) | 533,324,160 | 93,715,200 |
| Size | 508.6 MB | 89.4 MB |
| Events in quadrant A | 3,477,143 | 594,212 |
| Events in quadrant B | 3,869,495 | 594,923 |
| Events in quadrant C | 3,740,045 | 585,341 |
| Events in quadrant D | 4,580,773 | 566,580 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14822 | 1 |
| B | 0 | 15840 | 1 |
| C | 0 | 15158 | 1 |
| D | 0 | 18210 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7131 | 131 | 1.837050% |
| B | 7132 | 189 | 2.650028% |
| C | 7132 | 153 | 2.145261% |
| D | 7132 | 283 | 3.968031% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

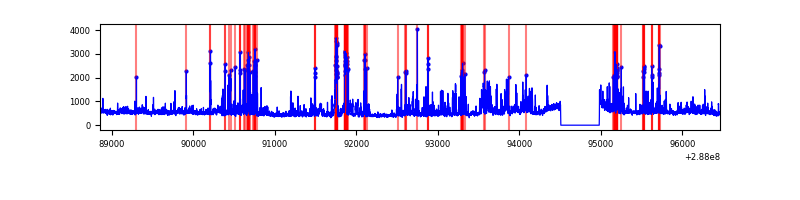

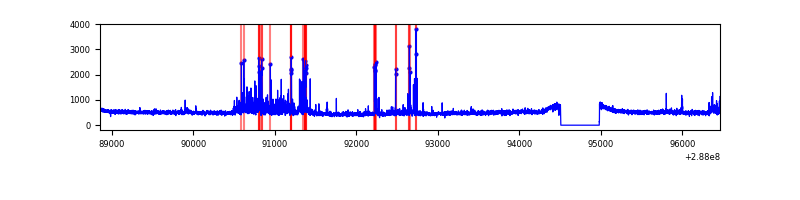

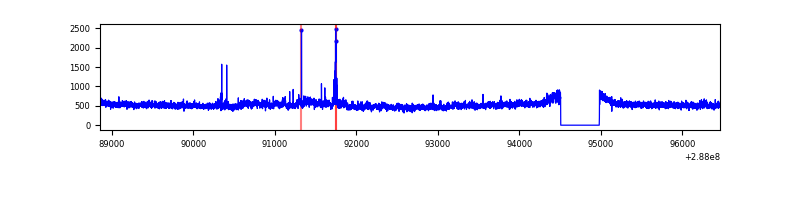

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7606 | 7132 | 8 | 8 | 0.11% | 0.11% |  |
| B | 7607 | 7133 | 35 | 35 | 0.46% | 0.49% |  |
| C | 7607 | 7133 | 3 | 3 | 0.04% | 0.04% |  |
| D | 7607 | 7133 | 143 | 143 | 1.88% | 2.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 52869 | 285.84 | 889 | 870 | 181.9 |
| A | 0 | 226 | 7706 | 37.58 | 889 | 870 | 181.9 |
| A | 3 | 137 | 6461 | 30.73 | 889 | 870 | 181.9 |
| B | 7 | 220 | 309806 | 1815.45 | 883 | 858 | 170.2 |
| B | 0 | 197 | 28841 | 164.43 | 883 | 858 | 170.2 |
| B | 0 | 198 | 20242 | 113.9 | 883 | 858 | 170.2 |
| C | 3 | 233 | 262314 | 1319.68 | 849 | 857 | 198.1 |
| C | 14 | 238 | 131152 | 657.65 | 849 | 857 | 198.1 |
| C | 0 | 207 | 33776 | 166.16 | 849 | 857 | 198.1 |
| D | 1 | 52 | 639904 | 3035.81 | 860 | 833 | 210.5 |
| D | 7 | 238 | 329833 | 1562.86 | 860 | 833 | 210.5 |
| D | 2 | 69 | 110176 | 519.42 | 860 | 833 | 210.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

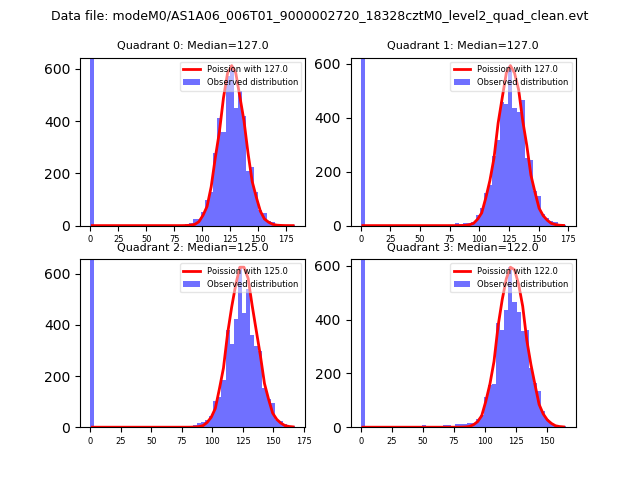

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

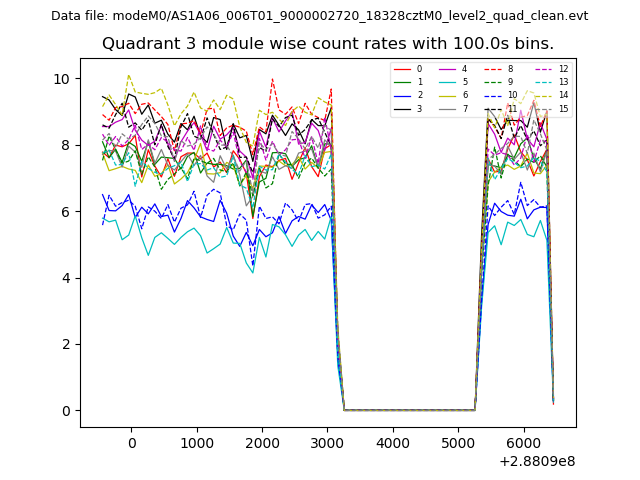

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

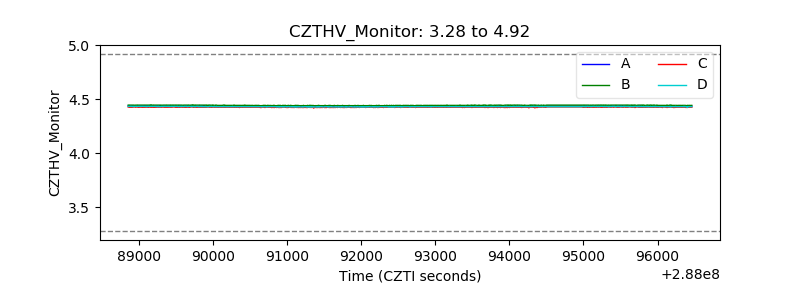

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

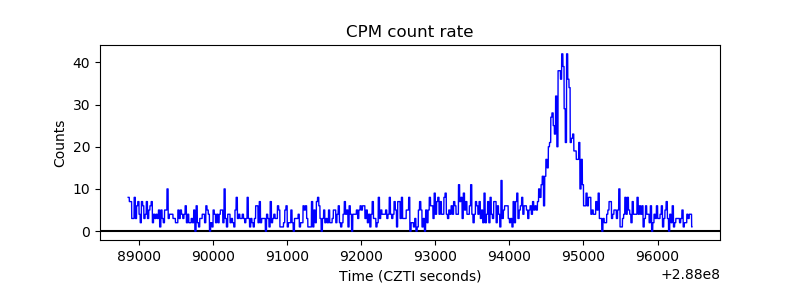

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

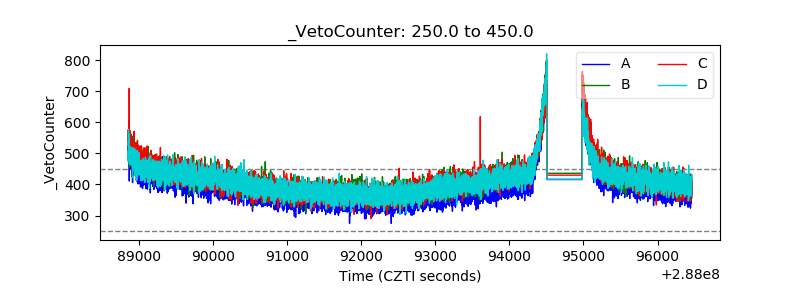

| Veto Counter |  |
