| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_006T01_9000002720_18330cztM0_level2.evt | modeM0/AS1A06_006T01_9000002720_18330cztM0_level2_quad_clean.evt |
| Size (bytes) | 582,045,120 | 102,686,400 |
| Size | 555.1 MB | 97.9 MB |
| Events in quadrant A | 3,929,590 | 655,973 |
| Events in quadrant B | 4,245,652 | 653,776 |
| Events in quadrant C | 3,587,982 | 648,692 |
| Events in quadrant D | 5,355,061 | 628,990 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16658 | 1 |
| B | 0 | 17364 | 1 |
| C | 0 | 15492 | 1 |
| D | 0 | 20915 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7513 | 307 | 4.086250% |
| B | 7513 | 108 | 1.437508% |
| C | 7513 | 83 | 1.104752% |
| D | 7514 | 274 | 3.646526% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

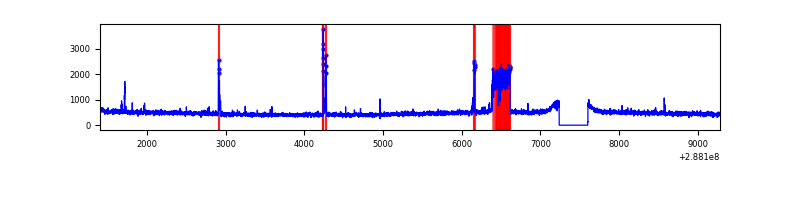

| A | 7878 | 7514 | 81 | 81 | 1.03% | 1.08% |  |

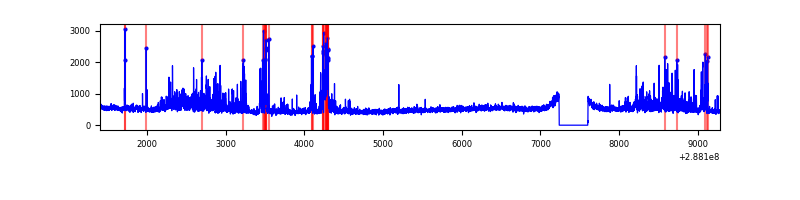

| B | 7878 | 7514 | 34 | 34 | 0.43% | 0.45% |  |
| C | 7878 | 7514 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7879 | 7515 | 273 | 273 | 3.46% | 3.63% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 436651 | 2372.08 | 899 | 878 | 183.7 |
| A | 15 | 9 | 29529 | 155.96 | 899 | 878 | 183.7 |
| A | 0 | 226 | 7966 | 38.58 | 899 | 878 | 183.7 |
| B | 7 | 220 | 494670 | 2823.12 | 909 | 885 | 174.9 |
| B | 0 | 190 | 65968 | 372.1 | 909 | 885 | 174.9 |
| B | 4 | 216 | 27744 | 153.56 | 909 | 885 | 174.9 |
| C | 14 | 238 | 130402 | 637.03 | 870 | 878 | 203.3 |
| C | 3 | 233 | 36083 | 173.15 | 870 | 878 | 203.3 |
| C | 0 | 207 | 11469 | 52.09 | 870 | 878 | 203.3 |
| D | 13 | 168 | 1457446 | 6726.32 | 881 | 856 | 216.6 |
| D | 1 | 52 | 387945 | 1787.52 | 881 | 856 | 216.6 |
| D | 7 | 38 | 45106 | 204.34 | 881 | 856 | 216.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

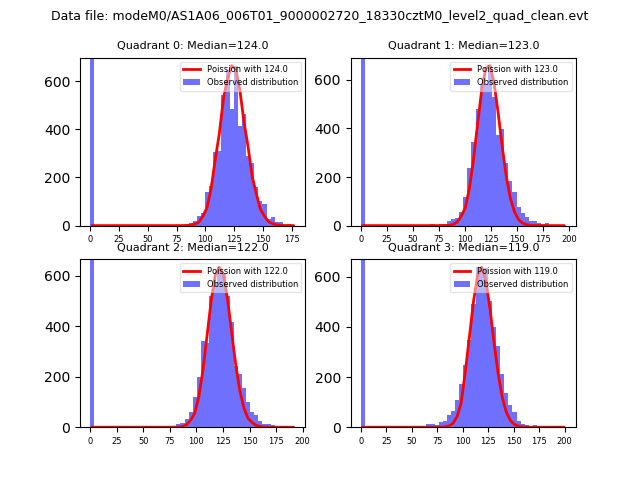

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

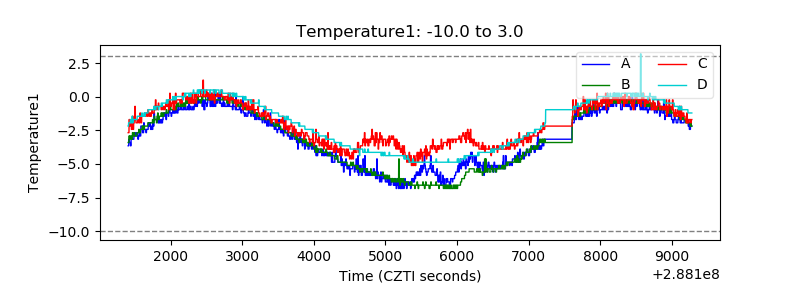

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

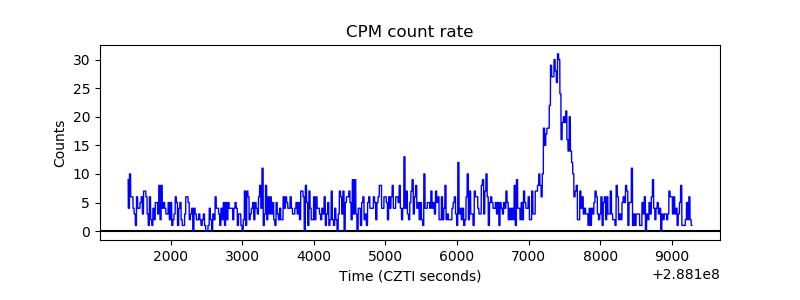

| _CPM_Rate |  |

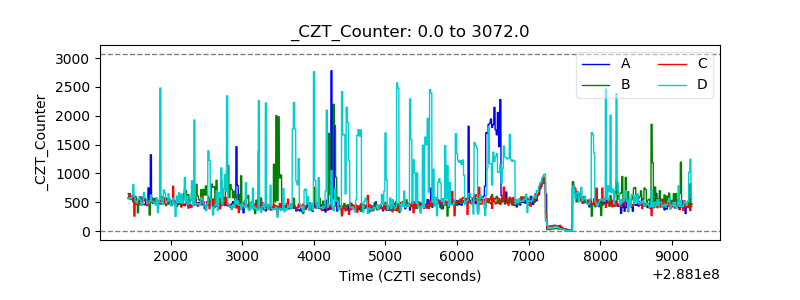

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

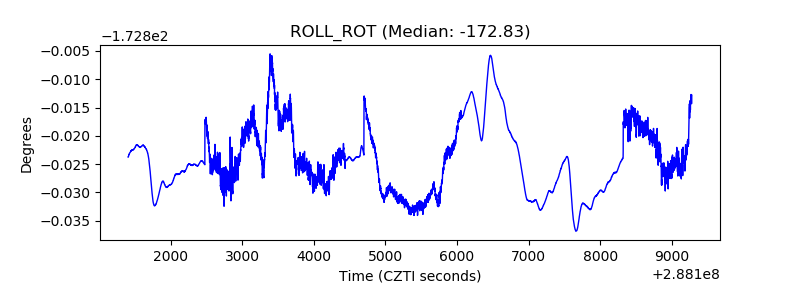

| _ROLL_ROT |  |

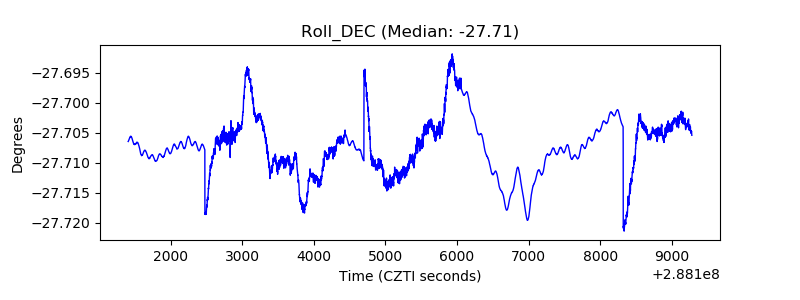

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
