| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_006T01_9000002720_18342cztM0_level2.evt | modeM0/AS1A06_006T01_9000002720_18342cztM0_level2_quad_clean.evt |
| Size (bytes) | 500,564,160 | 89,812,800 |
| Size | 477.4 MB | 85.7 MB |
| Events in quadrant A | 3,390,555 | 566,373 |
| Events in quadrant B | 3,508,582 | 569,494 |
| Events in quadrant C | 3,495,725 | 559,850 |
| Events in quadrant D | 4,290,712 | 538,086 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14406 | 2 |
| B | 0 | 14607 | 2 |
| C | 0 | 14577 | 2 |
| D | 0 | 17270 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6977 | 120 | 1.719937% |
| B | 6977 | 130 | 1.863265% |
| C | 6977 | 162 | 2.321915% |
| D | 6976 | 237 | 3.397362% |

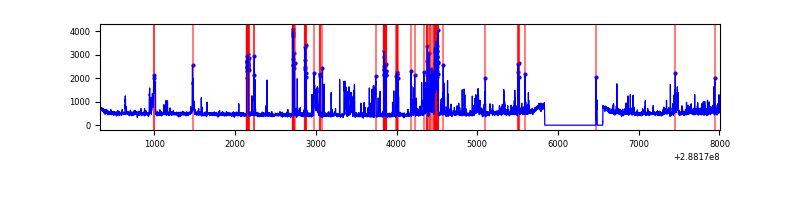

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7682 | 6979 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7682 | 6979 | 3 | 3 | 0.04% | 0.04% |  |
| C | 7682 | 6979 | 7 | 7 | 0.09% | 0.10% |  |
| D | 7681 | 6978 | 130 | 130 | 1.69% | 1.86% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 28417 | 156.31 | 873 | 855 | 176.3 |
| A | 0 | 226 | 7695 | 38.79 | 873 | 855 | 176.3 |
| A | 3 | 137 | 6373 | 31.29 | 873 | 855 | 176.3 |
| B | 7 | 220 | 28119 | 163.01 | 872 | 850 | 167.3 |
| B | 12 | 111 | 19444 | 111.15 | 872 | 850 | 167.3 |
| B | 11 | 111 | 16134 | 91.37 | 872 | 850 | 167.3 |
| C | 14 | 238 | 126983 | 648.27 | 839 | 842 | 194.6 |
| C | 0 | 207 | 49954 | 252.4 | 839 | 842 | 194.6 |
| C | 3 | 233 | 49712 | 251.16 | 839 | 842 | 194.6 |
| D | 14 | 34 | 455669 | 2213.22 | 848 | 825 | 205.5 |
| D | 1 | 52 | 378551 | 1837.97 | 848 | 825 | 205.5 |
| D | 12 | 110 | 81658 | 393.32 | 848 | 825 | 205.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

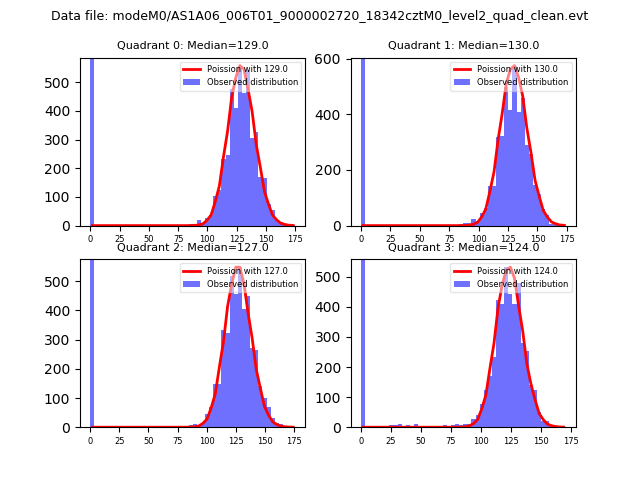

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

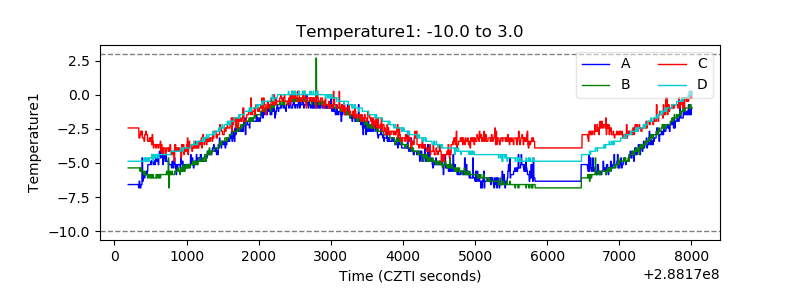

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

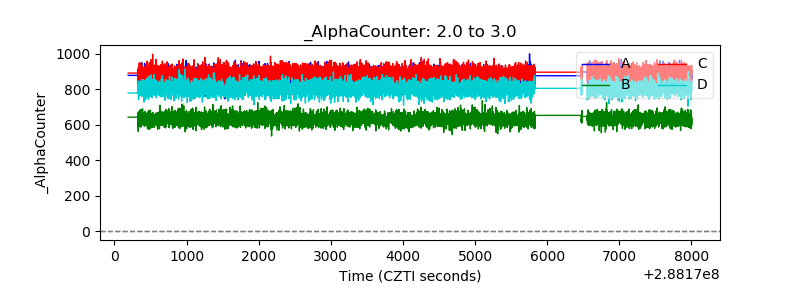

| Alpha Counter |  |

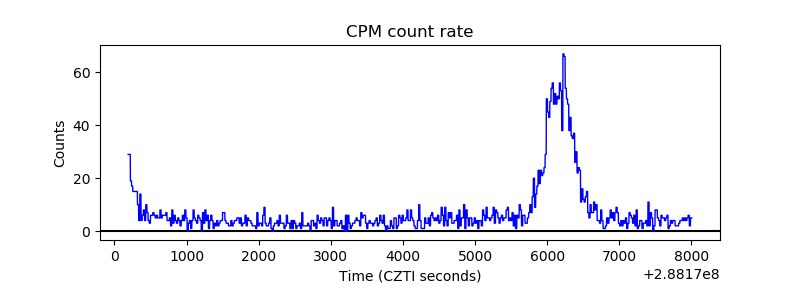

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

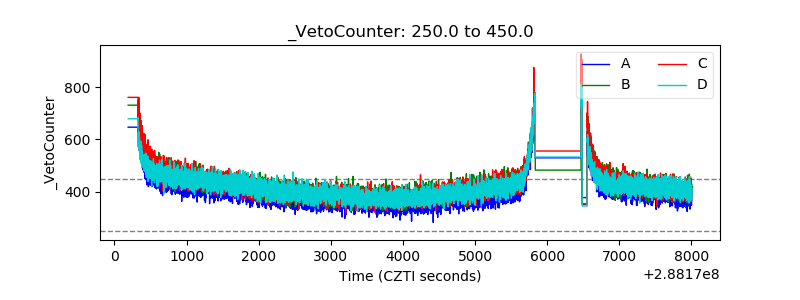

| Veto Counter |  |
