| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_006T01_9000002720_18355cztM0_level2.evt | modeM0/AS1A06_006T01_9000002720_18355cztM0_level2_quad_clean.evt |
| Size (bytes) | 521,239,680 | 72,895,680 |
| Size | 497.1 MB | 69.5 MB |
| Events in quadrant A | 3,253,216 | 451,051 |
| Events in quadrant B | 3,546,347 | 454,607 |
| Events in quadrant C | 4,501,965 | 429,728 |
| Events in quadrant D | 4,058,838 | 434,041 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13270 | 1 |
| B | 0 | 14146 | 1 |
| C | 0 | 17250 | 1 |
| D | 0 | 15910 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6267 | 70 | 1.116962% |
| B | 6268 | 129 | 2.058073% |
| C | 6268 | 438 | 6.987875% |
| D | 6268 | 211 | 3.366305% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7452 | 6268 | 5 | 5 | 0.07% | 0.08% |  |
| B | 7453 | 6269 | 21 | 21 | 0.28% | 0.33% |  |
| C | 7453 | 6269 | 229 | 229 | 3.07% | 3.65% |  |
| D | 7453 | 6269 | 165 | 165 | 2.21% | 2.63% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 47713 | 281.93 | 823 | 808 | 166.4 |
| A | 15 | 174 | 17290 | 99.07 | 823 | 808 | 166.4 |
| A | 6 | 16 | 13269 | 74.9 | 823 | 808 | 166.4 |
| B | 7 | 220 | 203231 | 1294.74 | 824 | 806 | 156.3 |
| B | 0 | 244 | 57664 | 363.67 | 824 | 806 | 156.3 |
| B | 0 | 189 | 20269 | 124.49 | 824 | 806 | 156.3 |
| C | 4 | 254 | 976580 | 5413.46 | 780 | 787 | 180.3 |
| C | 0 | 207 | 349109 | 1932.4 | 780 | 787 | 180.3 |
| C | 14 | 238 | 120821 | 665.92 | 780 | 787 | 180.3 |
| D | 1 | 52 | 742943 | 3798.67 | 803 | 781 | 195.4 |
| D | 7 | 238 | 181378 | 924.37 | 803 | 781 | 195.4 |
| D | 2 | 33 | 55127 | 278.16 | 803 | 781 | 195.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

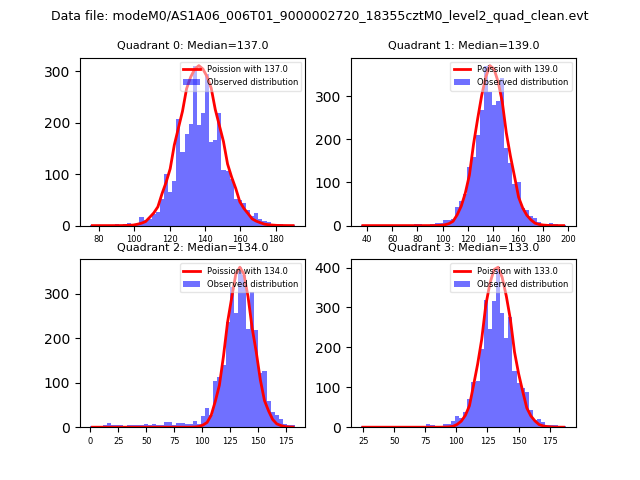

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

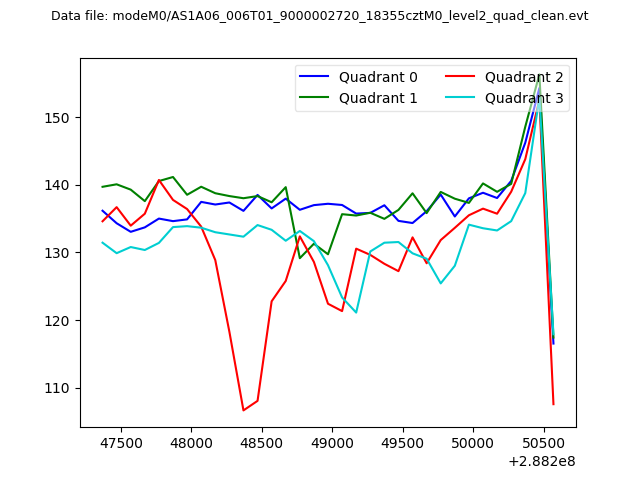

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

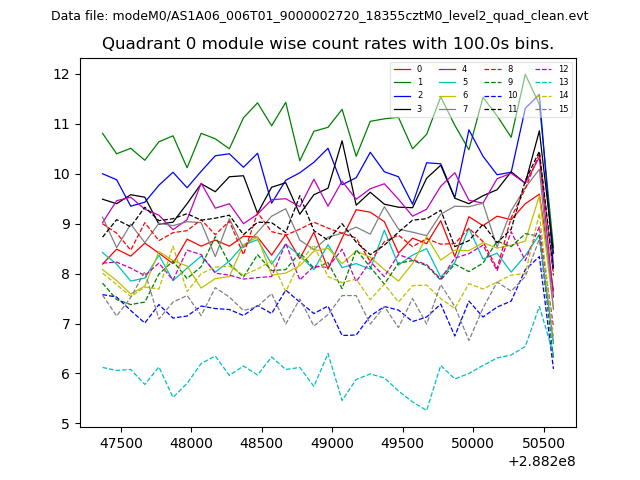

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

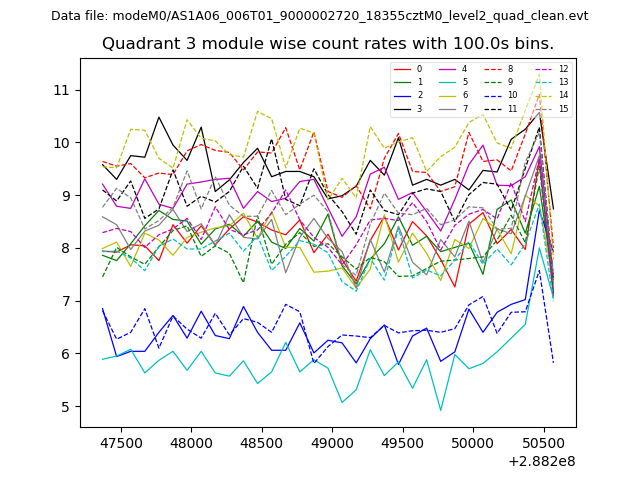

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

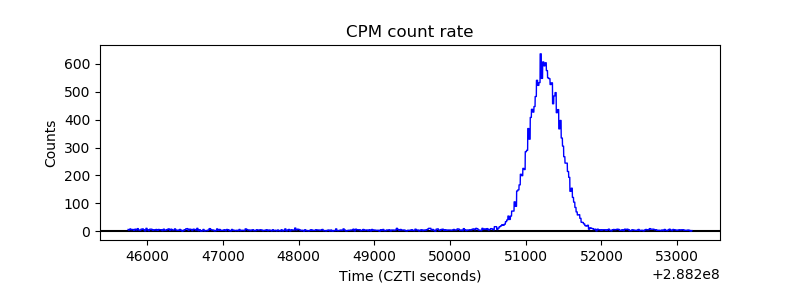

| _CPM_Rate |  |

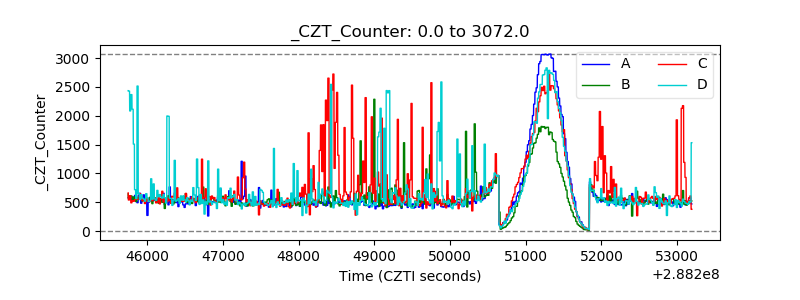

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

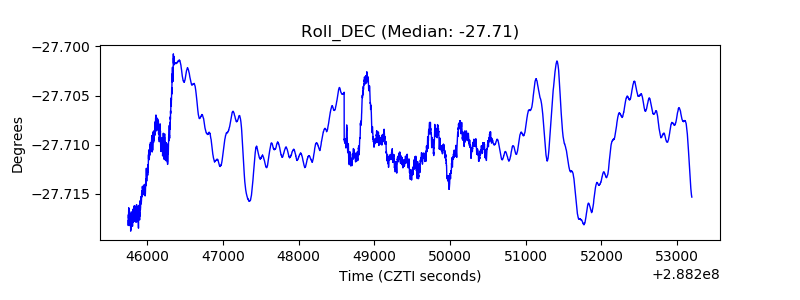

| _Roll_DEC |  |
| _Roll_RA |  |

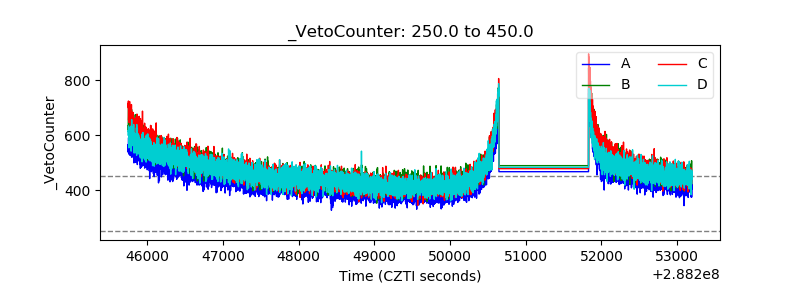

| Veto Counter |  |
