| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_006T01_9000002720_18358cztM0_level2.evt | modeM0/AS1A06_006T01_9000002720_18358cztM0_level2_quad_clean.evt |
| Size (bytes) | 576,763,200 | 95,469,120 |
| Size | 550.0 MB | 91.0 MB |
| Events in quadrant A | 3,355,837 | 621,999 |
| Events in quadrant B | 3,735,838 | 621,634 |
| Events in quadrant C | 4,359,831 | 597,616 |
| Events in quadrant D | 5,539,054 | 560,240 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14519 | 1 |
| B | 0 | 15439 | 1 |
| C | 0 | 17376 | 1 |
| D | 0 | 21010 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7026 | 133 | 1.892969% |
| B | 7027 | 168 | 2.390778% |
| C | 7027 | 364 | 5.180020% |
| D | 7027 | 843 | 11.996585% |

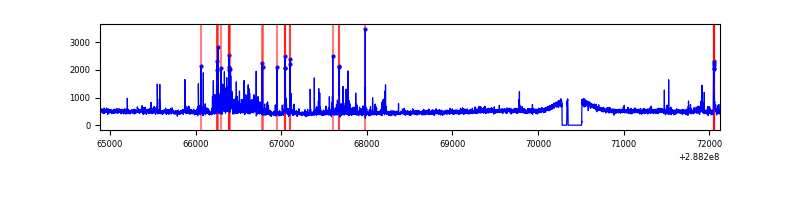

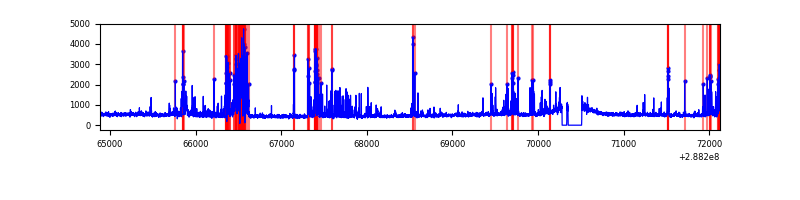

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7241 | 7028 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7242 | 7029 | 26 | 26 | 0.36% | 0.37% |  |
| C | 7242 | 7029 | 134 | 134 | 1.85% | 1.91% |  |
| D | 7242 | 7029 | 722 | 722 | 9.97% | 10.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 17053 | 91.45 | 867 | 846 | 177.2 |
| A | 0 | 226 | 7796 | 39.22 | 867 | 846 | 177.2 |
| A | 12 | 194 | 6435 | 31.54 | 867 | 846 | 177.2 |
| B | 7 | 220 | 189524 | 1138.81 | 861 | 841 | 165.7 |
| B | 3 | 64 | 48935 | 290.28 | 861 | 841 | 165.7 |
| B | 0 | 197 | 30023 | 176.13 | 861 | 841 | 165.7 |
| C | 4 | 254 | 922029 | 4810.79 | 817 | 822 | 191.5 |
| C | 14 | 238 | 123242 | 639.31 | 817 | 822 | 191.5 |
| C | 3 | 233 | 57216 | 294.5 | 817 | 822 | 191.5 |
| D | 12 | 110 | 2188209 | 10813.93 | 817 | 792 | 202.3 |
| D | 1 | 52 | 122437 | 601.38 | 817 | 792 | 202.3 |
| D | 2 | 234 | 32897 | 158.72 | 817 | 792 | 202.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

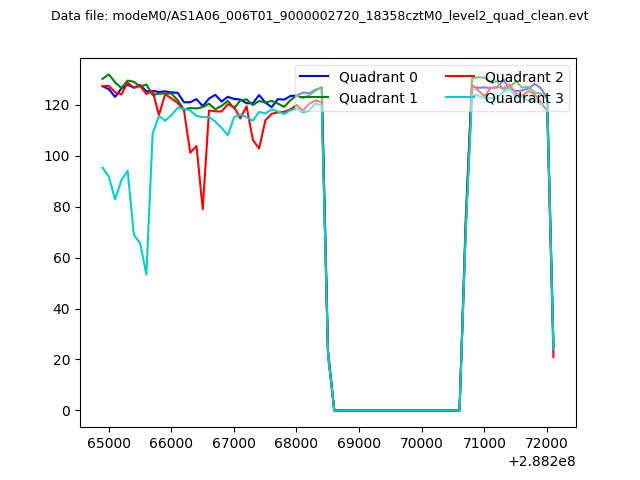

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

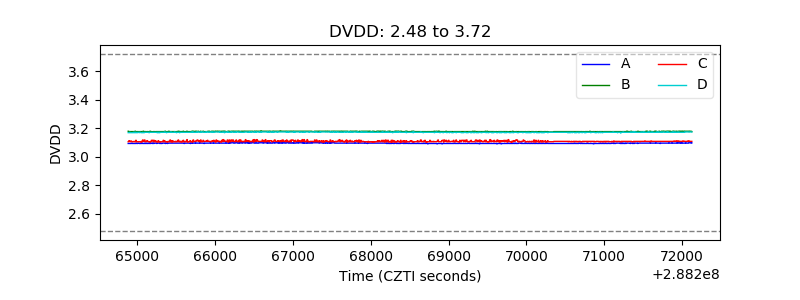

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

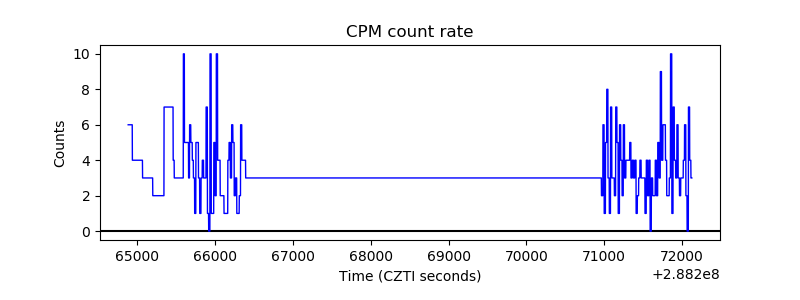

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

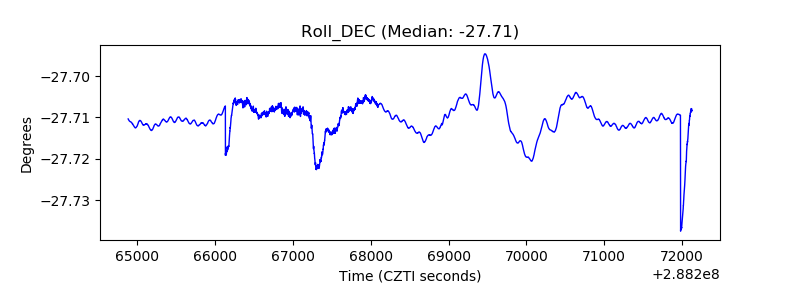

| _Roll_DEC |  |

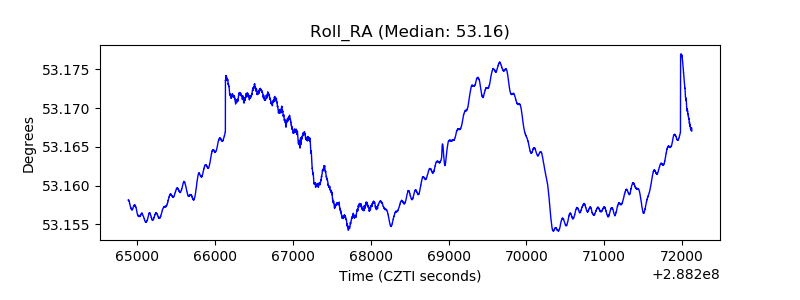

| _Roll_RA |  |

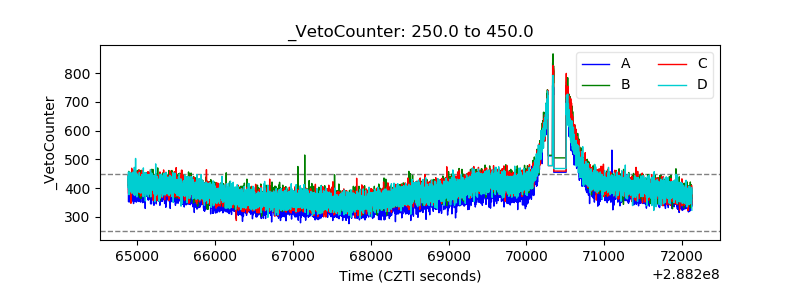

| Veto Counter |  |
