| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_006T01_9000002720_18363cztM0_level2.evt | modeM0/AS1A06_006T01_9000002720_18363cztM0_level2_quad_clean.evt |
| Size (bytes) | 458,231,040 | 89,280,000 |
| Size | 437.0 MB | 85.1 MB |
| Events in quadrant A | 3,155,737 | 569,956 |
| Events in quadrant B | 3,634,112 | 570,920 |
| Events in quadrant C | 3,344,351 | 557,623 |
| Events in quadrant D | 3,296,761 | 546,916 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13607 | 2 |
| B | 0 | 15083 | 2 |
| C | 0 | 14184 | 2 |
| D | 0 | 14181 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6577 | 35 | 0.532158% |
| B | 6577 | 130 | 1.976585% |
| C | 6577 | 64 | 0.973088% |
| D | 6577 | 33 | 0.501749% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

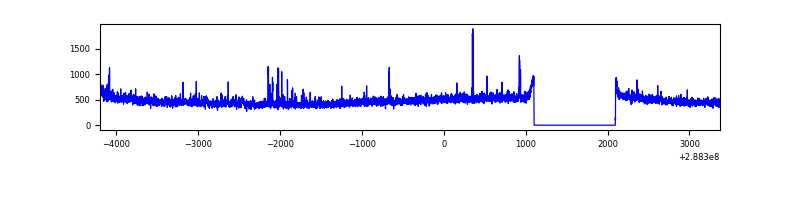

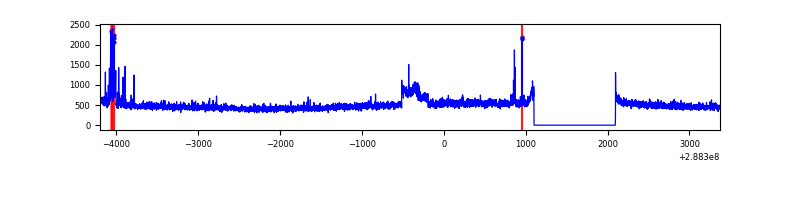

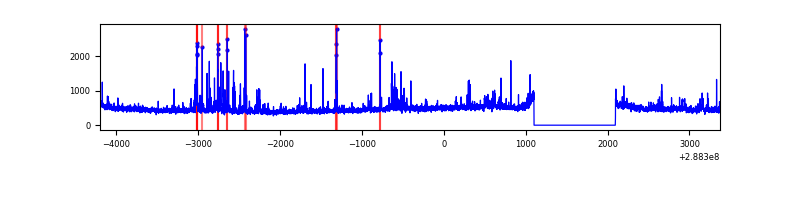

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7572 | 6578 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7572 | 6578 | 70 | 70 | 0.92% | 1.06% |  |
| C | 7572 | 6578 | 11 | 11 | 0.15% | 0.17% |  |
| D | 7572 | 6578 | 17 | 17 | 0.22% | 0.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 41313 | 251.75 | 794 | 776 | 161.0 |
| A | 15 | 174 | 25880 | 155.91 | 794 | 776 | 161.0 |
| A | 11 | 29 | 21092 | 126.17 | 794 | 776 | 161.0 |
| B | 3 | 64 | 343027 | 2256.94 | 793 | 773 | 151.6 |
| B | 7 | 220 | 81543 | 532.62 | 793 | 773 | 151.6 |
| B | 0 | 197 | 47315 | 306.91 | 793 | 773 | 151.6 |
| C | 3 | 233 | 155964 | 868.91 | 761 | 768 | 178.6 |
| C | 14 | 238 | 115709 | 643.53 | 761 | 768 | 178.6 |
| C | 0 | 207 | 89187 | 495.04 | 761 | 768 | 178.6 |
| D | 1 | 52 | 344014 | 1813.4 | 767 | 744 | 189.3 |
| D | 2 | 234 | 29360 | 151.17 | 767 | 744 | 189.3 |
| D | 2 | 69 | 14782 | 74.16 | 767 | 744 | 189.3 |

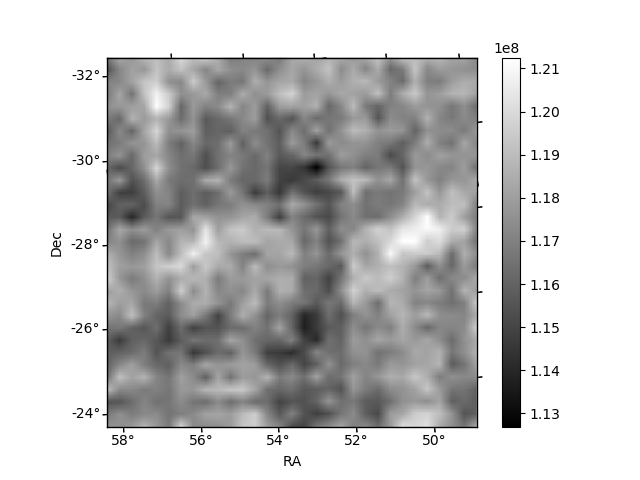

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

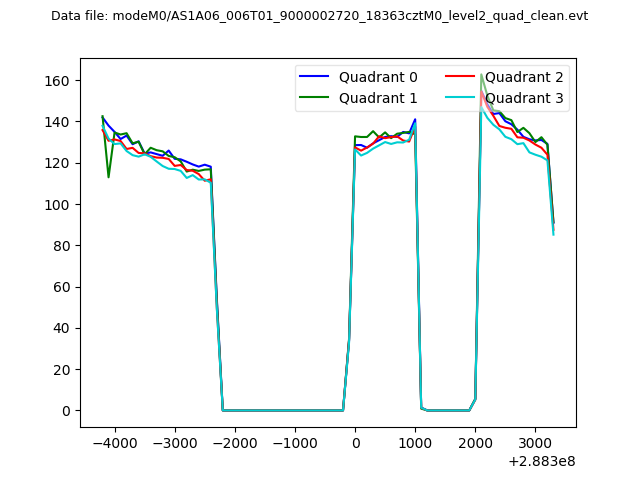

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

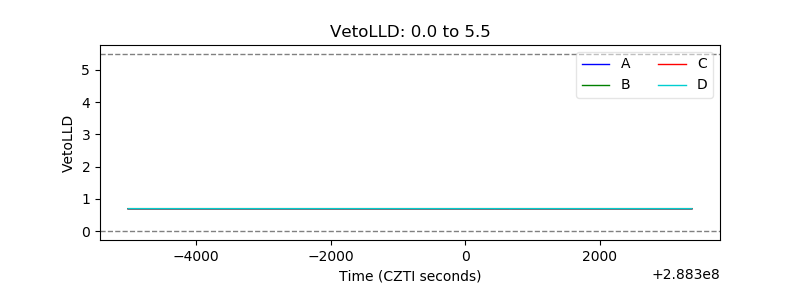

| Veto LLD |  |

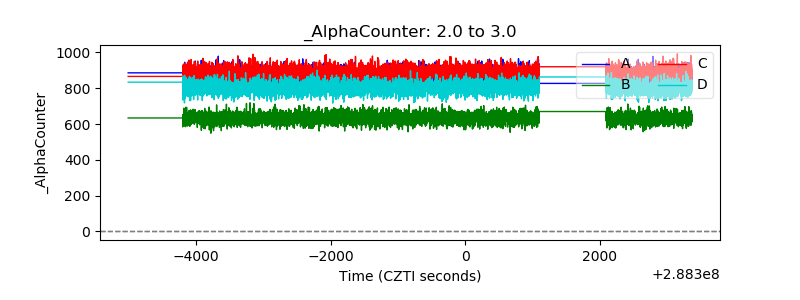

| Alpha Counter |  |
| _CPM_Rate |  |

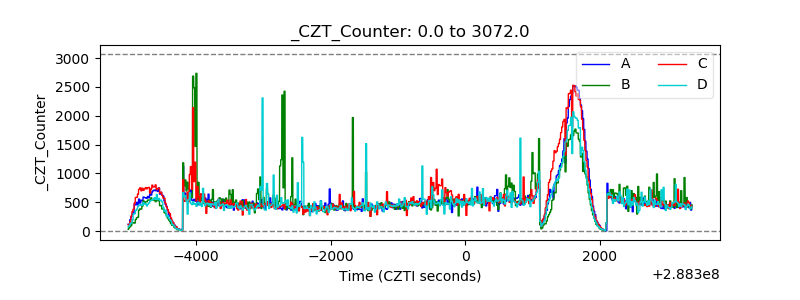

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
