| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_006T01_9000002724_18368cztM0_level2.evt | modeM0/AS1A06_006T01_9000002724_18368cztM0_level2_quad_clean.evt |
| Size (bytes) | 363,723,840 | 53,749,440 |
| Size | 346.9 MB | 51.3 MB |
| Events in quadrant A | 2,356,625 | 333,645 |
| Events in quadrant B | 2,368,710 | 342,715 |
| Events in quadrant C | 2,795,647 | 326,704 |
| Events in quadrant D | 3,193,124 | 312,637 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9525 | 1 |
| B | 0 | 9531 | 1 |
| C | 0 | 11003 | 1 |
| D | 0 | 12173 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 90 | 0 |
| B | 0 | 90 | 0 |
| C | 0 | 90 | 0 |
| D | 0 | 90 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4430 | 55 | 1.241535% |
| B | 4430 | 63 | 1.422122% |
| C | 4430 | 178 | 4.018059% |
| D | 4430 | 264 | 5.959368% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

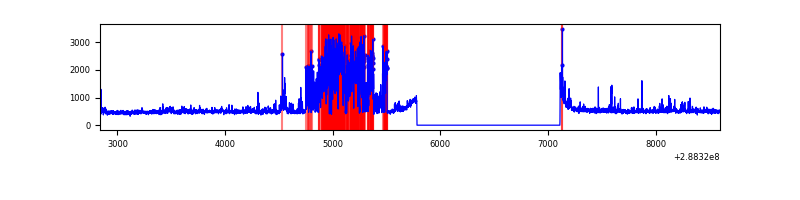

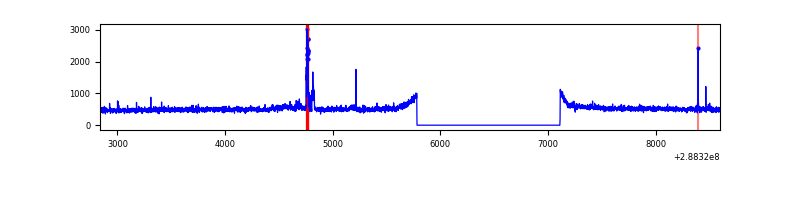

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5760 | 4431 | 13 | 13 | 0.23% | 0.29% |  |
| B | 5760 | 4431 | 11 | 11 | 0.19% | 0.25% |  |
| C | 5760 | 4431 | 68 | 68 | 1.18% | 1.53% |  |
| D | 5760 | 4431 | 240 | 240 | 4.17% | 5.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 62280 | 521.68 | 587 | 576 | 118.3 |
| A | 15 | 191 | 30975 | 257.01 | 587 | 576 | 118.3 |
| A | 4 | 2 | 9140 | 72.4 | 587 | 576 | 118.3 |
| B | 3 | 64 | 38624 | 340.4 | 589 | 575 | 111.8 |
| B | 0 | 189 | 23603 | 206.02 | 589 | 575 | 111.8 |
| B | 12 | 111 | 12562 | 107.24 | 589 | 575 | 111.8 |
| C | 0 | 207 | 384626 | 2912.42 | 564 | 569 | 131.9 |
| C | 3 | 233 | 124842 | 942.4 | 564 | 569 | 131.9 |
| C | 14 | 238 | 86845 | 654.26 | 564 | 569 | 131.9 |
| D | 12 | 225 | 826767 | 5951.18 | 568 | 552 | 138.8 |
| D | 14 | 34 | 112404 | 805.66 | 568 | 552 | 138.8 |
| D | 1 | 52 | 68654 | 490.53 | 568 | 552 | 138.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

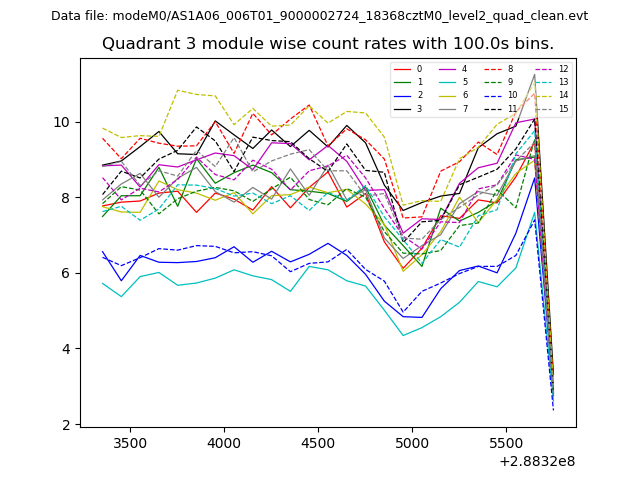

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

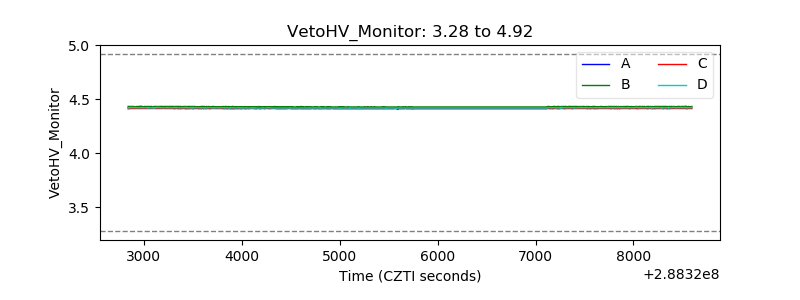

| Veto HV Monitor |  |
| Veto LLD |  |

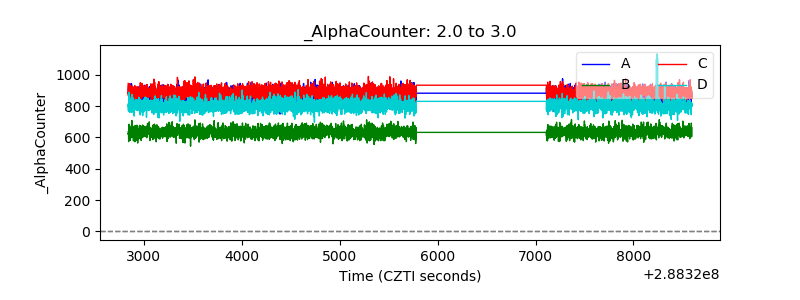

| Alpha Counter |  |

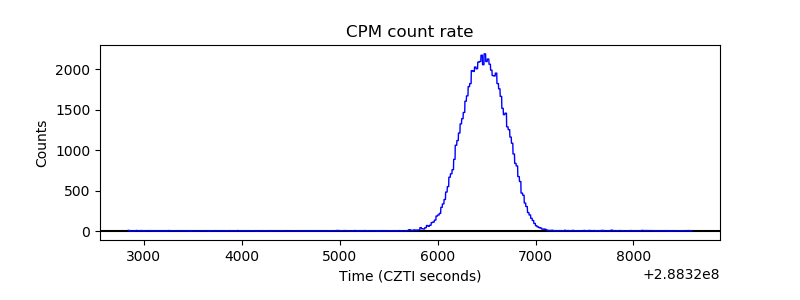

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

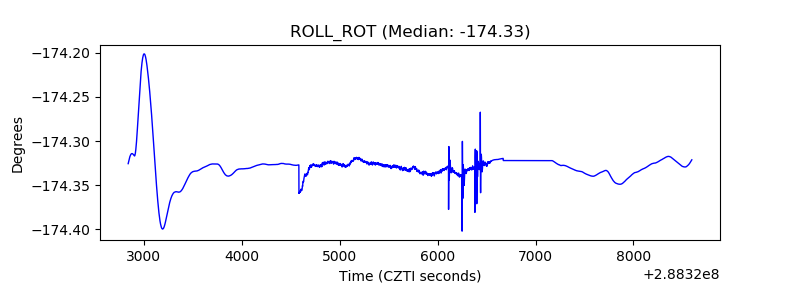

| _ROLL_ROT |  |

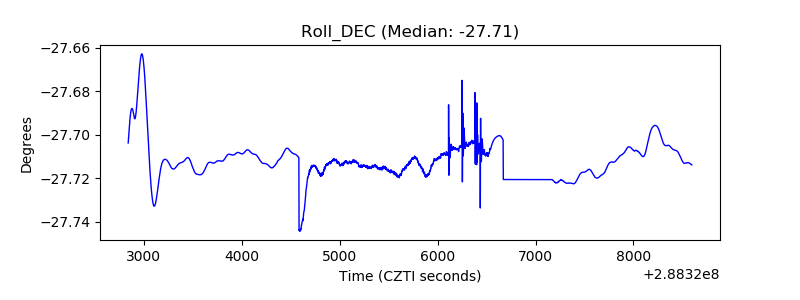

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
