| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_006T01_9000002724_18372cztM0_level2.evt | modeM0/AS1A06_006T01_9000002724_18372cztM0_level2_quad_clean.evt |
| Size (bytes) | 606,896,640 | 90,244,800 |
| Size | 578.8 MB | 86.1 MB |
| Events in quadrant A | 3,632,438 | 565,278 |
| Events in quadrant B | 3,957,668 | 572,366 |
| Events in quadrant C | 4,472,194 | 551,836 |
| Events in quadrant D | 5,814,551 | 526,740 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15534 | 1 |
| B | 0 | 16326 | 1 |
| C | 0 | 17842 | 1 |
| D | 0 | 22164 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7419 | 211 | 2.844049% |
| B | 7419 | 265 | 3.571910% |
| C | 7419 | 395 | 5.324168% |
| D | 7420 | 801 | 10.795148% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7644 | 7421 | 7 | 7 | 0.09% | 0.09% |  |
| B | 7644 | 7421 | 19 | 19 | 0.25% | 0.26% |  |
| C | 7644 | 7421 | 134 | 134 | 1.75% | 1.81% |  |
| D | 7645 | 7422 | 629 | 629 | 8.23% | 8.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 41734 | 218.54 | 919 | 899 | 186.9 |
| A | 0 | 254 | 25789 | 133.2 | 919 | 899 | 186.9 |
| A | 15 | 174 | 23460 | 120.74 | 919 | 899 | 186.9 |
| B | 10 | 245 | 152959 | 858.66 | 918 | 892 | 177.1 |
| B | 3 | 64 | 106774 | 597.87 | 918 | 892 | 177.1 |
| B | 7 | 220 | 30953 | 169.74 | 918 | 892 | 177.1 |
| C | 0 | 207 | 768161 | 3715.61 | 879 | 883 | 206.5 |
| C | 14 | 238 | 133710 | 643.23 | 879 | 883 | 206.5 |
| C | 3 | 233 | 122881 | 590.79 | 879 | 883 | 206.5 |
| D | 1 | 52 | 2011348 | 9268.45 | 881 | 854 | 216.9 |
| D | 7 | 38 | 161618 | 741.13 | 881 | 854 | 216.9 |
| D | 13 | 168 | 82444 | 376.13 | 881 | 854 | 216.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

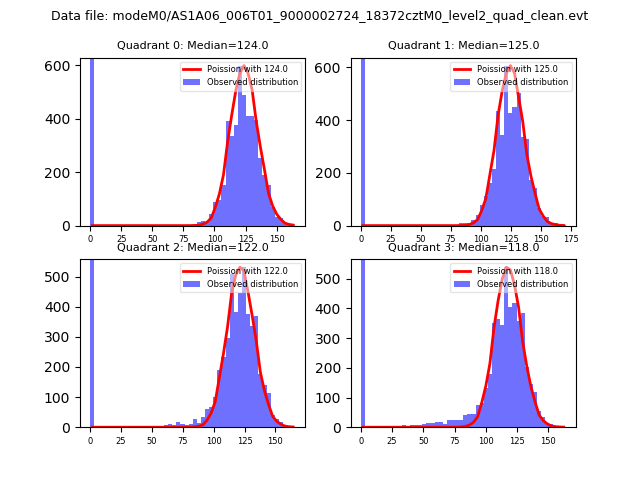

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

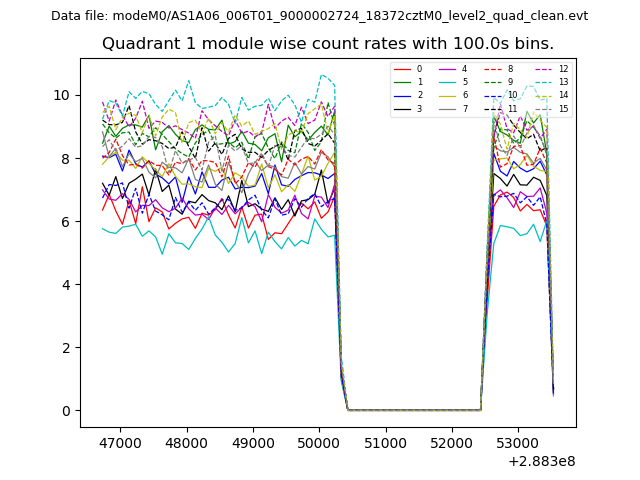

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

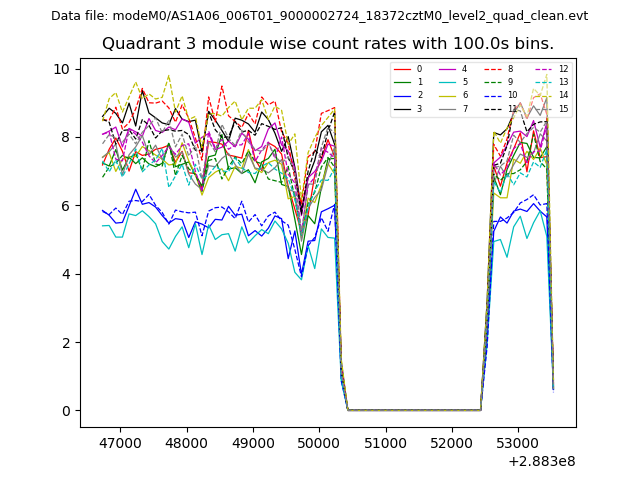

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

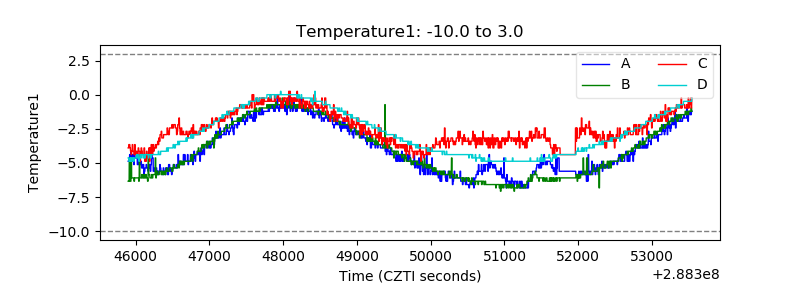

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

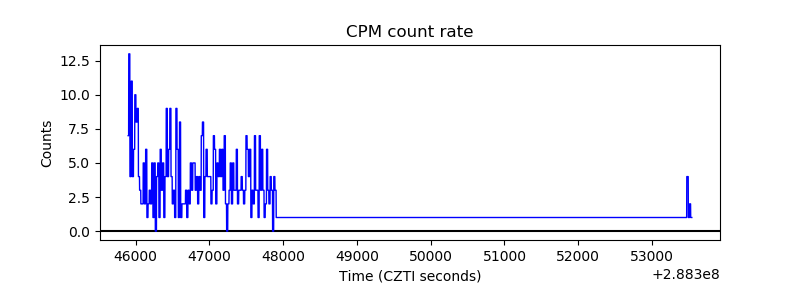

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

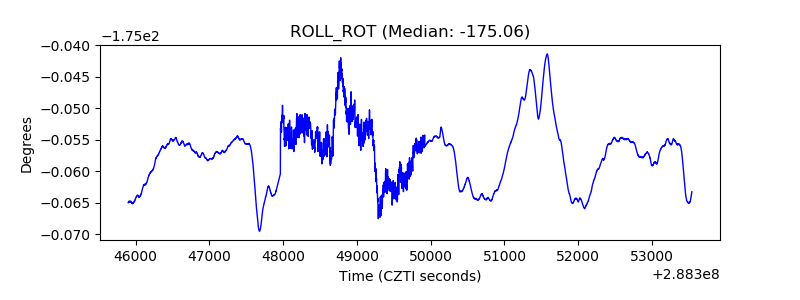

| _ROLL_ROT |  |

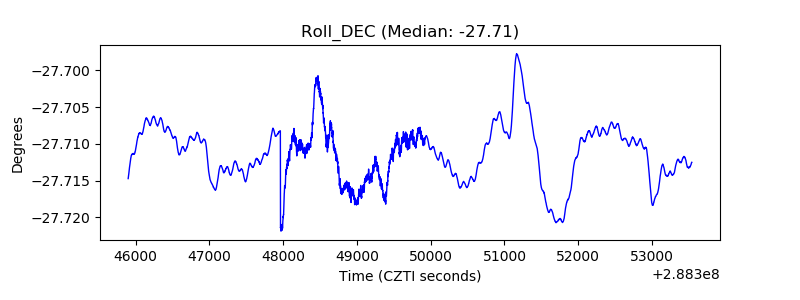

| _Roll_DEC |  |
| _Roll_RA |  |

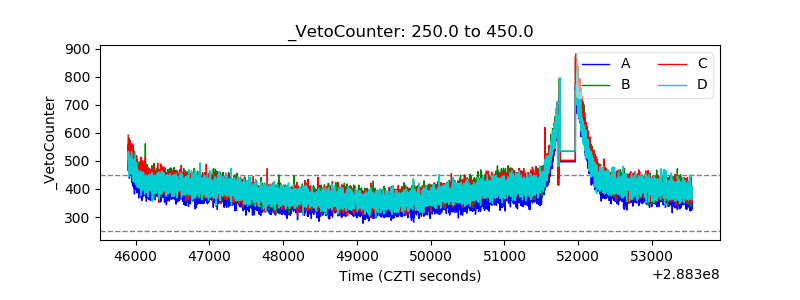

| Veto Counter |  |
