| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_006T01_9000002724_18386cztM0_level2.evt | modeM0/AS1A06_006T01_9000002724_18386cztM0_level2_quad_clean.evt |
| Size (bytes) | 549,688,320 | 86,408,640 |
| Size | 524.2 MB | 82.4 MB |
| Events in quadrant A | 3,515,879 | 534,574 |
| Events in quadrant B | 4,054,784 | 535,405 |
| Events in quadrant C | 3,715,110 | 528,783 |
| Events in quadrant D | 4,867,862 | 511,467 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15114 | 2 |
| B | 0 | 16542 | 2 |
| C | 0 | 15521 | 2 |
| D | 0 | 19084 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7279 | 195 | 2.678939% |
| B | 7279 | 251 | 3.448276% |
| C | 7279 | 240 | 3.297156% |
| D | 7279 | 296 | 4.066493% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

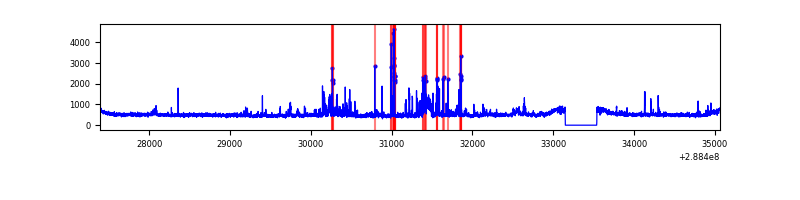

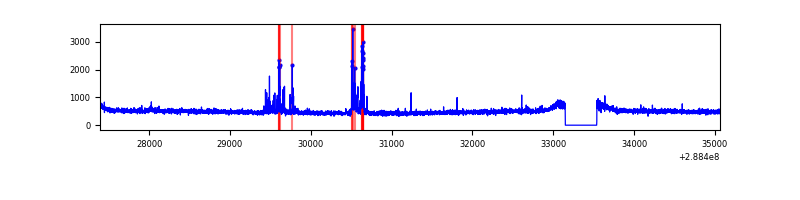

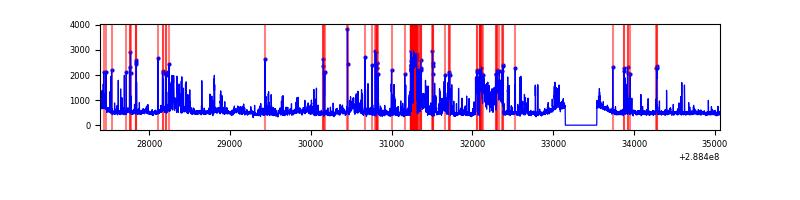

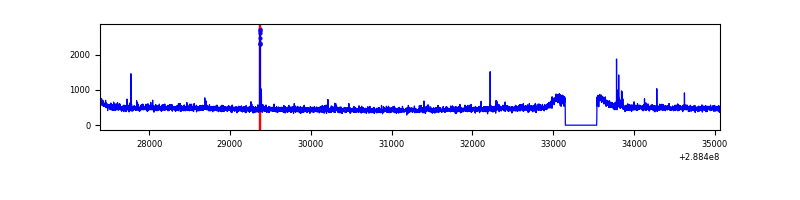

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7669 | 7280 | 8 | 8 | 0.10% | 0.11% |  |
| B | 7669 | 7280 | 36 | 36 | 0.47% | 0.49% |  |
| C | 7669 | 7280 | 18 | 18 | 0.23% | 0.25% |  |
| D | 7669 | 7280 | 143 | 143 | 1.86% | 1.96% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 29273 | 154.62 | 902 | 883 | 183.6 |
| A | 4 | 2 | 18603 | 96.51 | 902 | 883 | 183.6 |
| A | 0 | 226 | 7835 | 37.86 | 902 | 883 | 183.6 |
| B | 10 | 245 | 311573 | 1791.69 | 901 | 879 | 173.4 |
| B | 7 | 220 | 71674 | 408.26 | 901 | 879 | 173.4 |
| B | 0 | 228 | 65293 | 371.46 | 901 | 879 | 173.4 |
| C | 0 | 207 | 155838 | 769.86 | 867 | 873 | 201.3 |
| C | 14 | 238 | 134698 | 664.84 | 867 | 873 | 201.3 |
| C | 3 | 233 | 20811 | 99.05 | 867 | 873 | 201.3 |
| D | 1 | 52 | 1274237 | 5916.97 | 877 | 849 | 215.2 |
| D | 8 | 230 | 108770 | 501.47 | 877 | 849 | 215.2 |
| D | 7 | 238 | 76335 | 350.76 | 877 | 849 | 215.2 |

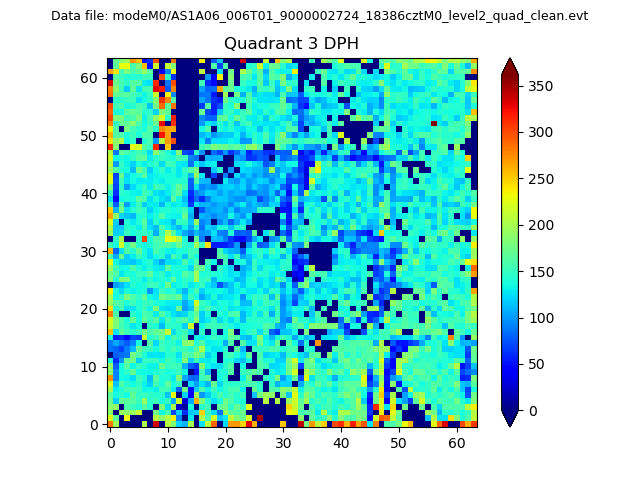

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

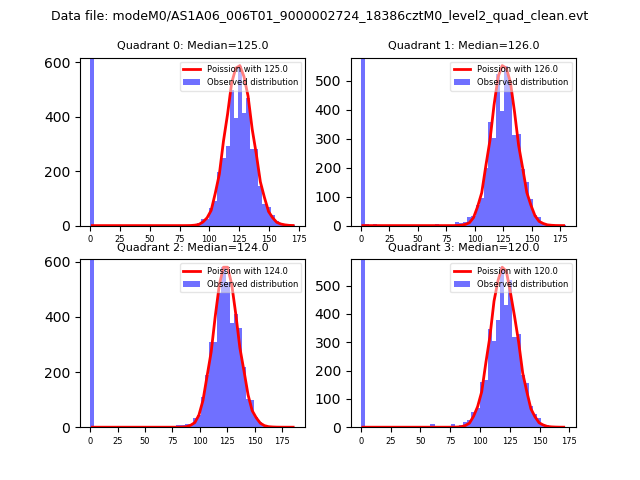

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

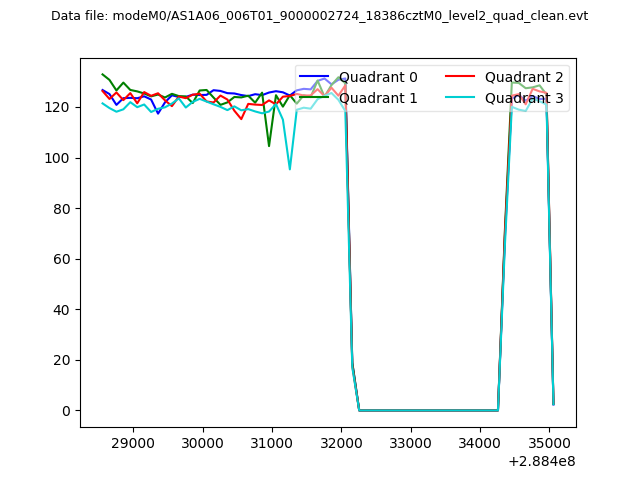

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

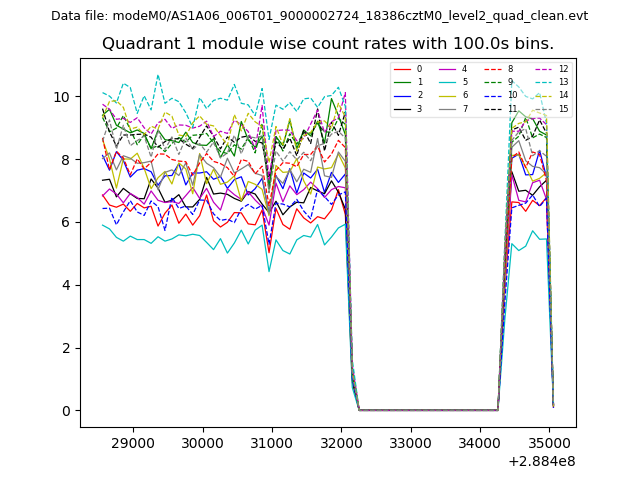

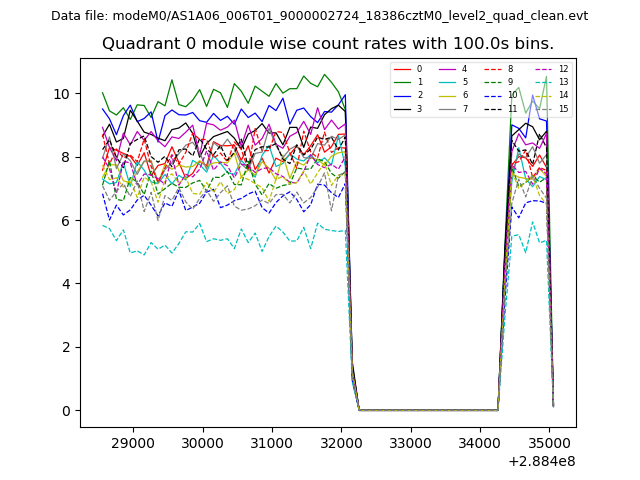

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

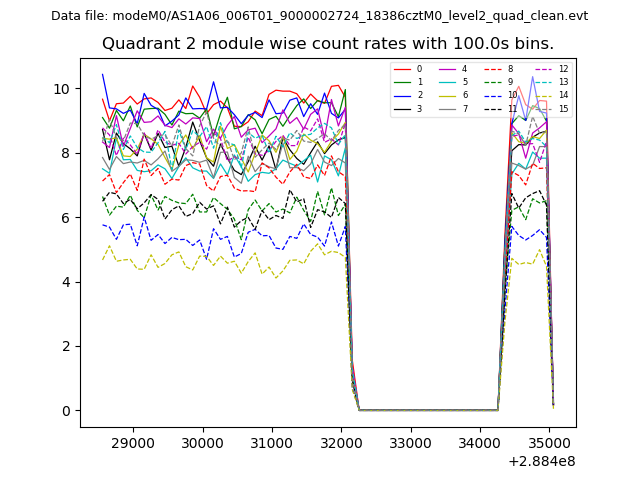

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

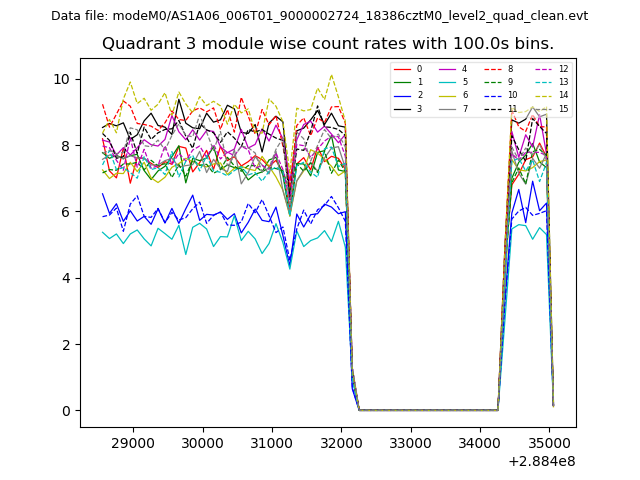

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

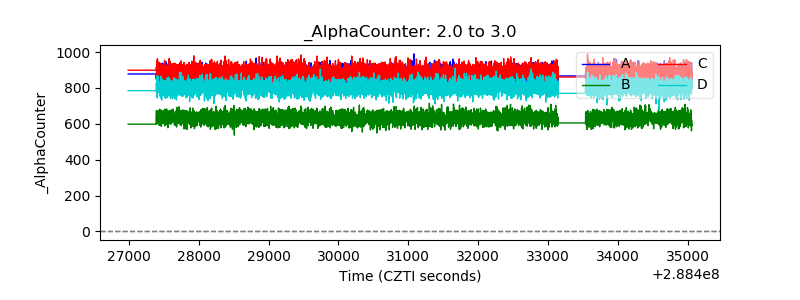

| Alpha Counter |  |

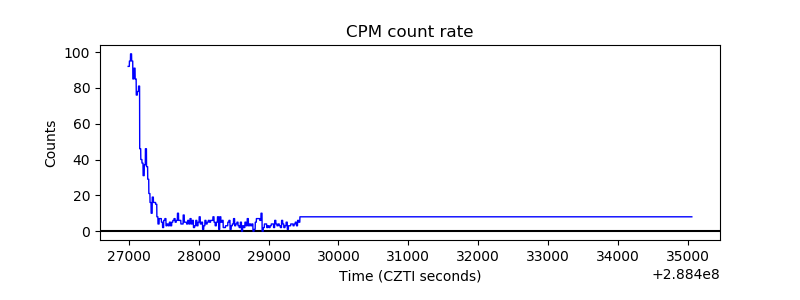

| _CPM_Rate |  |

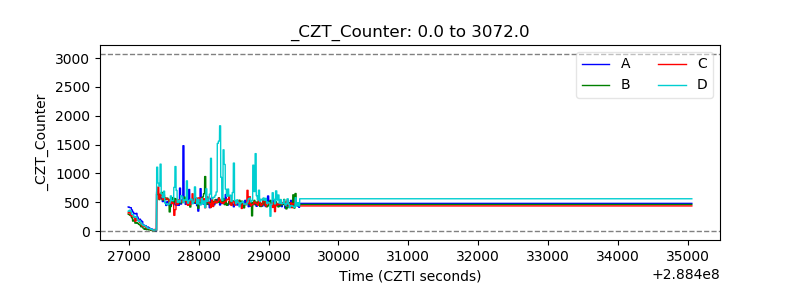

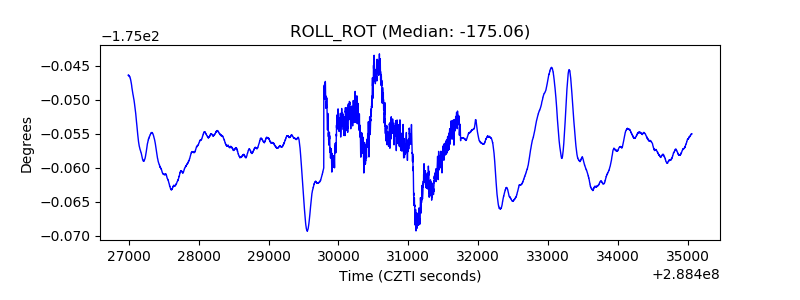

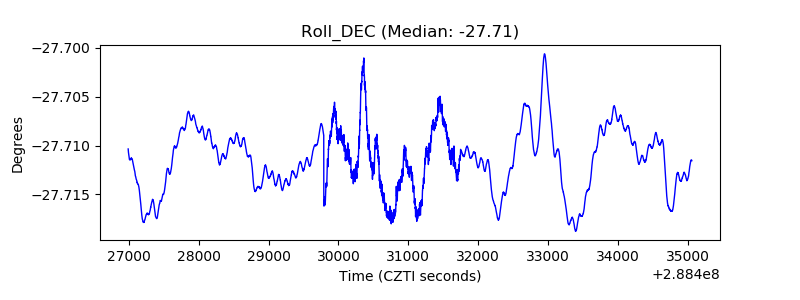

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

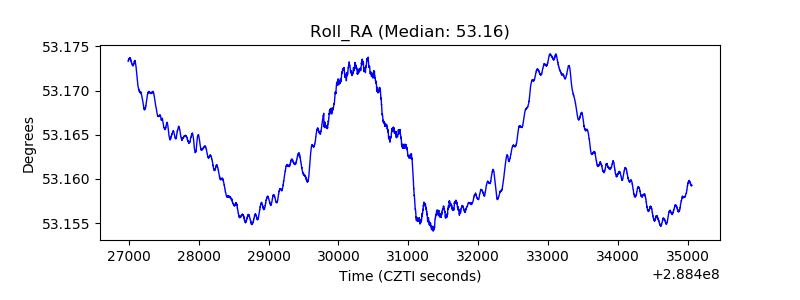

| _Roll_RA |  |

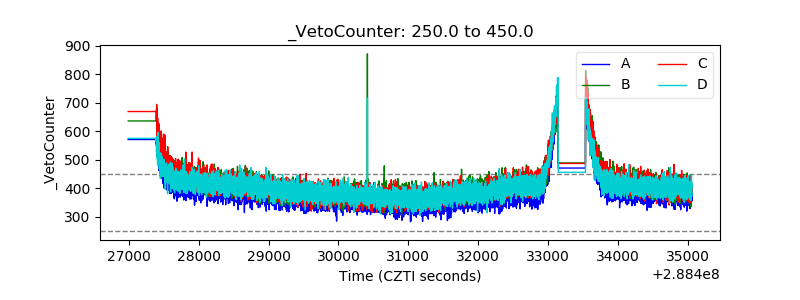

| Veto Counter |  |
