| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_094T01_9000002726_18388cztM0_level2.evt | modeM0/AS1A05_094T01_9000002726_18388cztM0_level2_quad_clean.evt |
| Size (bytes) | 242,867,520 | 35,562,240 |
| Size | 231.6 MB | 33.9 MB |
| Events in quadrant A | 1,740,488 | 211,248 |
| Events in quadrant B | 1,718,574 | 216,402 |
| Events in quadrant C | 1,671,780 | 206,312 |
| Events in quadrant D | 1,990,086 | 200,004 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 70 | 0 |
| B | 0 | 70 | 0 |
| C | 0 | 70 | 0 |
| D | 0 | 70 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7350 | 1 |
| B | 0 | 7177 | 1 |
| C | 0 | 7093 | 1 |
| D | 0 | 8163 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3419 | 152 | 4.445744% |
| B | 3419 | 152 | 4.445744% |
| C | 3419 | 143 | 4.182510% |
| D | 3419 | 172 | 5.030711% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3709 | 3421 | 10 | 10 | 0.27% | 0.29% |  |
| B | 3709 | 3421 | 1 | 1 | 0.03% | 0.03% |  |
| C | 3709 | 3421 | 0 | 0 | 0.00% | 0.00% |  |
| D | 3709 | 3421 | 68 | 68 | 1.83% | 1.99% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 84750 | 953.34 | 426 | 416 | 88.5 |
| A | 4 | 2 | 14754 | 162.08 | 426 | 416 | 88.5 |
| A | 0 | 226 | 3664 | 36.72 | 426 | 416 | 88.5 |
| B | 10 | 245 | 18104 | 210.18 | 429 | 418 | 84.1 |
| B | 12 | 111 | 10232 | 116.63 | 429 | 418 | 84.1 |
| B | 11 | 111 | 8886 | 100.63 | 429 | 418 | 84.1 |
| C | 14 | 238 | 63218 | 642.57 | 409 | 412 | 97.7 |
| C | 3 | 254 | 4010 | 36.81 | 409 | 412 | 97.7 |
| C | 3 | 233 | 3435 | 30.93 | 409 | 412 | 97.7 |
| D | 1 | 52 | 406115 | 3955.23 | 412 | 397 | 102.6 |
| D | 2 | 234 | 14530 | 137.77 | 412 | 397 | 102.6 |
| D | 12 | 110 | 10616 | 99.62 | 412 | 397 | 102.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

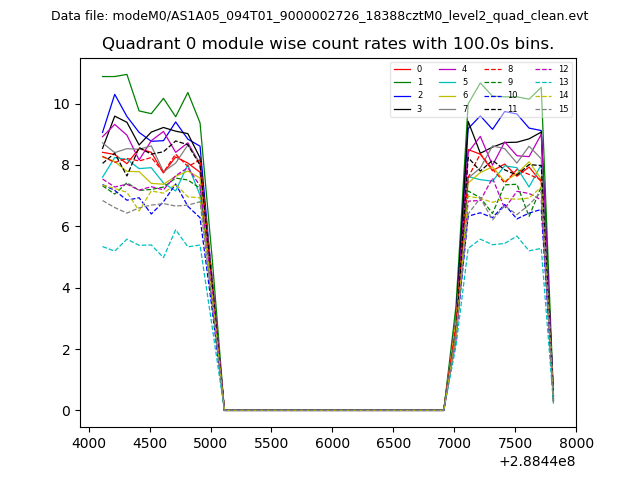

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

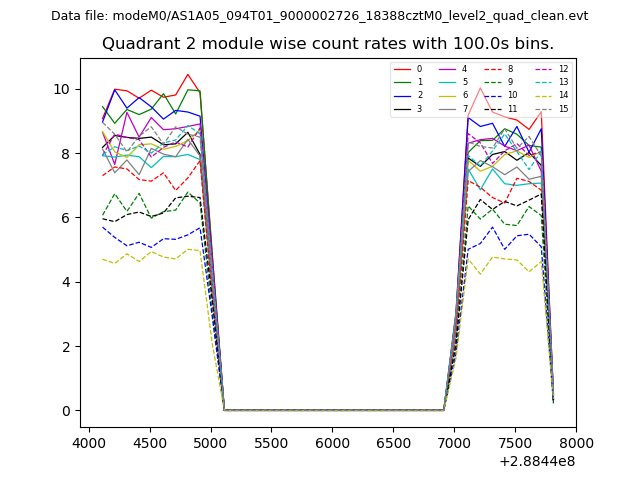

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

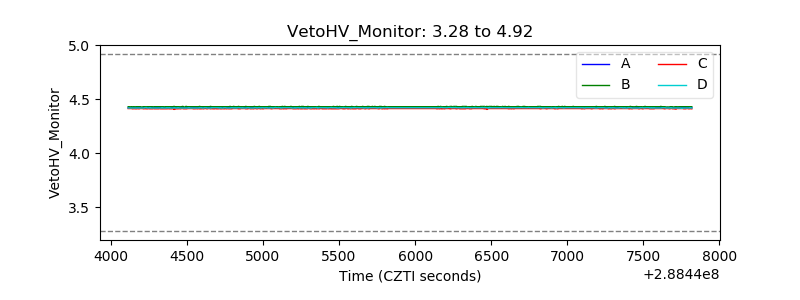

| Veto HV Monitor |  |
| Veto LLD |  |

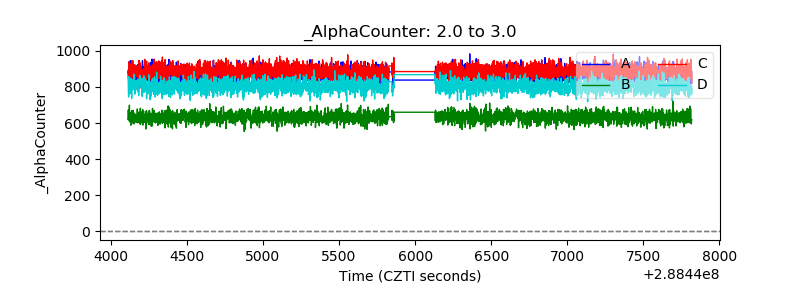

| Alpha Counter |  |

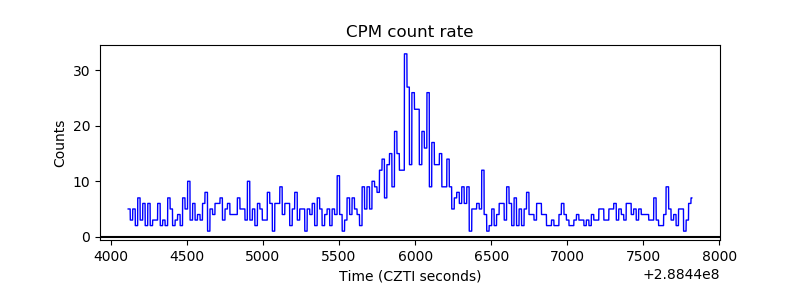

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

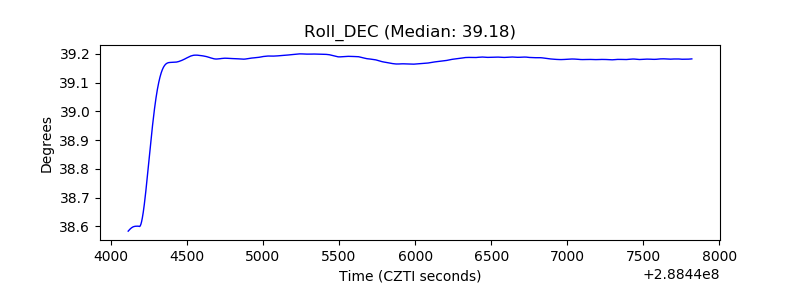

| _Roll_DEC |  |

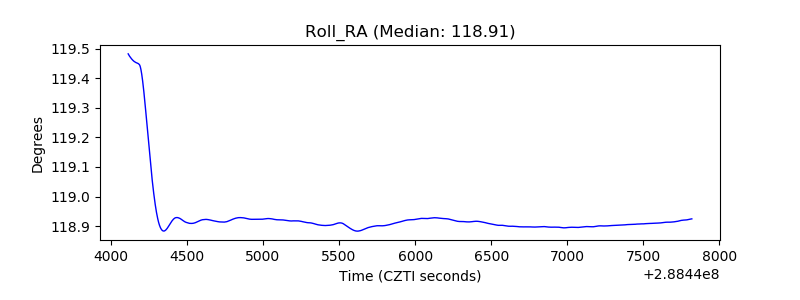

| _Roll_RA |  |
| Veto Counter |  |
