| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_094T01_9000002726_18392cztM0_level2.evt | modeM0/AS1A05_094T01_9000002726_18392cztM0_level2_quad_clean.evt |
| Size (bytes) | 443,249,280 | 95,169,600 |
| Size | 422.7 MB | 90.8 MB |
| Events in quadrant A | 3,294,289 | 621,754 |
| Events in quadrant B | 3,250,063 | 626,311 |
| Events in quadrant C | 3,145,052 | 594,955 |
| Events in quadrant D | 3,285,842 | 579,096 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14256 | 2 |
| B | 0 | 14044 | 2 |
| C | 0 | 13690 | 2 |
| D | 0 | 14316 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6597 | 61 | 0.924663% |
| B | 6597 | 62 | 0.939821% |
| C | 6597 | 73 | 1.106564% |
| D | 6597 | 72 | 1.091405% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

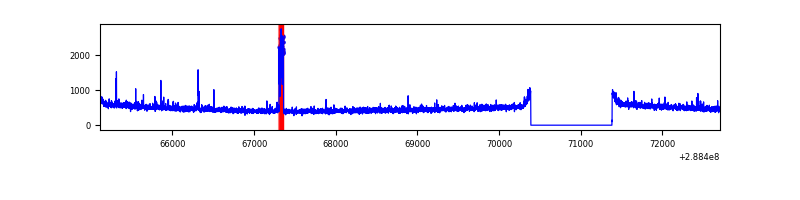

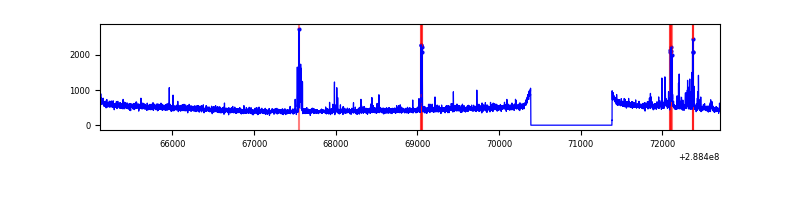

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7592 | 6598 | 13 | 13 | 0.17% | 0.20% |  |
| B | 7592 | 6598 | 29 | 29 | 0.38% | 0.44% |  |
| C | 7592 | 6598 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7592 | 6598 | 31 | 31 | 0.41% | 0.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 177697 | 1092.41 | 802 | 786 | 161.9 |
| A | 4 | 2 | 21495 | 127.88 | 802 | 786 | 161.9 |
| A | 0 | 226 | 7028 | 38.54 | 802 | 786 | 161.9 |
| B | 10 | 245 | 105265 | 686.23 | 801 | 780 | 152.3 |
| B | 12 | 111 | 17622 | 110.61 | 801 | 780 | 152.3 |
| B | 11 | 111 | 15099 | 94.04 | 801 | 780 | 152.3 |
| C | 14 | 238 | 119105 | 651.38 | 772 | 777 | 181.7 |
| C | 13 | 61 | 5510 | 26.05 | 772 | 777 | 181.7 |
| C | 5 | 252 | 5328 | 25.05 | 772 | 777 | 181.7 |
| D | 1 | 52 | 183359 | 962.38 | 781 | 759 | 189.7 |
| D | 8 | 0 | 72026 | 375.61 | 781 | 759 | 189.7 |
| D | 2 | 234 | 27333 | 140.06 | 781 | 759 | 189.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

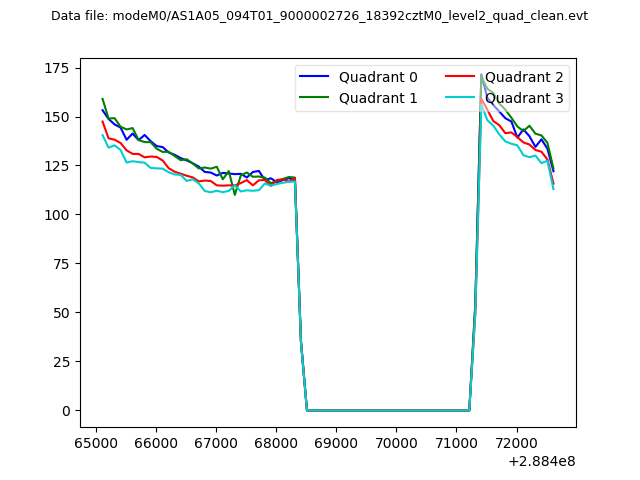

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

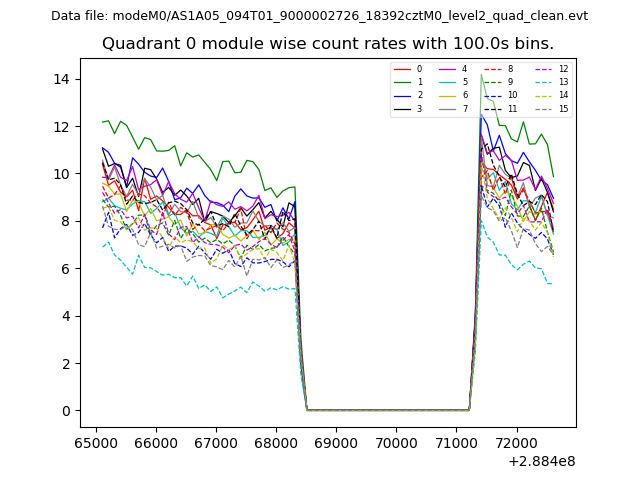

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

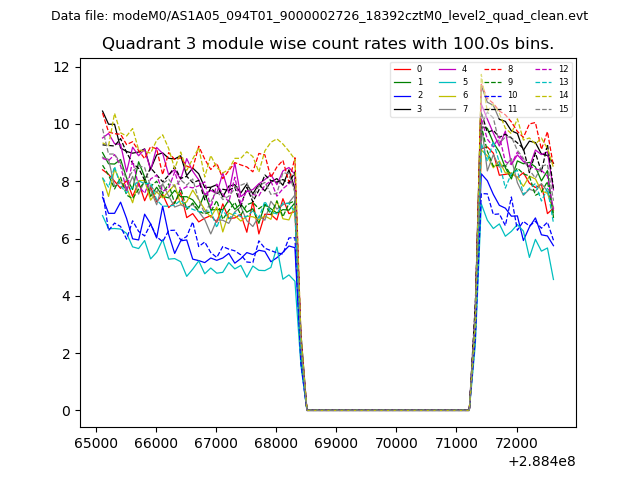

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

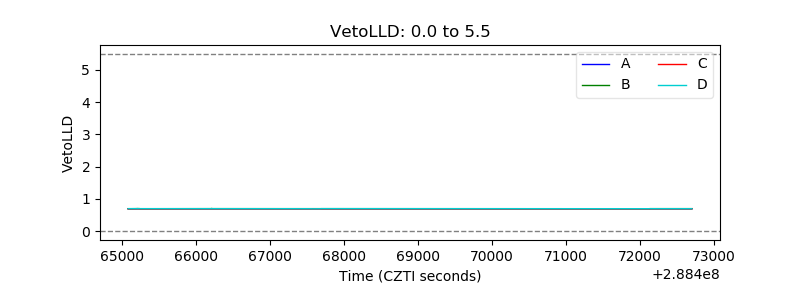

| Veto LLD |  |
| Alpha Counter |  |

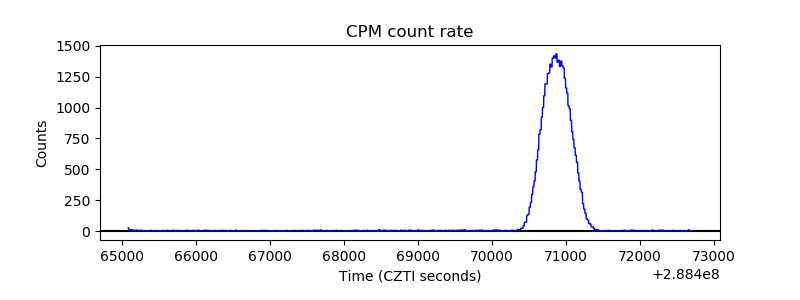

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

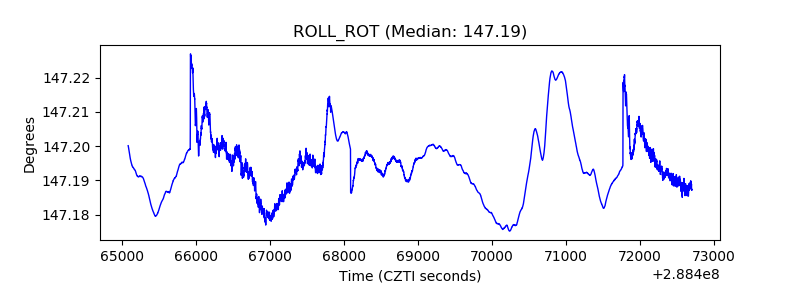

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
