| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_094T01_9000002726_18394cztM0_level2.evt | modeM0/AS1A05_094T01_9000002726_18394cztM0_level2_quad_clean.evt |
| Size (bytes) | 467,112,960 | 94,308,480 |
| Size | 445.5 MB | 89.9 MB |
| Events in quadrant A | 3,216,778 | 622,436 |
| Events in quadrant B | 3,264,396 | 634,146 |
| Events in quadrant C | 3,742,166 | 575,886 |
| Events in quadrant D | 3,485,545 | 574,032 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13937 | 2 |
| B | 0 | 13963 | 2 |
| C | 0 | 15456 | 3 |
| D | 0 | 14890 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6445 | 53 | 0.822343% |
| B | 6445 | 61 | 0.946470% |
| C | 6444 | 371 | 5.757294% |
| D | 6444 | 133 | 2.063935% |

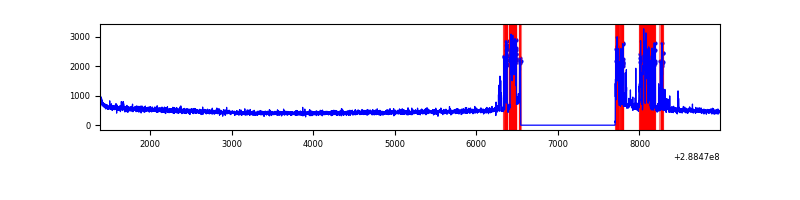

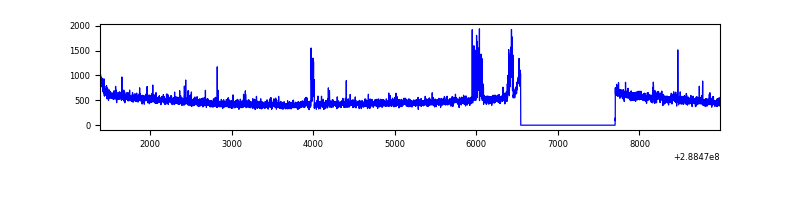

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7605 | 6446 | 9 | 9 | 0.12% | 0.14% |  |
| B | 7605 | 6446 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7604 | 6445 | 213 | 213 | 2.80% | 3.30% |  |
| D | 7604 | 6445 | 80 | 80 | 1.05% | 1.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 146816 | 924.58 | 793 | 778 | 158.0 |
| A | 8 | 34 | 13584 | 81.08 | 793 | 778 | 158.0 |
| A | 0 | 226 | 7034 | 39.61 | 793 | 778 | 158.0 |
| B | 10 | 245 | 126456 | 842.37 | 795 | 778 | 149.2 |
| B | 12 | 111 | 17129 | 109.59 | 795 | 778 | 149.2 |
| B | 11 | 111 | 14728 | 93.5 | 795 | 778 | 149.2 |
| C | 5 | 112 | 708678 | 4063.99 | 747 | 752 | 174.2 |
| C | 14 | 238 | 116446 | 664.16 | 747 | 752 | 174.2 |
| C | 13 | 61 | 5508 | 27.3 | 747 | 752 | 174.2 |
| D | 1 | 52 | 465204 | 2518.9 | 769 | 747 | 184.4 |
| D | 14 | 34 | 42512 | 226.51 | 769 | 747 | 184.4 |
| D | 2 | 234 | 26247 | 138.29 | 769 | 747 | 184.4 |

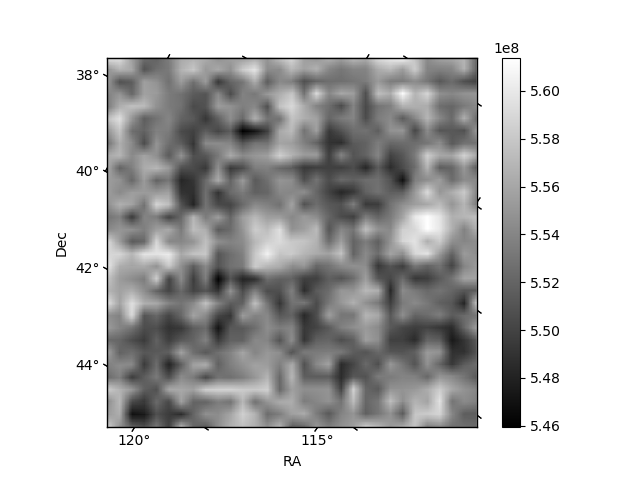

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

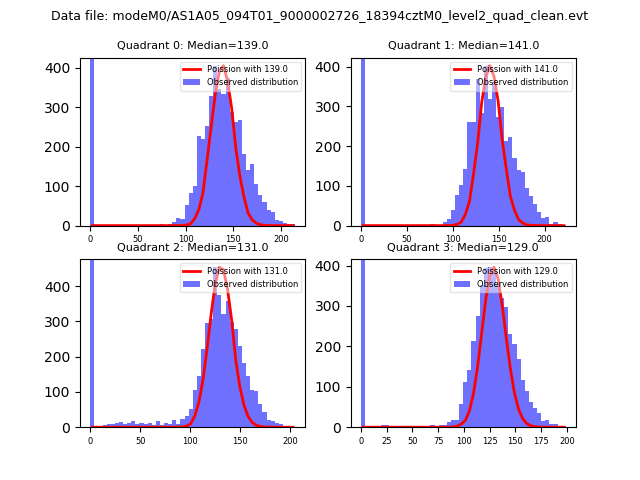

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

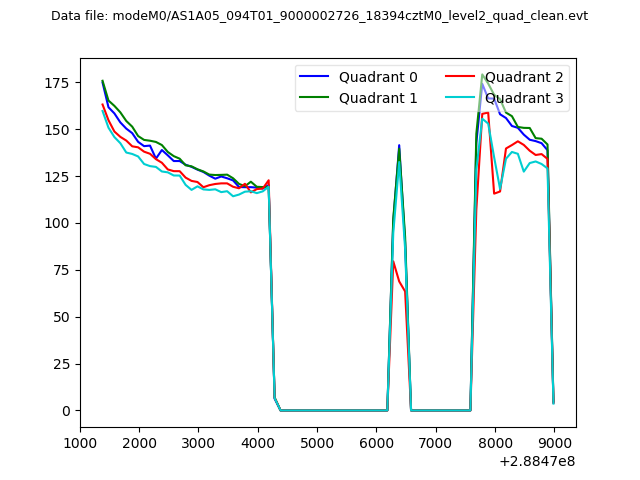

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

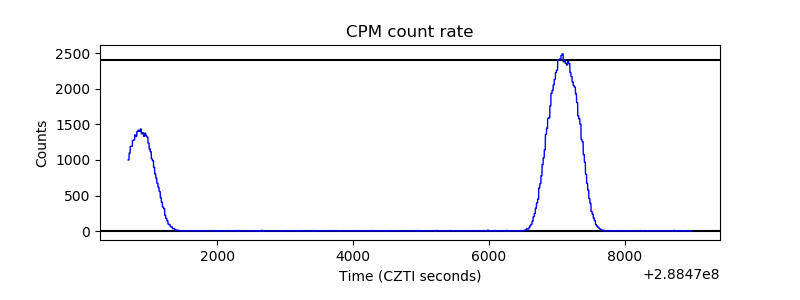

| _CPM_Rate |  |

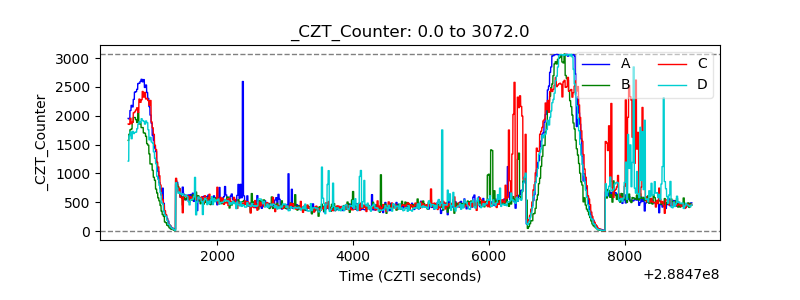

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
