| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_094T01_9000002726_18399cztM0_level2.evt | modeM0/AS1A05_094T01_9000002726_18399cztM0_level2_quad_clean.evt |
| Size (bytes) | 460,301,760 | 80,665,920 |
| Size | 439.0 MB | 76.9 MB |
| Events in quadrant A | 3,482,759 | 506,094 |
| Events in quadrant B | 3,285,821 | 517,275 |
| Events in quadrant C | 3,141,995 | 488,313 |
| Events in quadrant D | 3,583,032 | 472,606 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14516 | 2 |
| B | 0 | 13881 | 2 |
| C | 0 | 13532 | 2 |
| D | 0 | 14870 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6570 | 119 | 1.811263% |
| B | 6570 | 102 | 1.552511% |
| C | 6570 | 91 | 1.385084% |
| D | 6570 | 100 | 1.522070% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

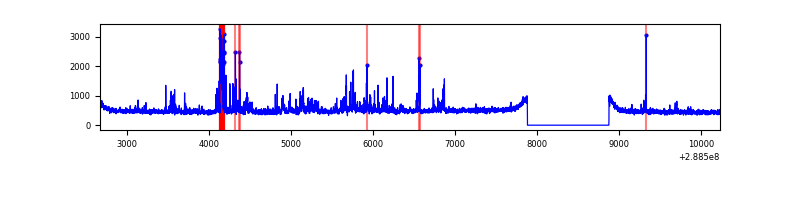

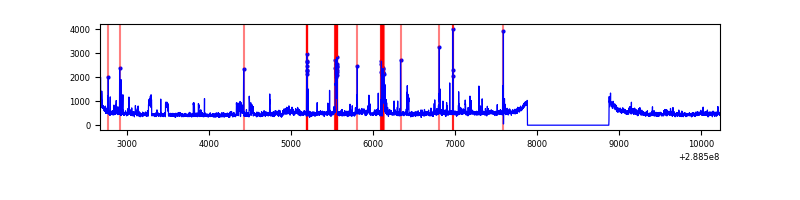

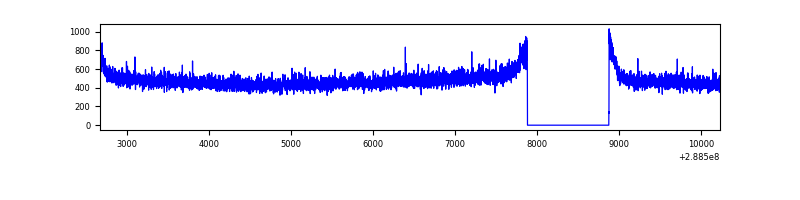

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7565 | 6571 | 35 | 35 | 0.46% | 0.53% |  |
| B | 7565 | 6571 | 5 | 5 | 0.07% | 0.08% |  |
| C | 7565 | 6571 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7565 | 6571 | 53 | 53 | 0.70% | 0.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 333583 | 2050.71 | 805 | 788 | 162.3 |
| A | 15 | 174 | 41081 | 248.29 | 805 | 788 | 162.3 |
| A | 0 | 254 | 10676 | 60.93 | 805 | 788 | 162.3 |
| B | 3 | 64 | 72052 | 463.73 | 809 | 789 | 153.7 |
| B | 10 | 245 | 24742 | 155.87 | 809 | 789 | 153.7 |
| B | 12 | 111 | 18311 | 114.02 | 809 | 789 | 153.7 |
| C | 14 | 238 | 118986 | 653.24 | 774 | 779 | 181.0 |
| C | 13 | 61 | 5614 | 26.72 | 774 | 779 | 181.0 |
| C | 0 | 207 | 3928 | 17.4 | 774 | 779 | 181.0 |
| D | 7 | 238 | 191505 | 1011.58 | 775 | 752 | 188.6 |
| D | 1 | 52 | 160378 | 846.51 | 775 | 752 | 188.6 |
| D | 12 | 110 | 158317 | 835.58 | 775 | 752 | 188.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

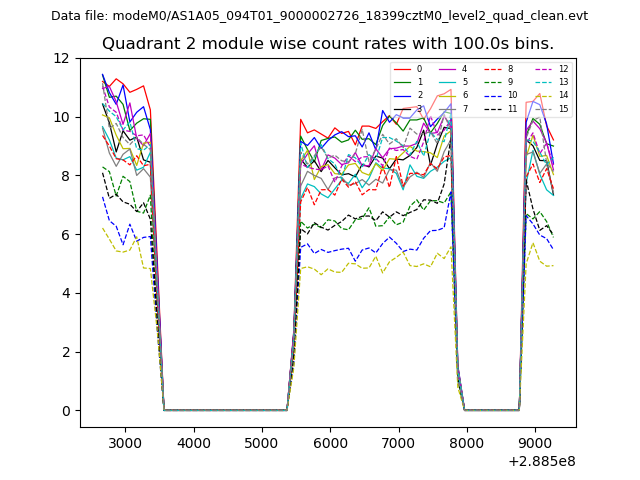

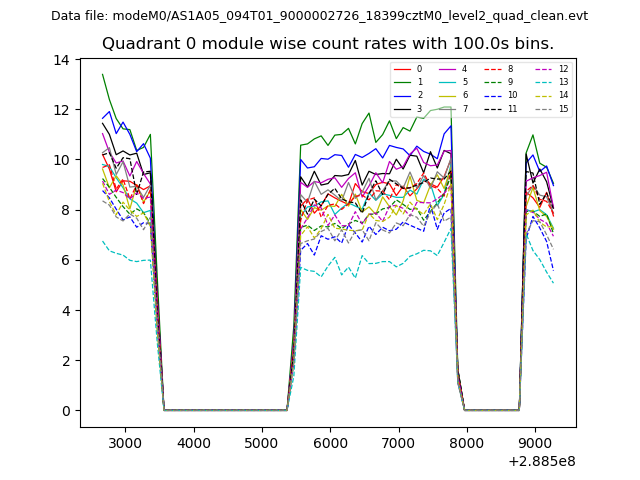

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

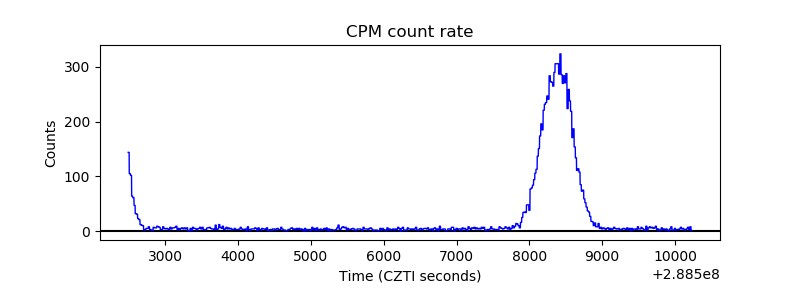

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

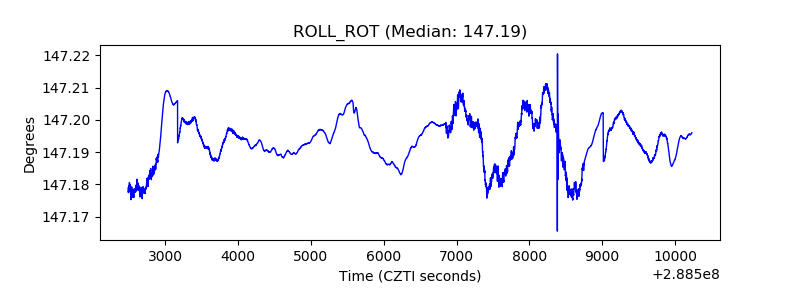

| _ROLL_ROT |  |

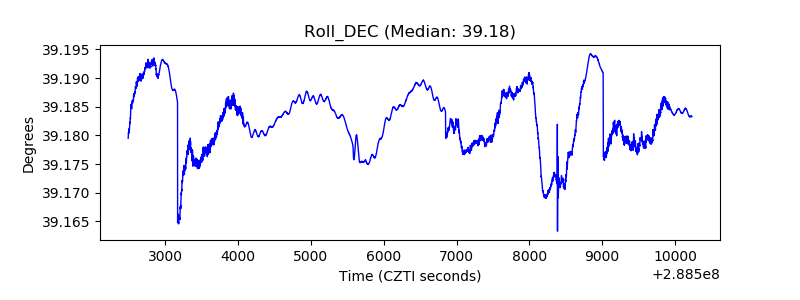

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
