| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_094T01_9000002726_18401cztM0_level2.evt | modeM0/AS1A05_094T01_9000002726_18401cztM0_level2_quad_clean.evt |
| Size (bytes) | 699,664,320 | 78,537,600 |
| Size | 667.3 MB | 74.9 MB |
| Events in quadrant A | 3,572,764 | 497,113 |
| Events in quadrant B | 3,661,912 | 505,718 |
| Events in quadrant C | 3,807,280 | 478,373 |
| Events in quadrant D | 9,640,456 | 376,141 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15607 | 2 |
| B | 0 | 15720 | 2 |
| C | 0 | 15975 | 2 |
| D | 0 | 33568 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7481 | 255 | 3.408635% |
| B | 7481 | 311 | 4.157198% |
| C | 7481 | 268 | 3.582409% |
| D | 7480 | 2638 | 35.267380% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7666 | 7482 | 4 | 4 | 0.05% | 0.05% |  |
| B | 7666 | 7482 | 7 | 7 | 0.09% | 0.09% |  |
| C | 7666 | 7482 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7665 | 7481 | 2314 | 2314 | 30.19% | 30.93% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 33514 | 176.82 | 908 | 887 | 184.5 |
| A | 0 | 254 | 18061 | 93.07 | 908 | 887 | 184.5 |
| A | 6 | 16 | 13709 | 69.49 | 908 | 887 | 184.5 |
| B | 7 | 220 | 45271 | 250.24 | 911 | 885 | 177.4 |
| B | 3 | 64 | 35140 | 193.12 | 911 | 885 | 177.4 |
| B | 12 | 111 | 21314 | 115.17 | 911 | 885 | 177.4 |
| C | 3 | 233 | 264842 | 1278.06 | 873 | 876 | 206.5 |
| C | 14 | 238 | 134038 | 644.74 | 873 | 876 | 206.5 |
| C | 13 | 61 | 6077 | 25.18 | 873 | 876 | 206.5 |
| D | 1 | 52 | 6788673 | 40041.25 | 695 | 672 | 169.5 |
| D | 7 | 238 | 135131 | 793.15 | 695 | 672 | 169.5 |
| D | 2 | 234 | 26163 | 150.37 | 695 | 672 | 169.5 |

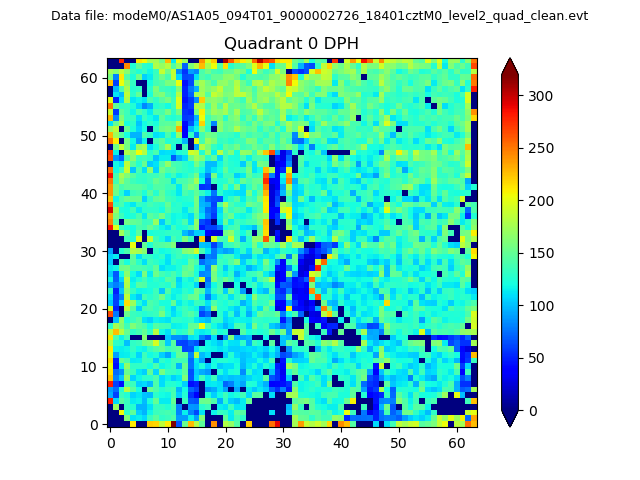

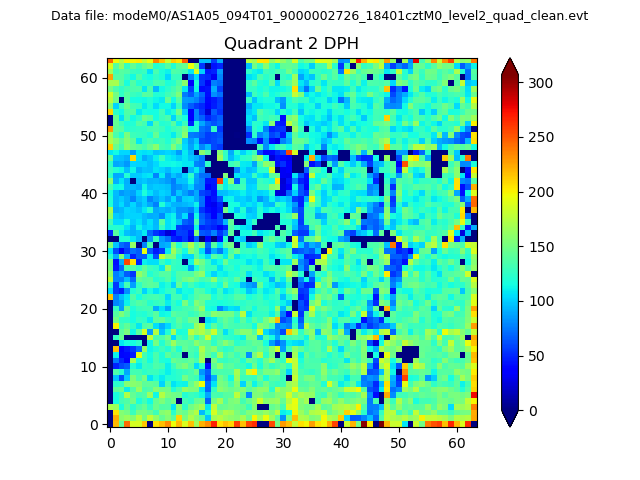

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

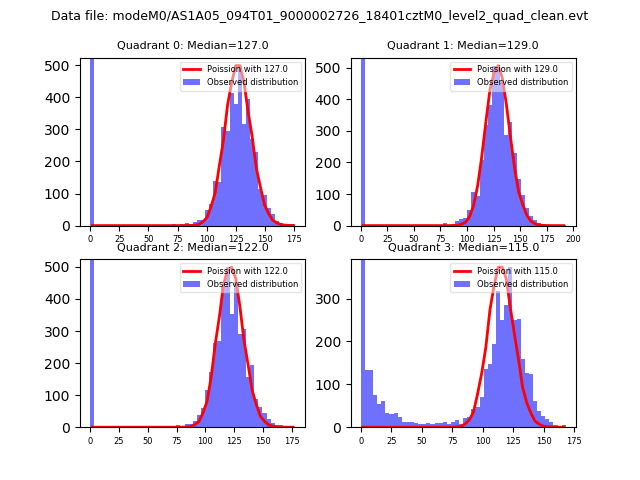

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

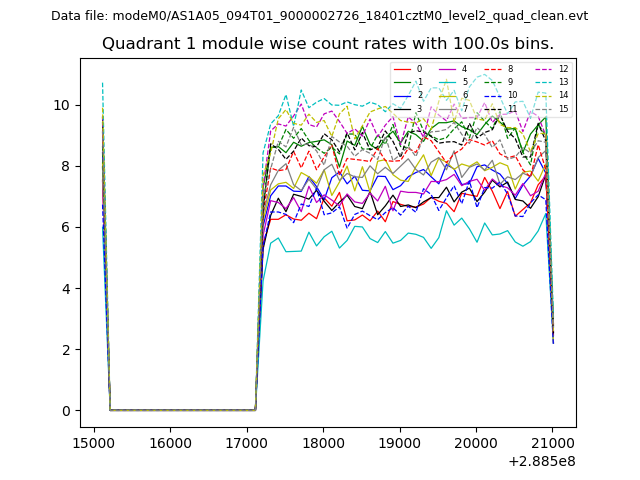

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

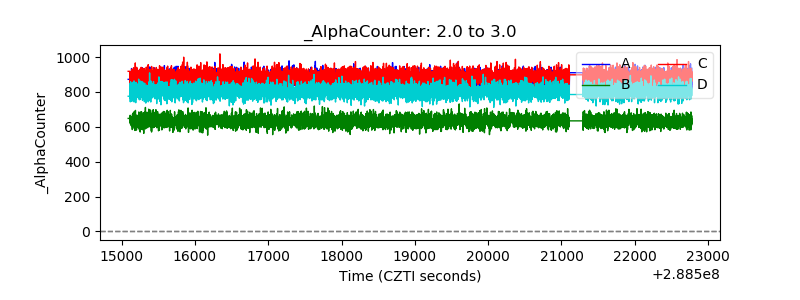

| Alpha Counter |  |
| _CPM_Rate |  |

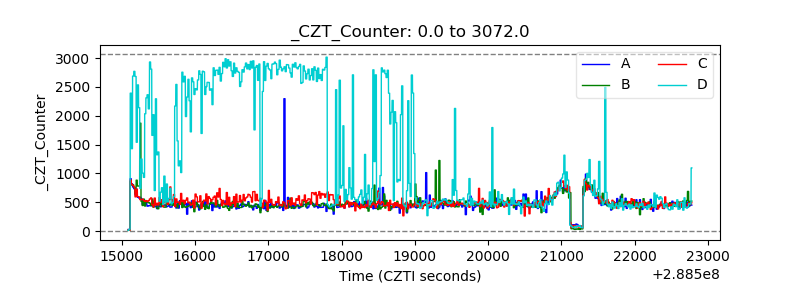

| CZT Counter |  |

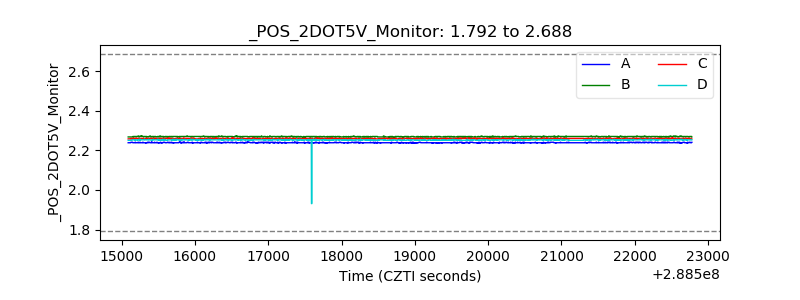

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

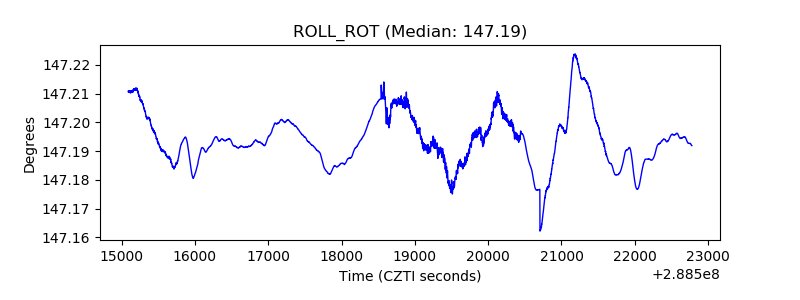

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
