| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_199T01_9000002732_18417cztM0_level2.evt | modeM0/AS1A05_199T01_9000002732_18417cztM0_level2_quad_clean.evt |
| Size (bytes) | 521,297,280 | 80,406,720 |
| Size | 497.1 MB | 76.7 MB |
| Events in quadrant A | 3,627,886 | 485,626 |
| Events in quadrant B | 3,497,522 | 497,298 |
| Events in quadrant C | 3,394,742 | 478,320 |
| Events in quadrant D | 4,768,200 | 461,835 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15658 | 1 |
| B | 0 | 15110 | 1 |
| C | 0 | 14951 | 1 |
| D | 0 | 18872 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7353 | 152 | 2.067183% |
| B | 7353 | 117 | 1.591187% |
| C | 7354 | 124 | 1.686157% |
| D | 7353 | 227 | 3.087175% |

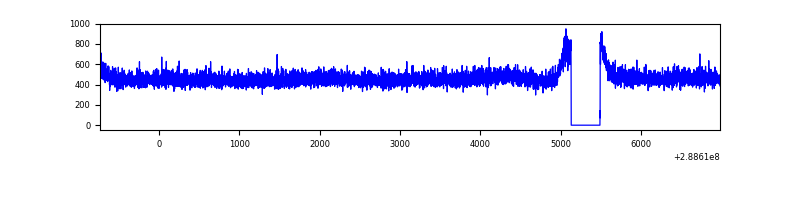

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7713 | 7354 | 33 | 33 | 0.43% | 0.45% |  |
| B | 7713 | 7354 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7714 | 7355 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7713 | 7354 | 107 | 107 | 1.39% | 1.45% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 162218 | 910.61 | 874 | 853 | 177.2 |
| A | 15 | 174 | 85331 | 476.72 | 874 | 853 | 177.2 |
| A | 0 | 254 | 20844 | 112.81 | 874 | 853 | 177.2 |
| B | 0 | 189 | 26202 | 149.76 | 875 | 848 | 169.3 |
| B | 12 | 111 | 20554 | 116.4 | 875 | 848 | 169.3 |
| B | 11 | 111 | 17429 | 97.94 | 875 | 848 | 169.3 |
| C | 14 | 238 | 128524 | 651.32 | 835 | 837 | 196.0 |
| C | 3 | 233 | 10621 | 49.91 | 835 | 837 | 196.0 |
| C | 13 | 61 | 5892 | 25.79 | 835 | 837 | 196.0 |
| D | 10 | 66 | 872758 | 4265.79 | 841 | 815 | 204.4 |
| D | 1 | 52 | 379422 | 1852.25 | 841 | 815 | 204.4 |
| D | 8 | 230 | 136685 | 664.71 | 841 | 815 | 204.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

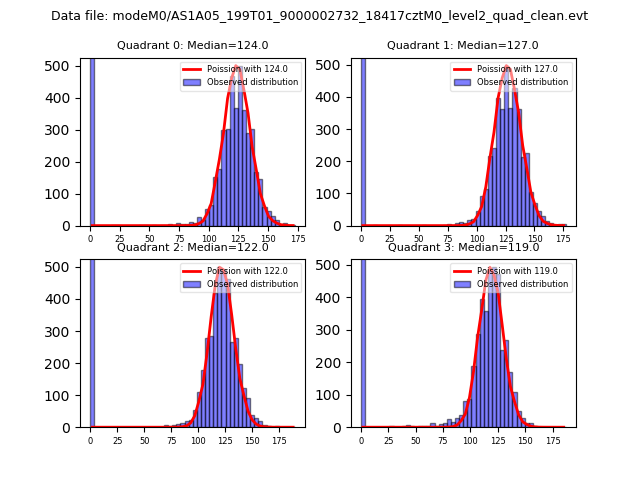

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

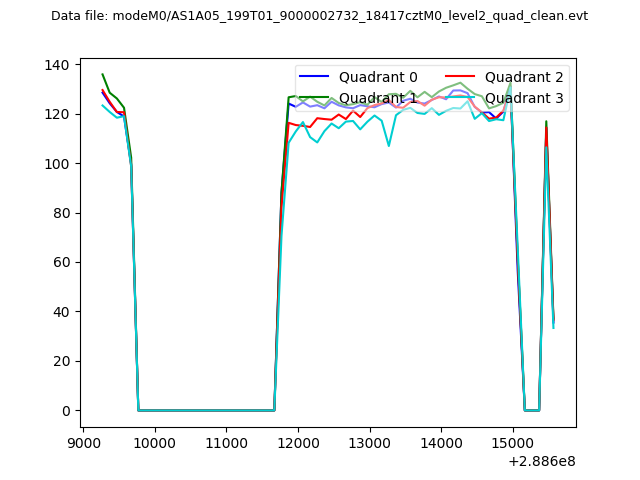

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

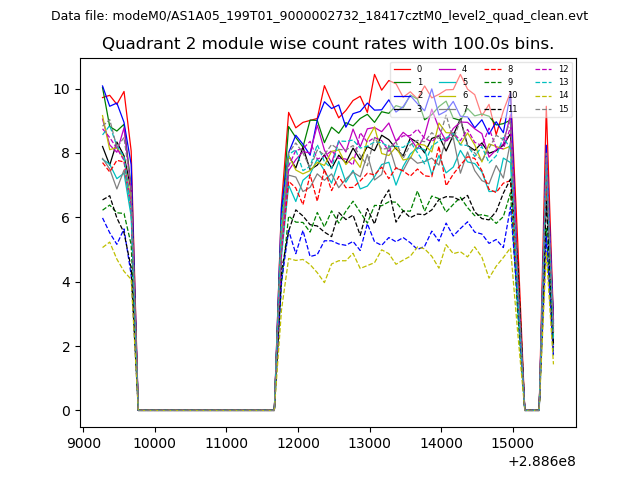

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

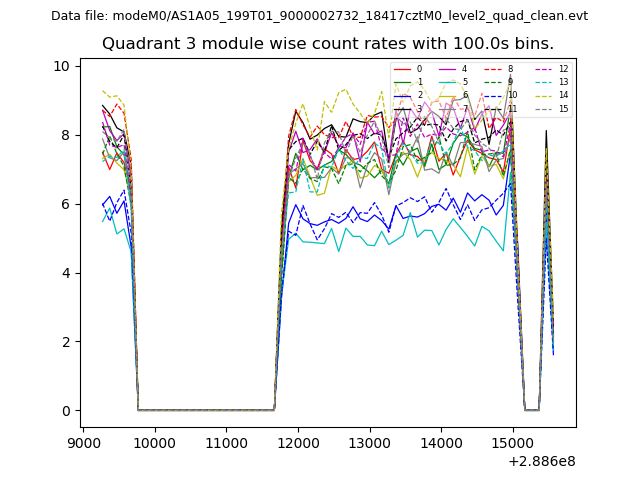

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

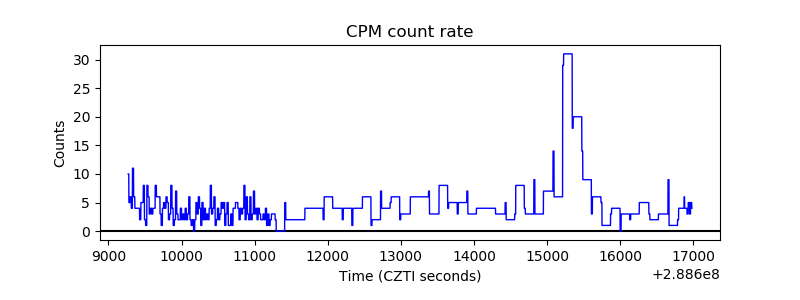

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

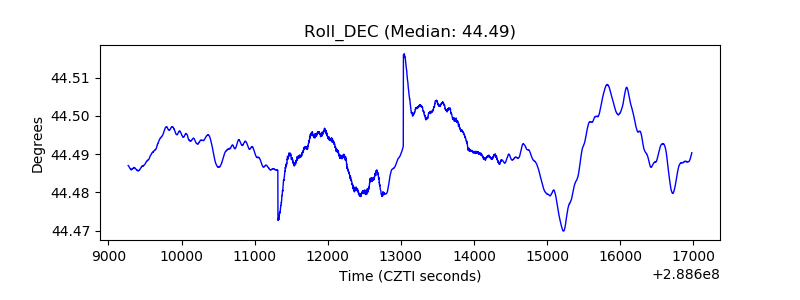

| _Roll_DEC |  |

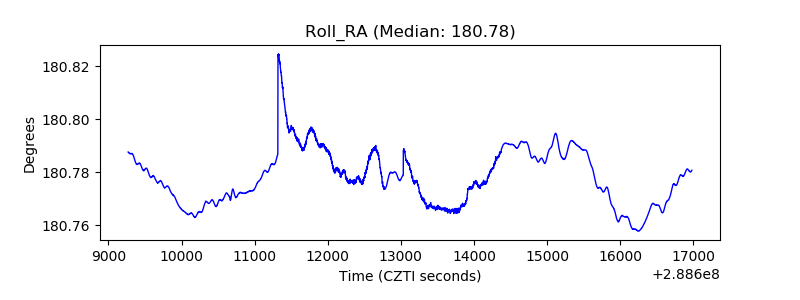

| _Roll_RA |  |
| Veto Counter |  |
