| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_199T01_9000002732_18421cztM0_level2.evt | modeM0/AS1A05_199T01_9000002732_18421cztM0_level2_quad_clean.evt |
| Size (bytes) | 484,801,920 | 97,577,280 |
| Size | 462.3 MB | 93.1 MB |
| Events in quadrant A | 3,300,645 | 624,107 |
| Events in quadrant B | 3,378,225 | 639,882 |
| Events in quadrant C | 3,410,370 | 616,968 |
| Events in quadrant D | 4,130,779 | 599,810 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14379 | 2 |
| B | 0 | 14584 | 2 |
| C | 0 | 14482 | 2 |
| D | 0 | 17058 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6813 | 83 | 1.218259% |
| B | 6814 | 101 | 1.482242% |
| C | 6814 | 128 | 1.878485% |
| D | 6813 | 116 | 1.702627% |

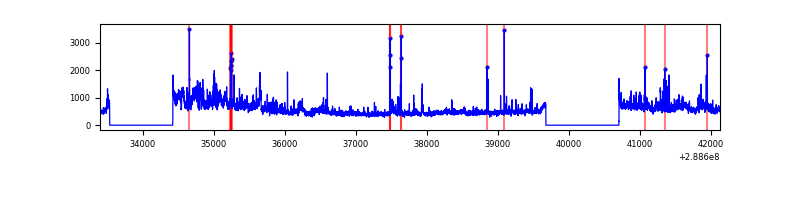

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8733 | 6815 | 4 | 4 | 0.05% | 0.06% |  |
| B | 8734 | 6816 | 1 | 1 | 0.01% | 0.01% |  |
| C | 8734 | 6816 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8733 | 6815 | 19 | 19 | 0.22% | 0.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 46990 | 272.45 | 839 | 819 | 169.5 |
| A | 15 | 174 | 23074 | 131.33 | 839 | 819 | 169.5 |
| A | 0 | 226 | 7256 | 37.98 | 839 | 819 | 169.5 |
| B | 0 | 189 | 67741 | 420.5 | 844 | 823 | 159.1 |
| B | 12 | 111 | 18850 | 113.28 | 844 | 823 | 159.1 |
| B | 11 | 111 | 16311 | 97.32 | 844 | 823 | 159.1 |
| C | 14 | 238 | 126095 | 654.2 | 817 | 822 | 191.5 |
| C | 3 | 233 | 95218 | 492.95 | 817 | 822 | 191.5 |
| C | 13 | 61 | 5796 | 25.98 | 817 | 822 | 191.5 |
| D | 8 | 230 | 419550 | 2098.17 | 823 | 798 | 199.6 |
| D | 12 | 110 | 207501 | 1035.69 | 823 | 798 | 199.6 |
| D | 1 | 52 | 175074 | 873.22 | 823 | 798 | 199.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

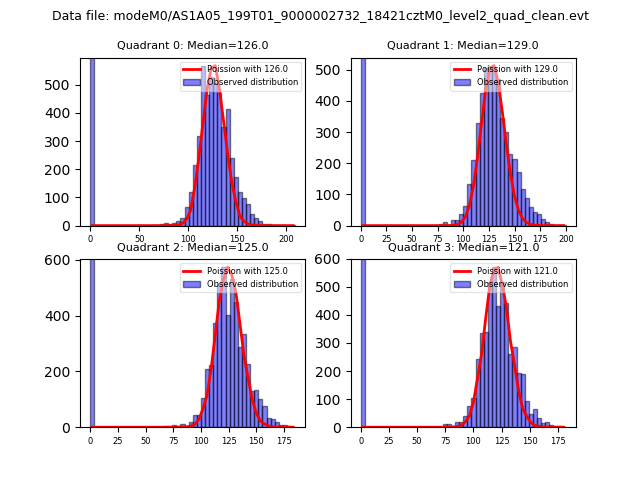

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

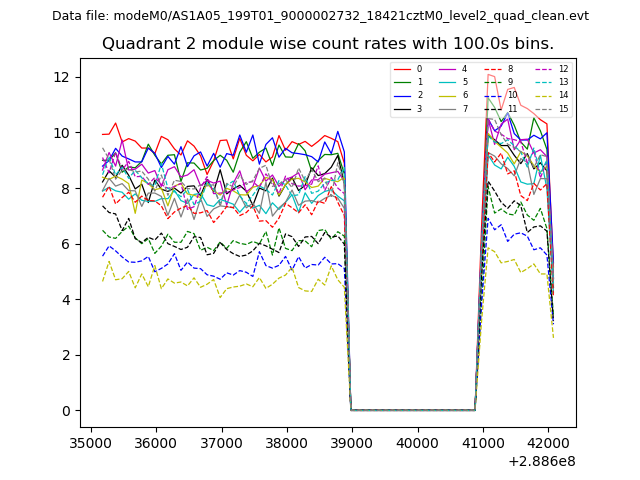

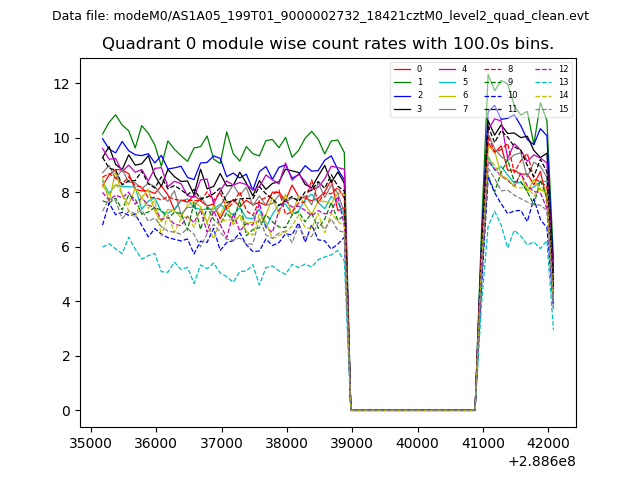

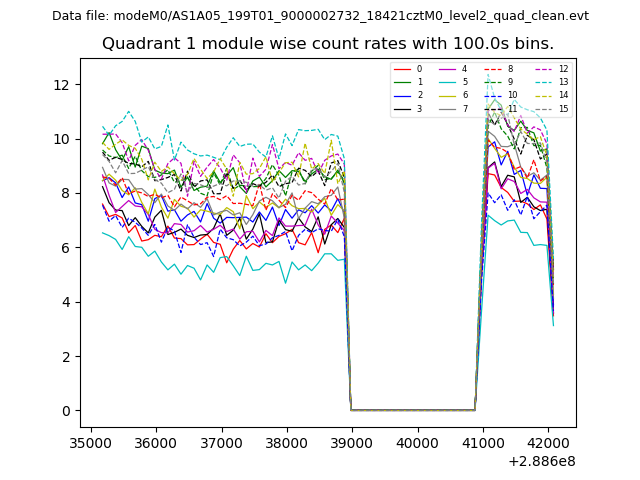

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

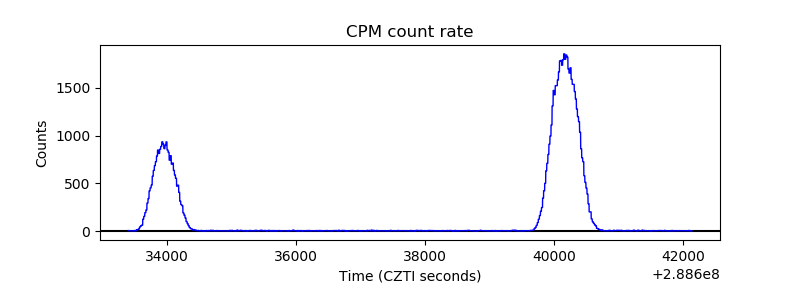

| _CPM_Rate |  |

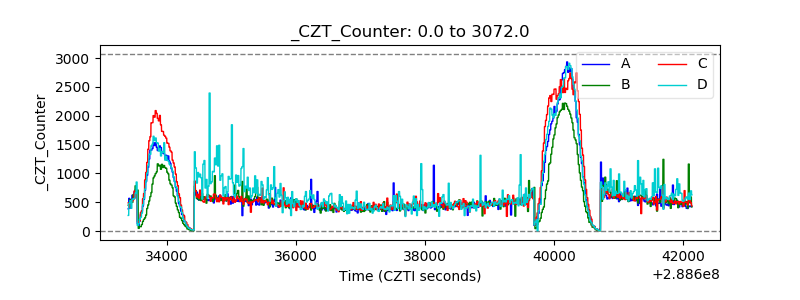

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

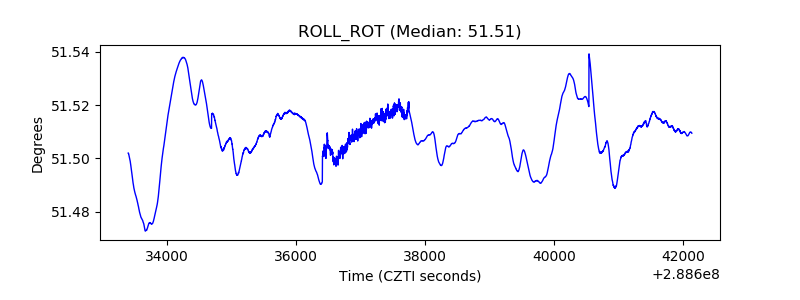

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
