| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_199T01_9000002732_18434cztM0_level2.evt | modeM0/AS1A05_199T01_9000002732_18434cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,220,820,480 | 220,305,600 |
| Size | 1.1 GB | 210.1 MB |
| Events in quadrant A | 8,206,210 | 1,391,567 |
| Events in quadrant B | 8,241,382 | 1,407,914 |
| Events in quadrant C | 8,087,741 | 1,361,597 |
| Events in quadrant D | 11,265,781 | 1,317,070 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36084 | 4 |
| B | 0 | 35923 | 4 |
| C | 0 | 35409 | 4 |
| D | 0 | 45284 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 354 | 0 |
| B | 0 | 354 | 0 |
| C | 0 | 354 | 0 |
| D | 0 | 354 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 17322 | 383 | 2.211061% |
| B | 17322 | 361 | 2.084055% |
| C | 17322 | 374 | 2.159104% |
| D | 17321 | 681 | 3.931644% |

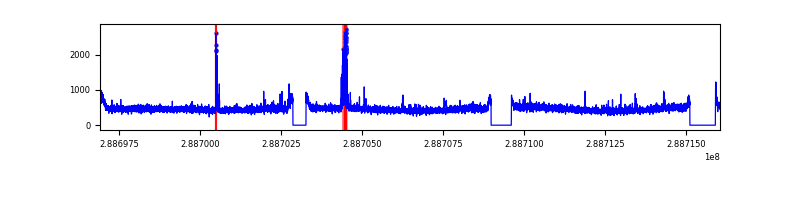

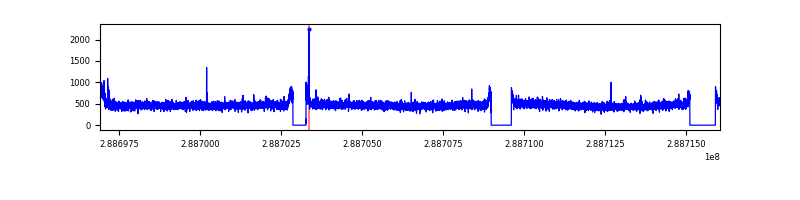

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

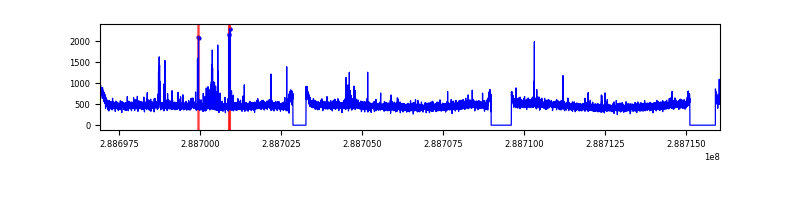

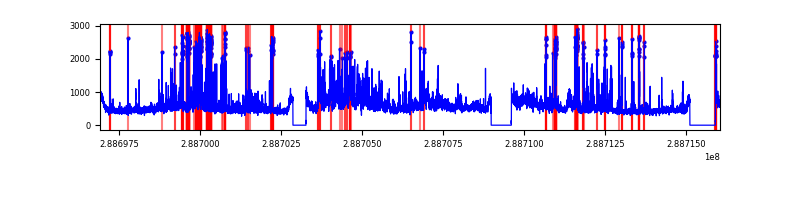

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19142 | 17325 | 37 | 37 | 0.19% | 0.21% |  |
| B | 19142 | 17325 | 6 | 6 | 0.03% | 0.03% |  |
| C | 19142 | 17325 | 1 | 1 | 0.01% | 0.01% |  |
| D | 19141 | 17324 | 387 | 387 | 2.02% | 2.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 175310 | 414.59 | 2059 | 2009 | 418.0 |
| A | 14 | 238 | 70588 | 164.06 | 2059 | 2009 | 418.0 |
| A | 15 | 174 | 46447 | 106.31 | 2059 | 2009 | 418.0 |
| B | 10 | 245 | 132418 | 329.09 | 2059 | 2007 | 396.3 |
| B | 12 | 111 | 47910 | 115.83 | 2059 | 2007 | 396.3 |
| B | 11 | 111 | 41866 | 100.58 | 2059 | 2007 | 396.3 |
| C | 14 | 238 | 304673 | 652.47 | 1977 | 1984 | 463.9 |
| C | 3 | 233 | 57037 | 118.67 | 1977 | 1984 | 463.9 |
| C | 13 | 61 | 13952 | 25.8 | 1977 | 1984 | 463.9 |
| D | 1 | 52 | 2174144 | 4488.37 | 1987 | 1926 | 484.0 |
| D | 12 | 110 | 868839 | 1791.27 | 1987 | 1926 | 484.0 |
| D | 10 | 66 | 226524 | 464.08 | 1987 | 1926 | 484.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

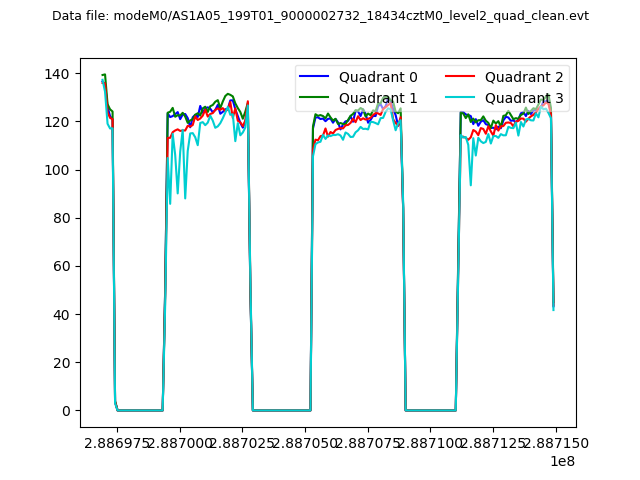

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

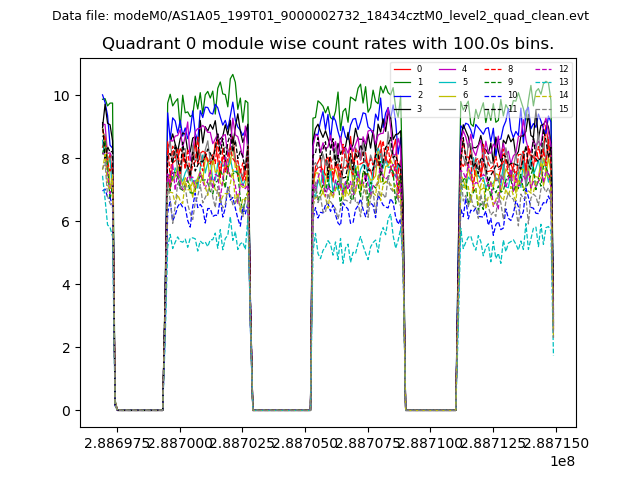

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

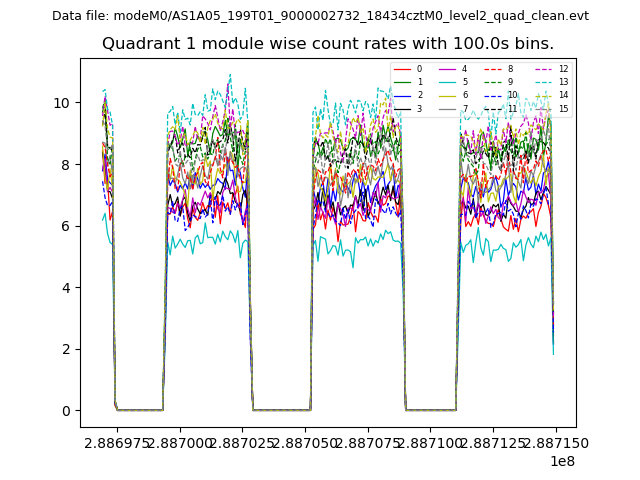

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

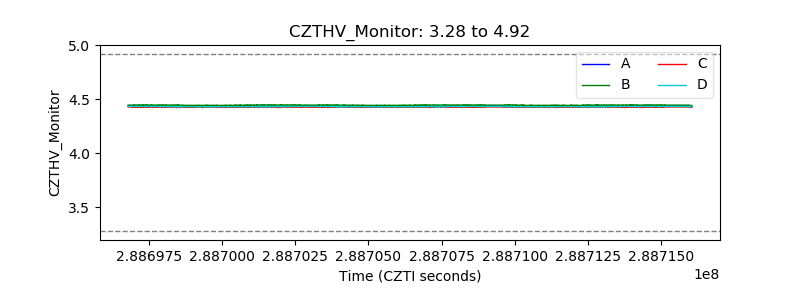

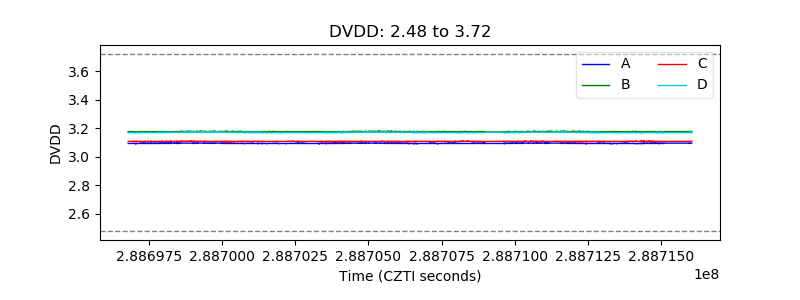

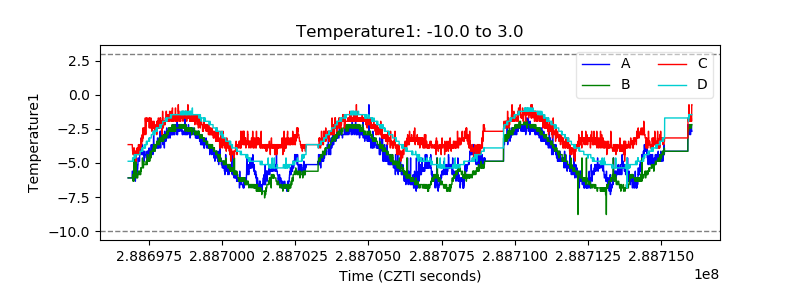

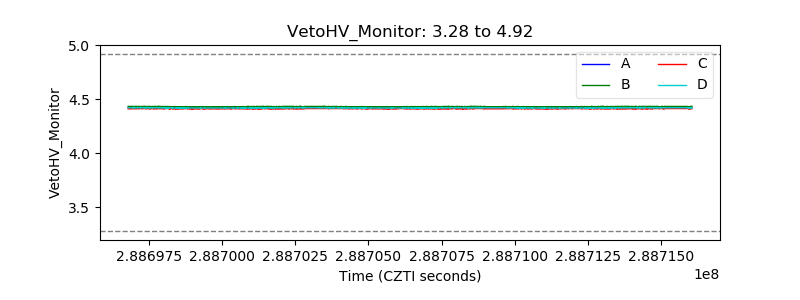

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

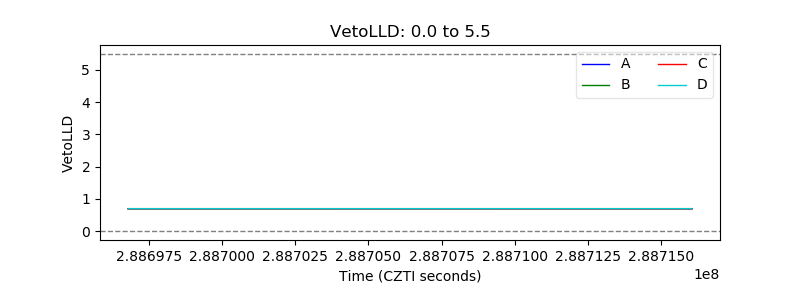

| Veto LLD |  |

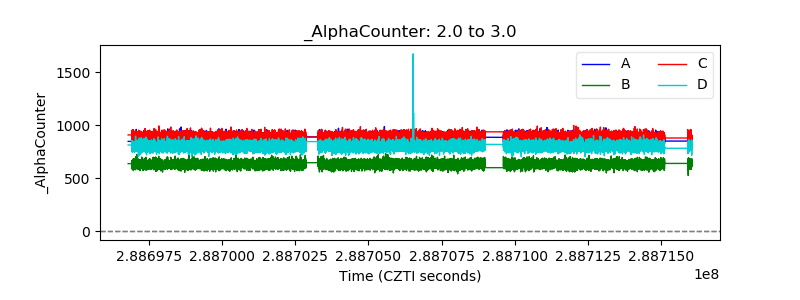

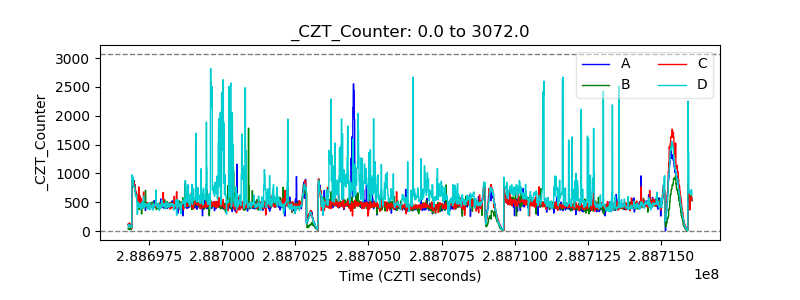

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

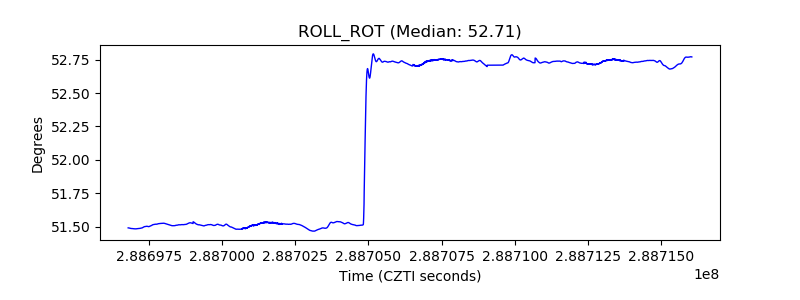

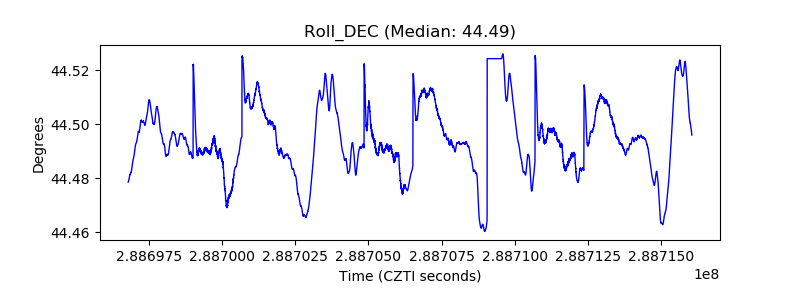

| _ROLL_ROT |  |
| _Roll_DEC |  |

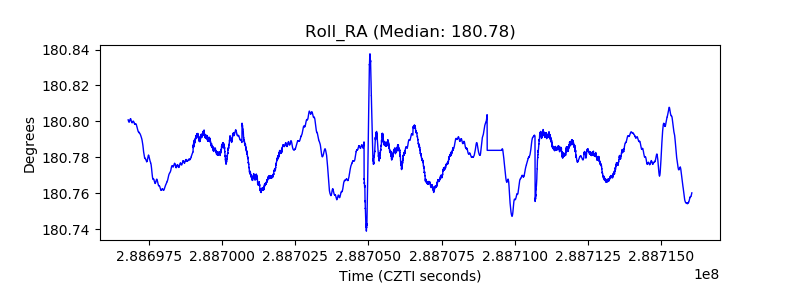

| _Roll_RA |  |
| Veto Counter |  |
