| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_199T01_9000002732_18435cztM0_level2.evt | modeM0/AS1A05_199T01_9000002732_18435cztM0_level2_quad_clean.evt |
| Size (bytes) | 479,085,120 | 87,399,360 |
| Size | 456.9 MB | 83.4 MB |
| Events in quadrant A | 3,269,638 | 554,361 |
| Events in quadrant B | 3,252,988 | 561,078 |
| Events in quadrant C | 3,208,551 | 541,840 |
| Events in quadrant D | 4,328,966 | 528,220 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14124 | 2 |
| B | 0 | 14014 | 2 |
| C | 0 | 13785 | 2 |
| D | 0 | 17396 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6613 | 77 | 1.164373% |
| B | 6613 | 75 | 1.134130% |
| C | 6613 | 99 | 1.497051% |
| D | 6613 | 260 | 3.931650% |

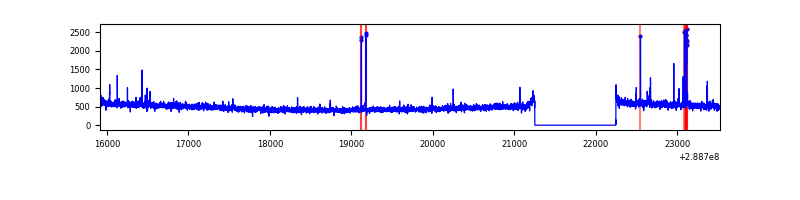

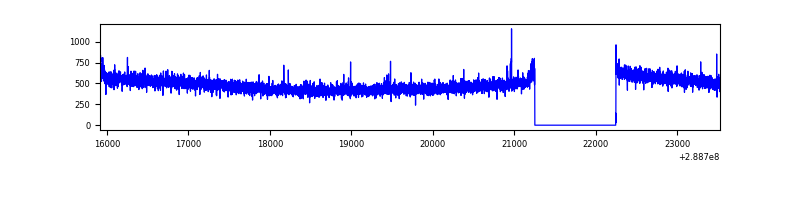

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7608 | 6614 | 12 | 12 | 0.16% | 0.18% |  |
| B | 7608 | 6614 | 14 | 14 | 0.18% | 0.21% |  |
| C | 7608 | 6614 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7608 | 6614 | 230 | 230 | 3.02% | 3.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 4 | 108066 | 655.63 | 810 | 793 | 163.6 |
| A | 14 | 238 | 33087 | 197.37 | 810 | 793 | 163.6 |
| A | 15 | 174 | 9727 | 54.6 | 810 | 793 | 163.6 |
| B | 3 | 64 | 49909 | 314.21 | 809 | 787 | 156.3 |
| B | 10 | 245 | 20023 | 123.04 | 809 | 787 | 156.3 |
| B | 12 | 111 | 18385 | 112.57 | 809 | 787 | 156.3 |
| C | 14 | 238 | 122340 | 662.56 | 781 | 785 | 183.5 |
| C | 3 | 233 | 25795 | 136.32 | 781 | 785 | 183.5 |
| C | 9 | 54 | 10294 | 51.83 | 781 | 785 | 183.5 |
| D | 7 | 238 | 711400 | 3668.67 | 787 | 761 | 193.7 |
| D | 1 | 52 | 296152 | 1524.95 | 787 | 761 | 193.7 |
| D | 12 | 110 | 160532 | 824.82 | 787 | 761 | 193.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

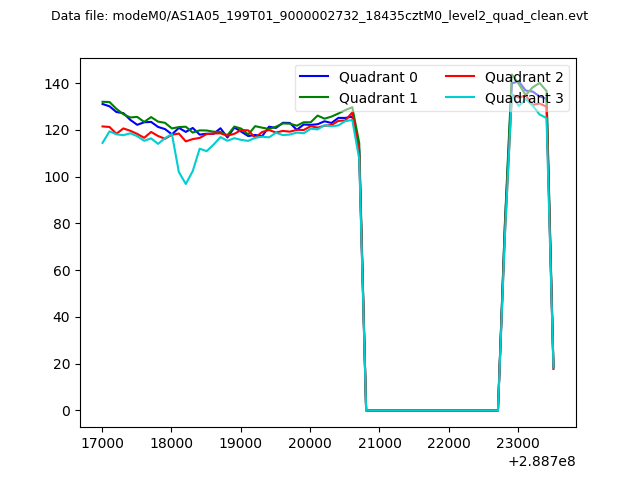

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

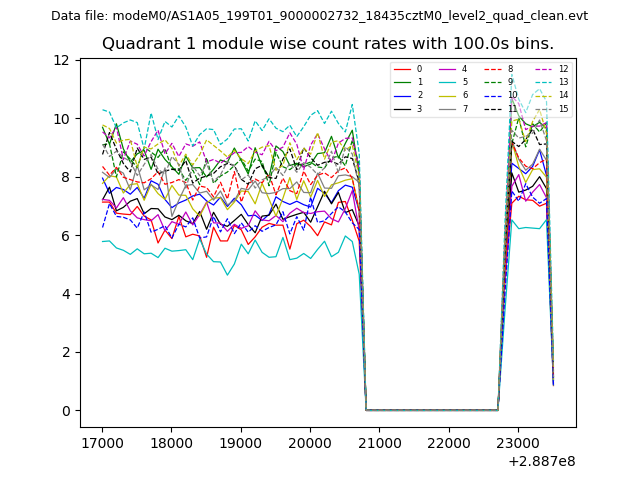

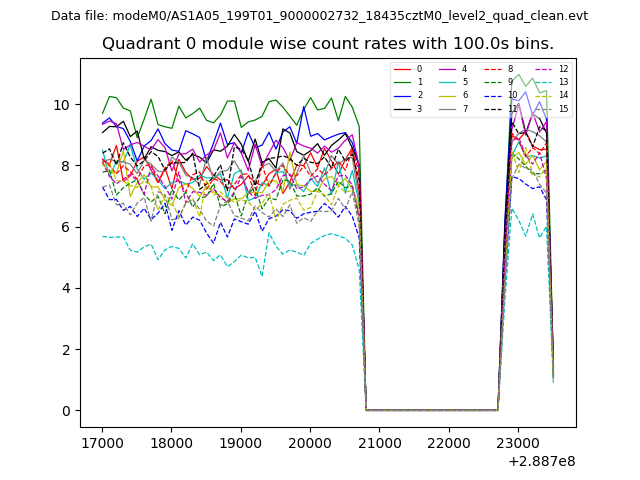

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

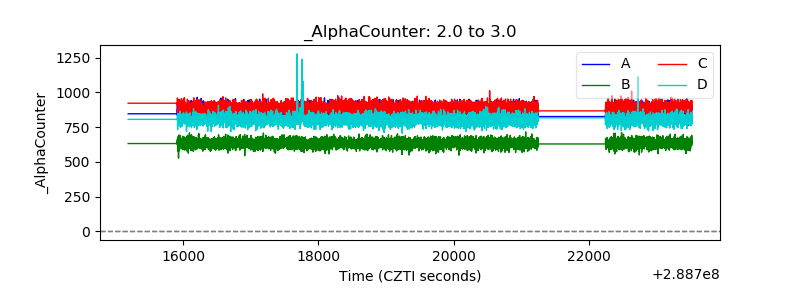

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

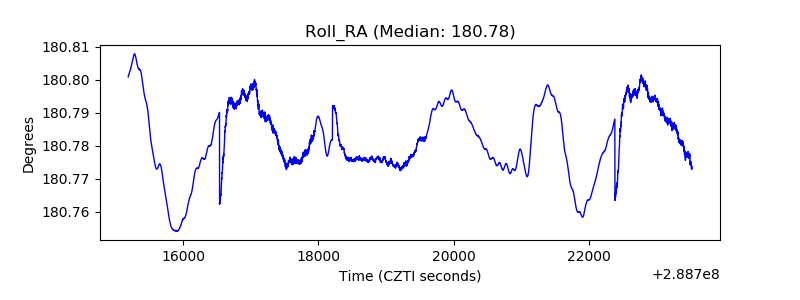

| _Roll_RA |  |

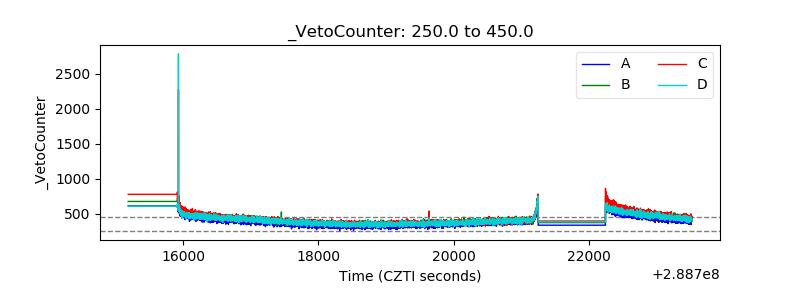

| Veto Counter |  |
