| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_199T01_9000002732_18438cztM0_level2.evt | modeM0/AS1A05_199T01_9000002732_18438cztM0_level2_quad_clean.evt |
| Size (bytes) | 438,134,400 | 108,383,040 |
| Size | 417.8 MB | 103.4 MB |
| Events in quadrant A | 3,108,058 | 709,914 |
| Events in quadrant B | 3,184,472 | 737,681 |
| Events in quadrant C | 3,143,199 | 714,091 |
| Events in quadrant D | 3,411,976 | 688,157 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13443 | 2 |
| B | 0 | 13651 | 2 |
| C | 0 | 13491 | 2 |
| D | 0 | 14351 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6190 | 25 | 0.403877% |
| B | 6191 | 36 | 0.581489% |
| C | 6191 | 81 | 1.308351% |
| D | 6191 | 41 | 0.662252% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7415 | 6191 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7416 | 6192 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7416 | 6192 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7416 | 6192 | 20 | 20 | 0.27% | 0.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 91546 | 579.62 | 779 | 763 | 156.6 |
| A | 4 | 2 | 17685 | 108.04 | 779 | 763 | 156.6 |
| A | 0 | 226 | 6829 | 38.73 | 779 | 763 | 156.6 |
| B | 10 | 245 | 88798 | 585.6 | 789 | 769 | 150.3 |
| B | 12 | 111 | 17171 | 109.11 | 789 | 769 | 150.3 |
| B | 0 | 229 | 15167 | 95.78 | 789 | 769 | 150.3 |
| C | 14 | 238 | 121290 | 674.39 | 767 | 771 | 178.7 |
| C | 3 | 233 | 17803 | 95.31 | 767 | 771 | 178.7 |
| C | 9 | 54 | 11134 | 57.99 | 767 | 771 | 178.7 |
| D | 1 | 52 | 348868 | 1875.92 | 768 | 746 | 185.6 |
| D | 12 | 110 | 115049 | 615.94 | 768 | 746 | 185.6 |
| D | 13 | 168 | 46813 | 248.24 | 768 | 746 | 185.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

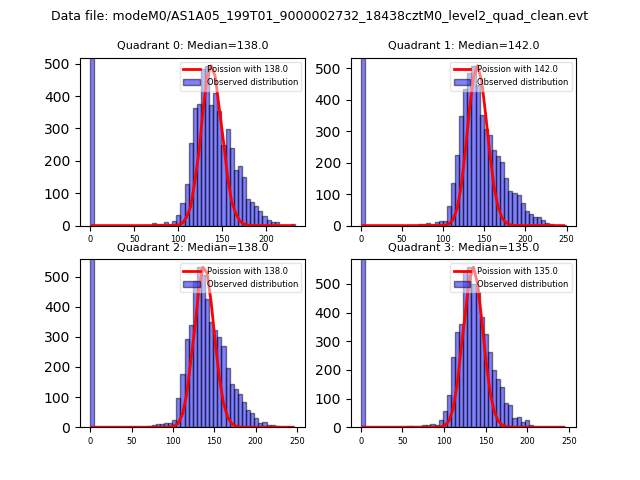

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

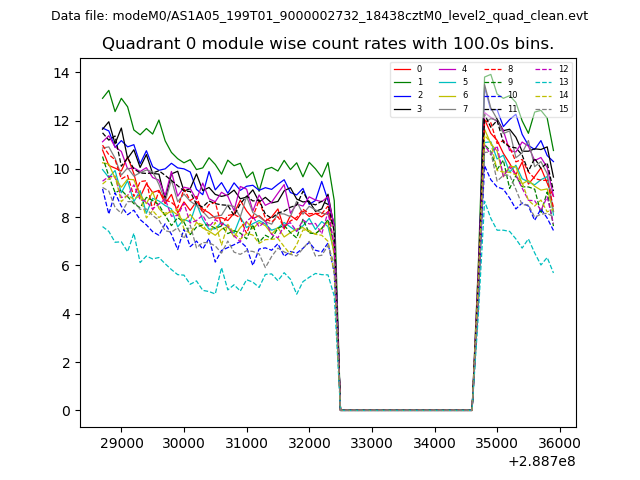

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

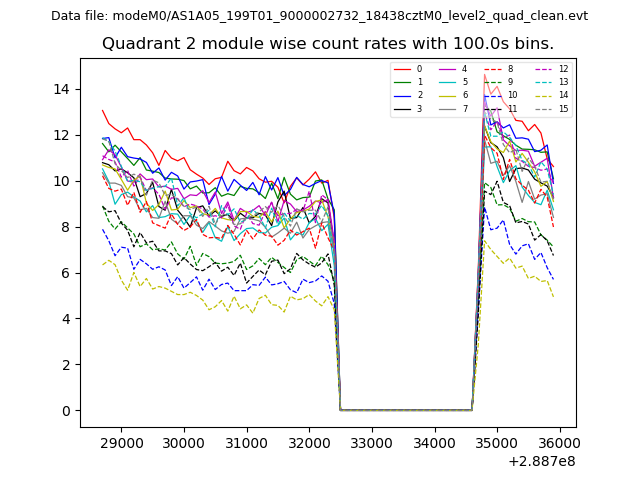

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

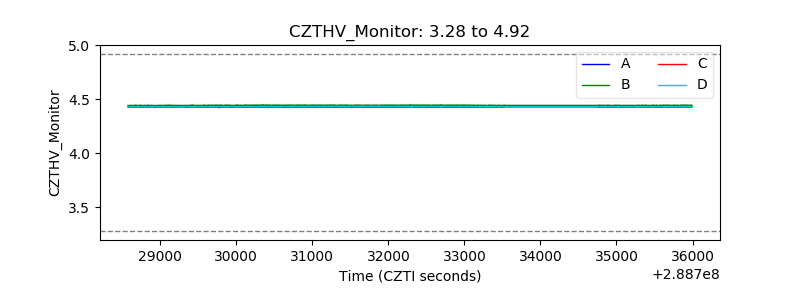

| CZT HV Monitor |  |
| D_VDD |  |

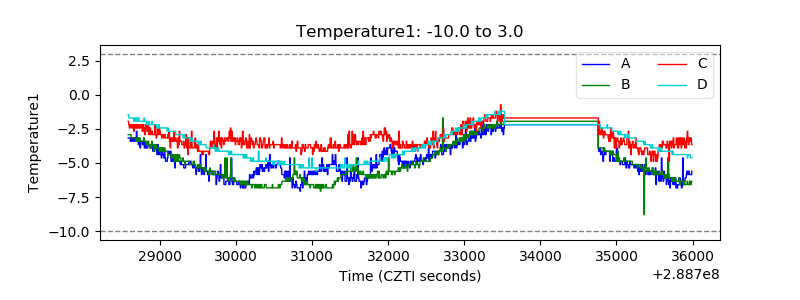

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

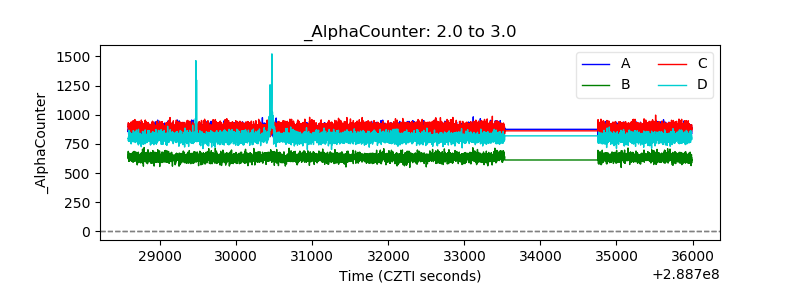

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

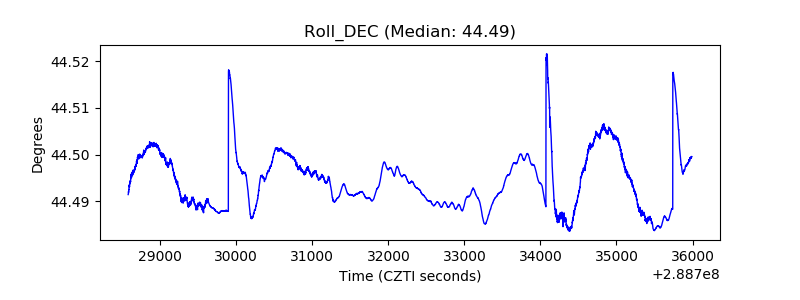

| _Roll_DEC |  |
