| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_199T01_9000002732_18450cztM0_level2.evt | modeM0/AS1A05_199T01_9000002732_18450cztM0_level2_quad_clean.evt |
| Size (bytes) | 504,120,960 | 90,671,040 |
| Size | 480.8 MB | 86.5 MB |
| Events in quadrant A | 3,208,762 | 579,409 |
| Events in quadrant B | 5,002,681 | 572,643 |
| Events in quadrant C | 3,319,108 | 568,376 |
| Events in quadrant D | 3,284,586 | 561,040 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14031 | 2 |
| B | 0 | 19120 | 2 |
| C | 0 | 14249 | 2 |
| D | 0 | 14448 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6656 | 83 | 1.246995% |
| B | 6657 | 558 | 8.382154% |
| C | 6657 | 133 | 1.997897% |
| D | 6657 | 69 | 1.036503% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

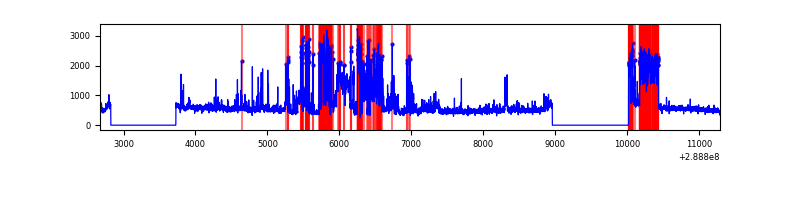

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8621 | 6656 | 1 | 1 | 0.01% | 0.02% |  |
| B | 8622 | 6657 | 374 | 374 | 4.34% | 5.62% |  |
| C | 8622 | 6657 | 13 | 13 | 0.15% | 0.20% |  |
| D | 8622 | 6657 | 16 | 16 | 0.19% | 0.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 11159 | 61.75 | 829 | 813 | 167.5 |
| A | 4 | 2 | 7966 | 42.7 | 829 | 813 | 167.5 |
| A | 0 | 226 | 7193 | 38.08 | 829 | 813 | 167.5 |
| B | 10 | 245 | 1791153 | 11569.21 | 810 | 788 | 154.8 |
| B | 0 | 244 | 26846 | 168.38 | 810 | 788 | 154.8 |
| B | 12 | 111 | 18247 | 112.82 | 810 | 788 | 154.8 |
| C | 14 | 238 | 124115 | 658.43 | 803 | 807 | 187.3 |
| C | 9 | 54 | 57631 | 303.42 | 803 | 807 | 187.3 |
| C | 3 | 233 | 5789 | 26.6 | 803 | 807 | 187.3 |
| D | 14 | 34 | 69544 | 347.42 | 814 | 790 | 197.9 |
| D | 13 | 168 | 63304 | 315.89 | 814 | 790 | 197.9 |
| D | 12 | 110 | 45557 | 226.21 | 814 | 790 | 197.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

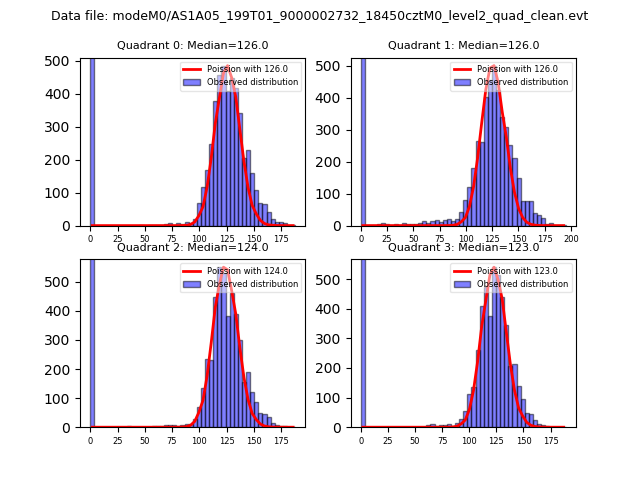

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

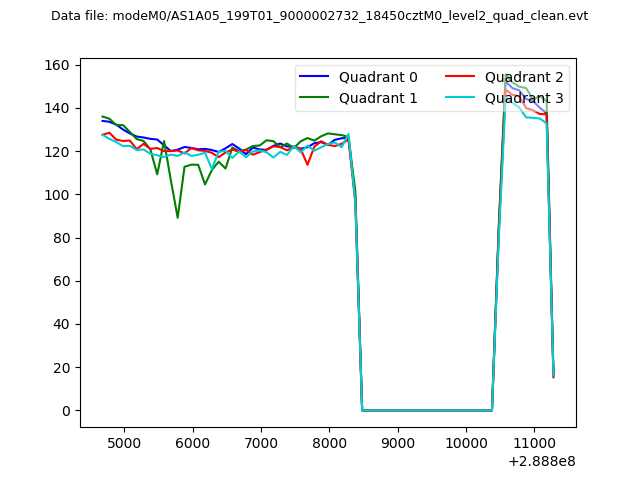

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

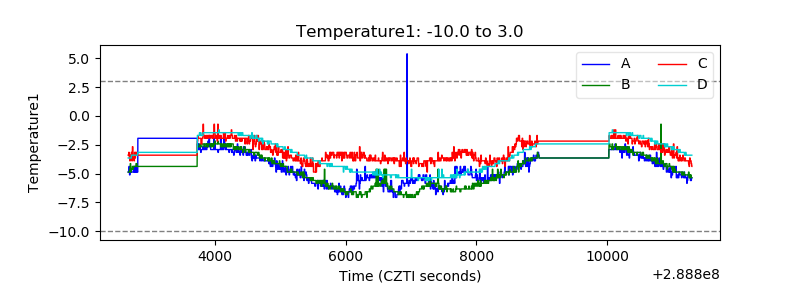

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

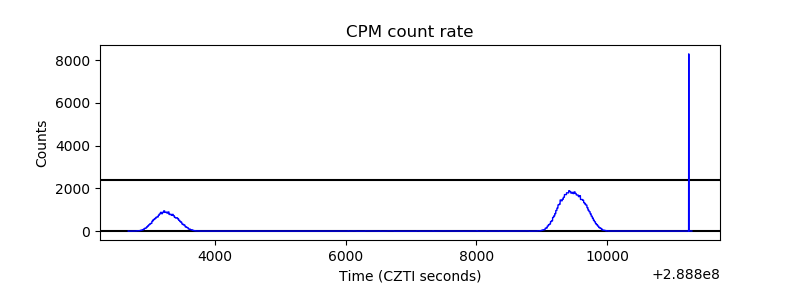

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
