| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_199T01_9000002732_18454cztM0_level2.evt | modeM0/AS1A05_199T01_9000002732_18454cztM0_level2_quad_clean.evt |
| Size (bytes) | 461,992,320 | 107,668,800 |
| Size | 440.6 MB | 102.7 MB |
| Events in quadrant A | 3,389,269 | 702,239 |
| Events in quadrant B | 3,739,575 | 725,712 |
| Events in quadrant C | 3,257,386 | 713,565 |
| Events in quadrant D | 3,179,556 | 681,970 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14121 | 2 |
| B | 0 | 15173 | 2 |
| C | 0 | 13692 | 2 |
| D | 0 | 13516 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6264 | 109 | 1.740102% |
| B | 6264 | 155 | 2.474457% |
| C | 6264 | 104 | 1.660281% |
| D | 6264 | 49 | 0.782248% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8899 | 6264 | 56 | 56 | 0.63% | 0.89% |  |
| B | 8899 | 6264 | 67 | 67 | 0.75% | 1.07% |  |
| C | 8899 | 6264 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8899 | 6264 | 5 | 5 | 0.06% | 0.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 189499 | 1171.72 | 806 | 790 | 161.1 |
| A | 4 | 2 | 52872 | 323.38 | 806 | 790 | 161.1 |
| A | 15 | 174 | 45468 | 277.41 | 806 | 790 | 161.1 |
| B | 10 | 245 | 510655 | 3364.93 | 817 | 799 | 151.5 |
| B | 12 | 111 | 17448 | 109.88 | 817 | 799 | 151.5 |
| B | 11 | 111 | 15067 | 94.17 | 817 | 799 | 151.5 |
| C | 14 | 238 | 127523 | 689.69 | 799 | 806 | 183.7 |
| C | 5 | 112 | 7566 | 36.79 | 799 | 806 | 183.7 |
| C | 3 | 233 | 6545 | 31.24 | 799 | 806 | 183.7 |
| D | 12 | 110 | 56306 | 292.2 | 794 | 773 | 190.0 |
| D | 14 | 34 | 43836 | 226.59 | 794 | 773 | 190.0 |
| D | 13 | 168 | 34373 | 176.8 | 794 | 773 | 190.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

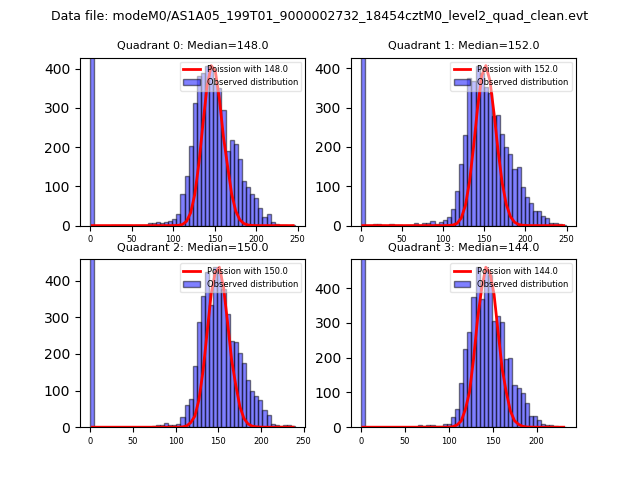

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

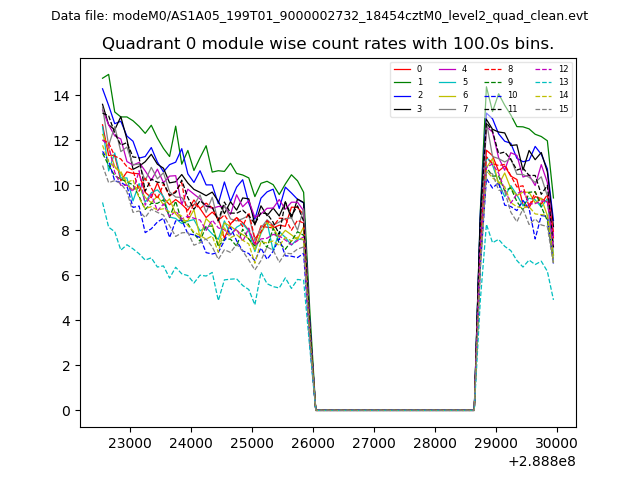

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

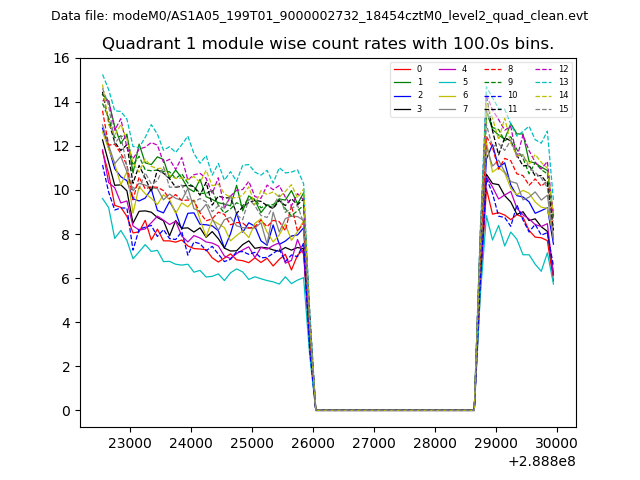

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

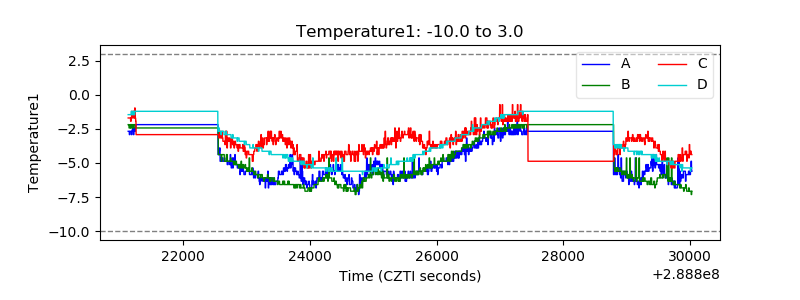

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

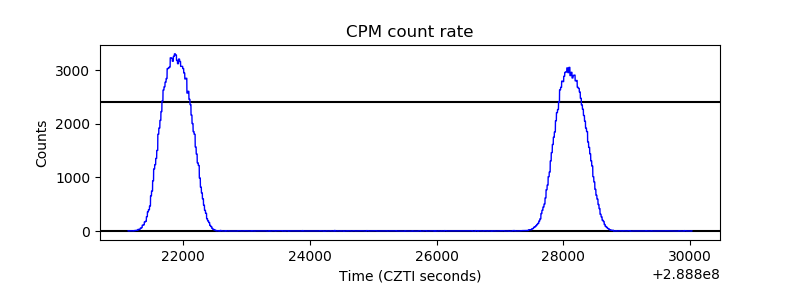

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

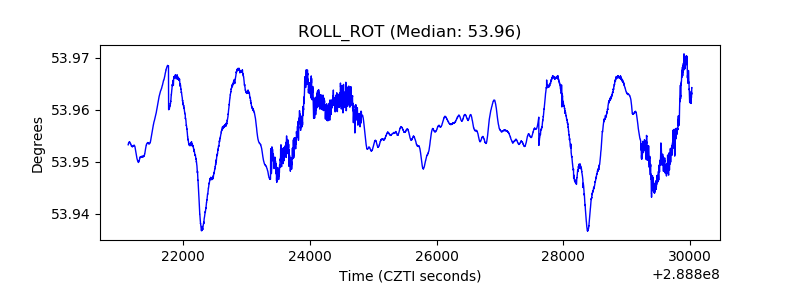

| _ROLL_ROT |  |

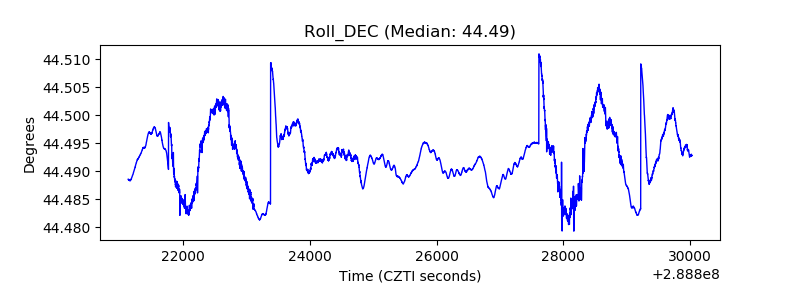

| _Roll_DEC |  |
| _Roll_RA |  |

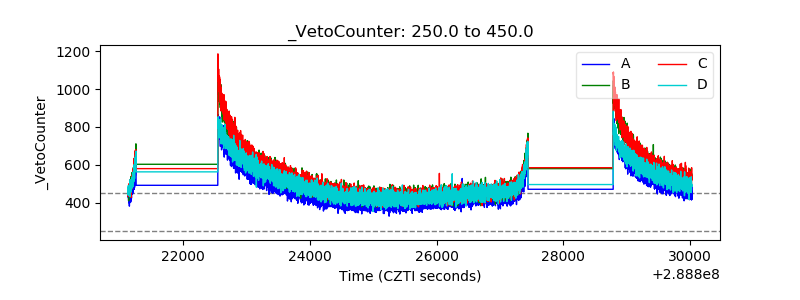

| Veto Counter |  |
