| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_199T01_9000002732_18455cztM0_level2.evt | modeM0/AS1A05_199T01_9000002732_18455cztM0_level2_quad_clean.evt |
| Size (bytes) | 430,018,560 | 99,725,760 |
| Size | 410.1 MB | 95.1 MB |
| Events in quadrant A | 3,095,075 | 646,247 |
| Events in quadrant B | 3,263,225 | 671,348 |
| Events in quadrant C | 3,154,714 | 648,707 |
| Events in quadrant D | 3,089,128 | 621,722 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13139 | 2 |
| B | 0 | 13623 | 2 |
| C | 0 | 13266 | 2 |
| D | 0 | 13290 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6192 | 19 | 0.306848% |
| B | 6192 | 50 | 0.807494% |
| C | 6192 | 52 | 0.839793% |
| D | 6191 | 30 | 0.484574% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7587 | 6192 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7587 | 6193 | 16 | 16 | 0.21% | 0.26% |  |
| C | 7587 | 6193 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7586 | 6192 | 23 | 23 | 0.30% | 0.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 59450 | 376.6 | 780 | 765 | 155.8 |
| A | 15 | 174 | 19712 | 121.59 | 780 | 765 | 155.8 |
| A | 4 | 2 | 13734 | 83.23 | 780 | 765 | 155.8 |
| B | 10 | 245 | 166987 | 1117.67 | 791 | 771 | 148.7 |
| B | 12 | 111 | 16987 | 109.04 | 791 | 771 | 148.7 |
| B | 11 | 111 | 14551 | 92.66 | 791 | 771 | 148.7 |
| C | 14 | 238 | 122889 | 692.23 | 765 | 771 | 176.4 |
| C | 3 | 233 | 26647 | 146.68 | 765 | 771 | 176.4 |
| C | 9 | 54 | 12517 | 66.58 | 765 | 771 | 176.4 |
| D | 14 | 34 | 73436 | 401.38 | 758 | 737 | 181.1 |
| D | 12 | 110 | 60602 | 330.52 | 758 | 737 | 181.1 |
| D | 10 | 66 | 48585 | 264.18 | 758 | 737 | 181.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

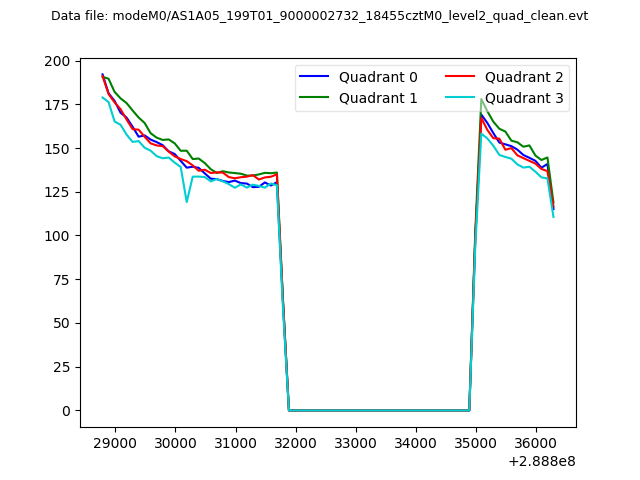

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

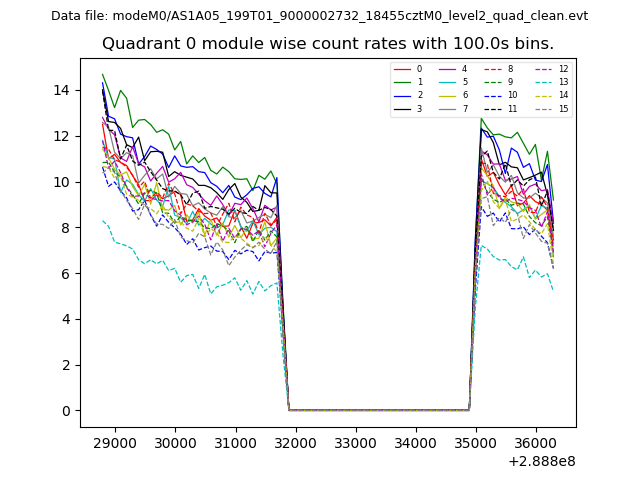

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

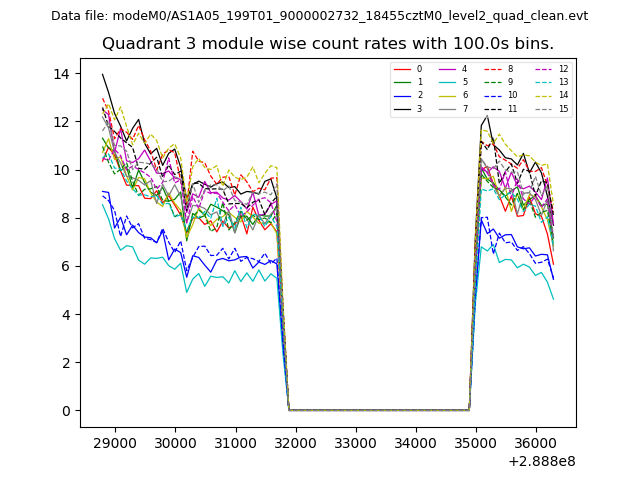

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

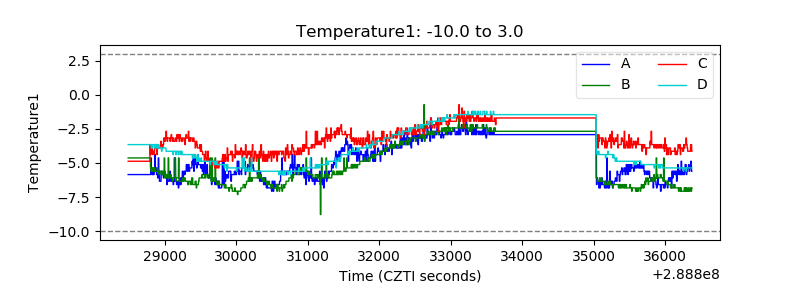

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

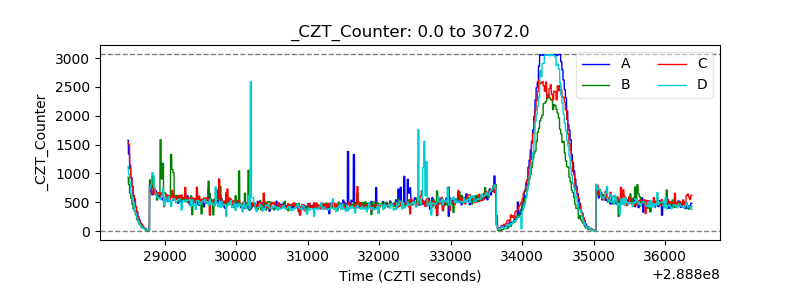

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

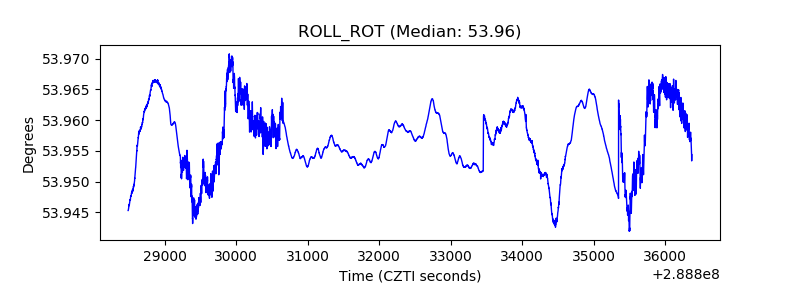

| _ROLL_ROT |  |

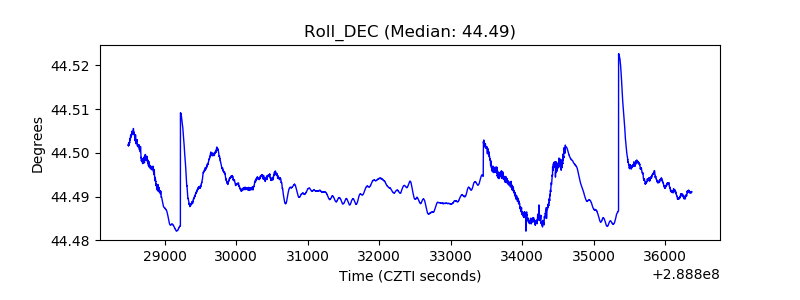

| _Roll_DEC |  |
| _Roll_RA |  |

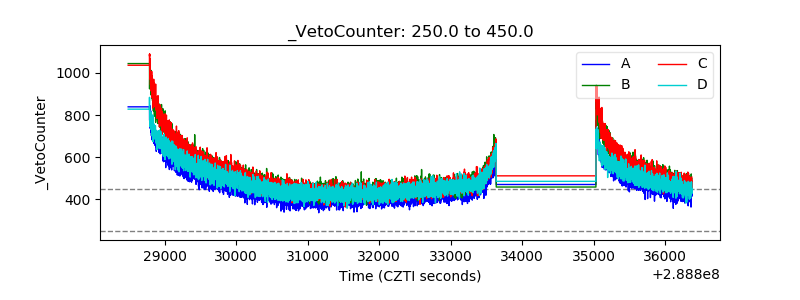

| Veto Counter |  |
