| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_072T02_9000002736_18464cztM0_level2.evt | modeM0/AS1A05_072T02_9000002736_18464cztM0_level2_quad_clean.evt |
| Size (bytes) | 265,898,880 | 42,505,920 |
| Size | 253.6 MB | 40.5 MB |
| Events in quadrant A | 1,810,084 | 265,237 |
| Events in quadrant B | 1,759,315 | 271,143 |
| Events in quadrant C | 1,704,273 | 262,801 |
| Events in quadrant D | 2,549,323 | 248,937 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7552 | 1 |
| B | 0 | 7351 | 1 |
| C | 0 | 7143 | 1 |
| D | 0 | 9881 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 68 | 0 |
| B | 0 | 68 | 0 |
| C | 0 | 68 | 0 |
| D | 0 | 68 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3365 | 49 | 1.456166% |
| B | 3365 | 48 | 1.426449% |
| C | 3365 | 50 | 1.485884% |
| D | 3365 | 208 | 6.181278% |

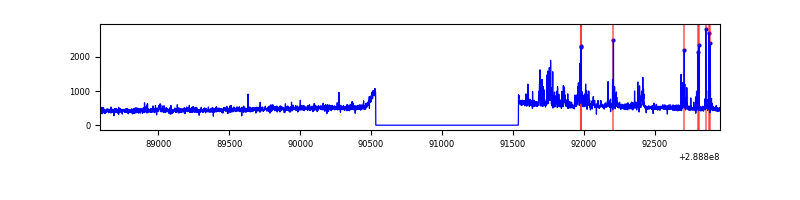

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4370 | 3365 | 9 | 9 | 0.21% | 0.27% |  |
| B | 4370 | 3365 | 4 | 4 | 0.09% | 0.12% |  |
| C | 4370 | 3365 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4370 | 3365 | 200 | 200 | 4.58% | 5.94% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 77194 | 859.34 | 432 | 422 | 89.3 |
| A | 0 | 13 | 49698 | 551.57 | 432 | 422 | 89.3 |
| A | 15 | 174 | 18637 | 203.89 | 432 | 422 | 89.3 |
| B | 7 | 220 | 40373 | 473.88 | 432 | 421 | 84.3 |
| B | 10 | 245 | 13848 | 159.26 | 432 | 421 | 84.3 |
| B | 12 | 111 | 9812 | 111.39 | 432 | 421 | 84.3 |
| C | 14 | 238 | 63586 | 636.99 | 416 | 419 | 99.2 |
| C | 3 | 233 | 15780 | 154.9 | 416 | 419 | 99.2 |
| C | 13 | 61 | 2922 | 25.24 | 416 | 419 | 99.2 |
| D | 7 | 238 | 719194 | 6885.04 | 418 | 406 | 104.4 |
| D | 13 | 168 | 96748 | 922.83 | 418 | 406 | 104.4 |
| D | 7 | 38 | 53270 | 506.37 | 418 | 406 | 104.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

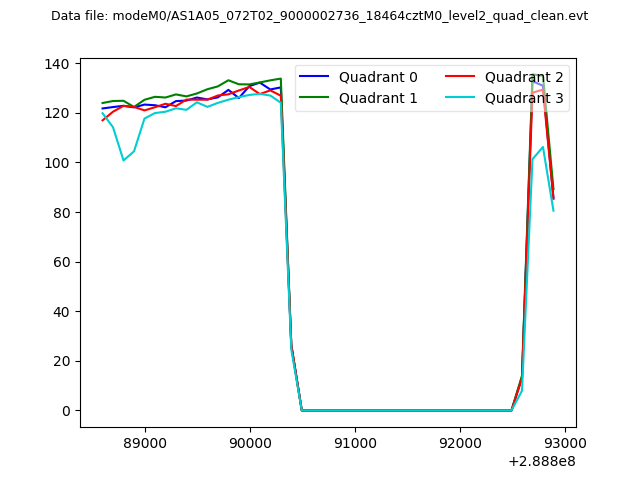

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

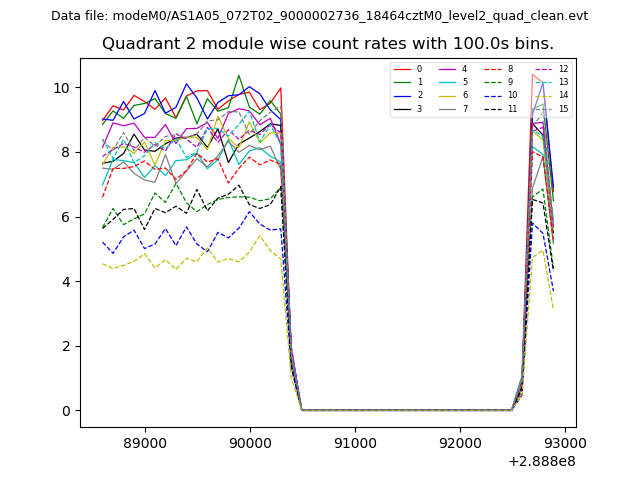

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

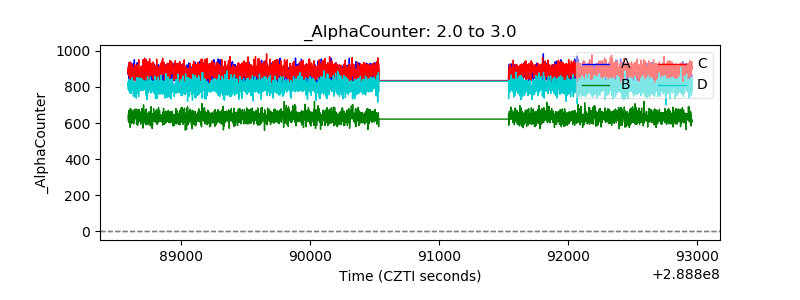

| Alpha Counter |  |
| _CPM_Rate |  |

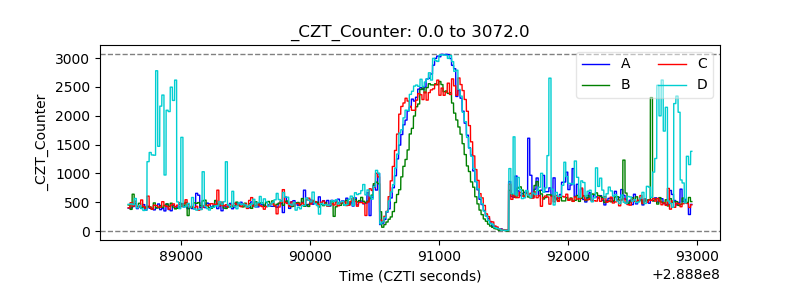

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

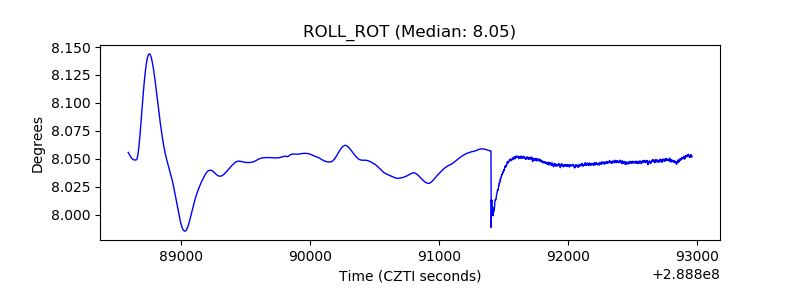

| _ROLL_ROT |  |

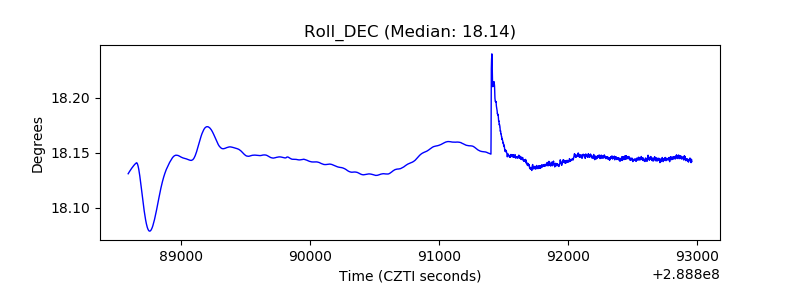

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
