| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_072T02_9000002736_18469cztM0_level2.evt | modeM0/AS1A05_072T02_9000002736_18469cztM0_level2_quad_clean.evt |
| Size (bytes) | 537,402,240 | 108,653,760 |
| Size | 512.5 MB | 103.6 MB |
| Events in quadrant A | 3,873,186 | 713,001 |
| Events in quadrant B | 5,063,483 | 730,220 |
| Events in quadrant C | 3,411,273 | 712,295 |
| Events in quadrant D | 3,487,857 | 683,264 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15731 | 2 |
| B | 0 | 19200 | 2 |
| C | 0 | 14078 | 2 |
| D | 0 | 14459 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 28 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6483 | 181 | 2.791917% |
| B | 6483 | 641 | 9.887398% |
| C | 6484 | 88 | 1.357187% |
| D | 6484 | 69 | 1.064158% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

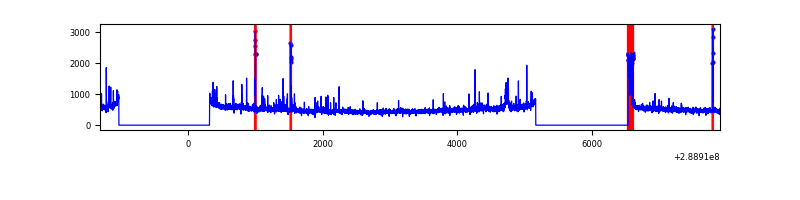

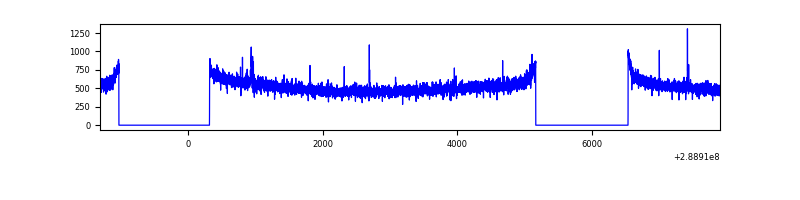

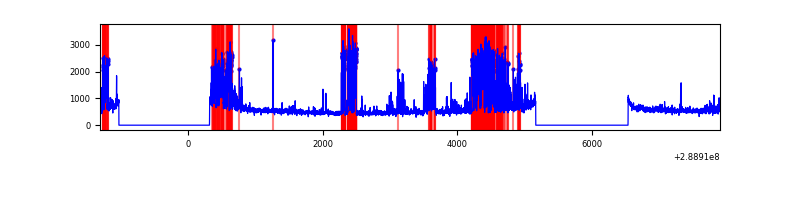

| A | 9198 | 6483 | 72 | 72 | 0.78% | 1.11% |  |
| B | 9198 | 6485 | 475 | 475 | 5.16% | 7.32% |  |
| C | 9199 | 6486 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9199 | 6486 | 44 | 44 | 0.48% | 0.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 527137 | 3127.4 | 845 | 829 | 168.3 |
| A | 15 | 174 | 81076 | 476.84 | 845 | 829 | 168.3 |
| A | 13 | 254 | 8515 | 45.67 | 845 | 829 | 168.3 |
| B | 10 | 245 | 1727823 | 10997.74 | 834 | 813 | 157.0 |
| B | 7 | 220 | 34944 | 217.35 | 834 | 813 | 157.0 |
| B | 12 | 111 | 17972 | 109.27 | 834 | 813 | 157.0 |
| C | 14 | 238 | 131149 | 677.51 | 829 | 836 | 192.3 |
| C | 3 | 233 | 26276 | 132.27 | 829 | 836 | 192.3 |
| C | 9 | 54 | 21932 | 109.68 | 829 | 836 | 192.3 |
| D | 13 | 249 | 86964 | 429.19 | 827 | 807 | 200.7 |
| D | 12 | 110 | 53669 | 263.33 | 827 | 807 | 200.7 |
| D | 7 | 38 | 52903 | 259.52 | 827 | 807 | 200.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

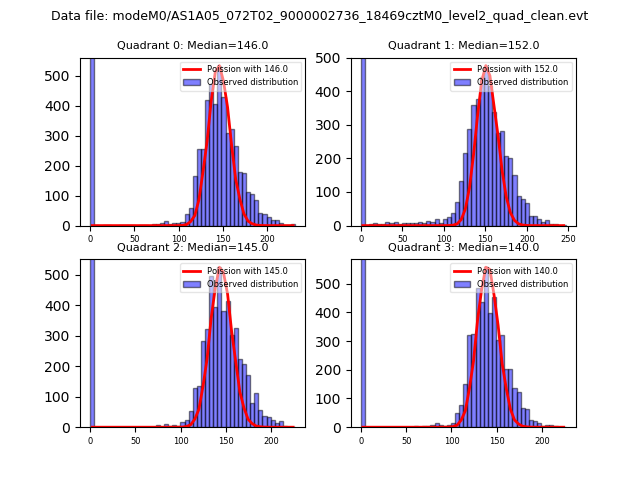

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

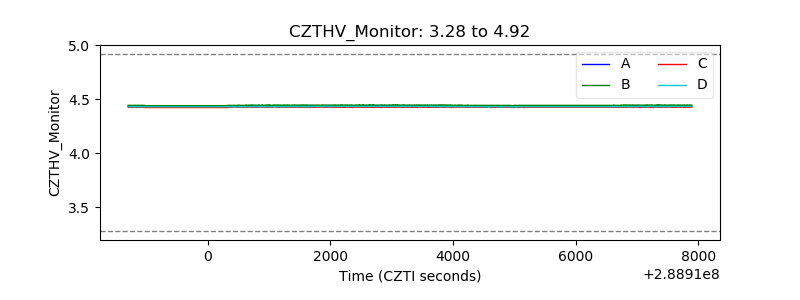

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

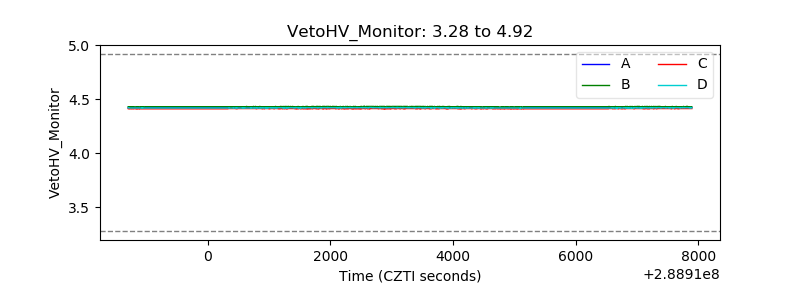

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

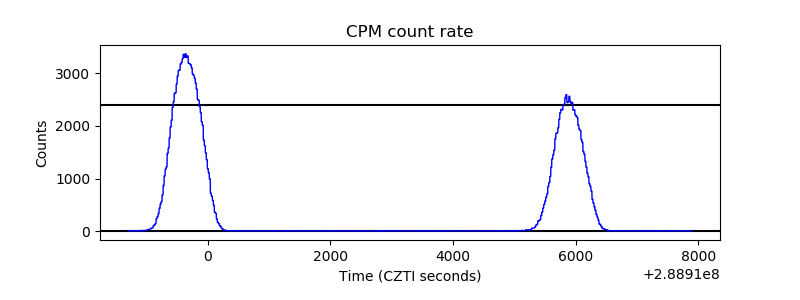

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

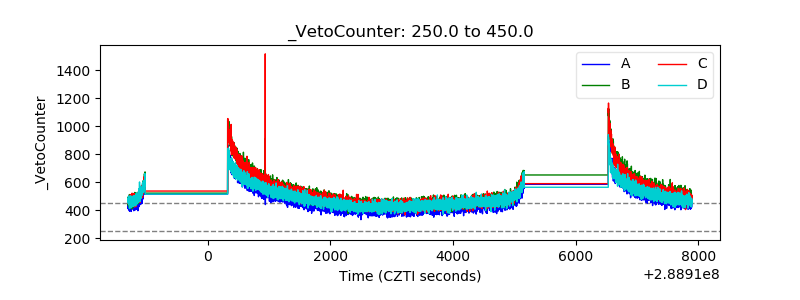

| Veto Counter |  |
