| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_072T02_9000002736_18472cztM0_level2.evt | modeM0/AS1A05_072T02_9000002736_18472cztM0_level2_quad_clean.evt |
| Size (bytes) | 486,169,920 | 98,130,240 |
| Size | 463.6 MB | 93.6 MB |
| Events in quadrant A | 3,794,768 | 615,897 |
| Events in quadrant B | 3,551,199 | 639,573 |
| Events in quadrant C | 3,374,649 | 616,507 |
| Events in quadrant D | 3,518,738 | 603,166 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16046 | 1 |
| B | 0 | 15098 | 1 |
| C | 0 | 14582 | 1 |
| D | 0 | 15407 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7133 | 146 | 2.046825% |
| B | 7134 | 45 | 0.630782% |
| C | 7134 | 47 | 0.658817% |
| D | 7134 | 46 | 0.644800% |

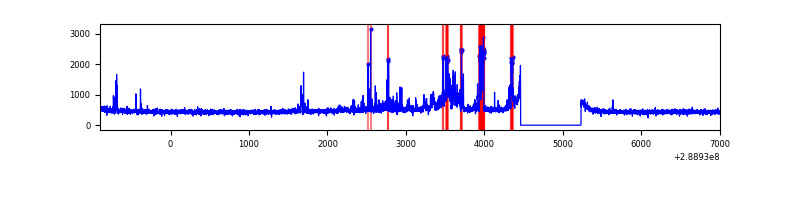

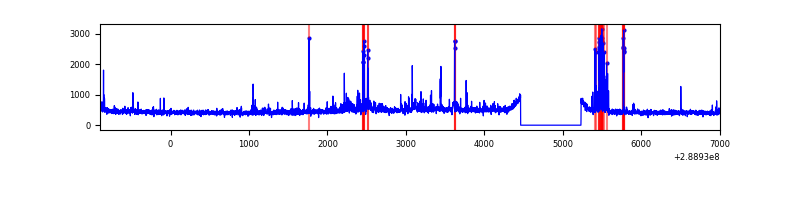

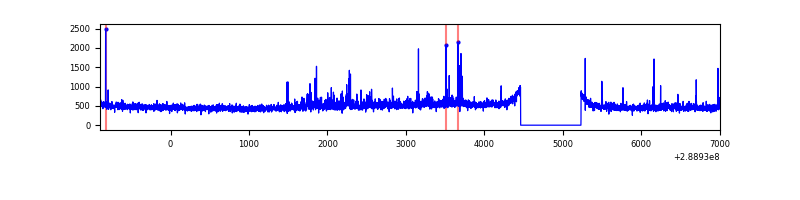

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7903 | 7133 | 72 | 72 | 0.91% | 1.01% |  |
| B | 7904 | 7135 | 3 | 3 | 0.04% | 0.04% |  |
| C | 7904 | 7134 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7904 | 7135 | 37 | 37 | 0.47% | 0.52% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 423804 | 2441.29 | 854 | 837 | 173.3 |
| A | 4 | 2 | 61664 | 351.08 | 854 | 837 | 173.3 |
| A | 0 | 13 | 21668 | 120.23 | 854 | 837 | 173.3 |
| B | 10 | 245 | 73723 | 442.49 | 864 | 840 | 164.7 |
| B | 15 | 222 | 44315 | 263.95 | 864 | 840 | 164.7 |
| B | 12 | 111 | 19659 | 114.25 | 864 | 840 | 164.7 |
| C | 14 | 238 | 129384 | 655.3 | 829 | 835 | 196.2 |
| C | 3 | 233 | 7605 | 34.51 | 829 | 835 | 196.2 |
| C | 13 | 61 | 5837 | 25.5 | 829 | 835 | 196.2 |
| D | 7 | 96 | 144750 | 703.15 | 838 | 815 | 204.7 |
| D | 7 | 38 | 44286 | 212.37 | 838 | 815 | 204.7 |
| D | 13 | 168 | 34877 | 166.4 | 838 | 815 | 204.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

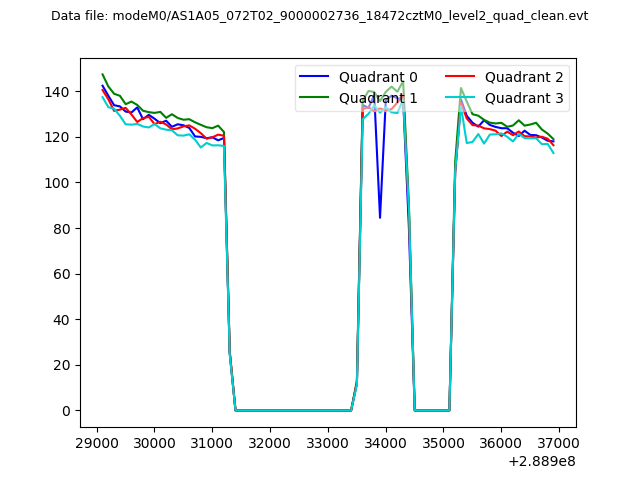

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

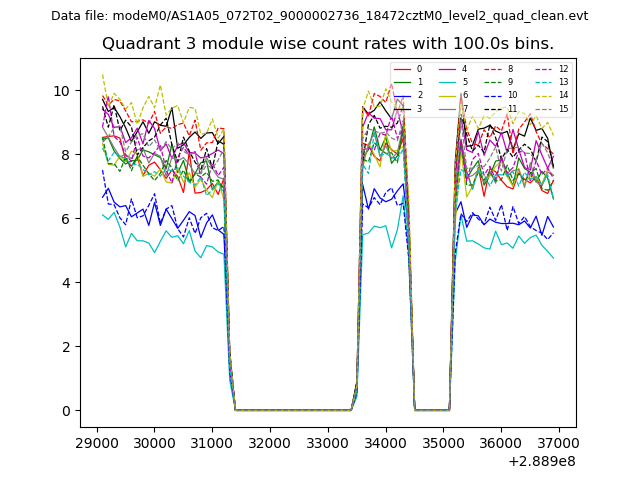

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

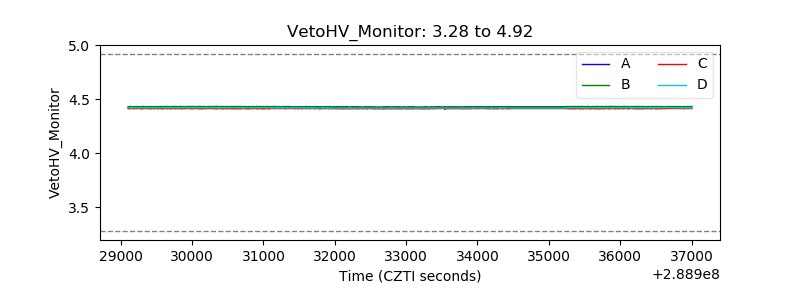

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

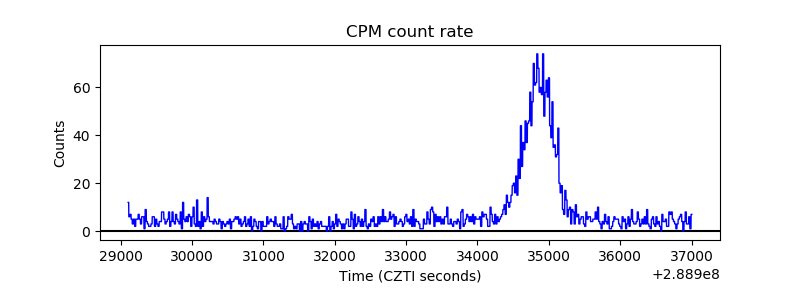

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

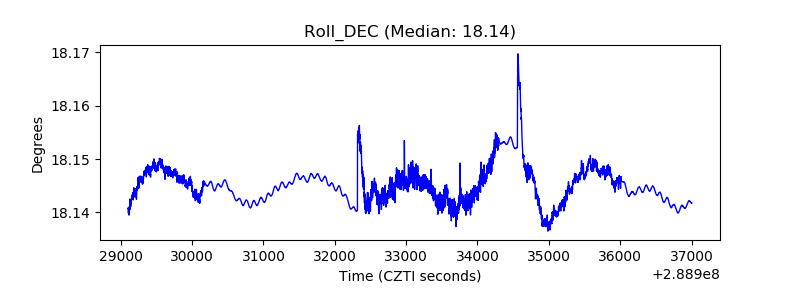

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
