| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_144T02_9000002734_18456cztM0_level2.evt | modeM0/AS1A05_144T02_9000002734_18456cztM0_level2_quad_clean.evt |
| Size (bytes) | 282,746,880 | 51,505,920 |
| Size | 269.6 MB | 49.1 MB |
| Events in quadrant A | 1,473,331 | 363,370 |
| Events in quadrant B | 3,726,711 | 302,007 |
| Events in quadrant C | 1,463,789 | 353,254 |
| Events in quadrant D | 1,701,264 | 334,221 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6208 | 1 |
| B | 0 | 12962 | 2 |
| C | 0 | 6127 | 1 |
| D | 0 | 6880 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 60 | 0 |
| B | 0 | 60 | 0 |
| C | 0 | 60 | 0 |
| D | 0 | 60 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2890 | 19 | 0.657439% |
| B | 2889 | 1060 | 36.690897% |
| C | 2889 | 57 | 1.973001% |
| D | 2889 | 99 | 3.426791% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4150 | 2890 | 2 | 2 | 0.05% | 0.07% |  |
| B | 4149 | 2889 | 868 | 868 | 20.92% | 30.04% |  |
| C | 4149 | 2890 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4149 | 2889 | 33 | 33 | 0.80% | 1.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 35300 | 459.0 | 366 | 358 | 76.1 |
| A | 14 | 238 | 15368 | 197.17 | 366 | 358 | 76.1 |
| A | 15 | 174 | 13471 | 172.25 | 366 | 358 | 76.1 |
| B | 10 | 245 | 2392117 | 39834.64 | 314 | 307 | 60.0 |
| B | 7 | 220 | 76889 | 1275.44 | 314 | 307 | 60.0 |
| B | 0 | 245 | 11481 | 186.1 | 314 | 307 | 60.0 |
| C | 14 | 238 | 56083 | 667.79 | 355 | 358 | 83.4 |
| C | 3 | 233 | 21754 | 256.4 | 355 | 358 | 83.4 |
| C | 13 | 61 | 2542 | 26.17 | 355 | 358 | 83.4 |
| D | 13 | 168 | 102516 | 1188.64 | 351 | 340 | 86.0 |
| D | 5 | 233 | 63961 | 740.12 | 351 | 340 | 86.0 |
| D | 7 | 238 | 59268 | 685.53 | 351 | 340 | 86.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

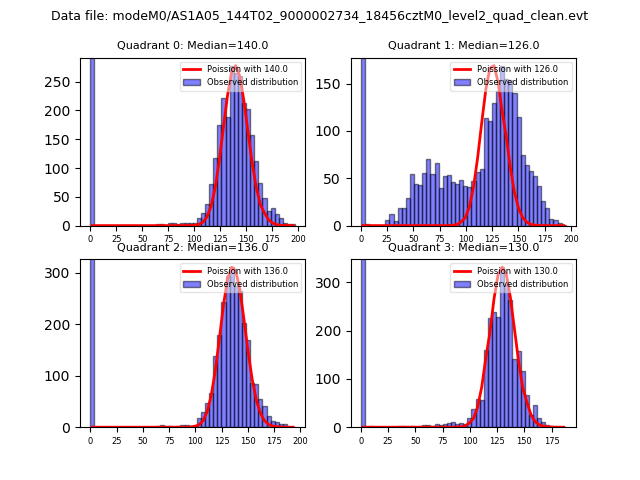

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
