| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_144T02_9000002734_18457cztM0_level2.evt | modeM0/AS1A05_144T02_9000002734_18457cztM0_level2_quad_clean.evt |
| Size (bytes) | 470,842,560 | 94,605,120 |
| Size | 449.0 MB | 90.2 MB |
| Events in quadrant A | 3,218,406 | 607,245 |
| Events in quadrant B | 3,680,432 | 622,630 |
| Events in quadrant C | 3,159,282 | 594,741 |
| Events in quadrant D | 3,742,809 | 569,971 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14154 | 2 |
| B | 0 | 15414 | 2 |
| C | 0 | 13821 | 2 |
| D | 0 | 15891 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6738 | 21 | 0.311665% |
| B | 6738 | 146 | 2.166815% |
| C | 6737 | 68 | 1.009351% |
| D | 6737 | 116 | 1.721835% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7723 | 6738 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7723 | 6738 | 49 | 49 | 0.63% | 0.73% |  |
| C | 7722 | 6738 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7722 | 6738 | 54 | 54 | 0.70% | 0.80% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 76813 | 472.88 | 798 | 780 | 160.8 |
| A | 14 | 238 | 71117 | 437.45 | 798 | 780 | 160.8 |
| A | 0 | 226 | 6866 | 37.85 | 798 | 780 | 160.8 |
| B | 10 | 245 | 383178 | 2557.27 | 805 | 789 | 149.5 |
| B | 7 | 220 | 95346 | 632.36 | 805 | 789 | 149.5 |
| B | 6 | 36 | 26209 | 170.0 | 805 | 789 | 149.5 |
| C | 14 | 238 | 122181 | 671.78 | 776 | 782 | 180.7 |
| C | 0 | 207 | 11472 | 59.15 | 776 | 782 | 180.7 |
| C | 13 | 61 | 5584 | 26.57 | 776 | 782 | 180.7 |
| D | 7 | 238 | 257632 | 1367.03 | 772 | 750 | 187.9 |
| D | 13 | 168 | 199204 | 1056.1 | 772 | 750 | 187.9 |
| D | 10 | 66 | 91581 | 483.37 | 772 | 750 | 187.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

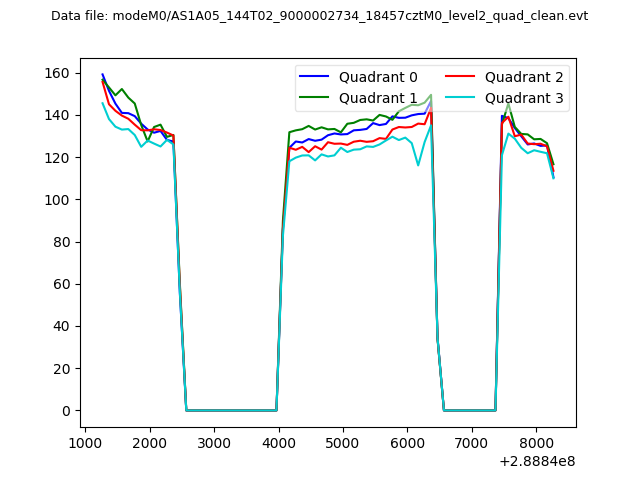

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

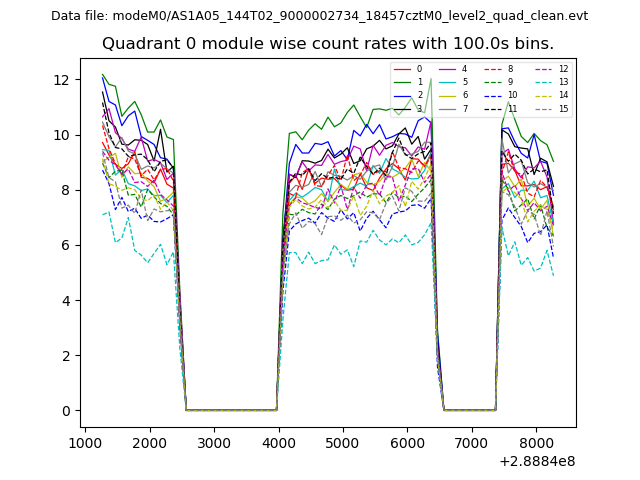

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

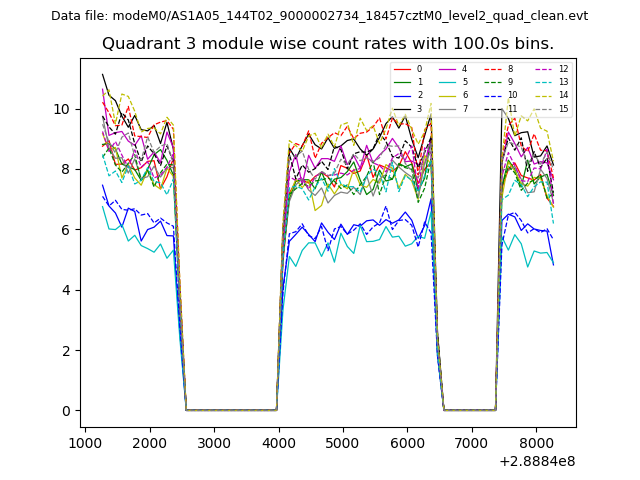

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

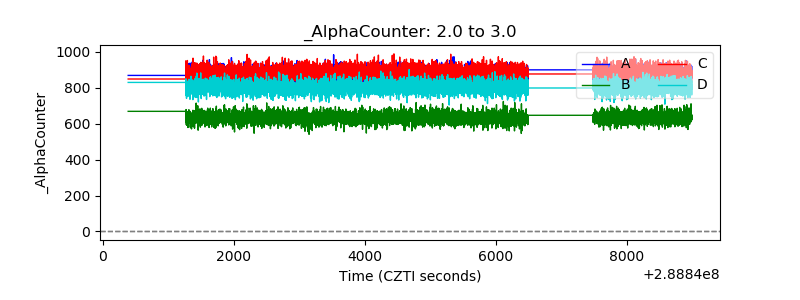

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

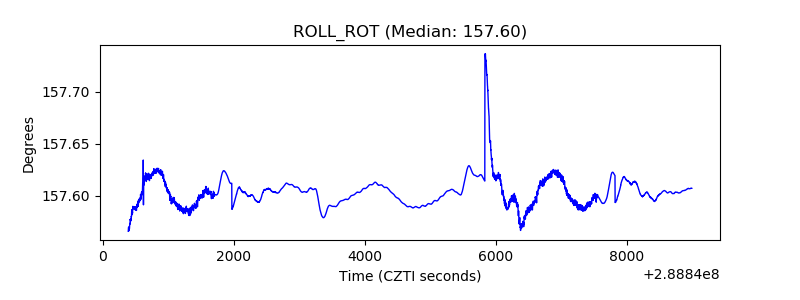

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

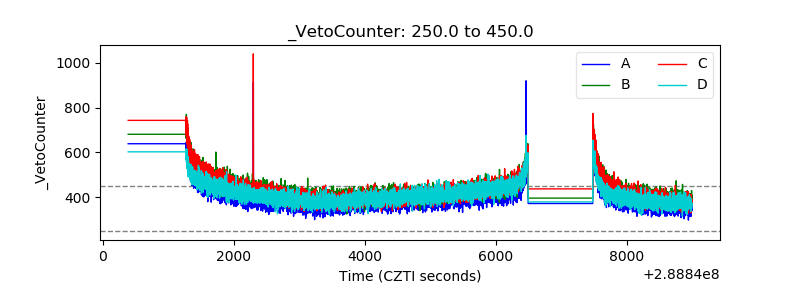

| Veto Counter |  |
