| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_144T02_9000002734_18460cztM0_level2.evt | modeM0/AS1A05_144T02_9000002734_18460cztM0_level2_quad_clean.evt |
| Size (bytes) | 681,825,600 | 113,760,000 |
| Size | 650.2 MB | 108.5 MB |
| Events in quadrant A | 5,654,984 | 703,919 |
| Events in quadrant B | 5,556,599 | 727,517 |
| Events in quadrant C | 4,192,282 | 710,214 |
| Events in quadrant D | 4,649,508 | 693,038 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22665 | 2 |
| B | 0 | 22320 | 2 |
| C | 0 | 18159 | 2 |
| D | 0 | 20017 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 178 | 0 |
| B | 0 | 178 | 0 |
| C | 0 | 178 | 0 |
| D | 0 | 178 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8792 | 705 | 8.018653% |
| B | 8793 | 751 | 8.540885% |
| C | 8793 | 243 | 2.763562% |
| D | 8793 | 187 | 2.126692% |

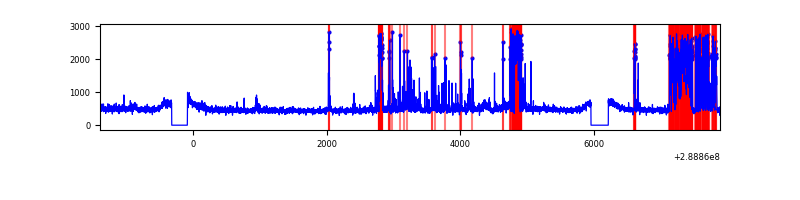

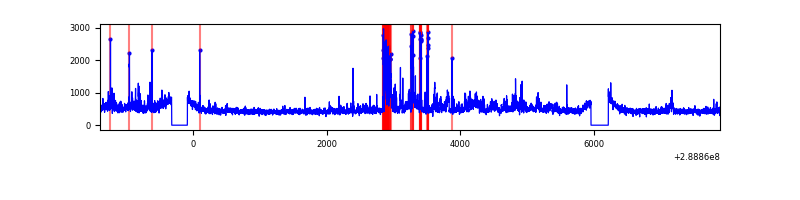

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9287 | 8792 | 392 | 392 | 4.22% | 4.46% |  |
| B | 9288 | 8793 | 410 | 410 | 4.41% | 4.66% |  |
| C | 9288 | 8793 | 2 | 2 | 0.02% | 0.02% |  |
| D | 9288 | 8794 | 65 | 65 | 0.70% | 0.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 1524763 | 7317.64 | 1024 | 999 | 208.2 |
| A | 14 | 238 | 134097 | 639.18 | 1024 | 999 | 208.2 |
| A | 15 | 192 | 30287 | 140.65 | 1024 | 999 | 208.2 |
| B | 15 | 222 | 1286898 | 6563.9 | 1027 | 999 | 195.9 |
| B | 0 | 229 | 116680 | 590.5 | 1027 | 999 | 195.9 |
| B | 7 | 220 | 94446 | 477.0 | 1027 | 999 | 195.9 |
| C | 14 | 238 | 156843 | 655.8 | 1011 | 1014 | 237.6 |
| C | 3 | 233 | 80610 | 334.98 | 1011 | 1014 | 237.6 |
| C | 3 | 9 | 7773 | 28.45 | 1011 | 1014 | 237.6 |
| D | 13 | 168 | 396423 | 1615.92 | 1016 | 986 | 244.7 |
| D | 7 | 238 | 206512 | 839.86 | 1016 | 986 | 244.7 |
| D | 1 | 52 | 91921 | 371.6 | 1016 | 986 | 244.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

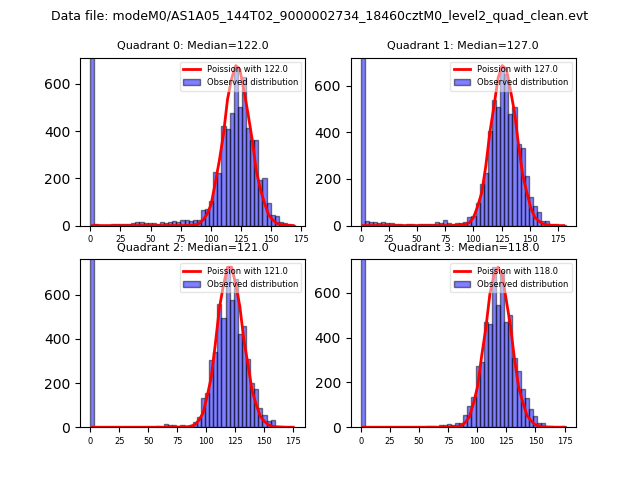

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

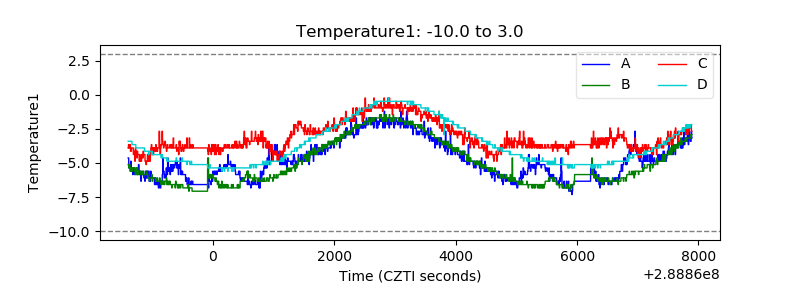

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

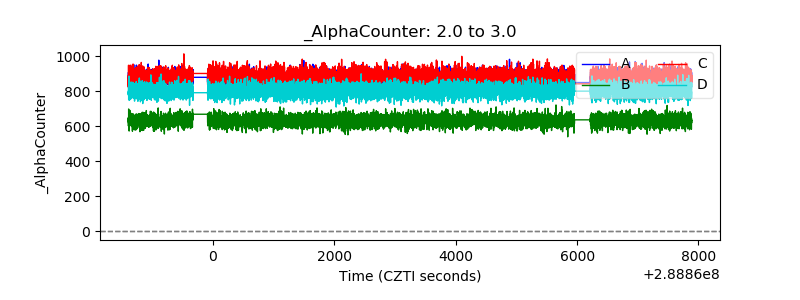

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

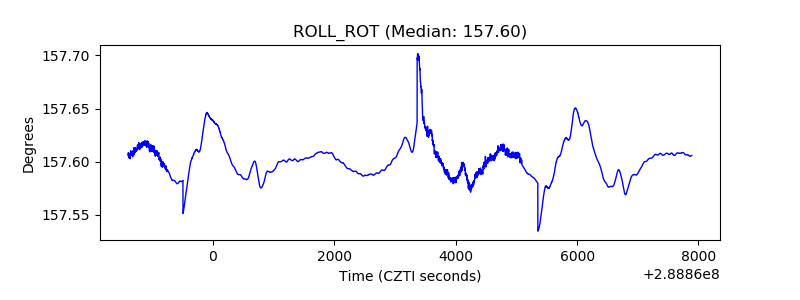

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

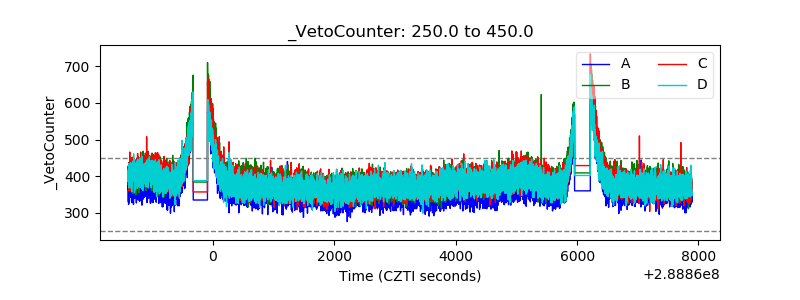

| Veto Counter |  |
