| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_075T09_9000002740_18483cztM0_level2.evt | modeM0/AS1A05_075T09_9000002740_18483cztM0_level2_quad_clean.evt |
| Size (bytes) | 490,775,040 | 105,240,960 |
| Size | 468.0 MB | 100.4 MB |
| Events in quadrant A | 3,758,089 | 678,068 |
| Events in quadrant B | 3,695,866 | 705,720 |
| Events in quadrant C | 3,576,874 | 685,564 |
| Events in quadrant D | 3,390,340 | 663,713 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15325 | 2 |
| B | 0 | 15260 | 2 |
| C | 0 | 14698 | 2 |
| D | 0 | 14306 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6506 | 81 | 1.245005% |
| B | 6507 | 102 | 1.567543% |
| C | 6507 | 127 | 1.951744% |
| D | 6506 | 60 | 0.922226% |

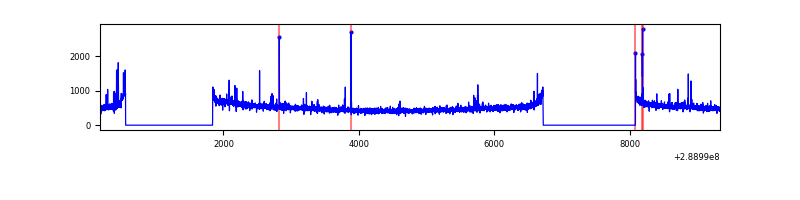

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9156 | 6507 | 12 | 12 | 0.13% | 0.18% |  |
| B | 9157 | 6507 | 13 | 13 | 0.14% | 0.20% |  |
| C | 9157 | 6507 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9156 | 6507 | 5 | 5 | 0.05% | 0.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 318839 | 1809.93 | 876 | 860 | 175.7 |
| A | 0 | 13 | 59051 | 331.22 | 876 | 860 | 175.7 |
| A | 0 | 226 | 7665 | 38.73 | 876 | 860 | 175.7 |
| B | 10 | 245 | 165048 | 982.11 | 887 | 868 | 167.2 |
| B | 12 | 111 | 19110 | 109.12 | 887 | 868 | 167.2 |
| B | 11 | 111 | 16328 | 92.48 | 887 | 868 | 167.2 |
| C | 14 | 238 | 136000 | 677.92 | 863 | 871 | 199.3 |
| C | 3 | 233 | 77609 | 384.98 | 863 | 871 | 199.3 |
| C | 13 | 61 | 6095 | 26.21 | 863 | 871 | 199.3 |
| D | 2 | 234 | 29604 | 136.15 | 868 | 844 | 211.2 |
| D | 10 | 70 | 28459 | 130.72 | 868 | 844 | 211.2 |
| D | 7 | 238 | 24515 | 112.05 | 868 | 844 | 211.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

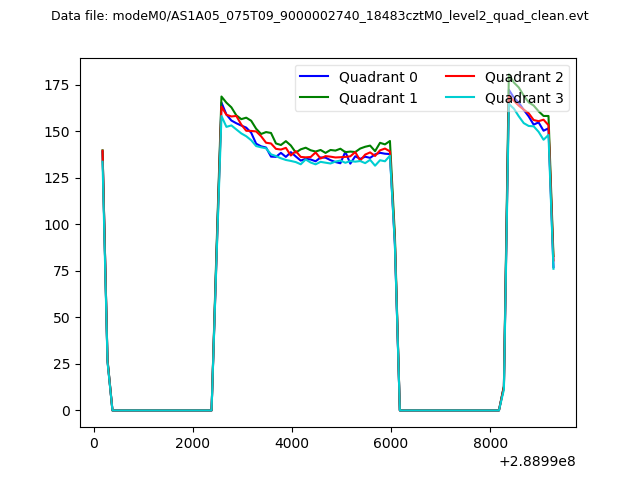

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

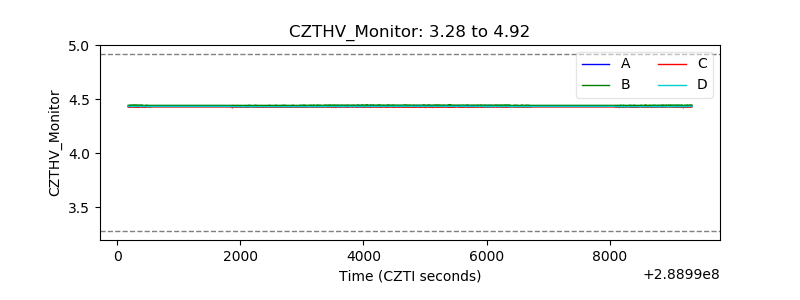

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

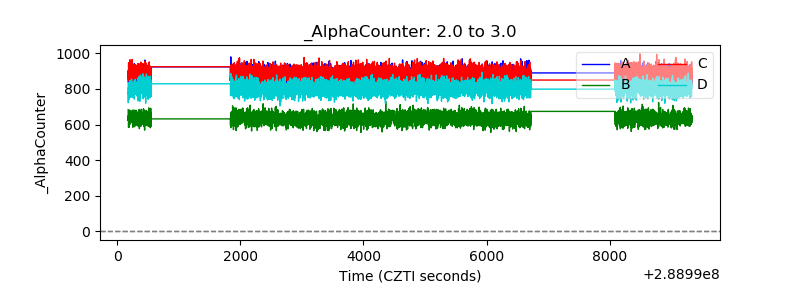

| Alpha Counter |  |

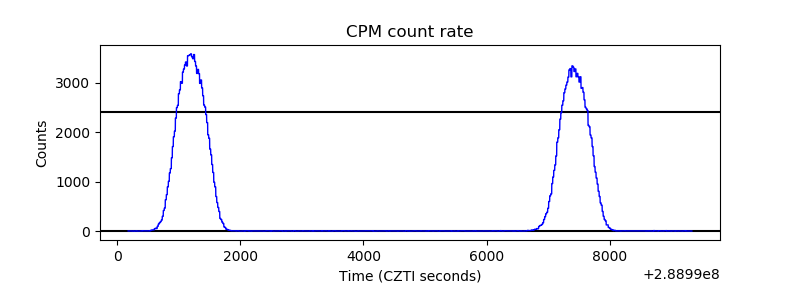

| _CPM_Rate |  |

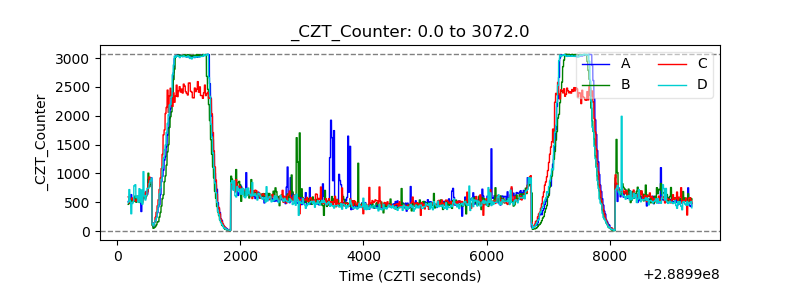

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

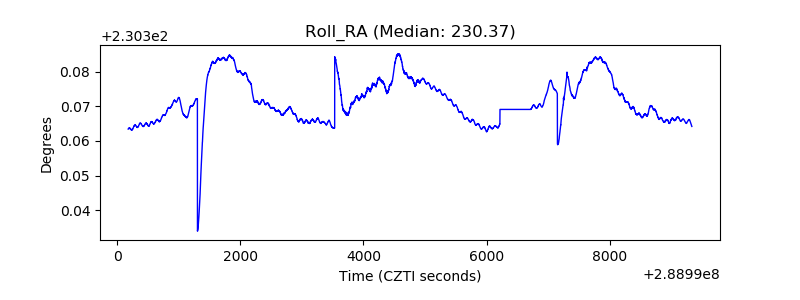

| _Roll_RA |  |

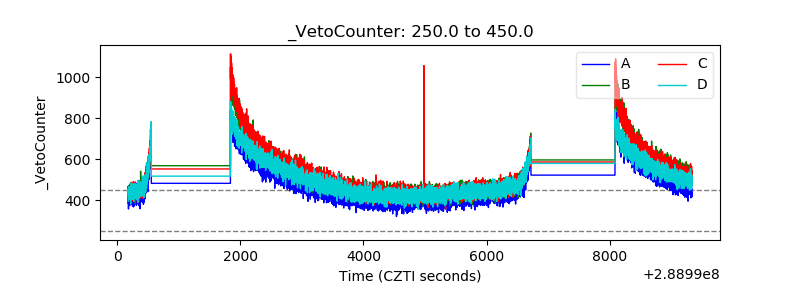

| Veto Counter |  |
