| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_075T09_9000002740_18486cztM0_level2.evt | modeM0/AS1A05_075T09_9000002740_18486cztM0_level2_quad_clean.evt |
| Size (bytes) | 630,561,600 | 99,538,560 |
| Size | 601.4 MB | 94.9 MB |
| Events in quadrant A | 5,654,396 | 625,409 |
| Events in quadrant B | 3,999,988 | 655,167 |
| Events in quadrant C | 5,201,559 | 630,244 |
| Events in quadrant D | 3,764,339 | 613,701 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21511 | 2 |
| B | 0 | 16607 | 2 |
| C | 0 | 20310 | 2 |
| D | 0 | 16076 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7029 | 842 | 11.978944% |
| B | 7029 | 139 | 1.977522% |
| C | 7029 | 302 | 4.296486% |
| D | 7029 | 125 | 1.778347% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7989 | 7029 | 617 | 617 | 7.72% | 8.78% |  |
| B | 7989 | 7029 | 27 | 27 | 0.34% | 0.38% |  |
| C | 7989 | 7029 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7989 | 7030 | 78 | 78 | 0.98% | 1.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 2343220 | 14333.66 | 810 | 793 | 163.4 |
| A | 15 | 174 | 126938 | 771.9 | 810 | 793 | 163.4 |
| A | 4 | 2 | 68258 | 412.83 | 810 | 793 | 163.4 |
| B | 10 | 245 | 530485 | 3218.75 | 864 | 842 | 164.5 |
| B | 0 | 244 | 33968 | 201.31 | 864 | 842 | 164.5 |
| B | 12 | 111 | 19534 | 113.6 | 864 | 842 | 164.5 |
| C | 3 | 233 | 1857793 | 9585.3 | 825 | 832 | 193.7 |
| C | 14 | 238 | 127417 | 653.41 | 825 | 832 | 193.7 |
| C | 13 | 61 | 5735 | 25.31 | 825 | 832 | 193.7 |
| D | 7 | 238 | 576959 | 2811.04 | 832 | 809 | 205.0 |
| D | 2 | 234 | 29742 | 141.16 | 832 | 809 | 205.0 |
| D | 1 | 52 | 12571 | 57.39 | 832 | 809 | 205.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

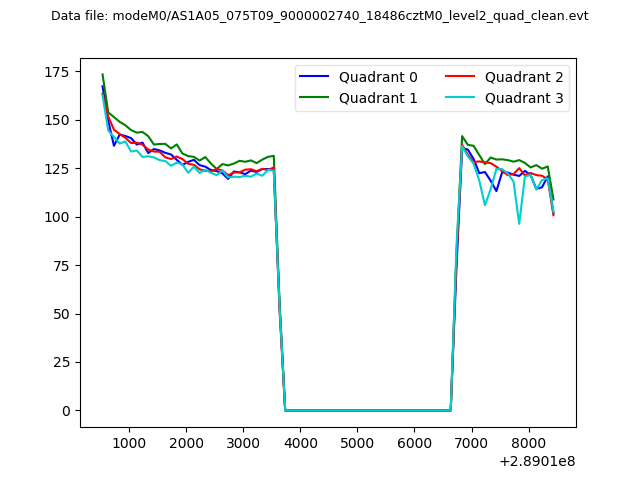

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

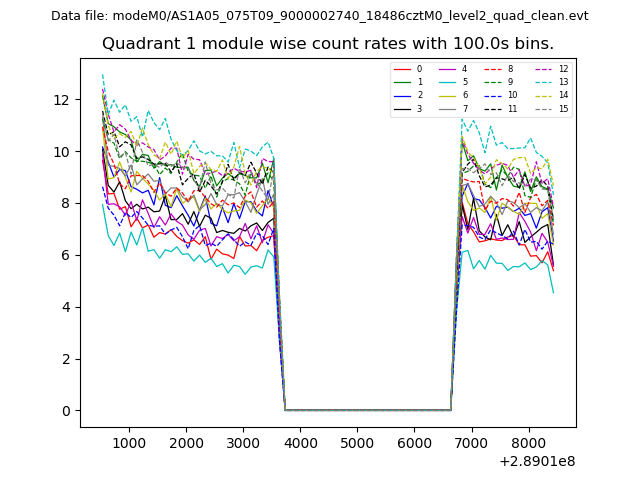

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

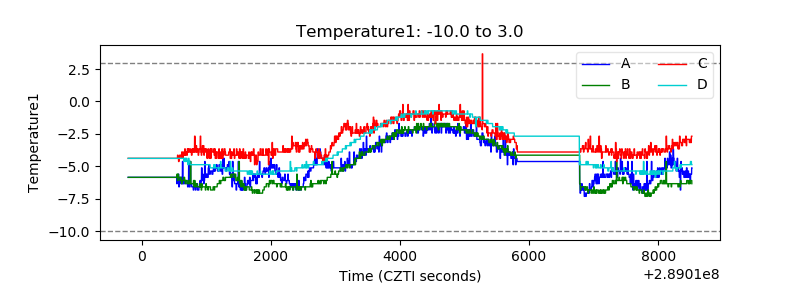

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

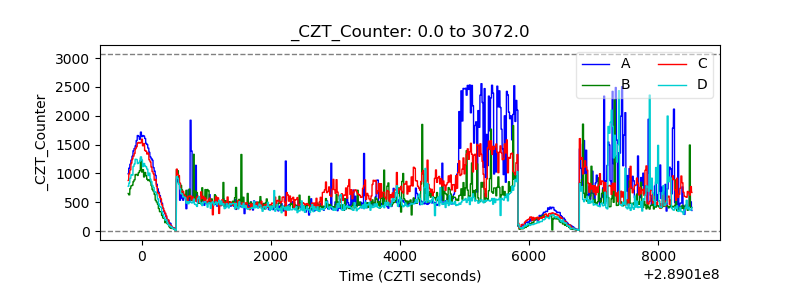

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

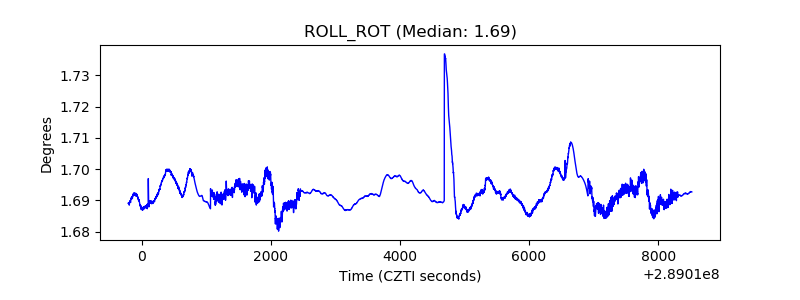

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
