| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_075T09_9000002740_18488cztM0_level2.evt | modeM0/AS1A05_075T09_9000002740_18488cztM0_level2_quad_clean.evt |
| Size (bytes) | 798,108,480 | 107,674,560 |
| Size | 761.1 MB | 102.7 MB |
| Events in quadrant A | 12,215,549 | 578,284 |
| Events in quadrant B | 3,959,262 | 728,812 |
| Events in quadrant C | 3,780,547 | 707,500 |
| Events in quadrant D | 3,680,804 | 696,349 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 160 | 0 |
| B | 0 | 160 | 0 |
| C | 0 | 160 | 0 |
| D | 0 | 160 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 41676 | 8 |
| B | 0 | 16935 | 4 |
| C | 0 | 16356 | 4 |
| D | 0 | 16551 | 4 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7886 | 3657 | 46.373320% |
| B | 7886 | 248 | 3.144814% |
| C | 7886 | 200 | 2.536140% |
| D | 7886 | 105 | 1.331473% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7996 | 7887 | 3057 | 3057 | 38.23% | 38.76% |  |
| B | 7996 | 7887 | 12 | 12 | 0.15% | 0.15% |  |
| C | 7996 | 7889 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7996 | 7888 | 9 | 9 | 0.11% | 0.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 9104713 | 56075.14 | 788 | 770 | 162.4 |
| A | 15 | 174 | 61573 | 374.51 | 788 | 770 | 162.4 |
| A | 13 | 254 | 7041 | 38.63 | 788 | 770 | 162.4 |
| B | 10 | 245 | 135083 | 725.28 | 957 | 932 | 185.0 |
| B | 12 | 111 | 22392 | 116.02 | 957 | 932 | 185.0 |
| B | 11 | 111 | 19627 | 101.07 | 957 | 932 | 185.0 |
| C | 14 | 238 | 141438 | 644.71 | 922 | 928 | 217.9 |
| C | 3 | 233 | 18544 | 80.83 | 922 | 928 | 217.9 |
| C | 8 | 128 | 12621 | 53.65 | 922 | 928 | 217.9 |
| D | 1 | 52 | 102454 | 442.92 | 935 | 905 | 229.3 |
| D | 2 | 234 | 35862 | 152.47 | 935 | 905 | 229.3 |
| D | 7 | 38 | 14116 | 57.62 | 935 | 905 | 229.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

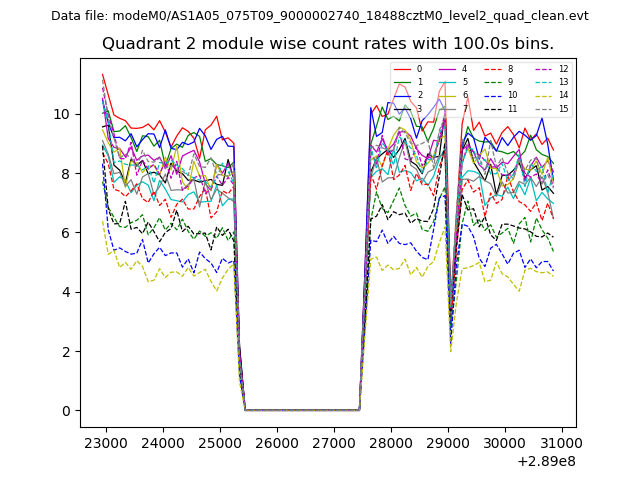

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

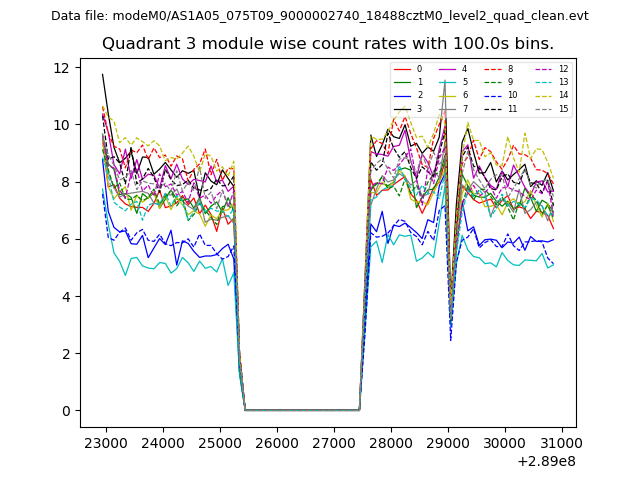

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

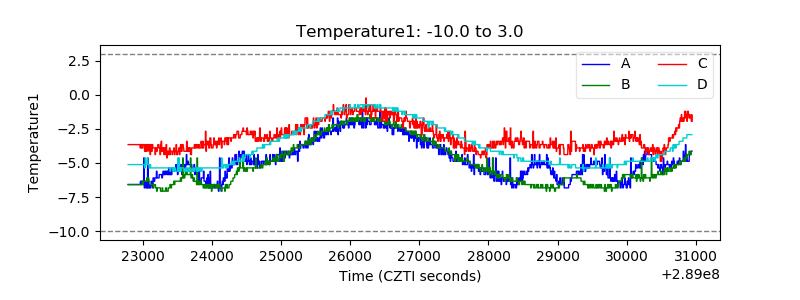

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

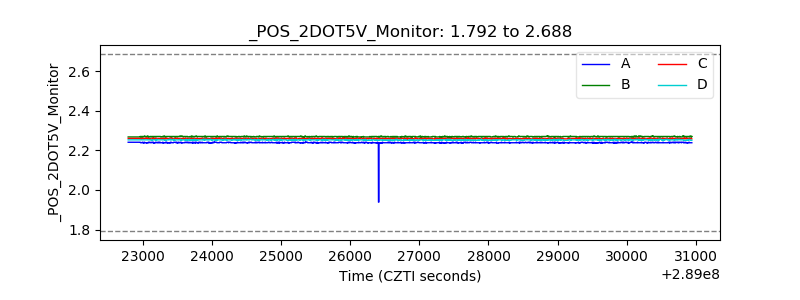

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

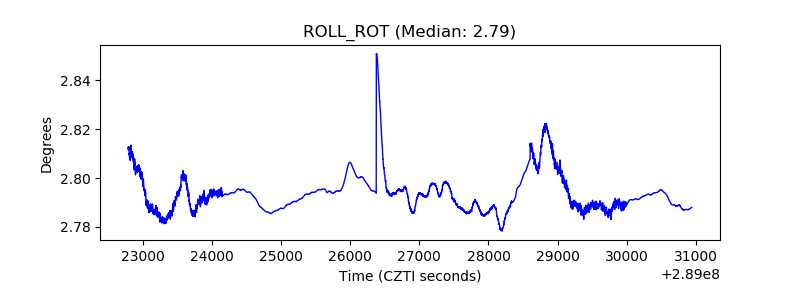

| _ROLL_ROT |  |
| _Roll_DEC |  |

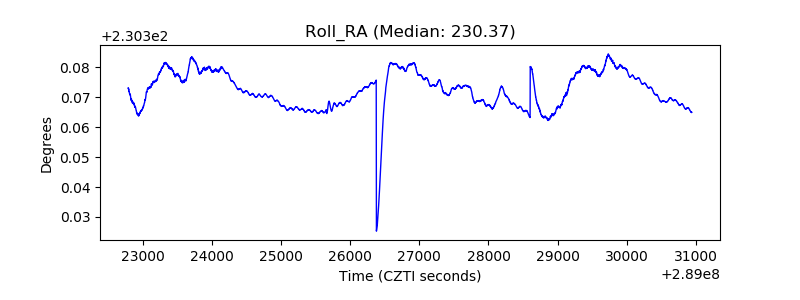

| _Roll_RA |  |
| Veto Counter |  |
