| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_075T08_9000002744_18499cztM0_level2.evt | modeM0/AS1A05_075T08_9000002744_18499cztM0_level2_quad_clean.evt |
| Size (bytes) | 835,384,320 | 187,718,400 |
| Size | 796.7 MB | 179.0 MB |
| Events in quadrant A | 6,985,357 | 1,209,390 |
| Events in quadrant B | 5,897,616 | 1,280,013 |
| Events in quadrant C | 5,778,470 | 1,234,104 |
| Events in quadrant D | 5,882,353 | 1,189,282 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28060 | 3 |
| B | 0 | 24587 | 3 |
| C | 0 | 24204 | 3 |
| D | 0 | 25000 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 226 | 0 |
| B | 0 | 226 | 0 |
| C | 0 | 226 | 0 |
| D | 0 | 226 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 28 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 11177 | 498 | 4.455578% |
| B | 11177 | 127 | 1.136262% |
| C | 11177 | 176 | 1.574662% |
| D | 11177 | 121 | 1.082580% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13852 | 11179 | 296 | 296 | 2.14% | 2.65% |  |
| B | 13852 | 11178 | 16 | 16 | 0.12% | 0.14% |  |
| C | 13852 | 11178 | 0 | 0 | 0.00% | 0.00% |  |
| D | 13852 | 11179 | 44 | 44 | 0.32% | 0.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 1311061 | 4600.02 | 1434 | 1407 | 284.7 |
| A | 15 | 174 | 83462 | 288.21 | 1434 | 1407 | 284.7 |
| A | 15 | 192 | 47865 | 163.18 | 1434 | 1407 | 284.7 |
| B | 10 | 245 | 74759 | 268.45 | 1471 | 1436 | 273.1 |
| B | 0 | 244 | 45675 | 161.97 | 1471 | 1436 | 273.1 |
| B | 12 | 111 | 31544 | 110.23 | 1471 | 1436 | 273.1 |
| C | 14 | 238 | 225131 | 685.16 | 1420 | 1435 | 326.5 |
| C | 3 | 233 | 17888 | 50.39 | 1420 | 1435 | 326.5 |
| C | 13 | 61 | 9902 | 25.93 | 1420 | 1435 | 326.5 |
| D | 1 | 52 | 258353 | 754.78 | 1422 | 1384 | 340.5 |
| D | 7 | 238 | 176845 | 515.37 | 1422 | 1384 | 340.5 |
| D | 2 | 234 | 43768 | 124.49 | 1422 | 1384 | 340.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

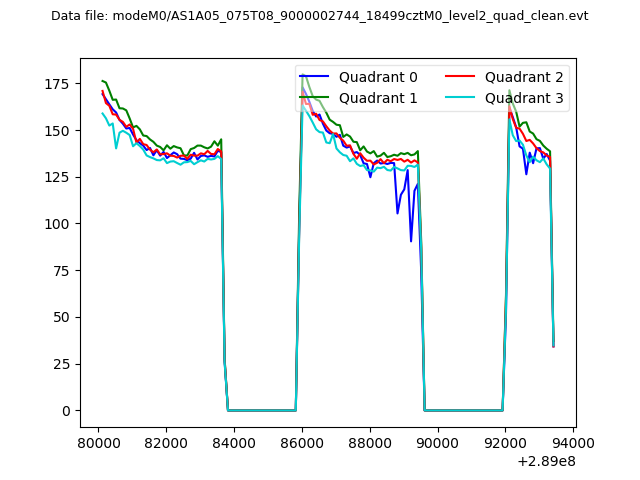

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

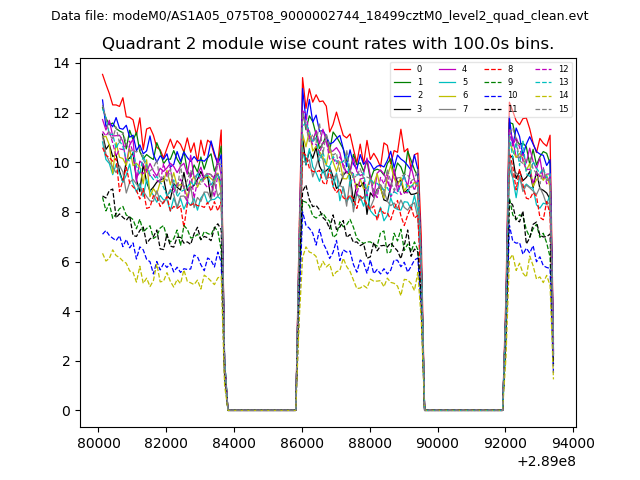

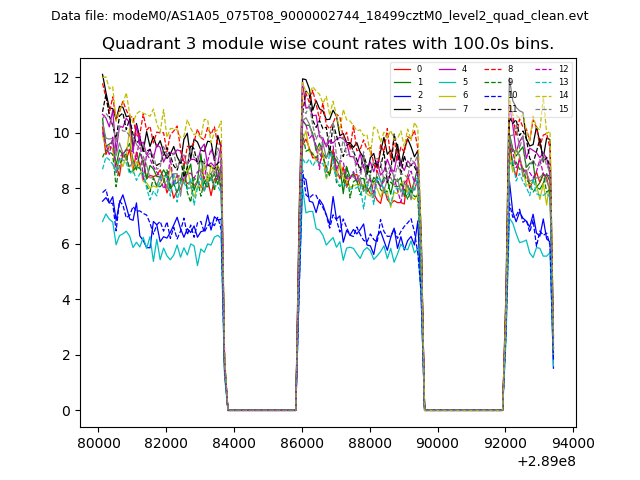

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

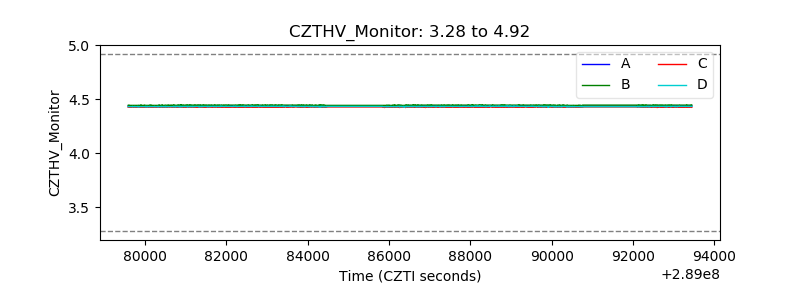

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

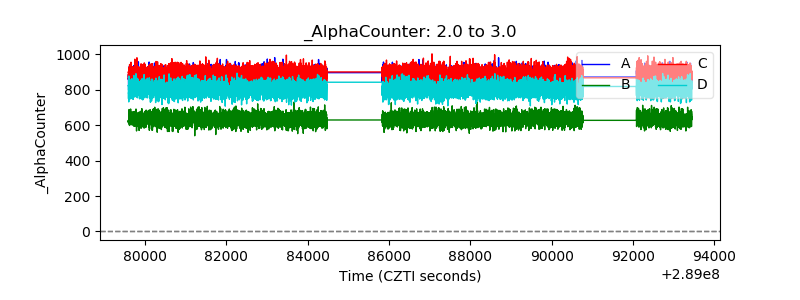

| Alpha Counter |  |

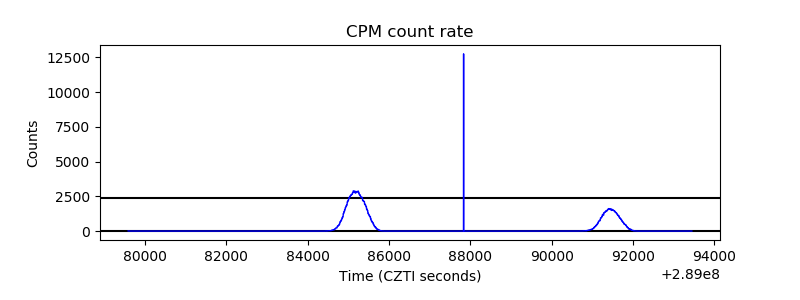

| _CPM_Rate |  |

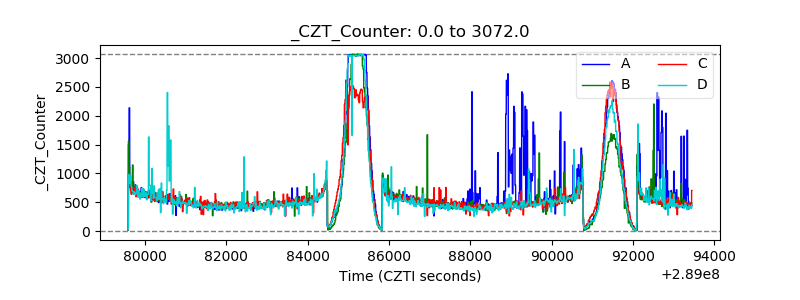

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

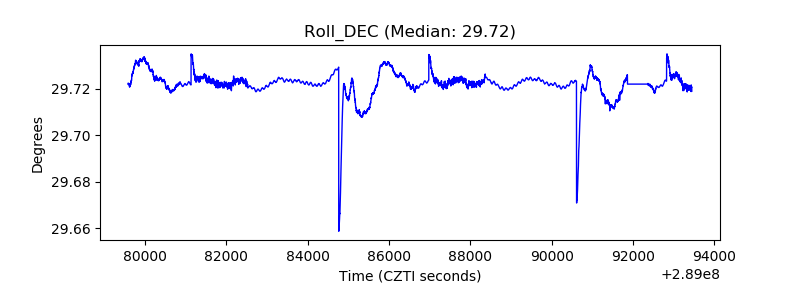

| _Roll_DEC |  |
