| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_075T08_9000002744_18500cztM0_level2.evt | modeM0/AS1A05_075T08_9000002744_18500cztM0_level2_quad_clean.evt |
| Size (bytes) | 506,154,240 | 97,885,440 |
| Size | 482.7 MB | 93.4 MB |
| Events in quadrant A | 4,892,448 | 616,353 |
| Events in quadrant B | 3,405,235 | 656,389 |
| Events in quadrant C | 3,190,444 | 631,238 |
| Events in quadrant D | 3,400,917 | 608,255 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18931 | 2 |
| B | 0 | 14272 | 2 |
| C | 0 | 13620 | 2 |
| D | 0 | 14487 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6481 | 369 | 5.693566% |
| B | 6481 | 94 | 1.450393% |
| C | 6481 | 87 | 1.342385% |
| D | 6481 | 84 | 1.296096% |

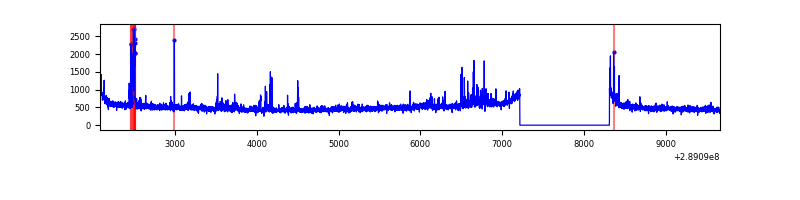

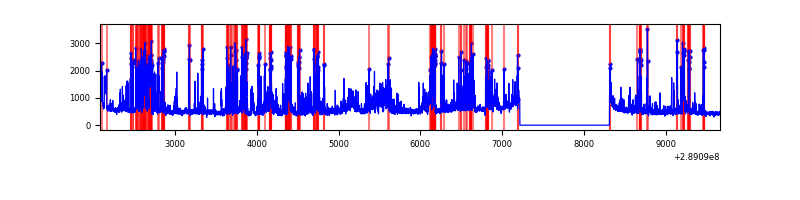

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7576 | 6481 | 273 | 273 | 3.60% | 4.21% |  |
| B | 7576 | 6481 | 11 | 11 | 0.15% | 0.17% |  |
| C | 7576 | 6481 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7576 | 6481 | 41 | 41 | 0.54% | 0.63% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 1662711 | 10354.06 | 792 | 777 | 160.5 |
| A | 15 | 174 | 81240 | 501.29 | 792 | 777 | 160.5 |
| A | 10 | 253 | 78996 | 487.31 | 792 | 777 | 160.5 |
| B | 10 | 245 | 176043 | 1115.37 | 816 | 796 | 157.1 |
| B | 7 | 220 | 29777 | 184.45 | 816 | 796 | 157.1 |
| B | 12 | 111 | 18290 | 111.34 | 816 | 796 | 157.1 |
| C | 14 | 238 | 122780 | 664.64 | 784 | 791 | 183.5 |
| C | 9 | 54 | 9093 | 45.23 | 784 | 791 | 183.5 |
| C | 13 | 61 | 5615 | 26.28 | 784 | 791 | 183.5 |
| D | 7 | 238 | 259011 | 1349.64 | 785 | 761 | 191.3 |
| D | 1 | 52 | 109209 | 566.76 | 785 | 761 | 191.3 |
| D | 2 | 234 | 27802 | 141.32 | 785 | 761 | 191.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

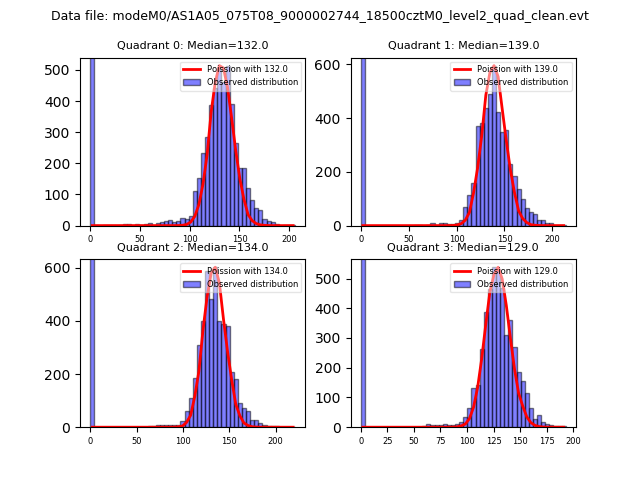

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

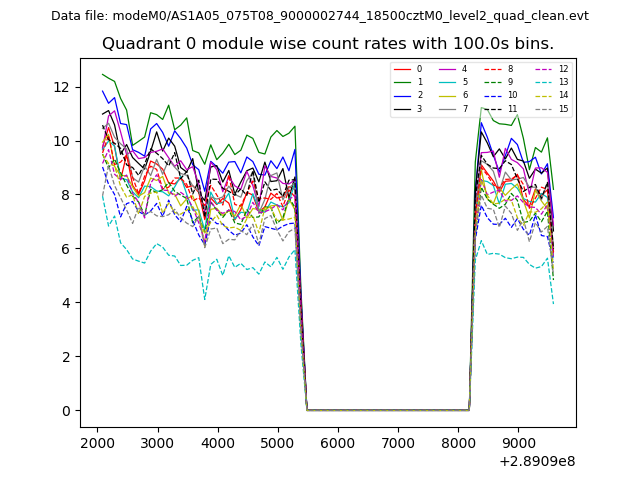

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

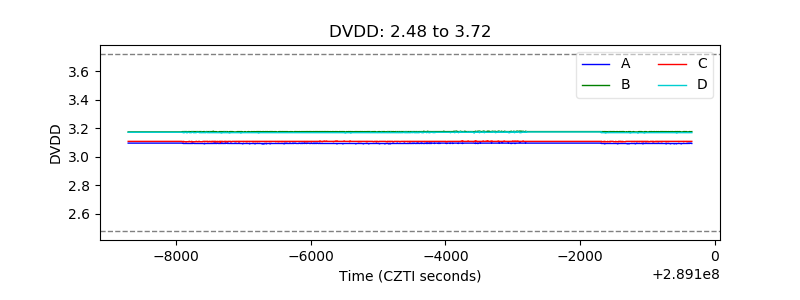

| D_VDD |  |
| Temperature 1 |  |

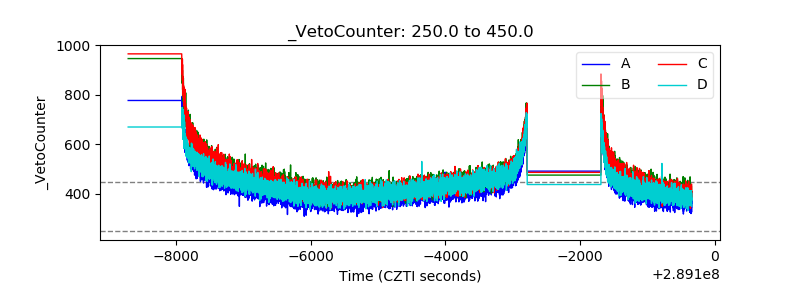

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

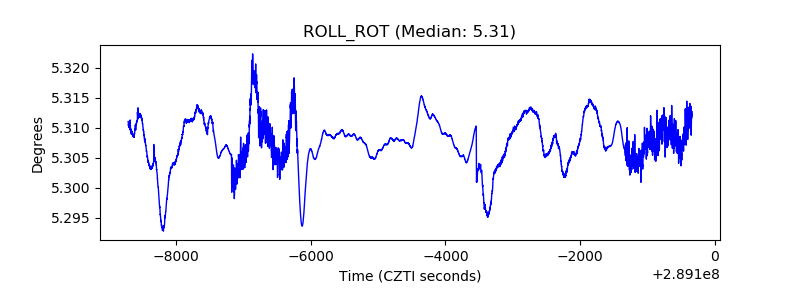

| _ROLL_ROT |  |
| _Roll_DEC |  |

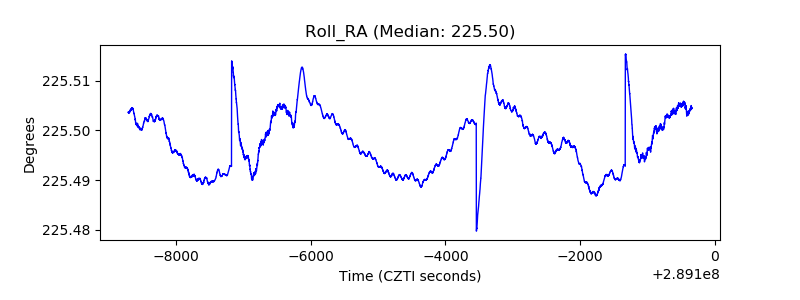

| _Roll_RA |  |
| Veto Counter |  |
