| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_212T07_9000002746_18511cztM0_level2.evt | modeM0/AS1A05_212T07_9000002746_18511cztM0_level2_quad_clean.evt |
| Size (bytes) | 255,939,840 | 49,380,480 |
| Size | 244.1 MB | 47.1 MB |
| Events in quadrant A | 2,156,658 | 312,490 |
| Events in quadrant B | 1,766,699 | 327,053 |
| Events in quadrant C | 1,736,245 | 311,069 |
| Events in quadrant D | 1,860,694 | 304,997 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8642 | 1 |
| B | 0 | 7448 | 1 |
| C | 0 | 7351 | 1 |
| D | 0 | 7860 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 70 | 0 |
| B | 0 | 70 | 0 |
| C | 0 | 70 | 0 |
| D | 0 | 70 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3373 | 136 | 4.032019% |
| B | 3374 | 71 | 2.104327% |
| C | 3374 | 68 | 2.015412% |
| D | 3374 | 63 | 1.867220% |

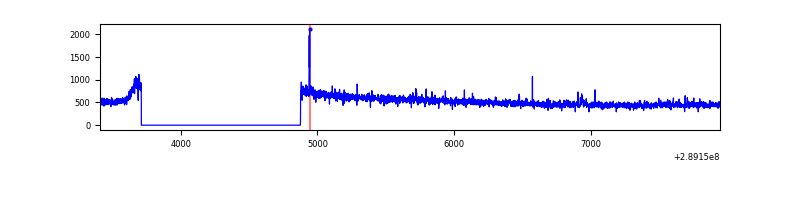

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4538 | 3373 | 75 | 75 | 1.65% | 2.22% |  |
| B | 4539 | 3374 | 1 | 1 | 0.02% | 0.03% |  |
| C | 4539 | 3374 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4539 | 3374 | 0 | 0 | 0.00% | 0.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 441706 | 4848.94 | 444 | 435 | 91.0 |
| A | 13 | 254 | 4832 | 48.32 | 444 | 435 | 91.0 |
| A | 15 | 192 | 4697 | 46.83 | 444 | 435 | 91.0 |
| B | 12 | 111 | 9752 | 109.01 | 450 | 439 | 85.4 |
| B | 11 | 111 | 8249 | 91.42 | 450 | 439 | 85.4 |
| B | 14 | 111 | 7112 | 78.11 | 450 | 439 | 85.4 |
| C | 14 | 238 | 67557 | 669.45 | 427 | 432 | 100.3 |
| C | 13 | 61 | 2984 | 25.45 | 427 | 432 | 100.3 |
| C | 3 | 233 | 1514 | 10.79 | 427 | 432 | 100.3 |
| D | 1 | 52 | 131768 | 1242.7 | 428 | 416 | 105.7 |
| D | 7 | 238 | 81156 | 763.87 | 428 | 416 | 105.7 |
| D | 12 | 110 | 18323 | 169.42 | 428 | 416 | 105.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

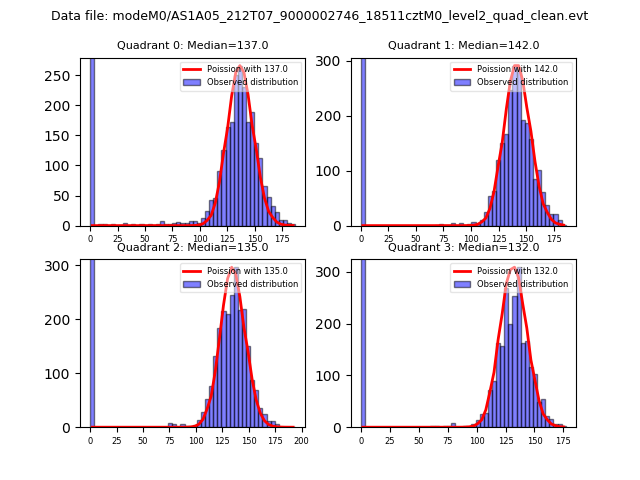

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

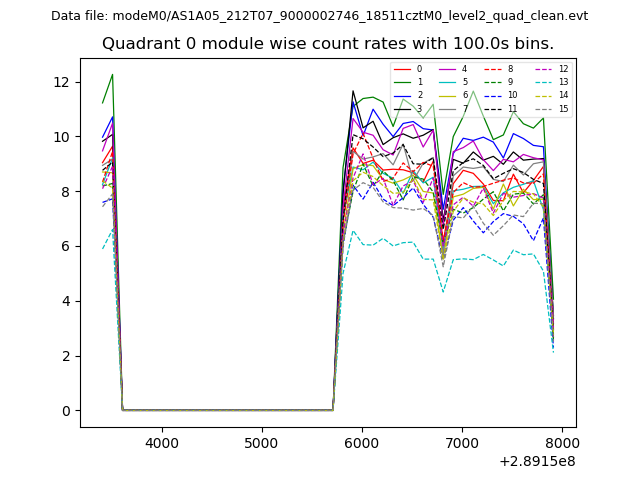

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

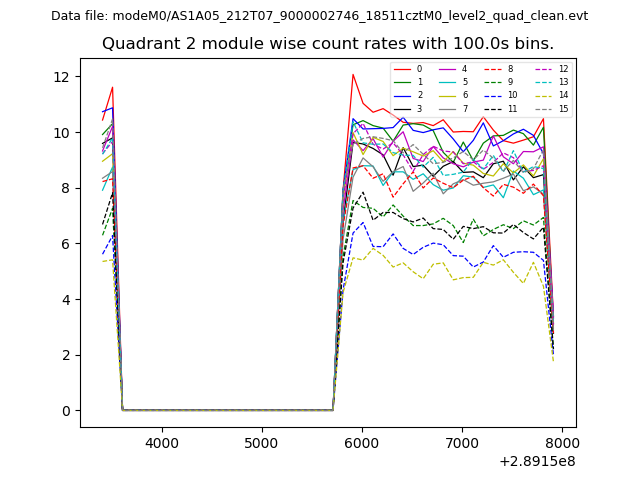

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

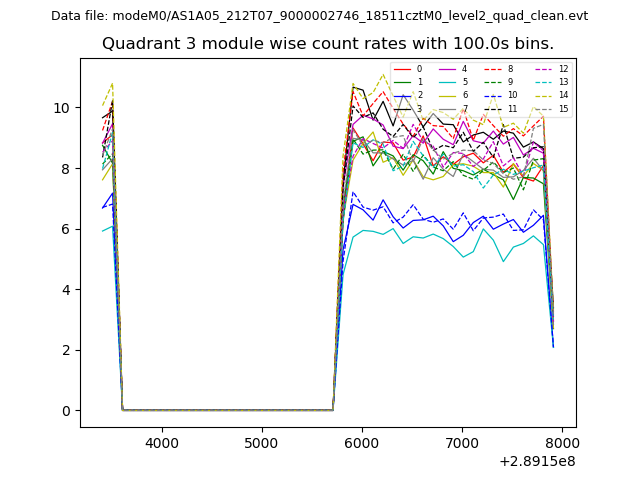

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

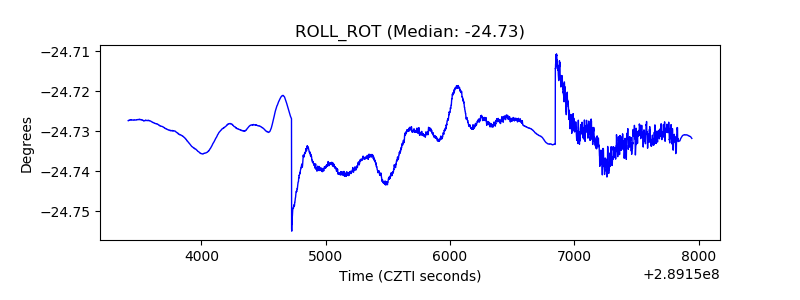

| _ROLL_ROT |  |
| _Roll_DEC |  |

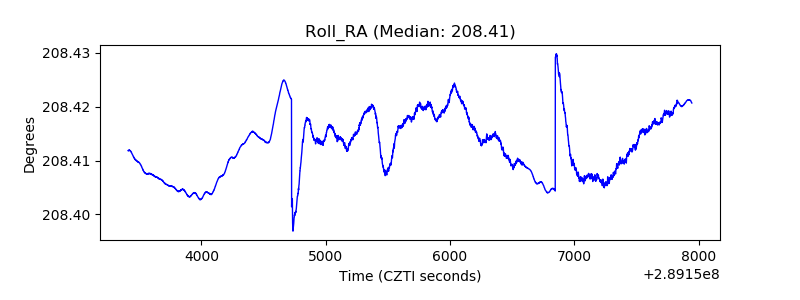

| _Roll_RA |  |

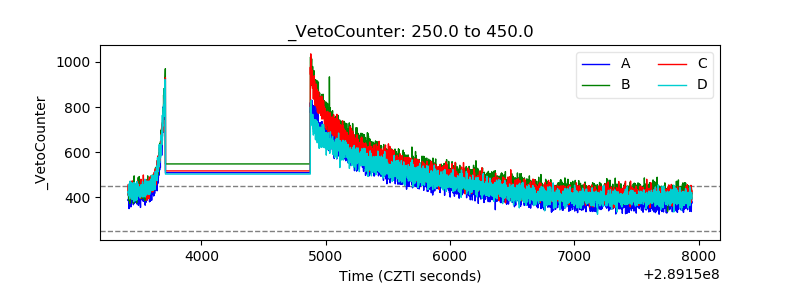

| Veto Counter |  |
