| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_188T01_9000002756_18547cztM0_level2.evt | modeM0/AS1A05_188T01_9000002756_18547cztM0_level2_quad_clean.evt |
| Size (bytes) | 686,704,320 | 83,900,160 |
| Size | 654.9 MB | 80.0 MB |
| Events in quadrant A | 8,726,468 | 484,418 |
| Events in quadrant B | 3,434,663 | 541,770 |
| Events in quadrant C | 3,421,276 | 512,432 |
| Events in quadrant D | 4,720,593 | 493,855 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30934 | 7 |
| B | 0 | 15055 | 1 |
| C | 0 | 15039 | 1 |
| D | 0 | 19125 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7293 | 1773 | 24.310983% |
| B | 7293 | 104 | 1.426025% |
| C | 7293 | 137 | 1.878514% |
| D | 7293 | 257 | 3.523927% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

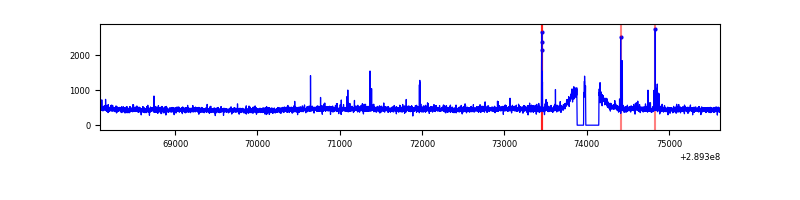

| A | 7533 | 7293 | 1378 | 1378 | 18.29% | 18.89% |  |

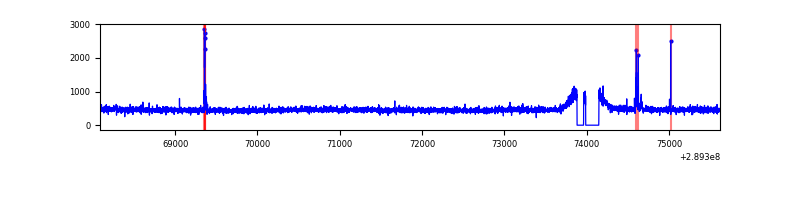

| B | 7533 | 7294 | 5 | 5 | 0.07% | 0.07% |  |
| C | 7533 | 7293 | 7 | 7 | 0.09% | 0.10% |  |
| D | 7533 | 7294 | 164 | 164 | 2.18% | 2.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 5670612 | 35242.14 | 788 | 772 | 160.9 |
| A | 13 | 254 | 11055 | 63.91 | 788 | 772 | 160.9 |
| A | 14 | 111 | 9135 | 51.98 | 788 | 772 | 160.9 |
| B | 4 | 80 | 29439 | 170.87 | 866 | 842 | 167.4 |
| B | 3 | 64 | 22305 | 128.24 | 866 | 842 | 167.4 |
| B | 12 | 111 | 20303 | 116.28 | 866 | 842 | 167.4 |
| C | 14 | 238 | 128961 | 656.22 | 830 | 834 | 195.2 |
| C | 9 | 54 | 54484 | 274.78 | 830 | 834 | 195.2 |
| C | 13 | 61 | 5836 | 25.62 | 830 | 834 | 195.2 |
| D | 7 | 238 | 1355216 | 6650.66 | 831 | 806 | 203.7 |
| D | 1 | 52 | 213036 | 1042.13 | 831 | 806 | 203.7 |
| D | 2 | 234 | 32934 | 157.76 | 831 | 806 | 203.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

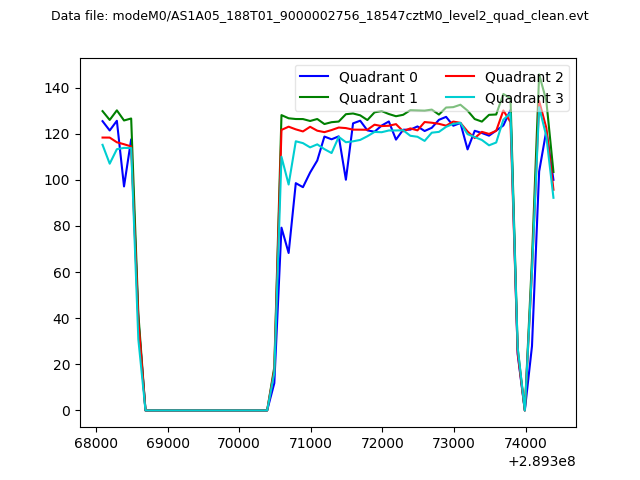

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

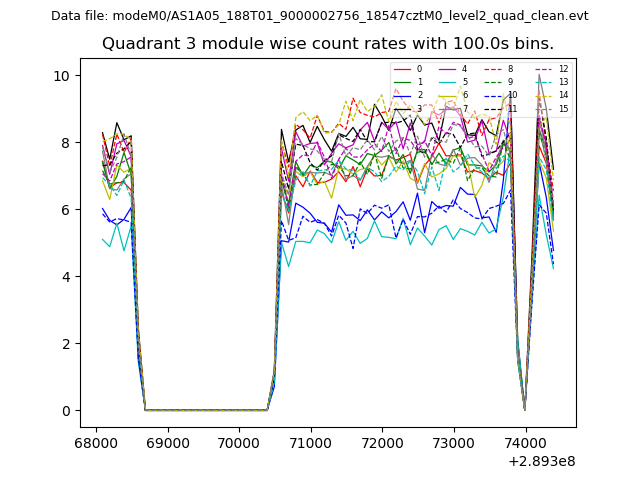

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

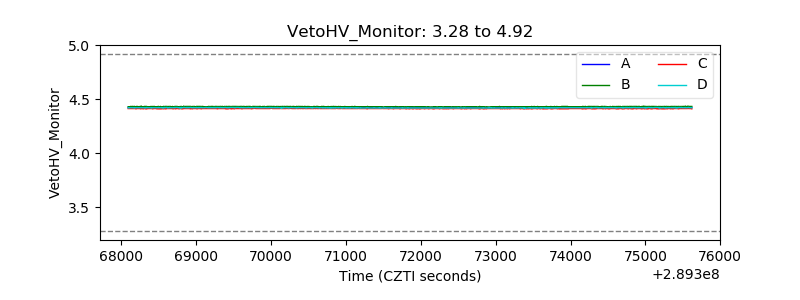

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

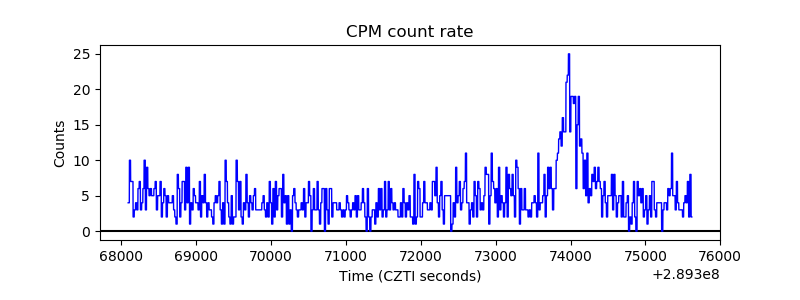

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

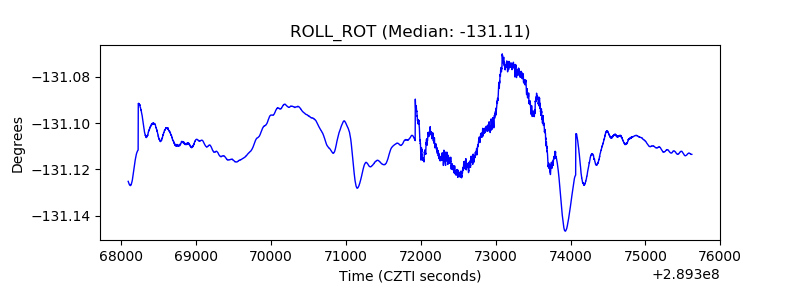

| _ROLL_ROT |  |

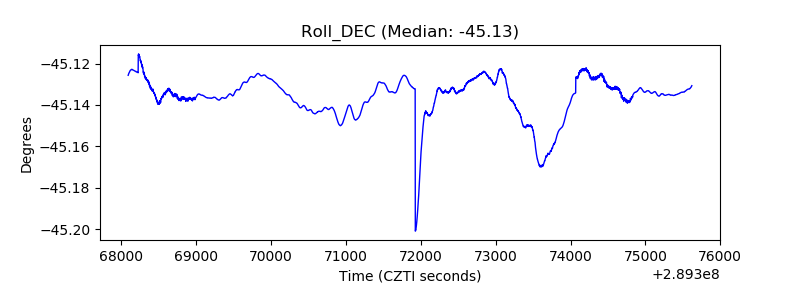

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
