| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_167T01_9000002758_18565cztM0_level2.evt | modeM0/AS1A05_167T01_9000002758_18565cztM0_level2_quad_clean.evt |
| Size (bytes) | 529,617,600 | 73,969,920 |
| Size | 505.1 MB | 70.5 MB |
| Events in quadrant A | 3,214,764 | 447,824 |
| Events in quadrant B | 3,313,026 | 462,665 |
| Events in quadrant C | 3,238,984 | 444,205 |
| Events in quadrant D | 5,816,985 | 416,329 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13781 | 1 |
| B | 0 | 13935 | 1 |
| C | 0 | 13724 | 1 |
| D | 0 | 21838 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6723 | 49 | 0.728841% |
| B | 6724 | 54 | 0.803093% |
| C | 6724 | 61 | 0.907198% |
| D | 6724 | 409 | 6.082689% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7633 | 6723 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7634 | 6724 | 8 | 8 | 0.10% | 0.12% |  |
| C | 7634 | 6724 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7634 | 6724 | 345 | 345 | 4.52% | 5.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 21075 | 120.29 | 827 | 809 | 168.5 |
| A | 13 | 254 | 11529 | 63.63 | 827 | 809 | 168.5 |
| A | 0 | 226 | 7349 | 38.82 | 827 | 809 | 168.5 |
| B | 7 | 220 | 56850 | 352.23 | 822 | 801 | 159.1 |
| B | 0 | 190 | 28346 | 173.1 | 822 | 801 | 159.1 |
| B | 12 | 111 | 18866 | 113.52 | 822 | 801 | 159.1 |
| C | 14 | 238 | 123400 | 659.97 | 790 | 796 | 185.8 |
| C | 4 | 254 | 25419 | 132.54 | 790 | 796 | 185.8 |
| C | 9 | 54 | 9277 | 45.65 | 790 | 796 | 185.8 |
| D | 1 | 52 | 1465972 | 7634.36 | 788 | 765 | 191.9 |
| D | 7 | 238 | 1326459 | 6907.43 | 788 | 765 | 191.9 |
| D | 2 | 234 | 28236 | 143.14 | 788 | 765 | 191.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

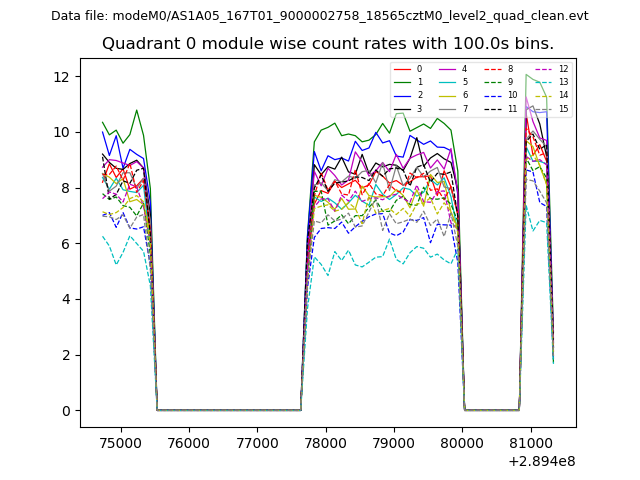

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

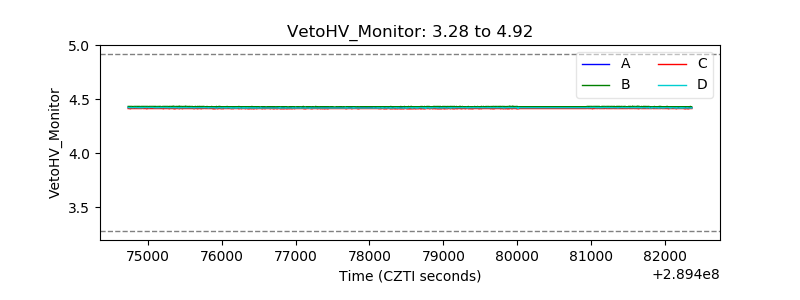

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

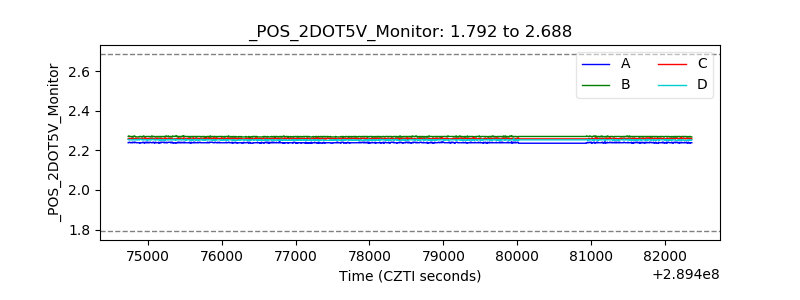

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

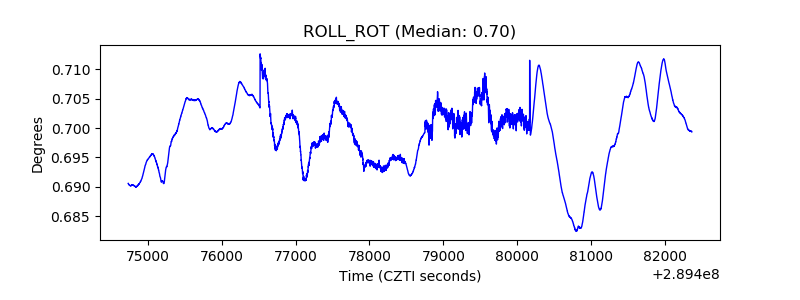

| _ROLL_ROT |  |
| _Roll_DEC |  |

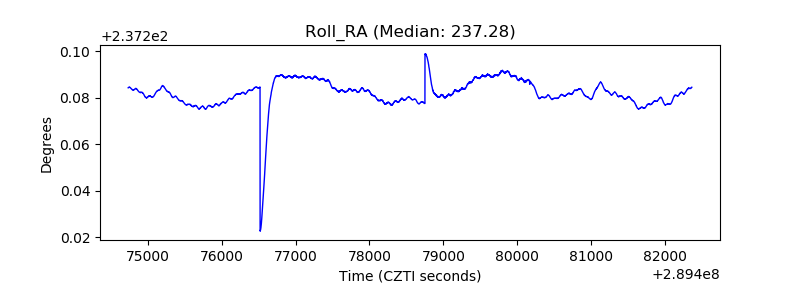

| _Roll_RA |  |

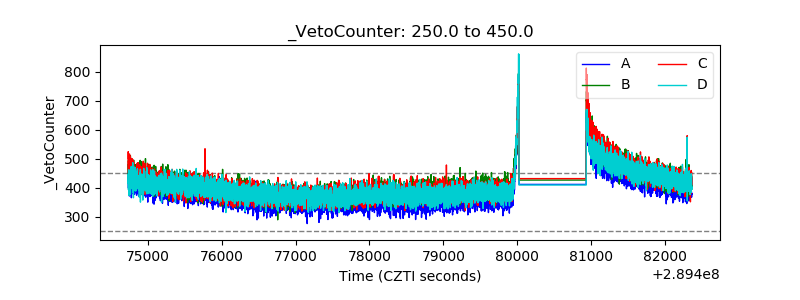

| Veto Counter |  |
