| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_075T01_9000002768_18602cztM0_level2.evt | modeM0/AS1A05_075T01_9000002768_18602cztM0_level2_quad_clean.evt |
| Size (bytes) | 511,850,880 | 90,648,000 |
| Size | 488.1 MB | 86.4 MB |
| Events in quadrant A | 3,256,298 | 570,375 |
| Events in quadrant B | 3,350,383 | 586,840 |
| Events in quadrant C | 3,539,420 | 570,704 |
| Events in quadrant D | 4,898,086 | 547,471 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14145 | 2 |
| B | 0 | 14327 | 2 |
| C | 0 | 14831 | 2 |
| D | 0 | 19270 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6733 | 62 | 0.920838% |
| B | 6734 | 117 | 1.737452% |
| C | 6734 | 153 | 2.272052% |
| D | 6734 | 354 | 5.256905% |

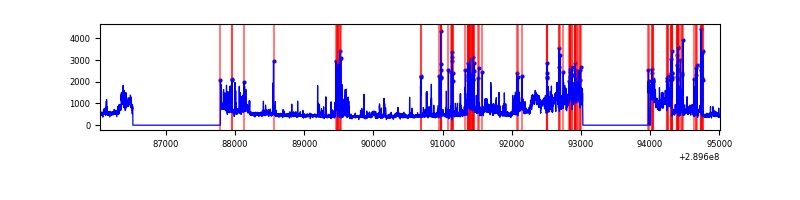

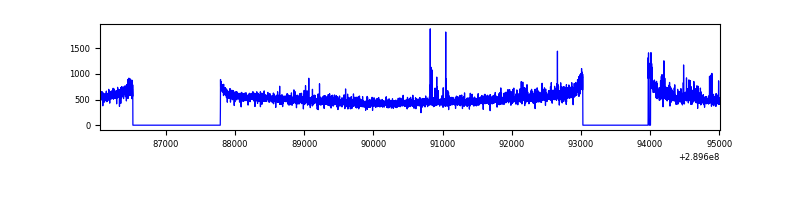

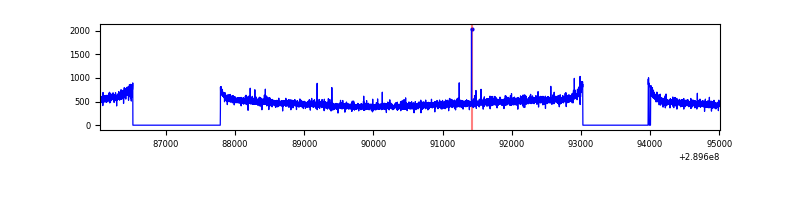

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

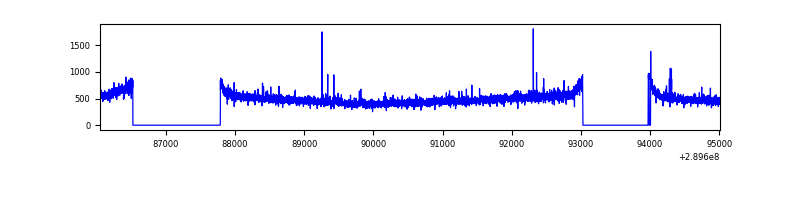

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8963 | 6736 | 1 | 1 | 0.01% | 0.01% |  |
| B | 8964 | 6737 | 0 | 0 | 0.00% | 0.00% |  |
| C | 8964 | 6736 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8964 | 6737 | 127 | 127 | 1.42% | 1.89% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 192 | 11342 | 62.31 | 842 | 823 | 168.8 |
| A | 13 | 254 | 9856 | 53.51 | 842 | 823 | 168.8 |
| A | 0 | 226 | 7282 | 38.26 | 842 | 823 | 168.8 |
| B | 0 | 229 | 32056 | 193.95 | 846 | 824 | 161.0 |
| B | 12 | 111 | 19688 | 117.14 | 846 | 824 | 161.0 |
| B | 11 | 111 | 17190 | 101.63 | 846 | 824 | 161.0 |
| C | 3 | 233 | 139396 | 724.28 | 822 | 827 | 191.3 |
| C | 14 | 238 | 128377 | 666.69 | 822 | 827 | 191.3 |
| C | 9 | 221 | 48880 | 251.17 | 822 | 827 | 191.3 |
| D | 1 | 52 | 1740309 | 8821.75 | 817 | 793 | 197.2 |
| D | 7 | 238 | 50268 | 250.91 | 817 | 793 | 197.2 |
| D | 13 | 104 | 25542 | 125.51 | 817 | 793 | 197.2 |

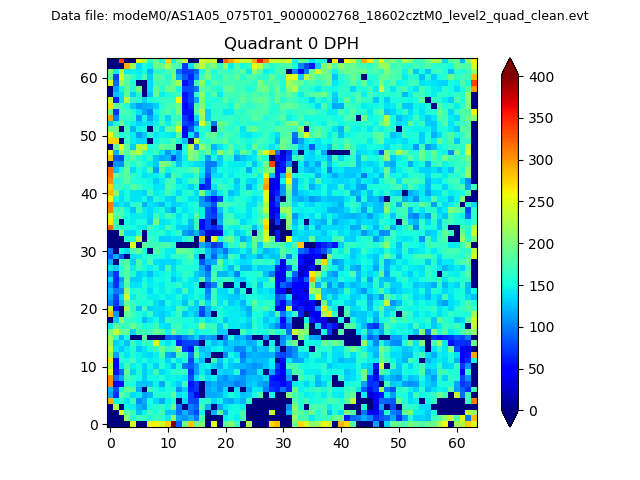

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

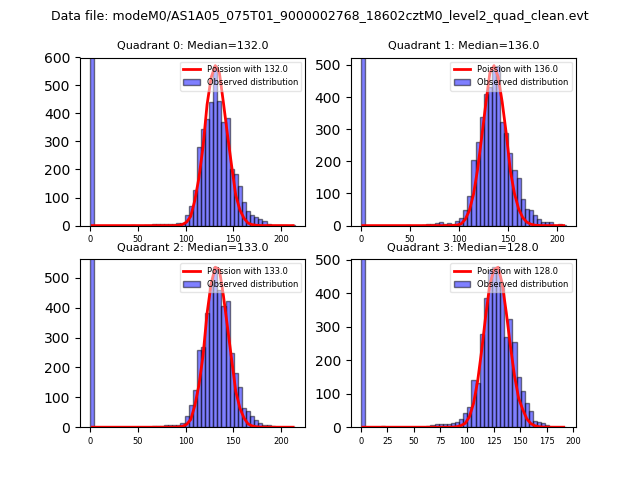

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

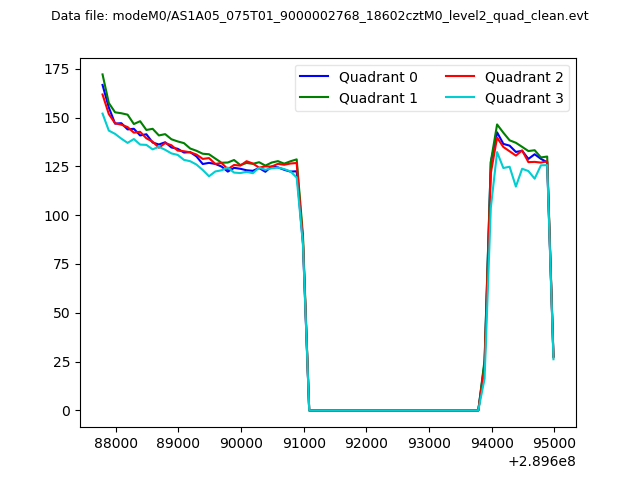

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

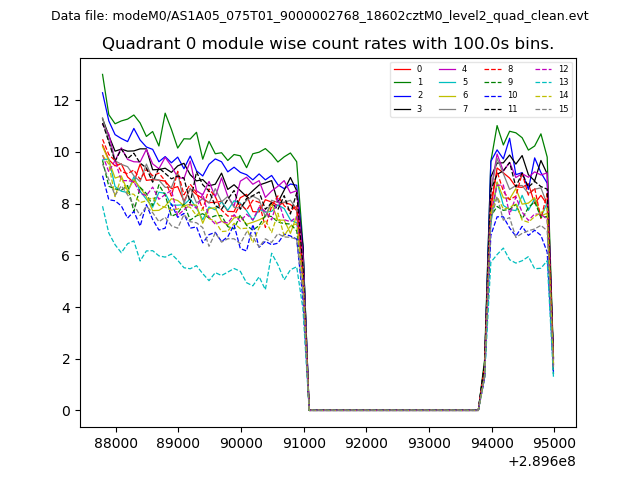

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

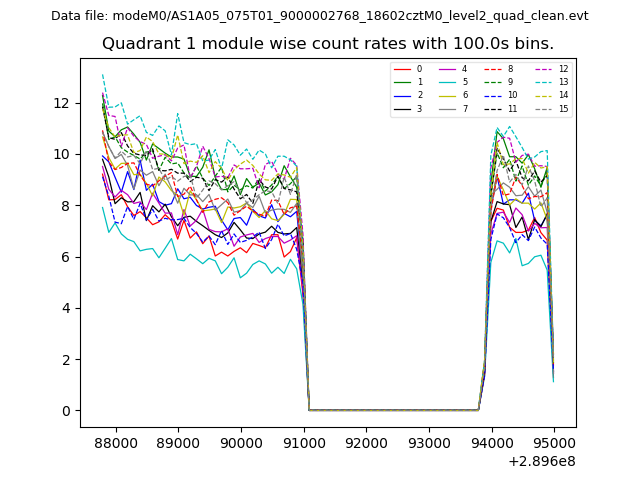

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

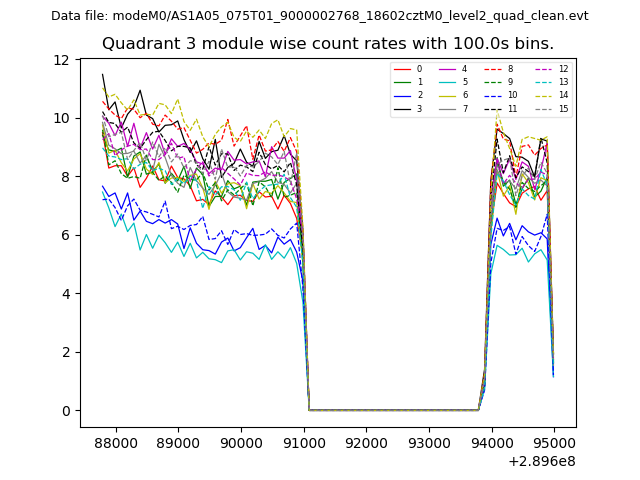

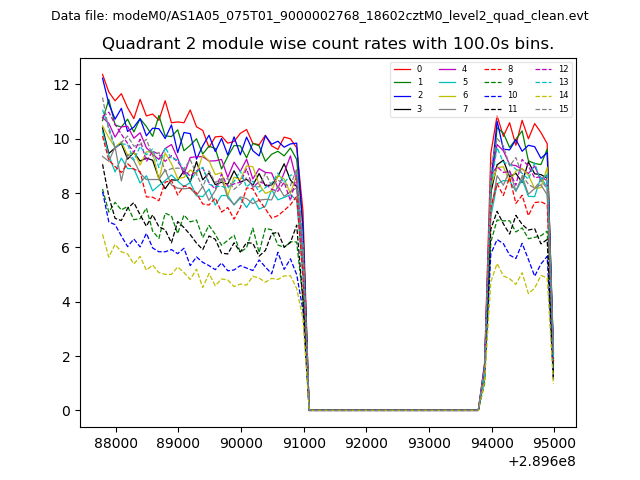

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

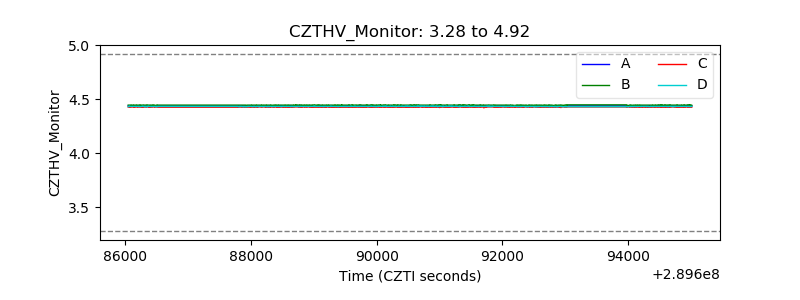

| CZT HV Monitor |  |

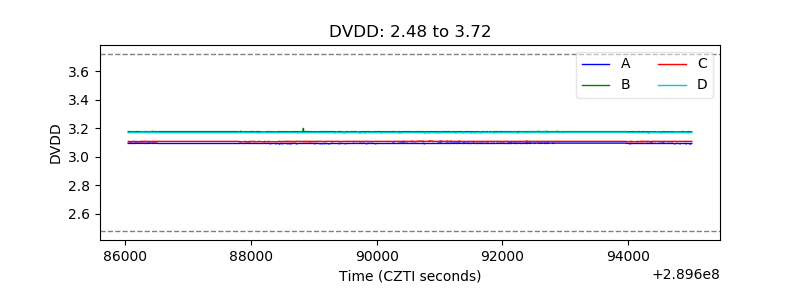

| D_VDD |  |

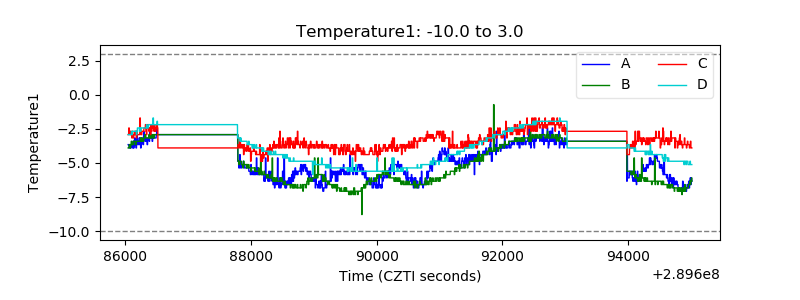

| Temperature 1 |  |

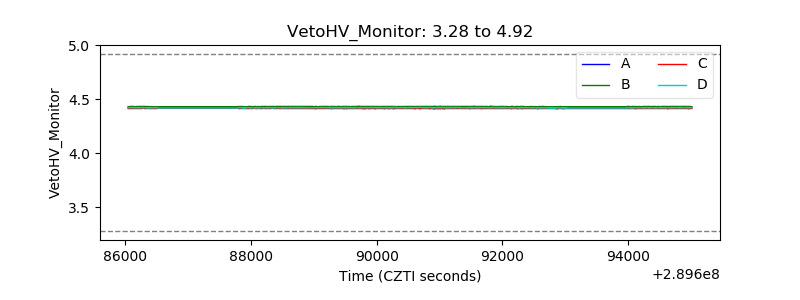

| Veto HV Monitor |  |

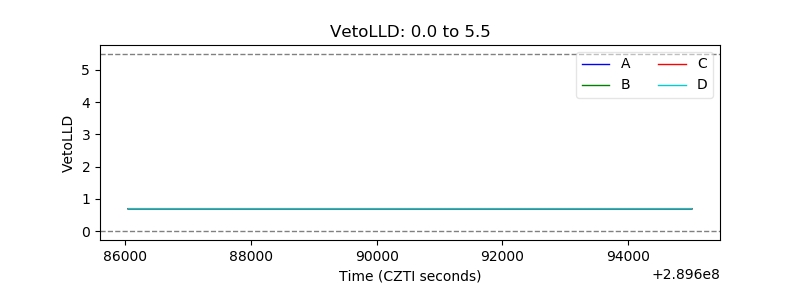

| Veto LLD |  |

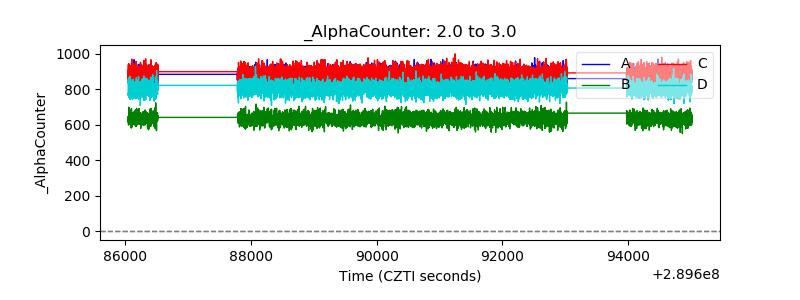

| Alpha Counter |  |

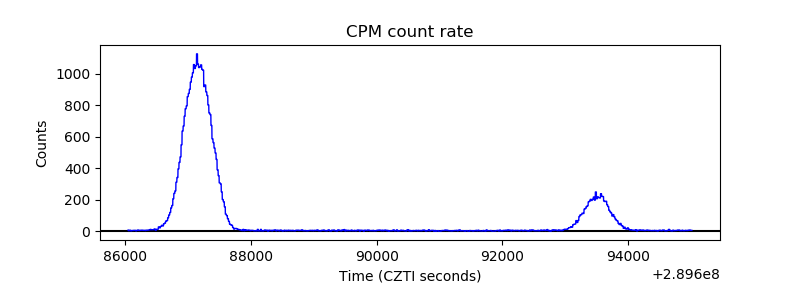

| _CPM_Rate |  |

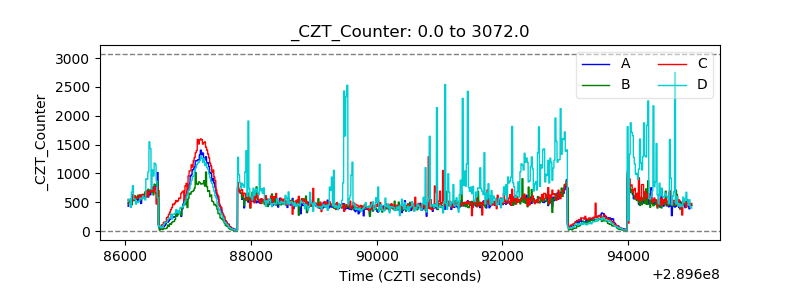

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

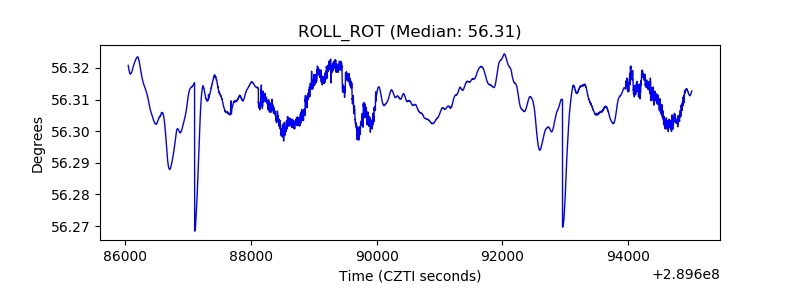

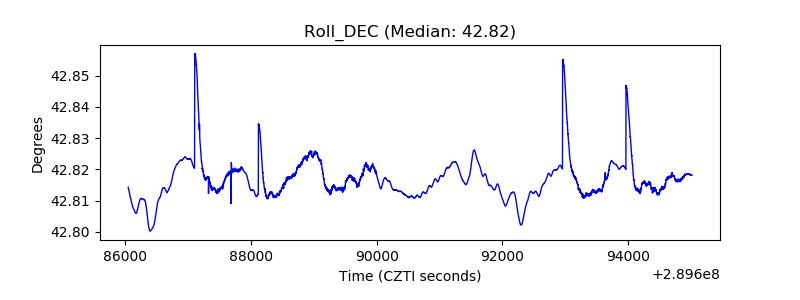

| _ROLL_ROT |  |
| _Roll_DEC |  |

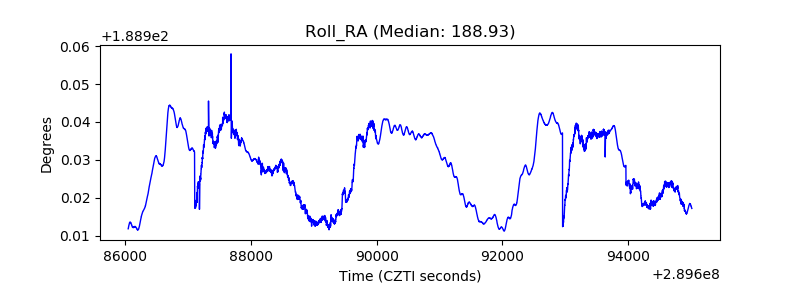

| _Roll_RA |  |

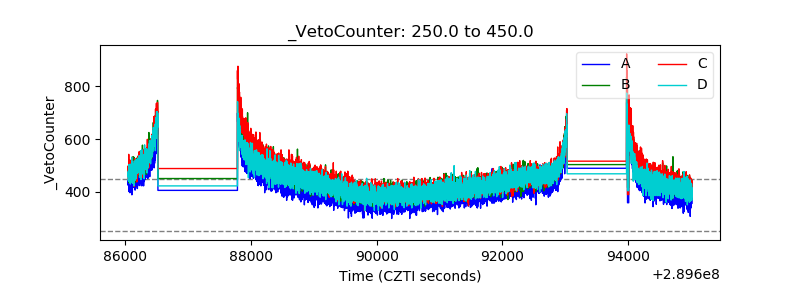

| Veto Counter |  |
