| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_075T01_9000002768_18603cztM0_level2.evt | modeM0/AS1A05_075T01_9000002768_18603cztM0_level2_quad_clean.evt |
| Size (bytes) | 85,815,360 | 20,401,920 |
| Size | 81.8 MB | 19.5 MB |
| Events in quadrant A | 496,088 | 137,301 |
| Events in quadrant B | 522,265 | 140,645 |
| Events in quadrant C | 594,097 | 135,098 |
| Events in quadrant D | 914,223 | 126,099 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2131 | 1 |
| B | 0 | 2189 | 1 |
| C | 0 | 2403 | 1 |
| D | 0 | 3443 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 5 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1019 | 5 | 0.490677% |
| B | 1019 | 15 | 1.472031% |
| C | 1019 | 34 | 3.336605% |
| D | 1019 | 102 | 10.009814% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

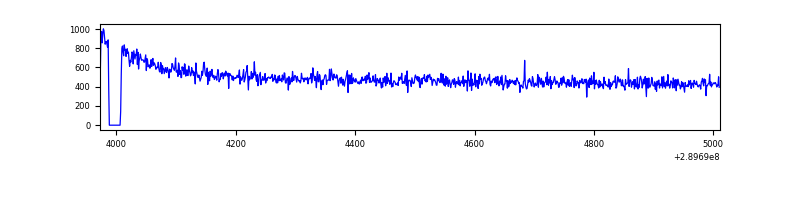

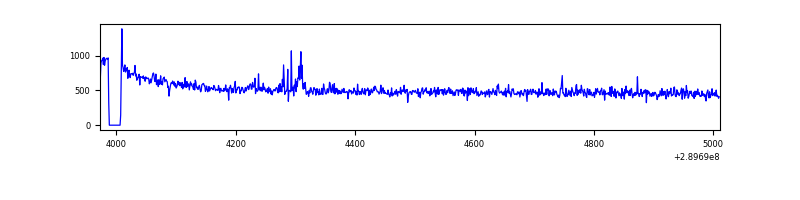

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 1039 | 1020 | 0 | 0 | 0.00% | 0.00% |  |
| B | 1039 | 1020 | 0 | 0 | 0.00% | 0.00% |  |
| C | 1039 | 1020 | 0 | 0 | 0.00% | 0.00% |  |

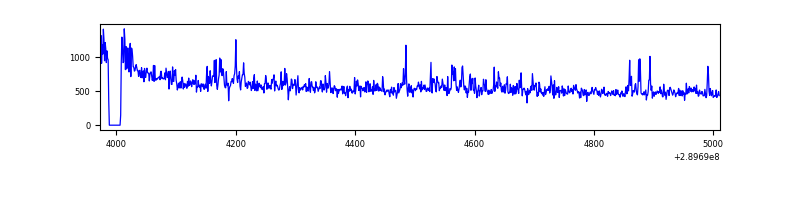

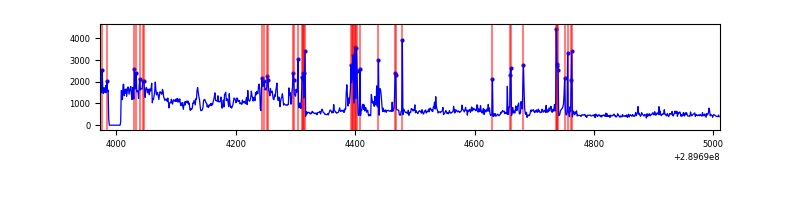

| D | 1039 | 1020 | 44 | 44 | 4.23% | 4.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 1578 | 52.33 | 128 | 125 | 27.8 |
| A | 15 | 192 | 1073 | 34.15 | 128 | 125 | 27.8 |
| A | 0 | 226 | 1063 | 33.78 | 128 | 125 | 27.8 |
| B | 0 | 189 | 5863 | 211.11 | 130 | 127 | 27.2 |
| B | 0 | 229 | 4042 | 144.09 | 130 | 127 | 27.2 |
| B | 4 | 173 | 3177 | 112.25 | 130 | 127 | 27.2 |
| C | 3 | 233 | 36559 | 1131.3 | 129 | 129 | 32.2 |
| C | 9 | 221 | 33720 | 1043.14 | 129 | 129 | 32.2 |
| C | 14 | 238 | 19970 | 616.15 | 129 | 129 | 32.2 |
| D | 1 | 52 | 425985 | 13177.36 | 124 | 121 | 32.3 |
| D | 7 | 238 | 10439 | 319.27 | 124 | 121 | 32.3 |
| D | 13 | 238 | 4250 | 127.76 | 124 | 121 | 32.3 |

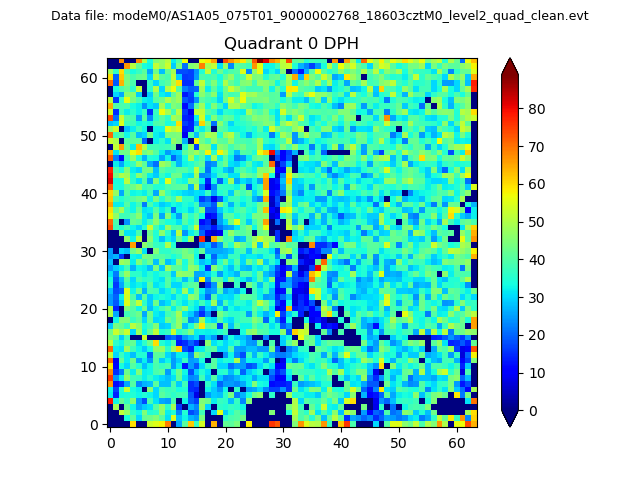

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

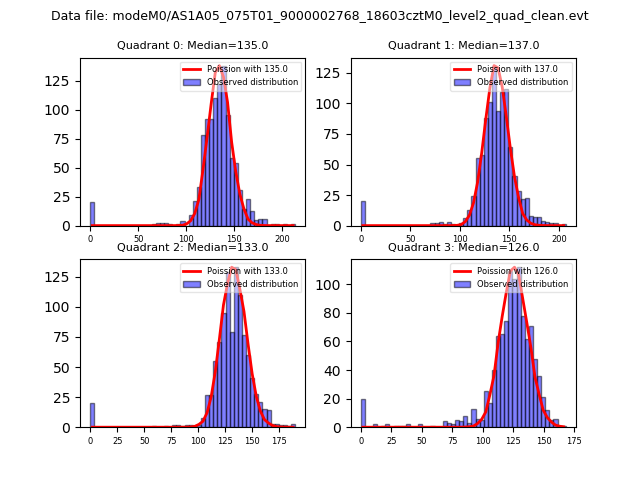

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

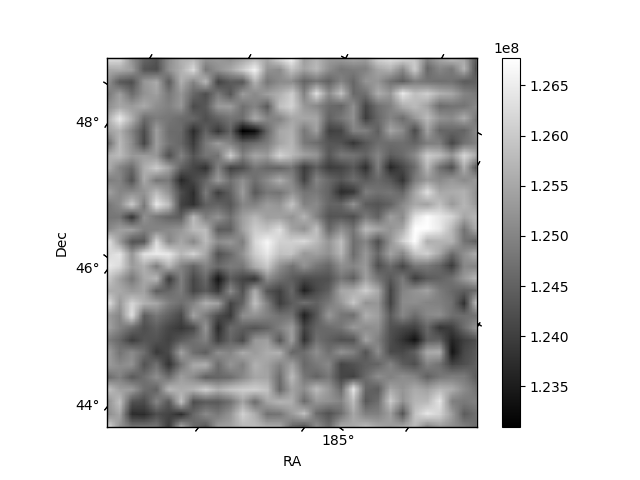

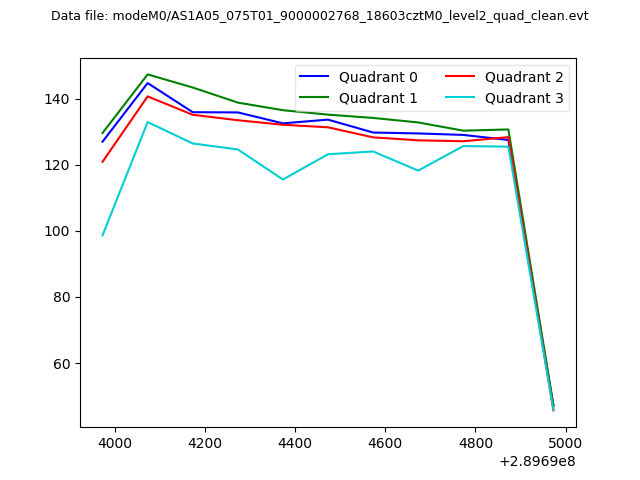

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

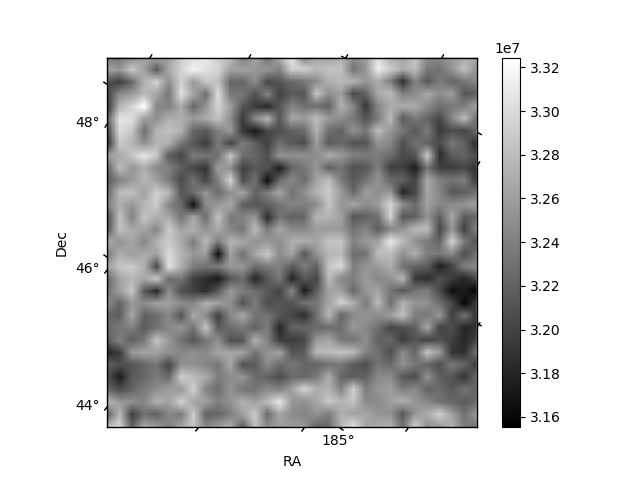

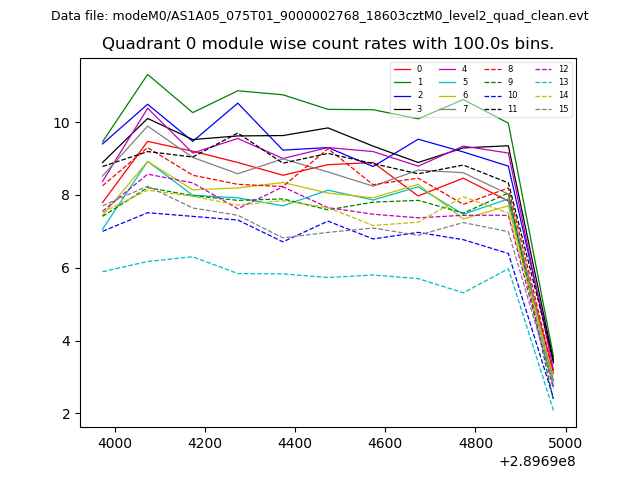

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

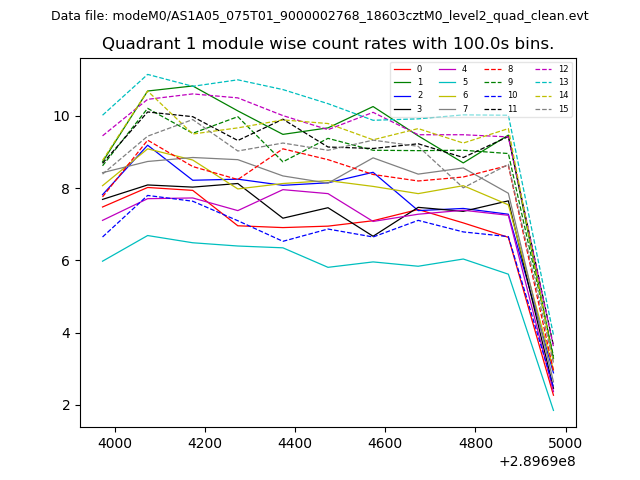

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

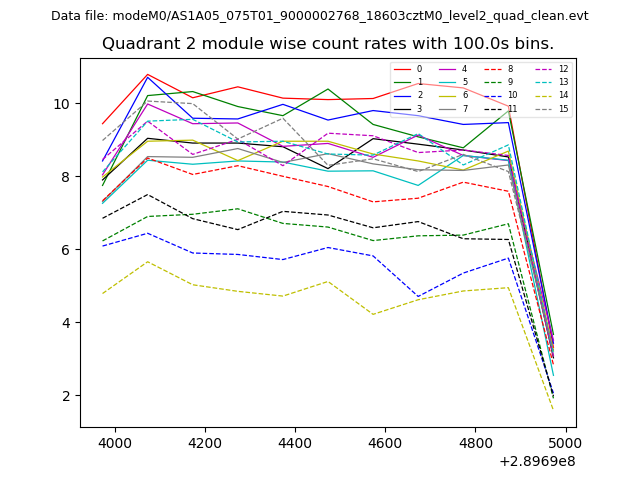

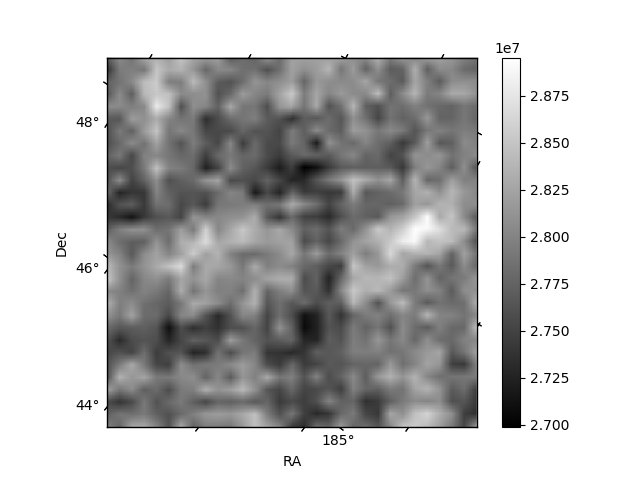

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

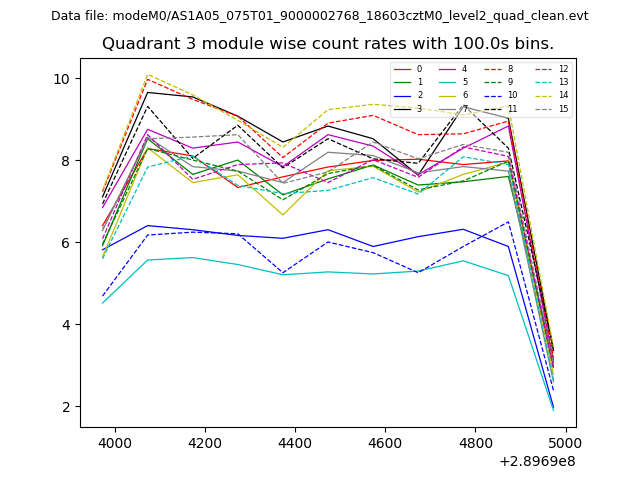

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |

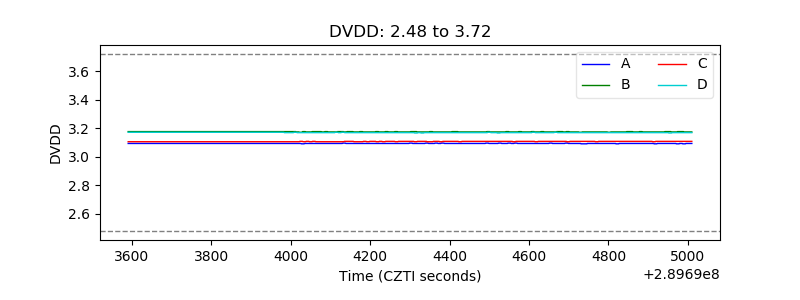

| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

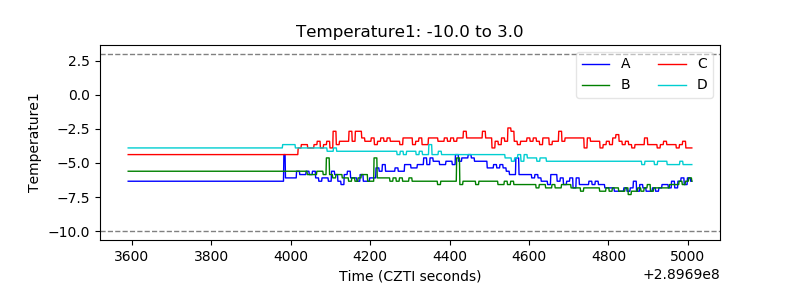

| Temperature 1 |  |

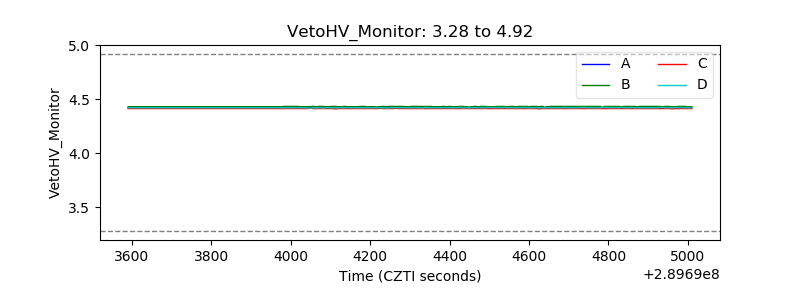

| Veto HV Monitor |  |
| Veto LLD |  |

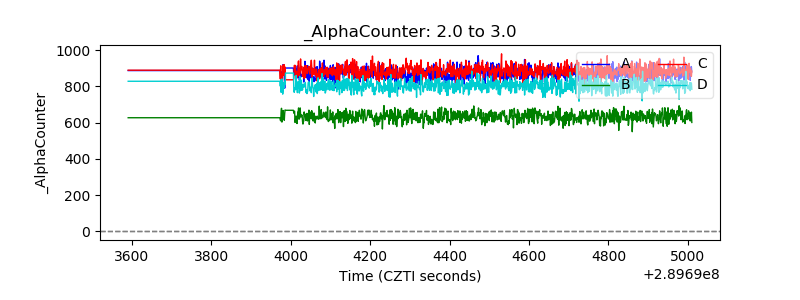

| Alpha Counter |  |

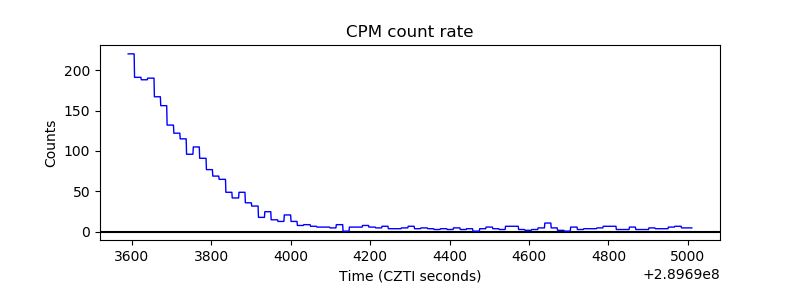

| _CPM_Rate |  |

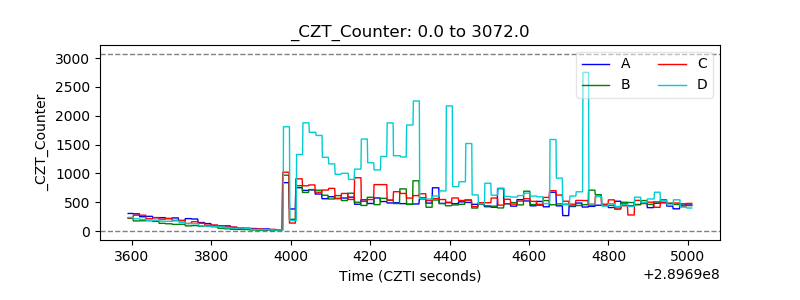

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

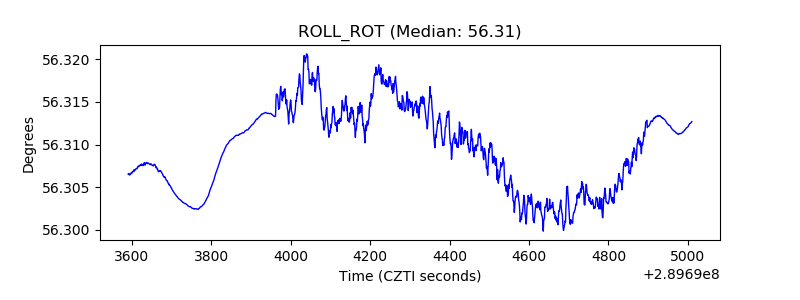

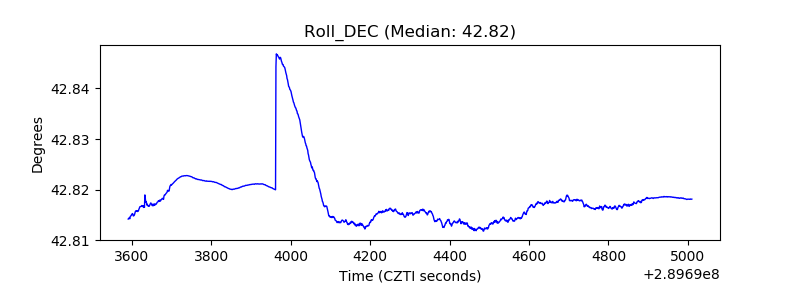

| _ROLL_ROT |  |
| _Roll_DEC |  |

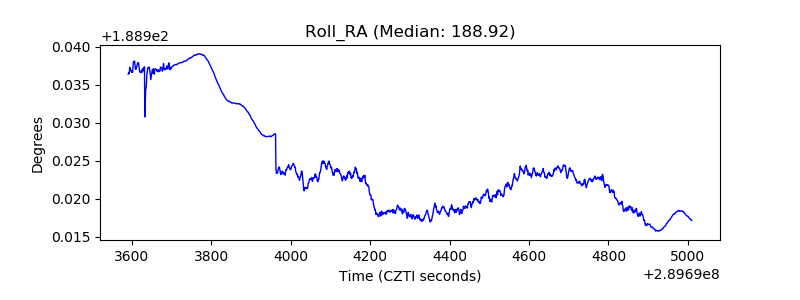

| _Roll_RA |  |

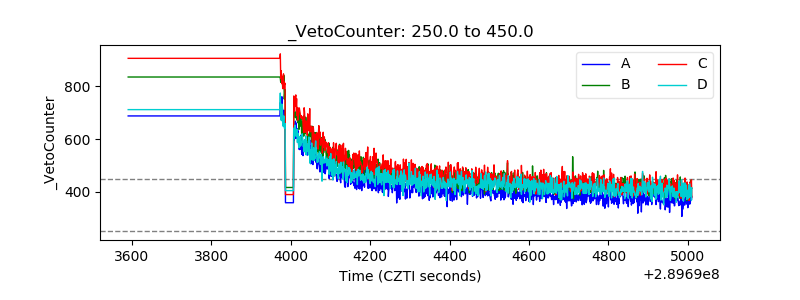

| Veto Counter |  |
