| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_075T06_9000002766_18597cztM0_level2.evt | modeM0/AS1A05_075T06_9000002766_18597cztM0_level2_quad_clean.evt |
| Size (bytes) | 463,092,480 | 67,737,600 |
| Size | 441.6 MB | 64.6 MB |
| Events in quadrant A | 3,298,269 | 404,235 |
| Events in quadrant B | 3,343,050 | 408,186 |
| Events in quadrant C | 3,484,002 | 395,083 |
| Events in quadrant D | 3,462,135 | 394,221 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14066 | 2 |
| B | 0 | 14156 | 2 |
| C | 0 | 14449 | 2 |
| D | 0 | 14683 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6435 | 64 | 0.994561% |
| B | 6435 | 58 | 0.901321% |
| C | 6435 | 117 | 1.818182% |
| D | 6435 | 69 | 1.072261% |

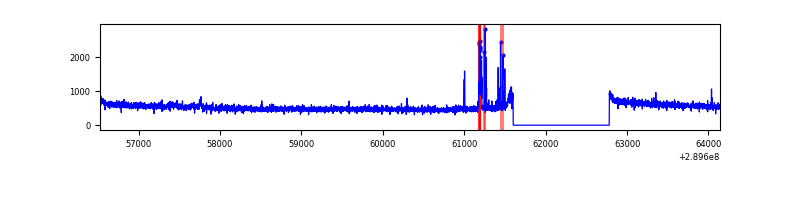

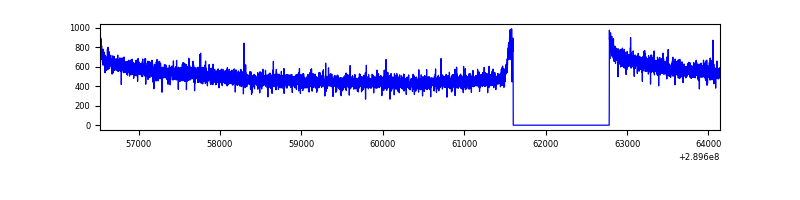

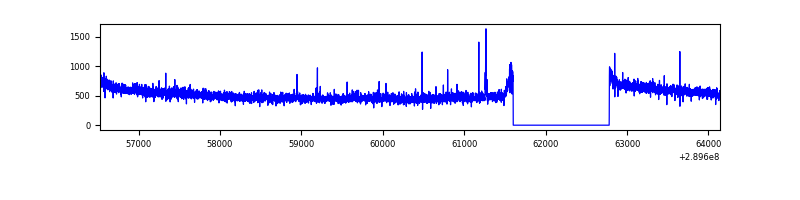

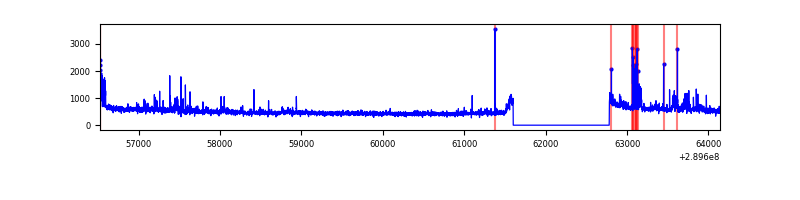

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7615 | 6435 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7615 | 6435 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7615 | 6435 | 11 | 11 | 0.14% | 0.17% |  |
| D | 7615 | 6435 | 15 | 15 | 0.20% | 0.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9937 | 53.55 | 853 | 838 | 169.9 |
| A | 0 | 226 | 7521 | 39.33 | 853 | 838 | 169.9 |
| A | 9 | 143 | 6952 | 35.98 | 853 | 838 | 169.9 |
| B | 0 | 229 | 30240 | 184.03 | 847 | 828 | 159.8 |
| B | 12 | 111 | 18637 | 111.43 | 847 | 828 | 159.8 |
| B | 11 | 111 | 16628 | 98.86 | 847 | 828 | 159.8 |
| C | 14 | 238 | 128633 | 677.14 | 819 | 826 | 188.7 |
| C | 9 | 54 | 95973 | 504.11 | 819 | 826 | 188.7 |
| C | 3 | 233 | 59701 | 311.93 | 819 | 826 | 188.7 |
| D | 7 | 238 | 122813 | 606.29 | 835 | 811 | 201.2 |
| D | 5 | 222 | 107568 | 530.53 | 835 | 811 | 201.2 |
| D | 1 | 52 | 43029 | 209.8 | 835 | 811 | 201.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

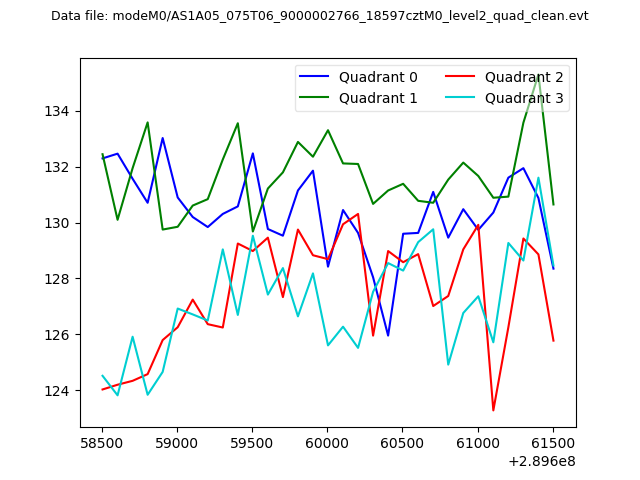

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

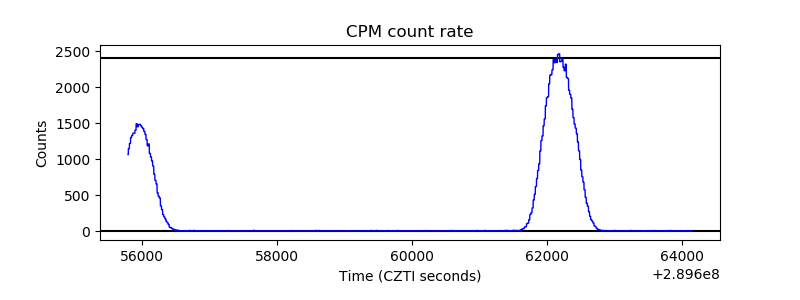

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

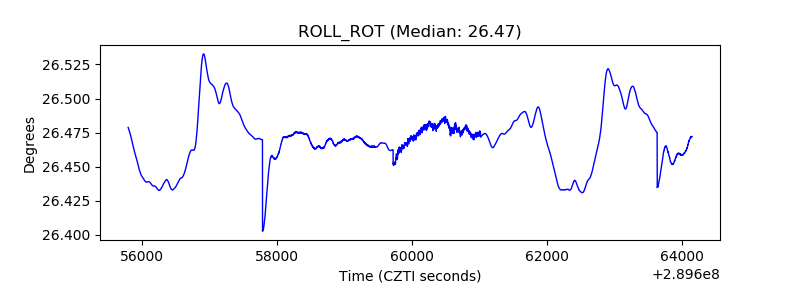

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

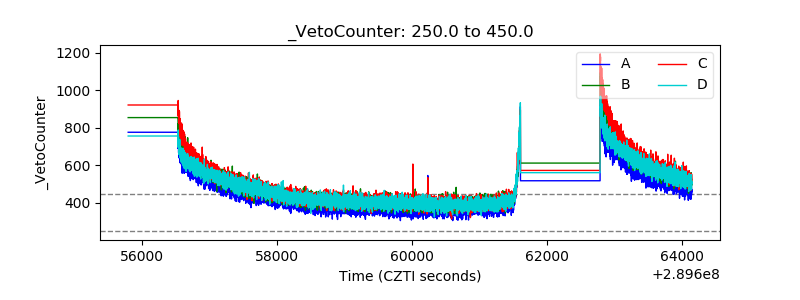

| Veto Counter |  |
