| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_082T10_9000002774_18616cztM0_level2.evt | modeM0/AS1A05_082T10_9000002774_18616cztM0_level2_quad_clean.evt |
| Size (bytes) | 181,008,000 | 35,971,200 |
| Size | 172.6 MB | 34.3 MB |
| Events in quadrant A | 1,285,249 | 230,249 |
| Events in quadrant B | 1,292,919 | 240,041 |
| Events in quadrant C | 1,265,841 | 232,585 |
| Events in quadrant D | 1,484,515 | 225,233 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 46 | 0 |
| B | 0 | 46 | 0 |
| C | 0 | 46 | 0 |
| D | 0 | 46 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5227 | 1 |
| B | 0 | 5232 | 1 |
| C | 0 | 5111 | 1 |
| D | 0 | 5934 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2226 | 86 | 3.863432% |
| B | 2226 | 110 | 4.941599% |
| C | 2227 | 130 | 5.837449% |
| D | 2227 | 88 | 3.951504% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3521 | 2227 | 6 | 6 | 0.17% | 0.27% |  |
| B | 3521 | 2226 | 0 | 0 | 0.00% | 0.00% |  |
| C | 3522 | 2228 | 0 | 0 | 0.00% | 0.00% |  |
| D | 3522 | 2228 | 6 | 6 | 0.17% | 0.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 73903 | 1122.16 | 314 | 307 | 65.6 |
| A | 13 | 254 | 3827 | 53.67 | 314 | 307 | 65.6 |
| A | 0 | 226 | 2717 | 36.75 | 314 | 307 | 65.6 |
| B | 4 | 80 | 18771 | 292.06 | 318 | 310 | 63.2 |
| B | 0 | 230 | 13605 | 210.33 | 318 | 310 | 63.2 |
| B | 12 | 111 | 7243 | 109.68 | 318 | 310 | 63.2 |
| C | 14 | 238 | 48531 | 644.84 | 311 | 313 | 74.8 |
| C | 13 | 61 | 2105 | 23.96 | 311 | 313 | 74.8 |
| C | 3 | 233 | 2016 | 22.77 | 311 | 313 | 74.8 |
| D | 1 | 52 | 196869 | 2540.13 | 314 | 306 | 77.4 |
| D | 5 | 222 | 76676 | 986.91 | 314 | 306 | 77.4 |
| D | 14 | 34 | 14437 | 182.61 | 314 | 306 | 77.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

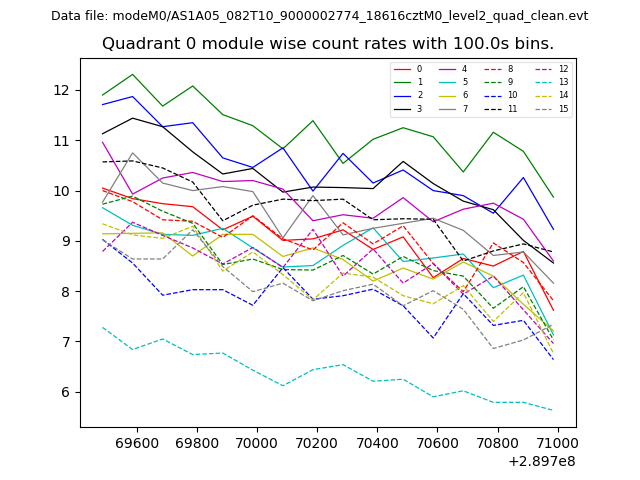

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

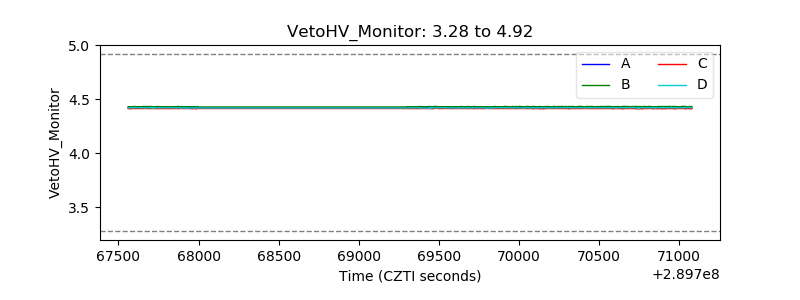

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

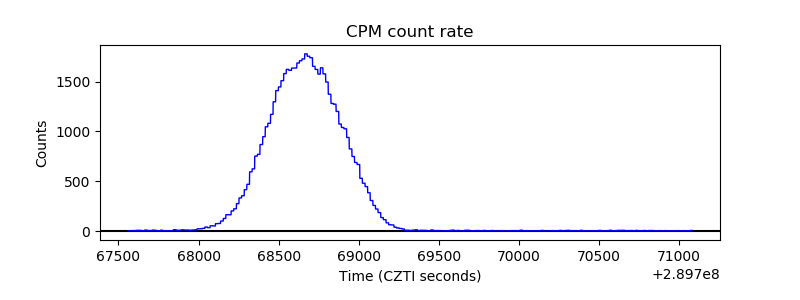

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

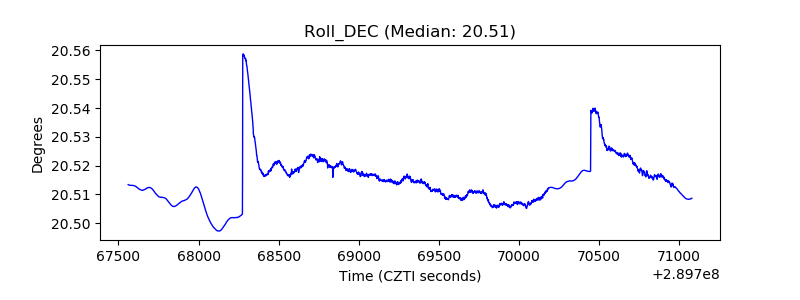

| _Roll_DEC |  |

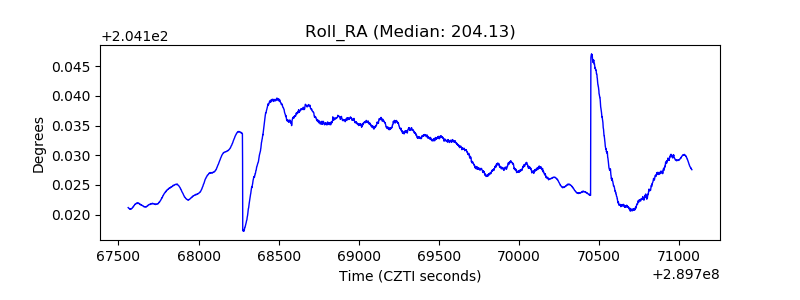

| _Roll_RA |  |
| Veto Counter |  |
