| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_083T01_9000002772_18611cztM0_level2.evt | modeM0/AS1A05_083T01_9000002772_18611cztM0_level2_quad_clean.evt |
| Size (bytes) | 511,067,520 | 70,274,880 |
| Size | 487.4 MB | 67.0 MB |
| Events in quadrant A | 3,977,724 | 413,971 |
| Events in quadrant B | 3,604,387 | 425,191 |
| Events in quadrant C | 3,667,201 | 409,470 |
| Events in quadrant D | 3,765,529 | 404,042 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16181 | 2 |
| B | 0 | 15045 | 2 |
| C | 0 | 15176 | 2 |
| D | 0 | 15751 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6817 | 197 | 2.889834% |
| B | 6818 | 140 | 2.053388% |
| C | 6818 | 167 | 2.449399% |
| D | 6818 | 142 | 2.082722% |

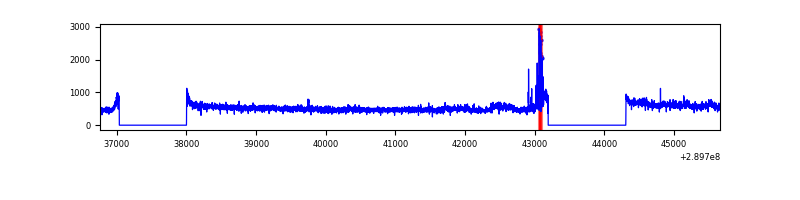

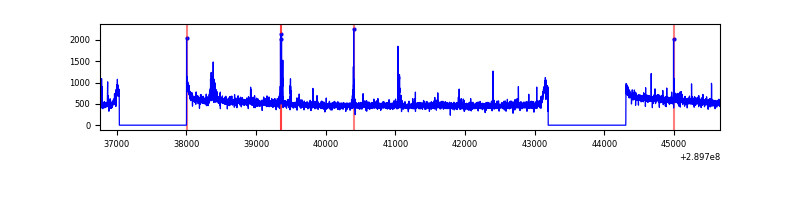

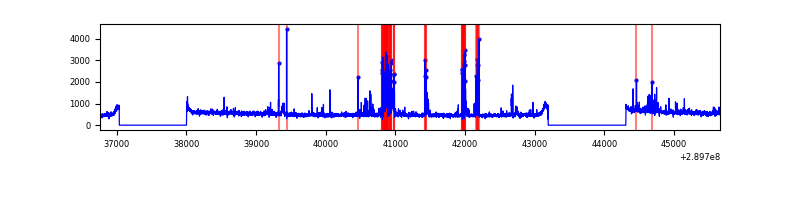

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8897 | 6817 | 69 | 69 | 0.78% | 1.01% |  |
| B | 8898 | 6818 | 5 | 5 | 0.06% | 0.07% |  |
| C | 8898 | 6818 | 8 | 8 | 0.09% | 0.12% |  |
| D | 8898 | 6818 | 31 | 31 | 0.35% | 0.45% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 479731 | 2673.69 | 896 | 875 | 179.1 |
| A | 14 | 111 | 26259 | 141.73 | 896 | 875 | 179.1 |
| A | 9 | 143 | 17628 | 93.54 | 896 | 875 | 179.1 |
| B | 0 | 190 | 39757 | 228.35 | 893 | 871 | 170.3 |
| B | 0 | 230 | 27040 | 153.67 | 893 | 871 | 170.3 |
| B | 12 | 111 | 20385 | 114.59 | 893 | 871 | 170.3 |
| C | 14 | 238 | 134941 | 669.23 | 861 | 868 | 200.3 |
| C | 3 | 233 | 107968 | 534.59 | 861 | 868 | 200.3 |
| C | 9 | 54 | 67496 | 332.57 | 861 | 868 | 200.3 |
| D | 1 | 52 | 246638 | 1155.64 | 877 | 852 | 212.7 |
| D | 5 | 222 | 82337 | 383.13 | 877 | 852 | 212.7 |
| D | 7 | 96 | 42541 | 196.01 | 877 | 852 | 212.7 |

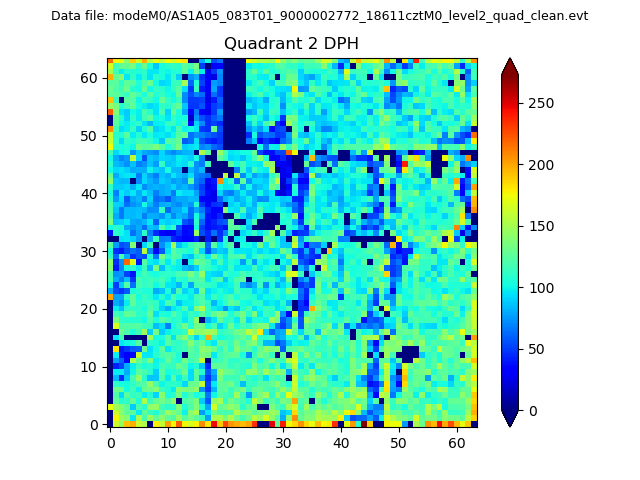

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

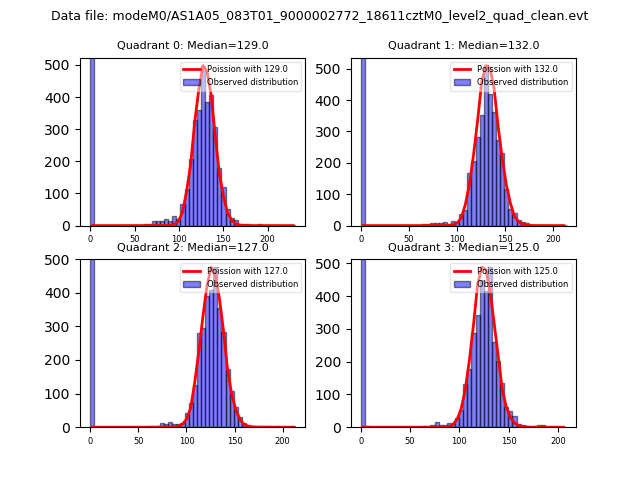

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

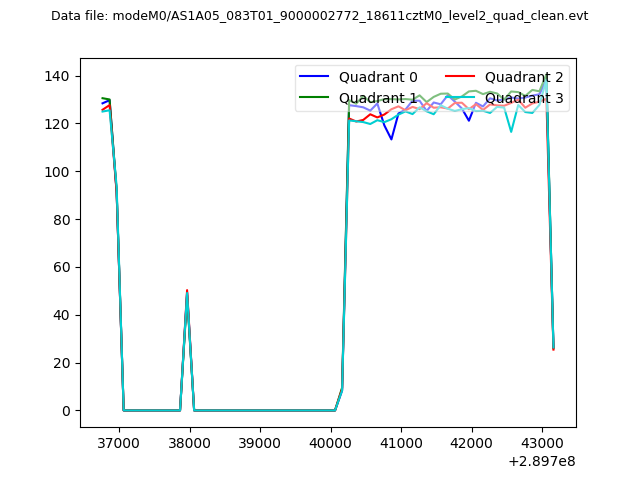

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

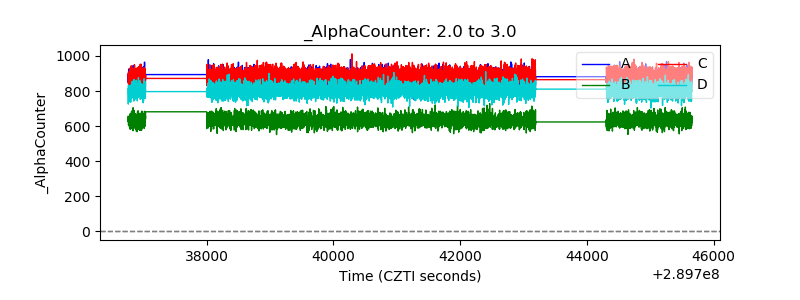

| Alpha Counter |  |
| _CPM_Rate |  |

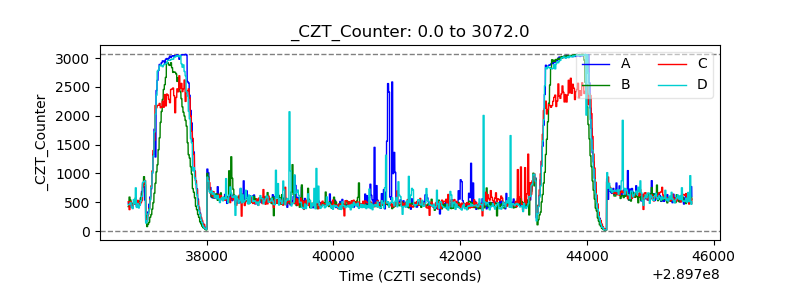

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
